5inch HDMI LCD (H), 800×480

Features

• 800×480 hardware resolution, configurable by software (up to 1920×1080)
• Capacitive touch control
• Supports popular mini PCs such as Raspberry Pi, Jetson Nano, BB Black, Banana Pi, as well as general desktop computers
  • When works with Raspberry Pi, supports Raspbian/Ubuntu/Kali/Retropie/WIN10 IOT, driver free
  • When work as a computer monitor, supports Windows 10/8.1/8/7, five-points touch, and driver free
• Supports popular game consoles like Microsoft XBOX360, Sony PS4, and Nintendo Switch, etc.
• Multi languages OSD menu, for power management, brightness/contrast adjustment, etc.
• 3.5mm audio jack, speaker connector, supports HDMI audio output
• Also supports VGA input (specific cable is required and should be purchased separately)

Using with Game Consoles

Note:

• Limited by the game console OS, the touch function is unavailable.
• Sound support means, it is possible for the game console to output sound signal via LCD embedded speaker, external speaker interface, or earphone jack.

External Dimension

Development Resources

Wiki : www.waveshare.com/wiki/5inch_HDMI_LCD_(H)

PACKAGE CONTENT

Weight: 0.196 kg

1. 5inch HDMI LCD (H) x1
2. HDMI cable x1
3. HDMI to Micro HDMI Adapter x 1
4. USB type A plug to micro B plug cable x1
5. RPi screws pack (4pcs) x1

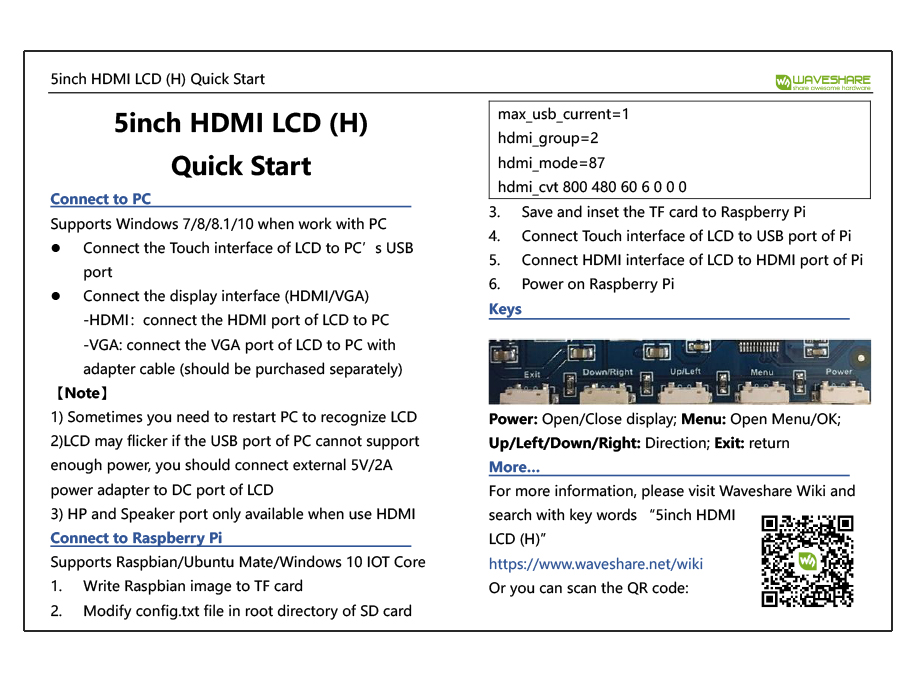

6. Quick start sheet x1
