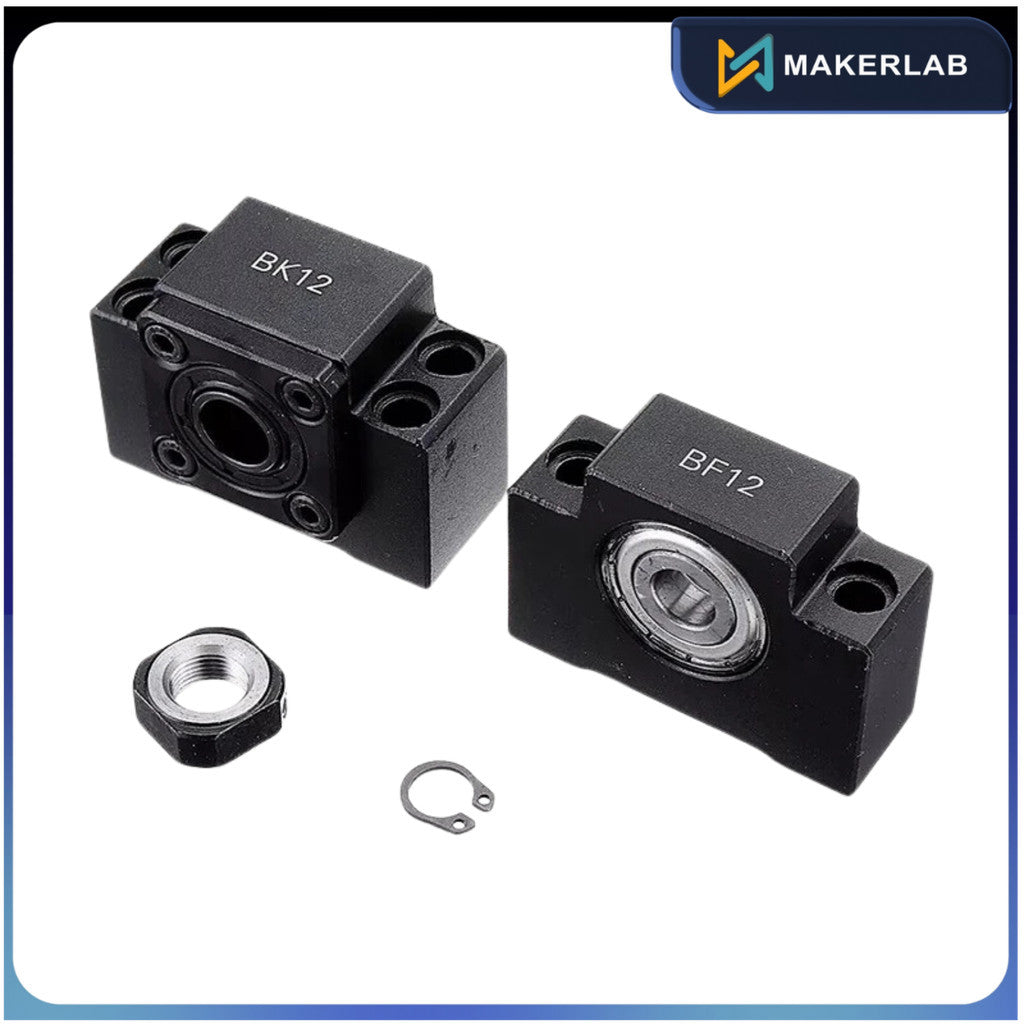

BK12 + BF12 Ball Screw End Support

Features:

• High rigidity, high precision.
• Durable and long service life

Specifications:

BK12 Fixed Side

• Model: BK12
• Material: Carbon Steel
• Size: 60x43x32.5mm
• Color: Black
• Weight: 376g

BF12 Float Side

• Model: BF12
• Material: Carbon Steel
• Size: 60x43x20mm
• Color: Black
• Weight: 266g

Mounting method of ball screw support:

1. fixed to the threaded rod on the fixed side.
2. The fixed side inserted, tightening the lock nut, fixed with the cushion block and the inner six angle bolts.
3. The supporting side bearing is fixed on the threaded rod shaft with a stop ring and is loaded into the bearing block.
