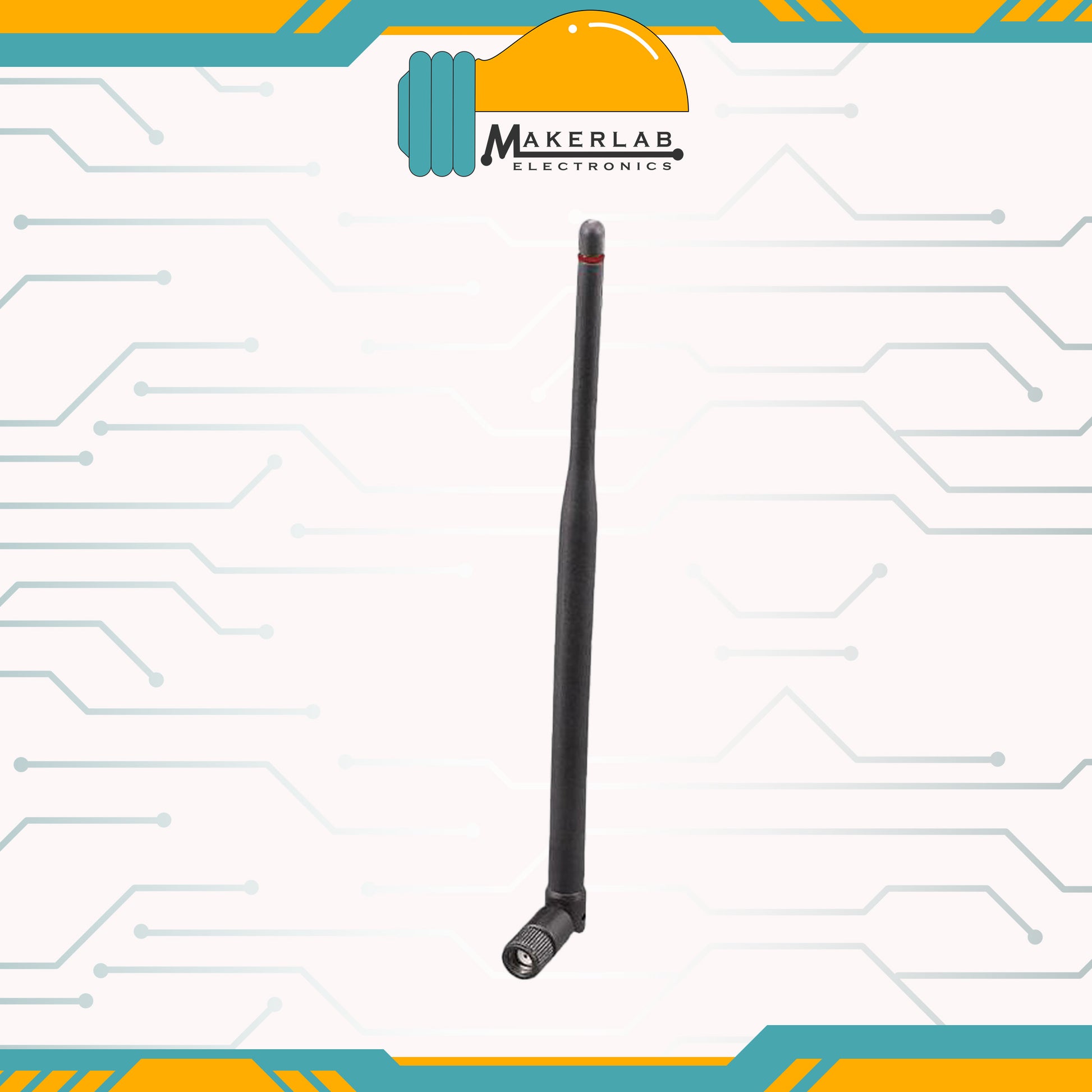

433 MHz tilt/swivel dipole whip antenna RP-SMA plug female socket LPWA applications

Linx Technologies OC Series High Gain Dipole Antennas are ½-wave dipole antennas that provide higher gain than a standard whip antenna for increased range and reliability of wireless links. Using loaded coil technology, the Linx Technologies OC Series High Gain Dipole Antennas minimize the length that would typically be required to achieve omnidirectional gain. Each antenna has an articulating base that allows it to tilt 90° and rotate 360°. They also have internal counterpoise to eliminate external ground plane dependence and maximize performance.

Features:

Minimum Frequency: 430 MHz

Maximum Frequency: 435 MHz

Protocol - WiFi - 802.11: LoRaWAN, WiFi, WLAN

Protocol - Sub GHz: ISM

Mechanical Style: Whip

Style: Tilt / Swivel

Gain: - 3.3 dBi

Impedance: 50 Ohms

VSWR: 2.1 Power Rating: 10 W

Minimum Operating Temperature: - 20 C

Maximum Operating Temperature: + 85 C

Electrical Type: Dipole

Number of Bands: 1 Band

Mounting Style: Panel Mount

Termination Style: Connector

Antenna Connector Type: RP-SMA Plug

Center Frequency: 433 MHz

Length: 193.5 mm

Diameter: 10 mm

Ground Plane Size: 102 mm x 102 mm

Series: OC

Brand: Linx Technologies

Polarization: Linear

Wavelength: 1/2 Wave
