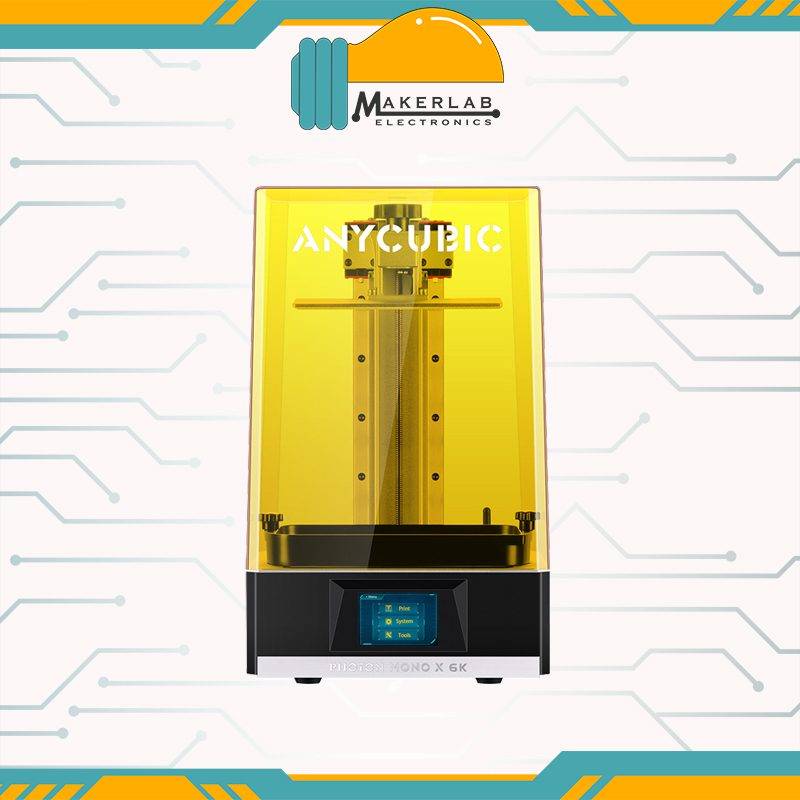

Anycubic Photon Mono X 6K 3D Printer, UV LCD Resin Printer

Anycubic Photon Mono X 6K 3D Printer, UV LCD Resin Printer

Out of stock

SKU:MLE03436

Regular price ₱29,999.75
Regular price Sale price ₱29,999.75
Sale Sold out
View full details
3X Fast Printing: single-layer exposure only takes 1-2 seconds, and the printing speed is Max 60mm/h, which is 3 times faster than ordinary resin printers. Do you want to finish printing faster? This printer help you to obtain higher quality models in a shorter time.
6K Monochrome Screen: ANYCUBIC Photon Mono X is a new UV Photocuring 3D printer with ultra-high resolution (5760 x 3600 pixels), highly restored details, and the screen service life is up to 2000h, more durable than ordinary color screen.
APP Remote Control & Large Printing Volume: Use this Mono X UV Photocuring LCD 3D Printer to realize remote printing management anytime and anywhere, monitor printing progress in real time, and adjust printing parameters at any time. In order to achieve the creation needs of larger models, it has a surprising printing volume, and printing volume size 192 * 120 * 250mm.
Double Linear Guide: Z-axis adopts the combination of double linear guide + screw motor + anti-backlash nut, improve the stability of Z-axis, run more stable, and eliminate printing layer lines. Independently researched and developed Anycubic slicing software, which is more powerful, supports 8 times anti-aliasing and smoother printing accuracy.
New Matrix UV Light Source: Using quartz lamp beads, a new generation of new matrix design, the light source is more uniform, and it can be used with 6K monochrome screen to achieve high-precision printing. The resin 3D printer contains exclusive UV heat dissipation channels, which can efficiently cool down.
Technical Specifications
? Exposure screen: 9.25’’ monochrome
? Printing volume: 199.1 oz. / 1.6 gal. / 5.9 L
? Light transmittance: 6%
? Contrast ratio: 350:1
? Light source: Parallel matrix (LED x 40)
? Power density: 5,000 - 6,500 ?w/cm² / 34,150 - 44,395 lux
? Printing accuracy: 5,760 x 3,600 px (6K)
? Horizontal resolution: 34 ?m
? Printing speed: Max 60mm/h
? Control panel: 3.5’’ TFT touch-control
? Data input: USB-A 2.0 / LAN
? Power supply: 120W
? Screen area: 38.22 in² / 248.75 cm²
? Machine dimensions: 18.7 x 11.4 x 10.6 in. / 47.5 x 29 x 27 cm (HWD)
? Machine weight: 24.3 lb. / 11 kg
