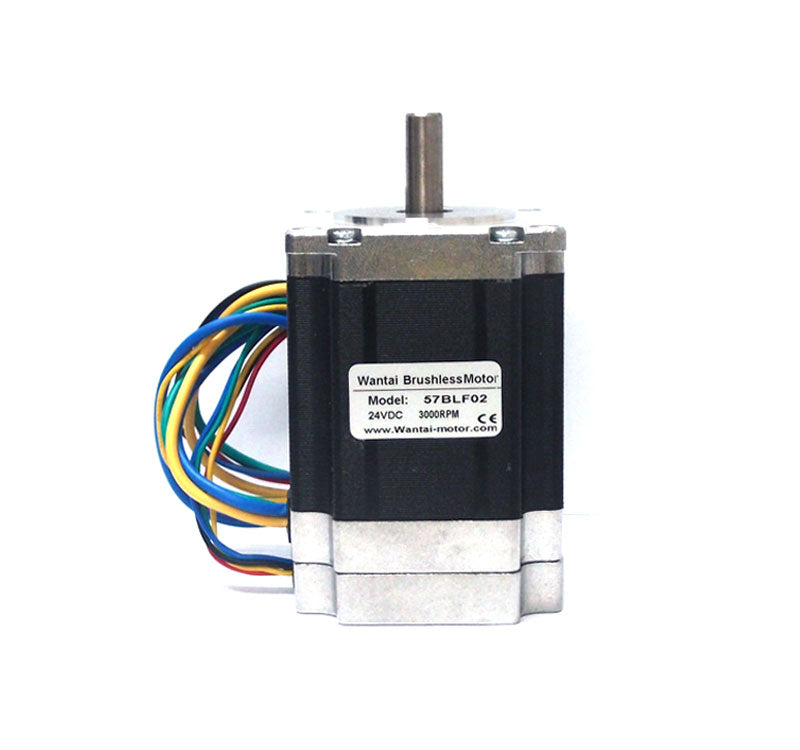

• Brushless DC Motor 24VDC 3000RPM
1 3

Brushless DC Motor 24VDC 3000RPM

Brushless DC Motor 24VDC 3000RPM

Out of stock

MLE00404

₱2,499.75
₱2,499.75
Sale Sold out
View full details

Brushless DC Motor 24VDC 3000RPM

Brushless Motor are typically used on machines requiring precise speed control. Brushless Motor doesn't have brushes inside making it more durable in long term use,

Features:

  • SPWM?Speed/Current alike close loop technology, smooth rotation
  • Smooth torque output within speed range (8000 rpm Max.)
  • 1?75 Max. speed regulation ratio
  • 60°/300°/120°/240°Electrical angle adjustable
  • Speed regulation? potentiometer adjust / Analog input
  • Run/Step, Quick Brake, CW/CCW rotation shift
  • Speed output, Alarm output?O.C.?
  • Over current, over voltage, stall, missing speed Alarm

Technical Specifications:

Number of Poles 8
Number of Phase 3
Rated Voltage VDC 24
Rated Speed RPM 3000
Rated Torque N-m 0.4
Rated Current Amps 7.8
Output Power Watts 125
Peak Torque N-m 1.2
Peak Current Amps 23.5
Rotor Interia g.cm2 170
Torqueconstant N-m/Amps 0.066
Motor Weight 0.92

Wiring Diagram:


Mechanical Dimension

The following diagram shows the stepper motor dimensions in mm.


Applications:

  • Printers
  • CNC machines
  • 3D printer/prototyping machines (e.g. RepRap)
  • Laser cutters
  • Pick and place machines
  • Linear actuators
  • Hard drives
