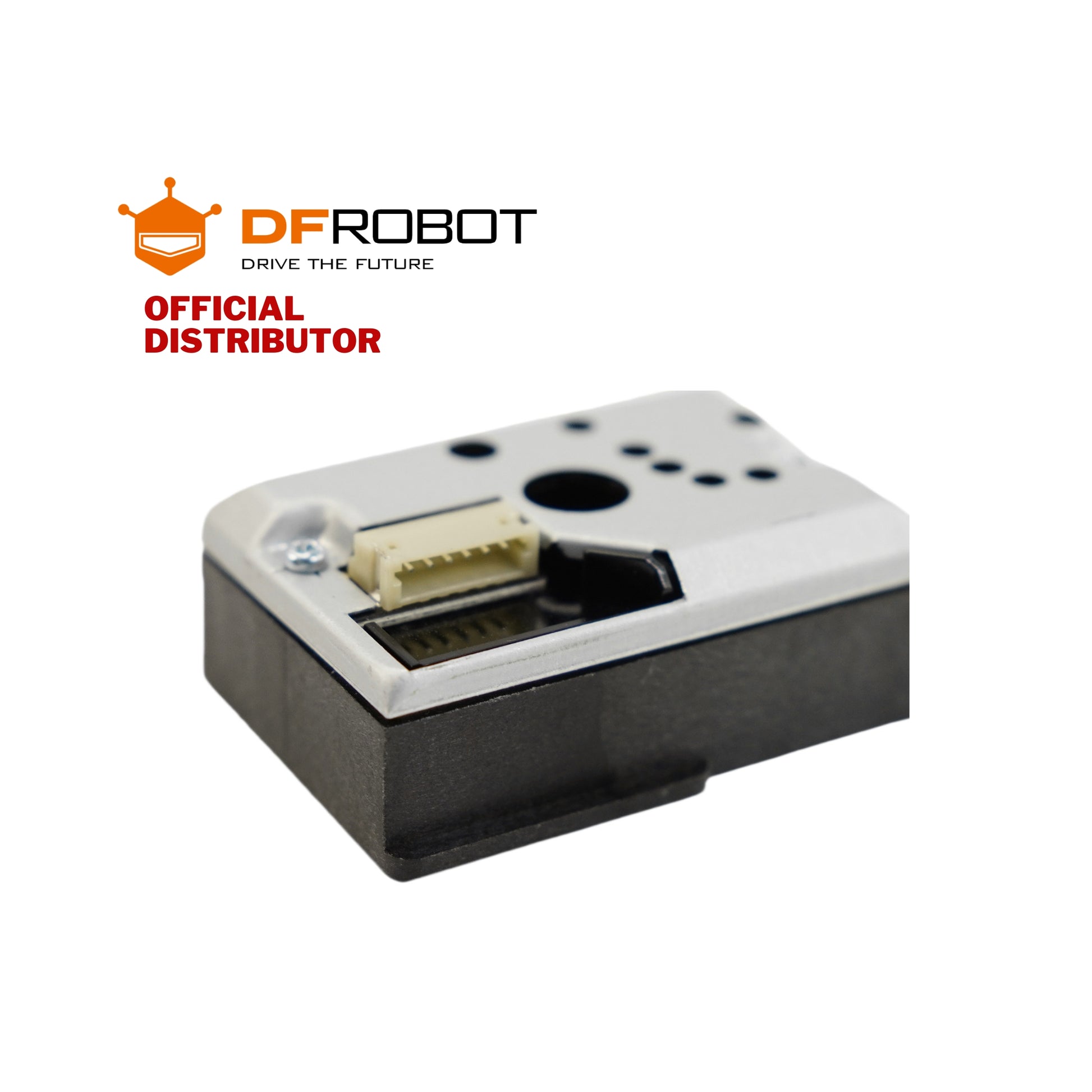

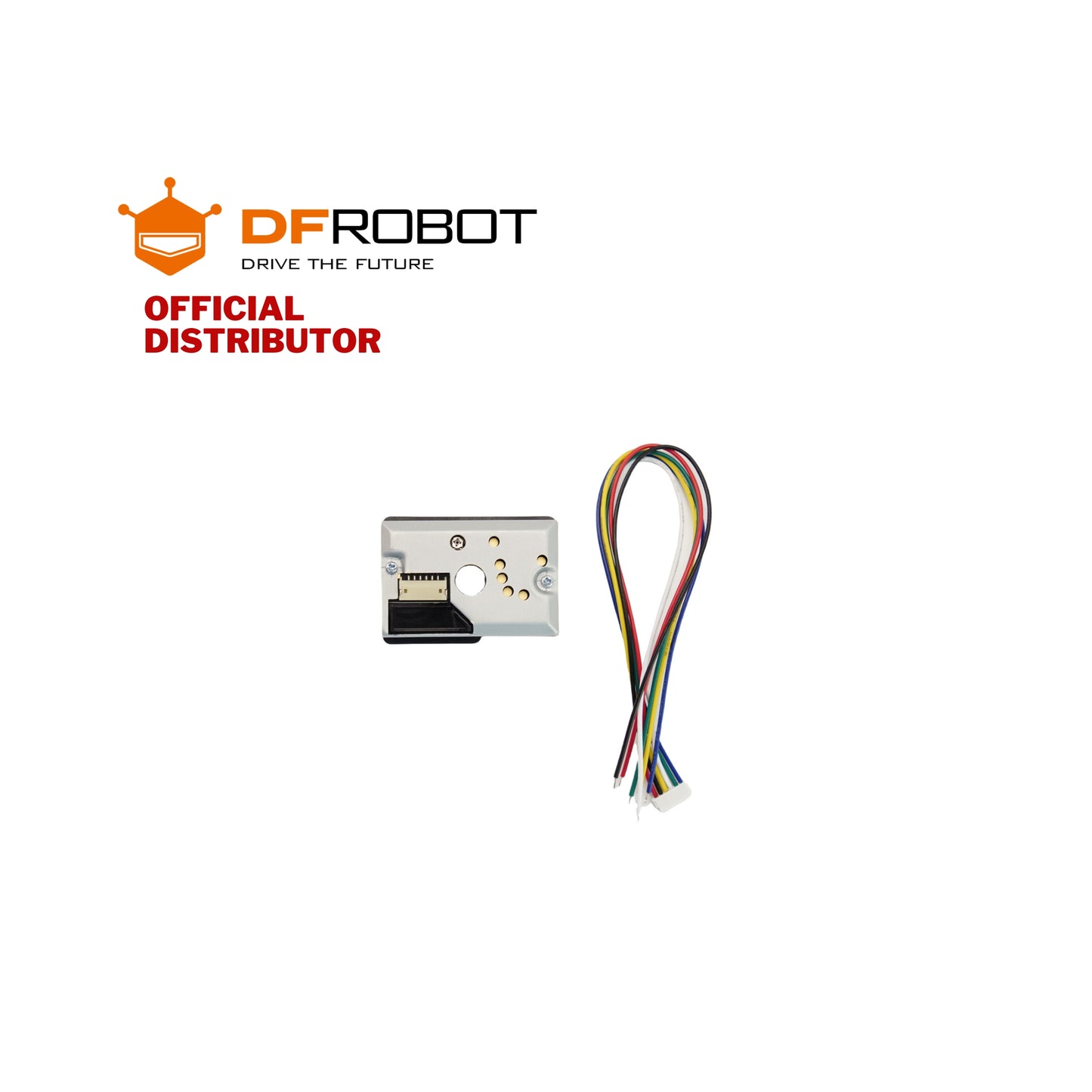

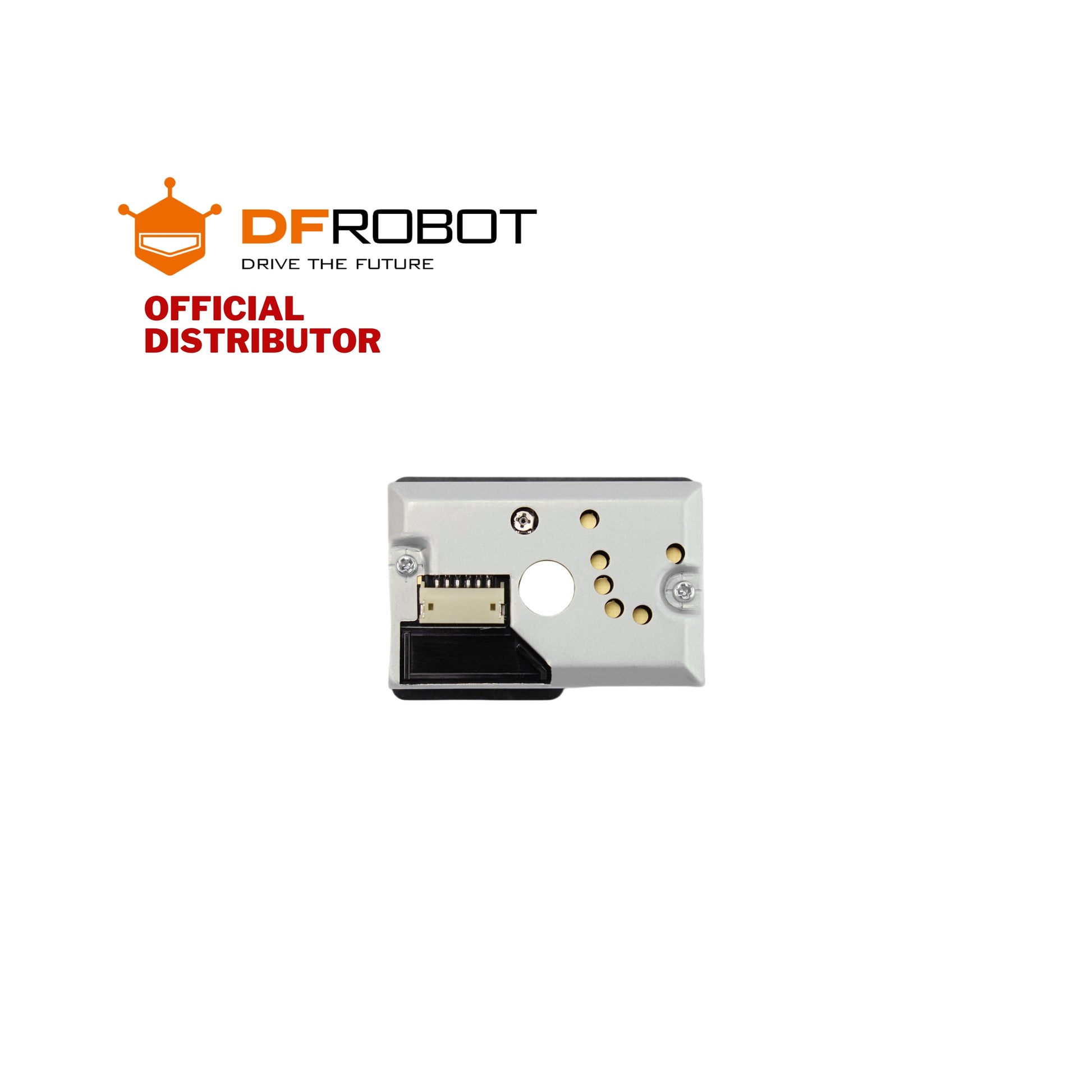

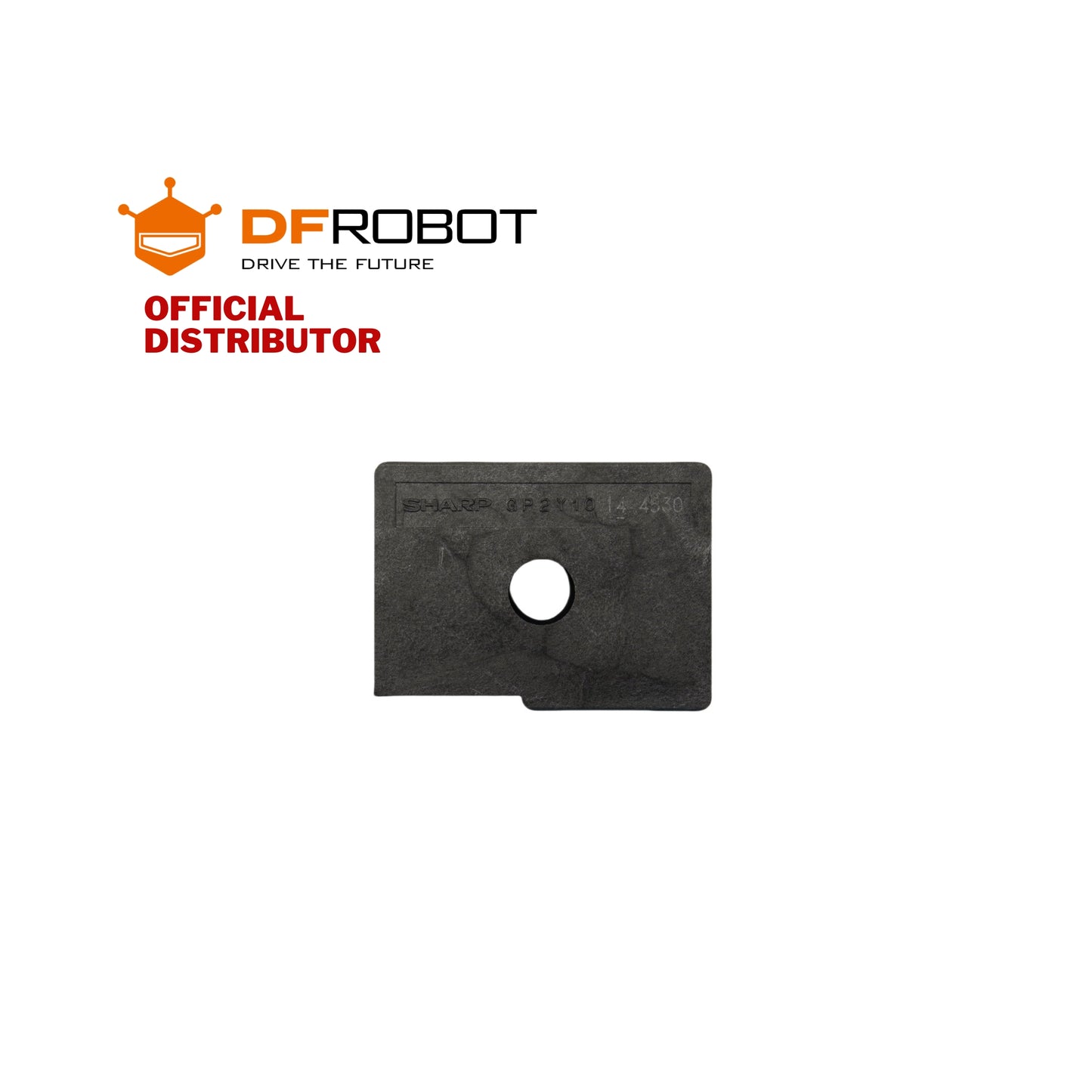

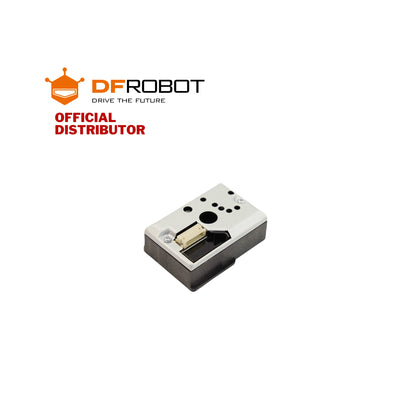

DFRobot Sharp GP2Y1010AU0F Compact optical Dust Sensor | SEN0144
//www.makerlab-electronics.com/cdn/shop/files/MLE00585_medium.jpg?v=1748849305
01:12 PM
Couldn't load pickup availability
Product Description
Description:
The Sharp GP2Y1010AU0F optical dust sensor provides reliable detection of airborne particulates using infrared diode technology - essential for air quality monitoring and purification systems.
Dual-Purpose Smoke & Dust Detection
Infrared optical system distinguishes between smoke particles (0.3-1µm) and larger dust particulates (1-10µm) through unique pulse pattern analysis.
Linear Analog Output
Generates 0.5V per 0.1mg/m³ density change (0-3.5V range) for precise PM2.5/PM10 measurement - compatible with all microcontroller ADCs.
Compact Industrial Design
Rugged 59×45×22mm housing withstands -10°C to 65°C environments while maintaining stable readings in high-humidity conditions.
Low-Power Operation
Consumes only 11mA (20mA max) during continuous monitoring - ideal for battery-powered air quality stations.
Features:
- Pre-calibrated for immediate use
- Standard 3-pin Gravity compatible output
- Compatible with Arduino/Raspberry Pi
- Works with Gravity Dust Sensor Adapter
- Stable performance in 30-90% RH environments
Applications:
- Smart air purifier control systems
- Workplace air quality compliance
- Industrial dust level monitoring
- HVAC filter performance tracking
- School/office environmental dashboards
Specifications:
- Supply Voltage: 5-7V DC
- Current Draw: 11mA typical (20mA max)
- Output Signal: Analog voltage (0-3.5V)
- Sensitivity: 0.5V per 0.1mg/m³
- Detection Range: 0.1-0.5mg/m³ optimal
- Operating Temp: -10°C to +65°C
- Response Time: ＜10ms
- Dimensions: 59×45×22mm
