SKU:MLE04874

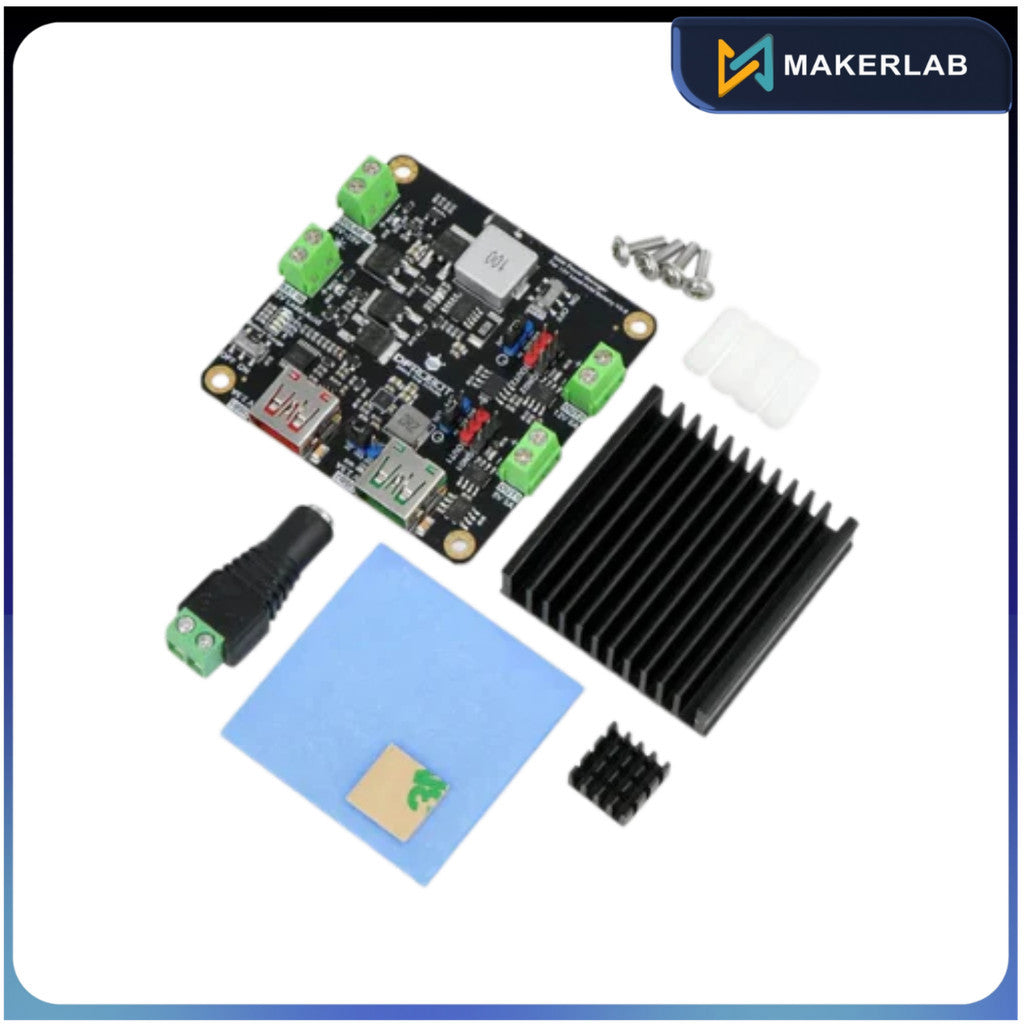

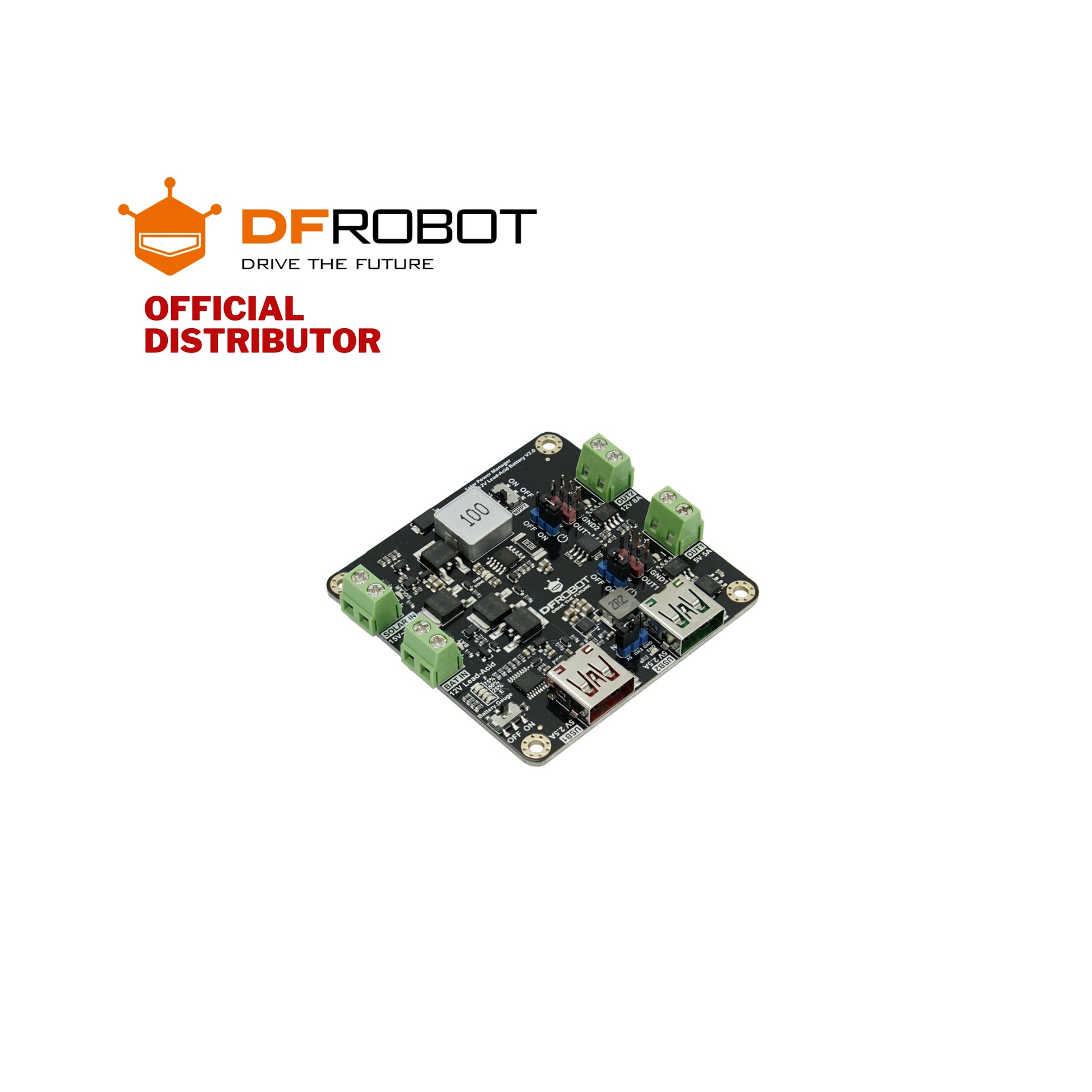

DFRobot Solar Power Manager For 12V Lead-Acid Battery | DFR0580

₱1,849.00 PHP
₱1,849.00 PHP ₱2,314.00 PHP
Sale Sold out
Tax included. Shipping calculated at checkout.
Variation:
Or 3 months for only ₱1,000 with . Learn More.
Only 3 units left

About the Product

Technical Specifications of the Solar Power Management Module

Control Chip: CN3767
Solar Panel Voltage (SOLAR IN): from 15V to 25V
Battery Voltage (BAT IN): 12V lead acid battery
Charging Voltage: four-step up to 4A
Sustaining Voltage: 13,55V
Fixed Charge Voltage: 14,8V
Deep Discharge Protection Limit: 10,8V

Outputs:
OUT1: 5V 5A
OUT2: 12V 8A
USB1: 5V 2.5A
USB2: 5V 2.5A

Average Efficiency:
SOLAR IN (for 18V Panel): 94%
OUT1/USB1/USB2:
•90% for a 10% load
•93% for 50% load
•92% for 90% load
OUT2:
•99% for a 10% load
•98% for load 50%
•97% for 90% load

Module Current Consumption:<4 ma="" li="">

Protections:
SOLAR IN: against reerse current/reverse connection
BAT IN: against deep discharge/overcharge/reverse connection
OUT1-2/USB1-2: short circuit/overvoltage/overheating
Working Temperature: from -40°C to 85°C

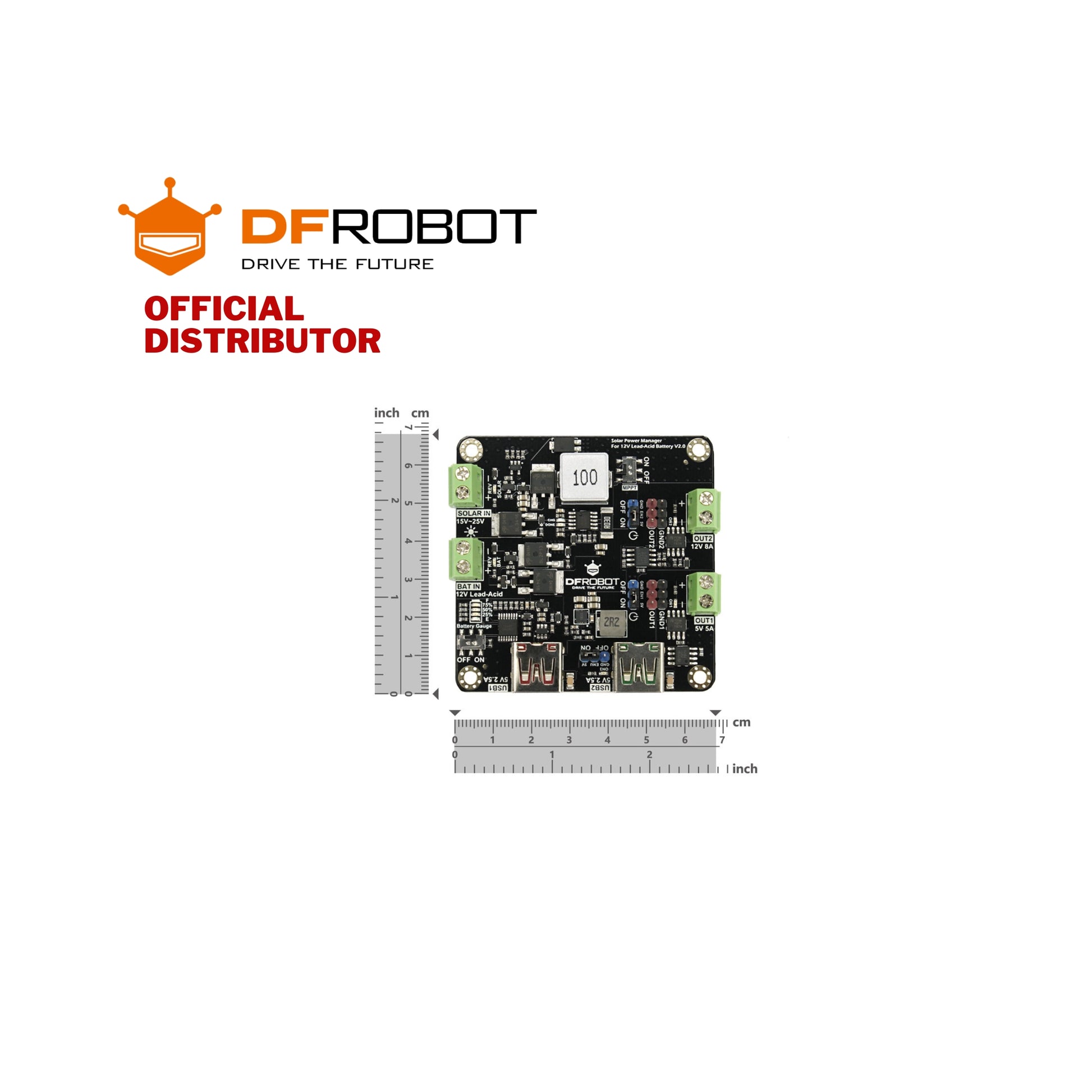

Dimensions(board): 68x68mm
