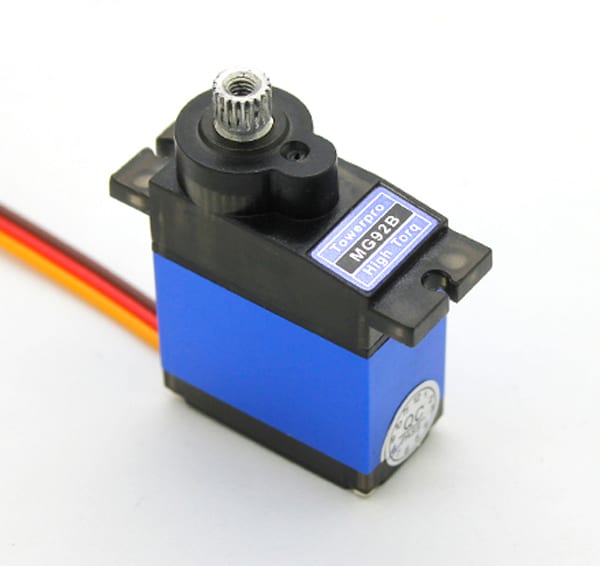

Digital Mini Servo 3.5kg - MG92B

MG92B is a metal gear, digital servo with 3.5kg torque. It has a double ball bearing and alloy case.
It is a great choice for Jet, airplane, helicopter.

Specification:

Manufacturer: TowerPro

Weight: 13.8g
Dimension: 22.8x12x31 mm
Stall torque: 3.1kg/cm (5.0v); 3.5kg/cm (6.0v)
Operating speed: 0.13sec/60degree (5.0v);0.08sec/60degree (6.0v)
Operating voltage: 5.0~6.6v
Gear Type: Metal gear
Bearing: Double ball bearing
Servo case: Middle with alloy case
Temperature range: 0- 55?
Servo case: Middle with alloy case
Servo Plug: JR (Fits JR and Futaba)
Dead band width: 1us
servo wire length: 25cm
servo arms &cscrews included &fit with Futaba & JR servo arm
It’s universal “S” type connector that fits most receivers, including Futaba, JR, Hitec ,GWS, Cirrus, Blue Bird, Blue Arrow, Corona, Berg, Spektrum.

It has an aluminum 6061-T6 servo gear set and shaft which is stronger and lighter than copper.
