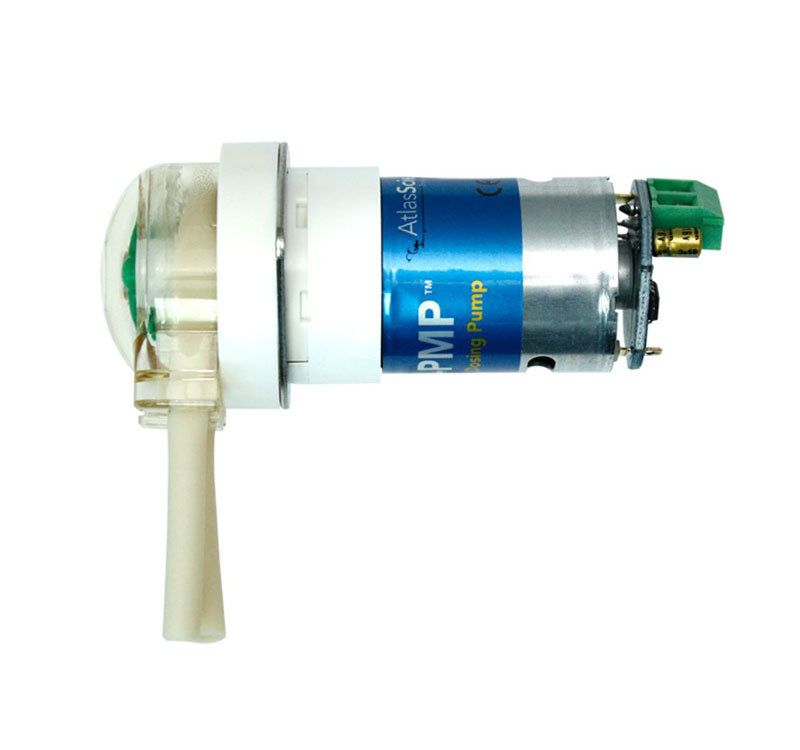

EZO-PMP™ Embedded Dosing Pump

Specification:

• Flow rate: 0.5ml to 105ml/mins
• Accuracy: +/- 1%
• Modes of operation: Continuous dispensing, Volume dispensing, Constant flow rate, Dose over time mode
• Calibration: Single point
• Supplied tubing: 15.24 cm
• Tubing size: Any 5mm O.D. tubing
• Data protocol: UART & I2C
• Default I2C address: 103 (0x67)
• Operating voltage: 3.3V – 5V (logic), 12V – 24V (motor)
• Pump head: 2 meters
• Data format : ASCII

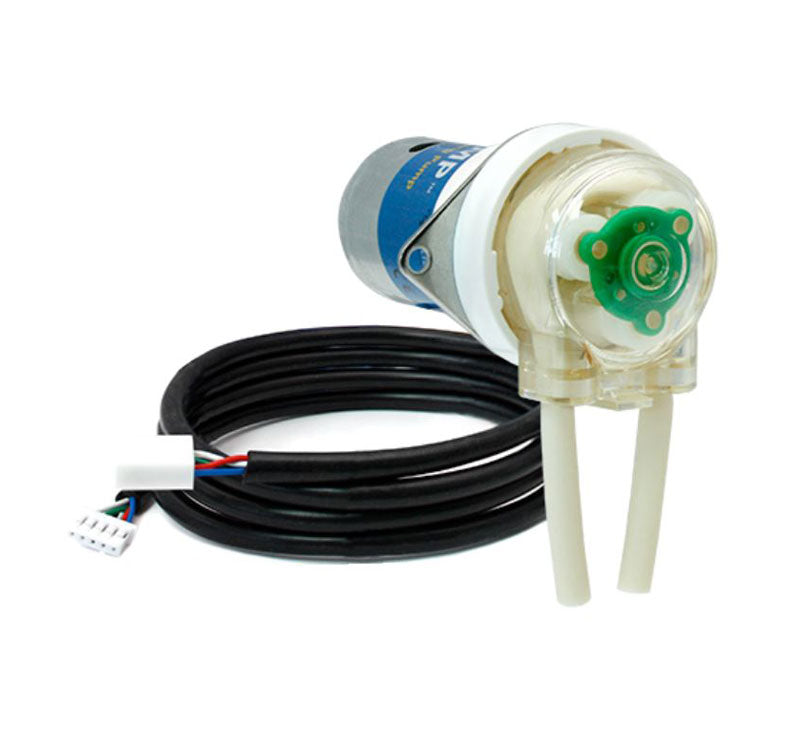

The EZO-PMP™ comes with:
Peristaltic pump with controller and data cable.
