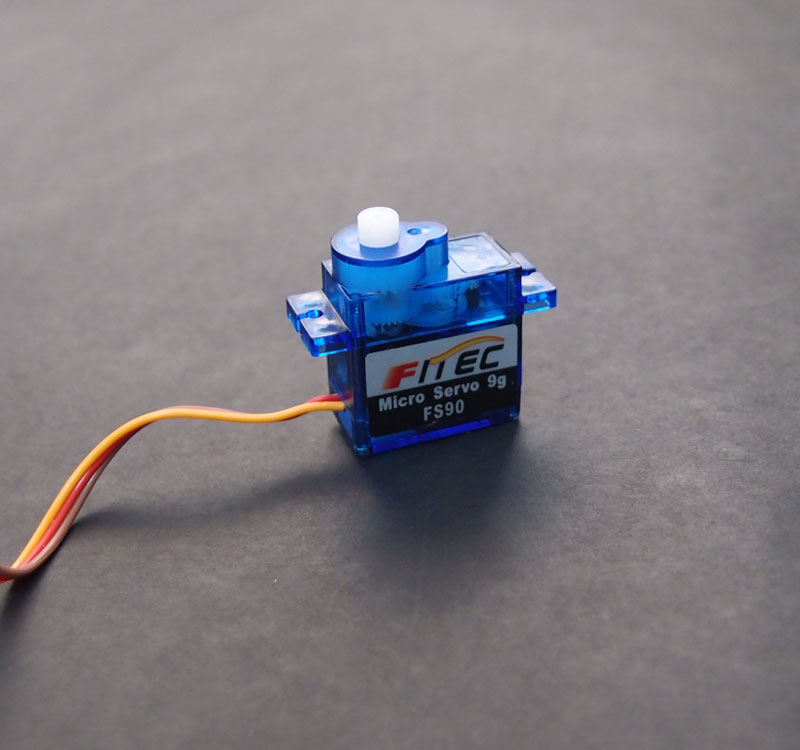

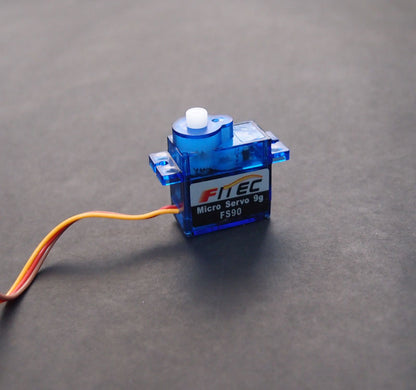

FS90 Micro Servo

The FS90 is a 9 g analog servo from FEETECH (formerly known as Fitec) that offers position control over an approximate 120° operating angle for servo pulses between 900 µs and 2100 µs. As with most servos, the pulse range can be expanded to achieve an expanded operating angle, but the limits of this are not specified by FEETECH.

Specifications:

• Model: FS90
• Operating Speed:
  • 0.12sec/60degree (4.8V)
  • 0.10sec/60degree (6V)
• Stall Torque:
  • 1.3kg.cm/18.09oz.in(4.8V)
  • 1.5kg.cm/20.86oz.in(6V)
• Operating Voltage: 4.8V~6V
• Control System: Analog
• Direction: CCW
• Operating Angle: 120degree
• Required Pulse: 120degree
• Bearing Type: 900us-2100us
• Gear Type: Plastic
• Motor Type: Metal
• Connector Wire Length: 20cm
