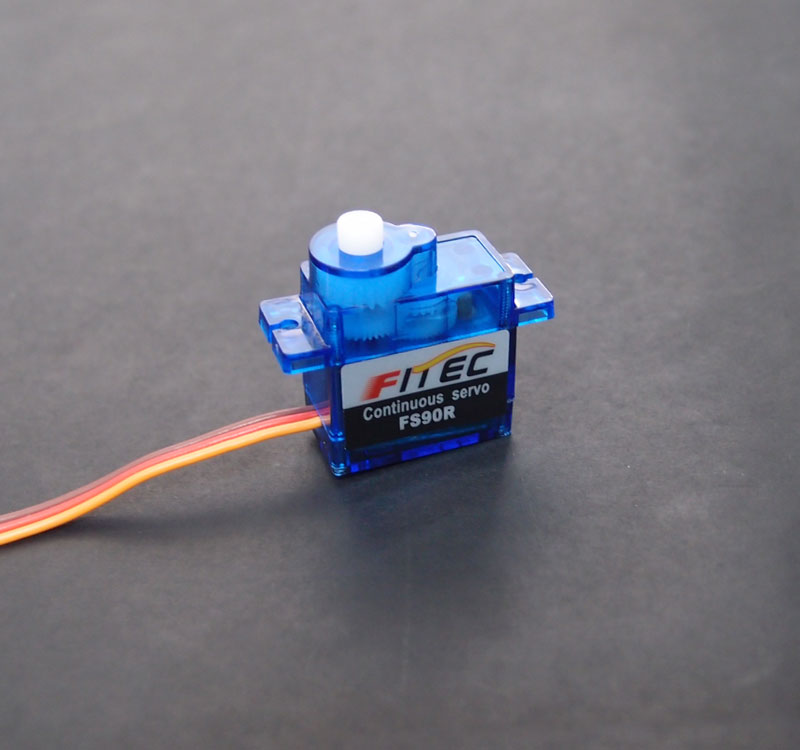

FS90R Micro Continuous Rotation Servo

The FS90R is a micro-sized servo that has been built by FEETECH (formerly known as Fitec) specifically for continuous rotation. At 6 V, it has a maximum rotation speed of around 130 RPM (no-load) and can produce up to 21 oz-in (1.5 kg-cm) of torque. The servo can be controlled using a direct connection to a single microcontroller I/O line without any additional electronics, which makes it a great miniature actuator for beginner robotics projects.

Specifications:

• Model: FS90R
• Operating Speed:
  • 110RPM (4.8V)
  • 130RPM (6V)
• Stall Torque:
  • 1.3kg.cm/18.09oz.in(4.8V)
  • 1.5kg.cm/20.86oz.in(6V)
• Operating Voltage: 4.8V~6V
• Control System: Analog
• Direction: CCW
• Operating Angle: 360 degree
• Required Pulse: 900us-2100us
• Bearing Type: None
• Gear Type: Plastic
• Motor Type: Metal
• Connector Wire Length: 20 cm
