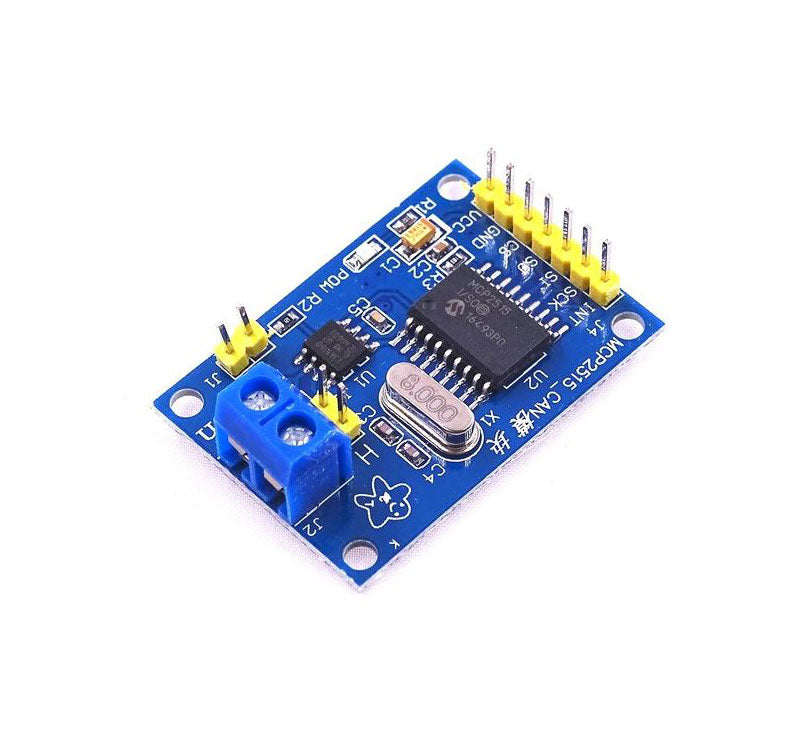

MCP2515 CAN Bus Module TJA1050 Receiver SPI for 51 MCU ARM Controller

The MCP2515 Module adopts CAN controller MCP2515, and TJA1050 high-speed CAN transceiver. Microchip MCP2515 independent CAN protocol controller, support CAN V2.0B regulation. The connection between MCP2515 and MCU is through SPI.

Features:

• Support CAN 2.0B protocol
• Use High-speed CAN transceiver TJA1050
• Dimension: 40×28mm
• SPI control for expand Multi CAN bus interface
• 8MHZ crystal oscillator
• 120? terminal resistance
• Use serial port could view the communication data
• Onboard independent key, LED indicator, Power indicator
• Onboard power pin

Application:

• It is used in CAN based projects.
