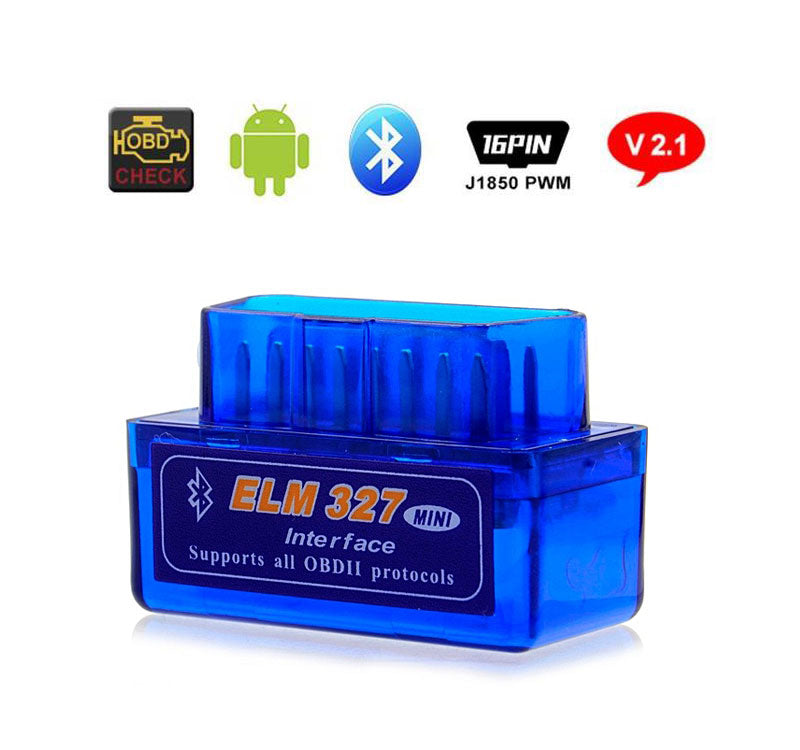

Mini ELM327 Bluetooth OBD2 V2.1 Car Diagnostic Interface Tool

This Mini ELM327 Bluetooth OBD2 V2.1 Car Diagnostic Interface Tool read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database). This can test a lot of trouble of the car and display the current sensor data. It supports all OBD-II protocols, Works with all OBD-II compliant vehicles. The Bluetooth diagnostic scan tool is super mini design for convenient to use.

Display current sensor data, including:

• Engine RPM
• Calculated Load Value
• Coolant Temperature
• Fuel System Status
• Vehicle Speed
• Short Term Fuel Trim
• Long Term Fuel Trim
• Intake Manifold Pressure
• Timing Advance
• Intake Air Temperature
• Air Flow Rate
• Absolute Throttle Position
• Oxygen sensor voltages/associated short term fuel trims
• Fuel System status
• Fuel Pressure

CONVENIENT USE:

1. Plug the device in your car's OBD2 port, turn on your car,
2. Enable Bluetooth on your phone or tablet,
3. Search for "OBDII" and pair with it (pin 1234),
4. Run the download App with simple settings and wait until it connects your car's ECU successfully.

Specifications:

• Model name: ELM327 OBD2 bluetooth
• Type: code readers & scan tools
• Output protocol: bluetooth
• Material : plastic
• Voltage: 12V
• Current: 45mA
• Wave frequency: 38400Hz
• Applicable scope: 5-10m / 16.4-32.8ft
• Item size: 4.8 * 2.5 * 3.4cm / 1.89 * 0.98 * 1.33in

Support OBDII Protocols:

• SAE J1850 PWM (41.6 kbaud)
• SAE J1850 VPW (10.4 kbaud)
• SAE J1939
• J1979

Vehicle Coverage:

Works on almost OBD2 Vehicles (1996 onwards in USA) and EOBD vehicles

Alfa Romeo/ Ad/ Bentley/ BW/ C-adillac/ C-hevrolet/ Chrysl/ Citroen/ Daewoo/ Fiat/ F-ord/ G-M/ Hod/ Hyundai/ Isuzu/ Jaguar/ J-eep/ Kia/ LandRover/ Lexus/ Mazda/ Mercury/ Mini/ N-issan/ Mitsubishi/ Opel/ P-eugeot/ Posch/ Renault/ Rover/ Saab/ Seat/ Skoda/ Toyt/ Vauxhall/ V-olvo/ VW
