MPL115A2 - I2C Barometric Pressure/Temperature Sensor

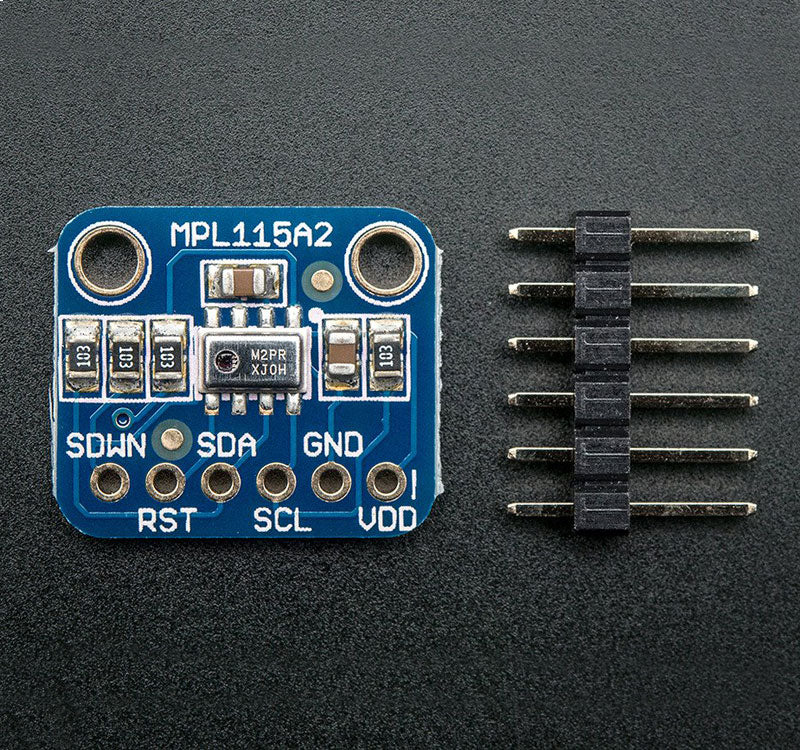

This pressure sensor from Freescale is a great low-cost sensing solution for measuring barometric pressure. At 1.5 hPa resolution, it's not as precise as our favorite pressure sensor, the BMx280 series, which has up to 0.03 hPa resolution so we don't suggest it as a precision altimeter. However, it's great for basic barometric pressure sensing. The sensor is soldered onto a PCB with 10K pull-up resistors on the I2C pins.

This chip is good for use with power and logic voltages ranging from 2.4V to 5.5V so you can use it with your 3V or 5V microcontroller. There's a basic temperature sensor inside but there's no specifications in the datasheet so we're not sure how accurate it is.

Technical Details:

• PCB weight: 0.61g
• Vin: 2.4 to 5.5 VDC
• Logic: 3 to 5V compliant
• Pressure sensing range: 500-1150 hPa (up to 10Km altitude)
• 1.5 hPa / 50 m altitude resolution
• This board/chip uses I2C 7-bit address 0x60
• MPL115A2 Datasheet
• MPL115A2 Arduino library and example code for temperature, pressure and basic altitude calculation
