Nextion NX4024T032 -3.2" HDMI TFT LCD Touch Display

Nextion NX4024T032 -3.2" HDMI TFT LCD Touch Display

Out of stock

SKU:MLE00109

Regular price ₱1,699.75
Regular price Sale price ₱1,699.75
Sale Sold out
View full details

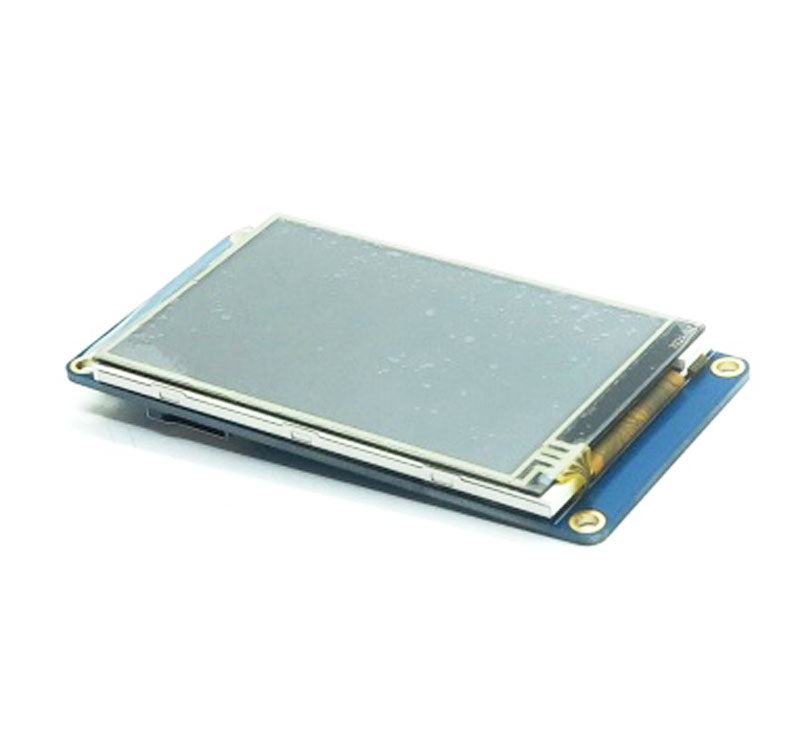

Nextion NX4024T032 -3.2" HDMI TFT LCD Touch Display

Nextion NX4024T032 -3.2" HDMI TFT LCD Touch Display is a powerful 3.2'' HMI, which is member of Nextion family.

Nextion is a Seamless Human Machine Interface (HMI) solution that provides a control and visualisation interface between a human and a process, machine, application or appliance. Nextion is mainly applied to IoT or consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tube.

Features:

  • 400 x 240 Resolution
  • RGB 65K true to life colours
  • TFT Screen with integrated 4-wire Resistive Touch Panel
  • Easy 4 pin interface to any TTL Serial Host
  • 4M Flash memory for User Application Code and Data
  • On board micro-SD card for firmware upgrade
  • Visual Area: 69.60mm(L)×41.76mm(W)
  • Adjustable Brightness:0~230 nit, the interval of adjustment is 1%
  • 5V 85mA power consumption
  • CE/EMC, RoHS certified (certificates)
  • Product Wiki

Note: there's a small power supply test board and a wire for you to test if the electricity supply is enough or not. Please see below image on how to use it.

https://www.youtube.com/watch?v=FMWQ1dXZr2I

Package Includes:

  • Nextion 3.2" HMI TFT LCD Touch Display Module
  • 4 Pin Connection Wire
  • Power Supply Test Board
