• S65 AC Balance Charger / Discharger
1 4

S65 AC Balance Charger / Discharger

S65 AC Balance Charger / Discharger

Out of stock

MLE00962

₱2,349.75
₱2,349.75
Sale Sold out
View full details

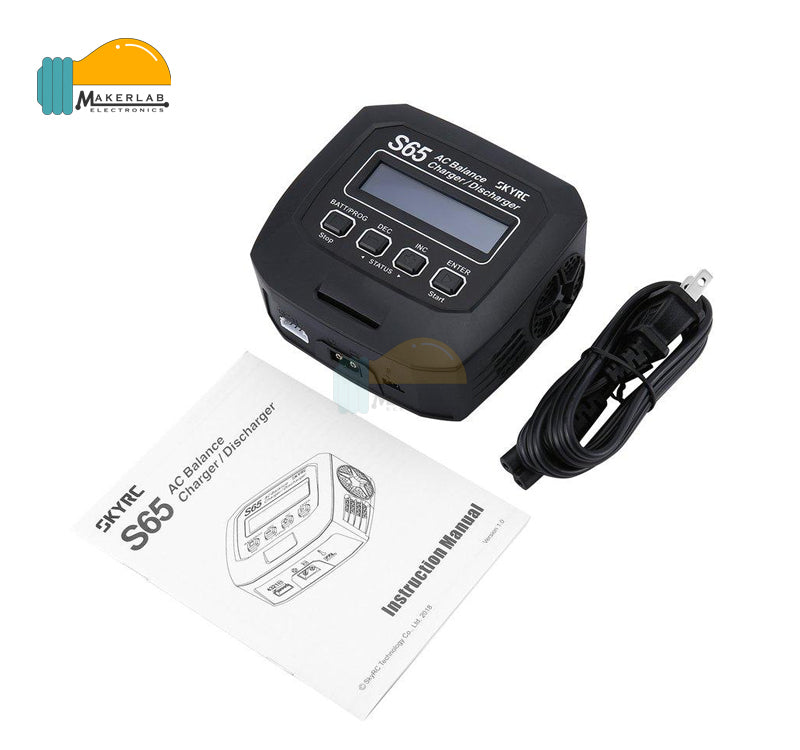

S65 AC Balance Charger / Discharger

SkyRC S65 is an AC input high-performance micro processor control charge/discharge station with battery management suitable for use with all current battery types, LiPo, Lilon, LiFe, NiCd, NiMH, PB and also new generation LiHV with end voltage 4.35V. It is an AC input charger/discharger with compact size. The maximum charging power of S65 is 65W with maximum charging current 6A and discharging current 2A.

Specifications:
  • S65 Charger - This product is suitable for charging and discharging LiFe/ Lilon/ LiPo/ LiHV/ NiMH/ NiCd/ PB batteries. For Pb battery, AGM Charge and Cold Charge mode are available.
  • Size and Weight
    • Case Material: Plastic
    • Case Size: 118*115*45mm
    • Weight: 315g
  • Buttons And Port
  • Power
    • Input Voltage: AC 100-240V
    • Charge Wattage: 65W
    • Discharge Wattage: 10W
  • Battery
    • Battery Types/Cells:
      • LiPo/LiFe/LiIon/LiHV: 2-4 cells
      • NiMH/NiCd: 6-8 cells
      • Pb: 3-6 cells
    • Battery Capacity Range:
      • NiMH/NiCd:100-50000mAh
      • LiPo/LiIon/LiFe/LiHV:100-50000mAh
      • Pb: 100-50000mAh
  • Charge and Discharge
    • Charge Voltage
      • NiMH/NiCd: Delta peak detection
      • LiPo: 4.18-4.25V/cell
      • LiFe: 3.58-3.7V/cell
      • LiIon: 4.08-4.2V/cell
      • LiHV: 4.25-4.35V/cell
    • Discharge Cut-off Voltage
      • NiMH/NiCd:0.1-1.1V/cell
      • LiPo:3.0-3.3V/cell
      • LiFe:2.6-2.9V/cell
      • LiIon: 2.9-3.2V/cell
      • LiHV: 3.1-3.4V/cell
    • Charge Current: 0.1A-6.0A
    • Discharge Current: 0.1A-2.0A
    • Balance Cells: 2-4 cells
    • Balance Current: 300mA/cell Max
    • Safety Timer: 1-720minutes off
    • Charge Method:
      • CC/CV for lithium types and lead(Pb) batteries Delta-peak Sensitivity for NiMH/NiCd.
