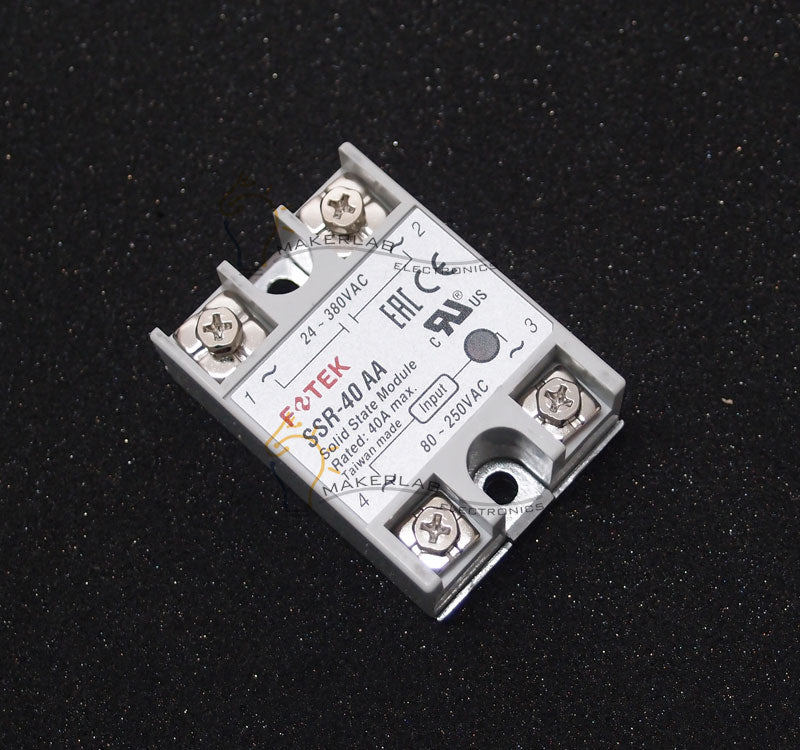

This Solid State Relay SSR-40AA can switch current loads of up to 40A with a 80-250V AC input and a zero cross trigger control method. Each one of these relays is equipped with four screw terminals (for use with ring or fork connectors) and a plastic cover that slides over the top of the relay to protect the terminals.

Feature:

• Long service life and high reliability
• Highly reliable and compact sized
• Designed to offer users maximum simplicity
• Fast switching

Specification:

• Model: SSR-40AA
• Rated Load: 40A
• INPUT DATA:
• Operating Voltage: 80~250VAC 50 / 60Hz
• Min. ON/OFF Voltage: ON?45V , OFF ?35V
• Trigger Current: 5.0mA / 110VAC max.
• Control Method: Zero Cross Trigger
• OUTPUT DATA:
• Operating Voltage: 24~380VAC
• Min. Block Voltage: 600VAC (Repetive)
• Voltage Drop: 1.6V / 25°C
• Max. One Cycle Surge: 410A
• Leakage Current: 3.0mA
• Response Time: ON?20ms , OFF?20ms
• Dielectric Strength: Over 2.5KVAC / 1min.
• Isolation Strength: Over 50M? / 500VDC
• Operating Temperature: -20°C ~ + 80°C
• Housing Material: Intensive ABS
• Weight: Approx. 100 g

Documents:

• Datasheet
