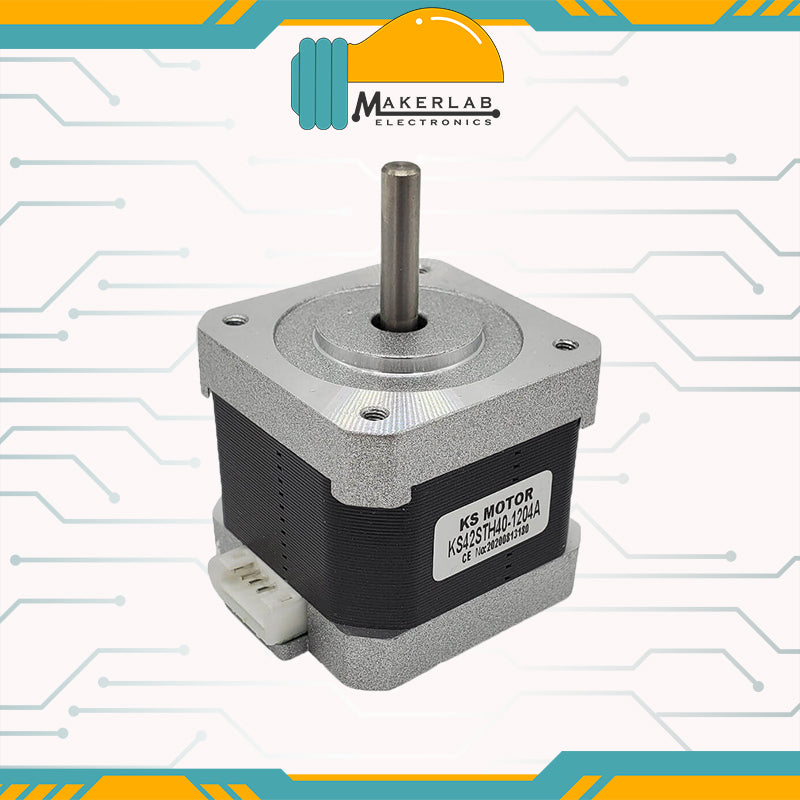

Stepper Motor NEMA-17 KS Motor KS42STH40-1204A | KS42STH48-1684A

Stepper Motor NEMA-17 KS Motor KS42STH40-1204A | KS42STH48-1684A

Out of stock

SKU:MLE03639

Regular price ₱400.00
Regular price Sale price ₱400.00
Sale Sold out
Shipping calculated at checkout.
Or 3 months for only ₱1,000 with . Learn More.
Model
View full details
Product details of Stepper Motor NEMA-17 KS Motor KS42STH40-1204A | KS42STH48-1684A
The KS42STH40-1204A is a high quality 1.A NEMA-17 precision stepper motor that is commonly used in 3D printers, CNC machines and other applications that require precise control.

Key Features:
4-wire bipolar operation
Compatible with NEMA17 standard
Dimensions: 42x42x40mm
Motor shaft diameter: 5mm
Step Angle: 1.8 degrees
Step count per revolution: 200
Standard Voltage: 2V
Phase Current:1.2A
Phase Resistance: 1.7ohm
Holding Torque: 4N.m
Weight: 290g

Technical Specifications:
Model: KS42STH40-1204A
Standard Compatibility: NEMA17
Phase Number: 2 (bipolar)
Standard Voltage: 2.0VDC
Current per phase: 1.2A
Phase Resistance 1.7ohms
Holding torque: 0.4N.m (minimum)
Step Angle: 1.8°
Step Count (per 360 rotation): 200

The KS42STH48-1684A is a high quality 1.A NEMA-17 precision stepper motor that is commonly used in 3D printers, CNC machines and other applications that require precise control.

Specifications:

Standard: NEMA17
Model: KS42STH48-1684A
Dimensions:42mm x 42mm x 48mm (LxWxH)
Step Angle: 1.8°
Rated Current: 1.68A
Resistance:1.65Ω
Holding Torque: ≥0.5Nm
Maximum Temperature: 80°
Ambient Temperature Range: -20 ~ +50°C
Insulation Resistance: 100M - Min. 500V DC
Dielectric Strength: 500V AC for 1 minute
Weight: 349g
