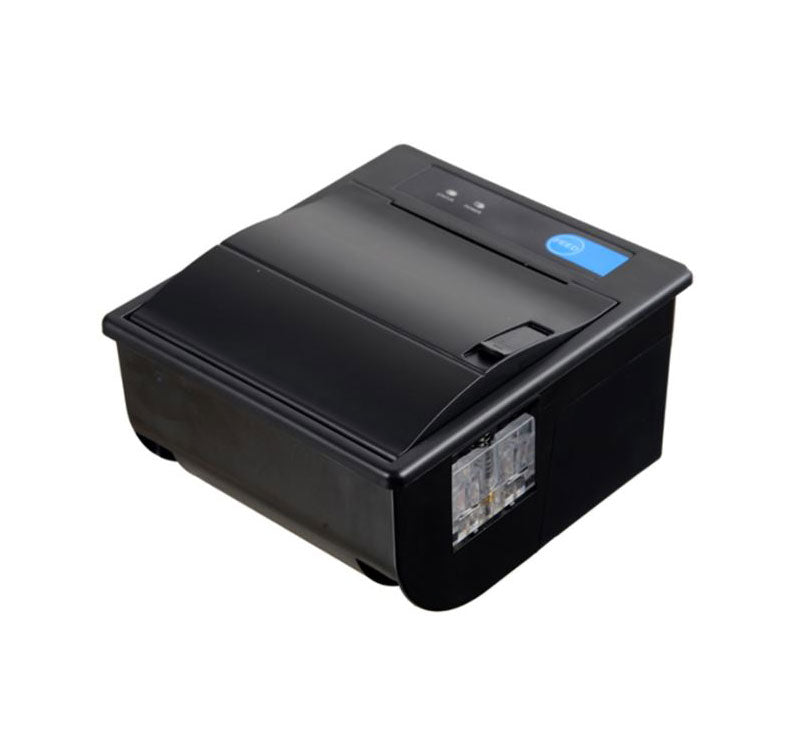

Thermal Printer with Auto Cut Function EP-260C-C

Add a mini printer to any microcontroller project with this very cute thermal printer. Thermal printers are also known as receipt printers, they're what you get when you go to the ATM or grocery store. Now you can embed a little printer of your own into an enclosure. This printer is ideal for interfacing with a microcontroller, you simply need a 5V-9V/12V/24V TTL/USB/RS232 output from your microcontroller to print text, barcodes, bitmap graphics, even a QR code!

Specification:

• Print Printing Method: Thermal Line
• Printing Speed: 100-150 mm /s
• Resolution: 8 dots / mm, 384 dots/line
• Effective Printing Width: 48 mm
• Character Character Set: ASCII, GB3212-80(Chinese)
• Print Front: ANK:(8x16,9x17,9x24,12x24),
• Paper Spec
• Paper Type: Thermal Printer
• Paper Width: 57.5-+ 0.5 mm
• Paper Roll Diameter Max: 60 mm
• Reliability
• MCBF: 100 km or more
• Interface: Serial(RS232/TTL)+USB
• Power Supply(Adapter): DC5V-9V/24V
• Physical Outline Dimension (WxDxH): 102 x 66 x 117 mm
• Installation Port Size: 96 x 111 x 56 mm
• Color: Black

Feature:

• 58mm micro panel mounting usb thermal receipt printer
• Smart appearance ,Easy paper loading
• Low noise thermal printing
• Different interfaces optional
• Front panel make paper replacement easily
• Easily embedded to any kinds of instruments and meters
