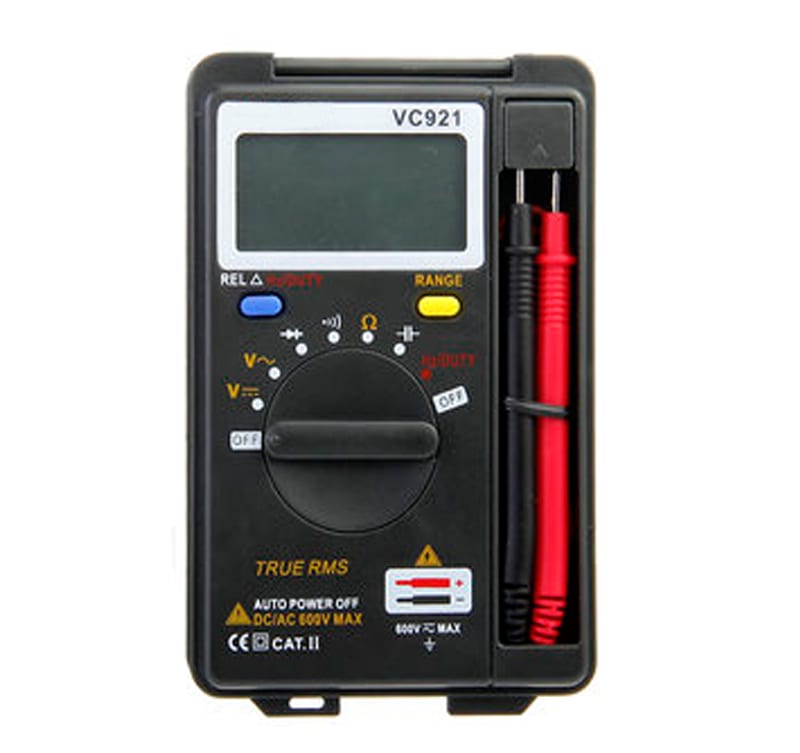

VICTOR VC921 Pocket Multimeter

The VICTOR VC921 Pocket Multimeter is a pocket size multimeter ideal for use when you're outside your lab as it will probably fit nicely on your front pocket. this meter can measure DC and AC voltage, resistance, diode, and beeping continuity test, capacitance, and frequency.

And that's not all! It's also auto-ranging, has a data-hold button and turns itself off automatically after about 15 minutes to preserve the battery life.

Our favorite part is the nice hard-shell case which will protect the meter and will remind you to turn it off (it won't close properly if the switch isn't in the off position) and a smart cord-wrapping area to keep the leads from unwrapping and poking holes in stuff. Runs on two AAA batteries that are included! This is a really nice pocket multimeter!

Technical Details:

• Dimensions: 121mm x 80mm x 20mm / 4.8" x 3.1" x 0.8"
• Cables are each 390mm / 15.4"
• Weight: 133 grams
• CE category Cat II 300V
• Measures 3 times per second
• Operating Temperatures: 0°lC-40°C
• Max display: 3999
• Auto-range
• Diode Test
• Continuity with Beep
• Data Hold
• Symbol Display
• Auto Off
• Low Battery Indicator

DC Voltage:

• 400mV / 4V / 40V / 400V / 600V
• Accuracy: ± (0.8% + 5)

AC voltage:

• 400mV / 4V / 40V / 400V / 600V
• Accuracy: ± (1.2% + 5)

Resistance:

• 400? / 4k? / 40k? / 400k? / 4M? / 40M?
• Accuracy: ± (0.8% + 5)

Capacitance:

• 40nF / 400nF / 4uF / 400uF
• Accuracy: ± (2.5% + 10)

Frequency:

• 100Hz / 1kHz / 10kHz / 100kHz / 1MHz / 10MHz
• Accuracy: ± (0.5% + 4)

Input impedance: 10M?
