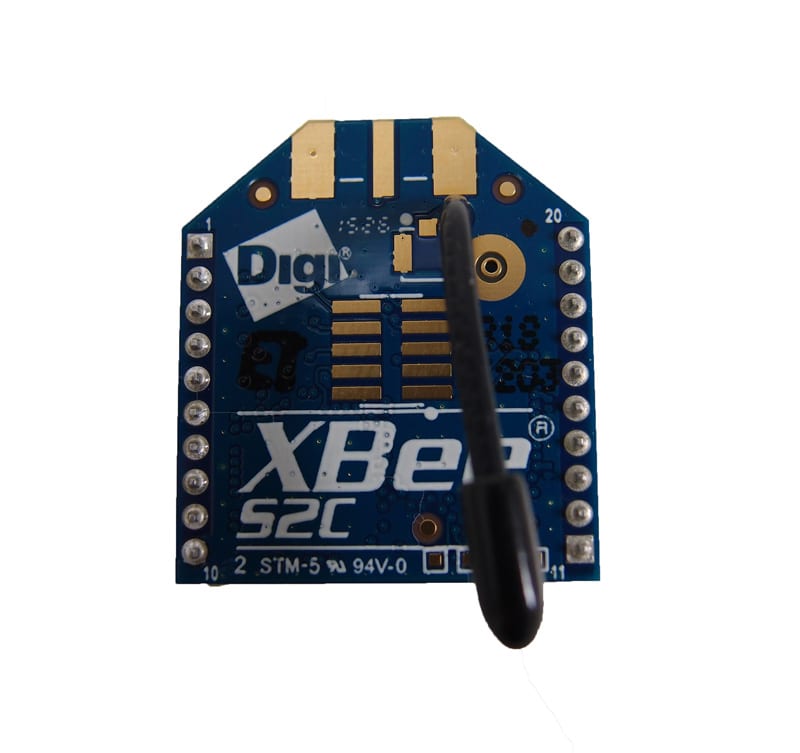

XBee 3mW Wire Antenna Series 2C

This is the XBee 3mW Wire Antenna Series 2C module from Digi. Series 2C improves on the power output and data protocol.

These modules allow a very reliable and simple communication between microcontrollers, computers, systems, really anything with a serial port! The modules also support both Point to point and multi-point networks.

Note: XBee S2C variants can function on 802.15.4(Proprietary), Digi Mesh, and ZigBee Mesh Protocol, you will need to load the appropriate firmware using XCTU.

Note: Series 1 and Series 2 XBee modules have the same pin-out. However, the Series 1 modules cannot communicate with Series 2 modules.

Features:

• 3.3V @ 33mA
• RF 250 Kbps, Serial up to 1 Mbps Data Rate
• 3.1mW output ( +5 dBm)
• 200 ft (60 m) Indoor Range/Urban Range
• 4000 ft (1200 m) Outdoor/Line of Sight Range
• Built-in antenna
• Fully FCC certified
• 4 10-bit ADC inputs
• 15 digital IO pins
• 128-bit encryption
• Local or over-air configuration
• AT or API command set

Documents:

• S2C Migration
• Datasheet
• Dimensional Drawings
• Digi Examples and Guides
• X-CTU Software
