XBee Pro S2C Wire Antenna

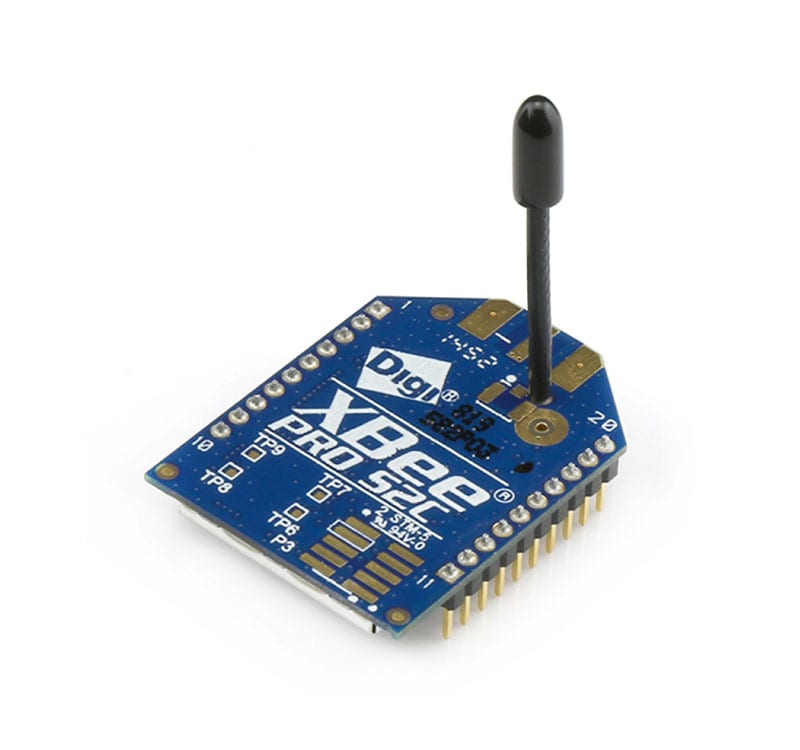

This is the XBee Pro S2C with Wire Antenna XBP24CZ7WIT-004 module from Digi. The new Series 2C improves upon the power output and data protocol of the Pro Series2. Series 2C modules allow you to create complex mesh networks based on the Xbee ZB Zigbee mesh firmware. These modules allow a very reliable and simple communication between microcontrollers, computers, systems, really anything with a serial port! Point to point and multi-point networks are supported.

Note: If you are looking for a simple point-to-point configuration, you might want to try the Series 1 instead. The Series 2 requires considerable setup and configuration.

Note: Series 1 and Series 2B Xbee modules have the same pin-out. However, Series 1 modules cannot communicate with Series 2B modules.

Specifications:

• Model: XBP24CZWIT-004
• Supply Voltage: 2.7V - 3.6V
• Operating Current (Transmit): 120mA@3.3V, +18dBm
• Operating Current (Receive): 31mA
• Indoor/Urban Range: Up to 300 ft. (90m)
• Outdoor RF line-of-sight Range: Up to 2 miles (3200 m)
• Transmit Power Output (maximum): 63mW(+18dBm)
• Receiver Sensitivity: -101dBm
• RF Data Rate: 200,000b/s
• Operating Temperature: -40 to 85°C (industrial)
• UART: 1 Mb/s maximum (burst)
• SPI: 5 Mb/s maximum (burst)
• Wire Antenna

Documents:

• Digi Xbee Pro Series 2C Web Page
• Digi Xbee Pro S2C User Guide
• XCTU Software
