Product Description

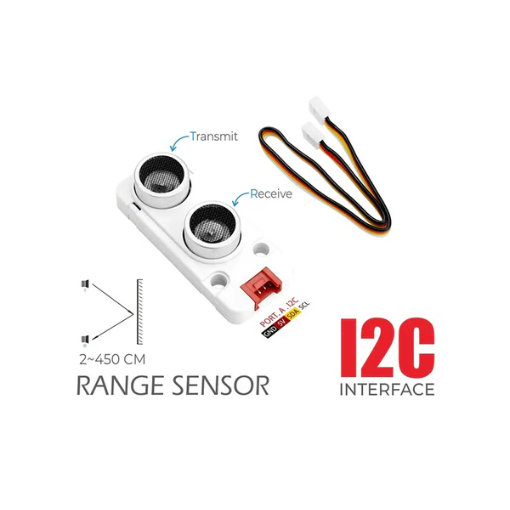

UNIT SONIC I2C is an I2C interface ultrasonic distance sensor. This allows for easy I2C integration and multi-sensor operation using a single BUS, to save I/O resources. The module features an RCWL-9620 ultrasonic distance measurement chip with a 16mm probe, which the ranging accuracy can reach 2cm-450cm (accuracy up to ±2%). It is ideal to apply in robotics obstacle avoidance, fluid level detection, and other applications that require you to perform measurements.
Product Features
Specifications
Specifications
UNIT SONIC I2C is an I2C interface ultrasonic distance sensor. This allows for easy I2C integration and multi-sensor operation using a single BUS, to save I/O resources. The module features an RCWL-9620 ultrasonic distance measurement chip with a 16mm probe, which the ranging accuracy can reach 2cm-450cm (accuracy up to ±2%). It is ideal to apply in robotics obstacle avoidance, fluid level detection, and other applications that require you to perform measurements.
Product Features
- RCWL-9620 Chip
- I2C communication interface (addr: 0x57)
- Measuring range: 2cm-450cm
- Protective housing
- Built-in temperature compensation, reduce the temperature drift
- Support UIFlow platform
Specifications
- Ultrasonic Ranging Single Chip RCWL-9620
- Range 2cm-450cm
- Probe Specifications 16mm
- Receiving/Transmitting Frequency 40KHz
- Receiving sensitivity -65dB
- Pointing angle 60°
- Measurement accuracy ±2%
- Measurement period 50ms
- Working current 2mA
- Net weight 10g
- Gross weight 25g
- Product size 56 * 24 * 15mm
- Packing size 76 * 47 * 29mm
Description

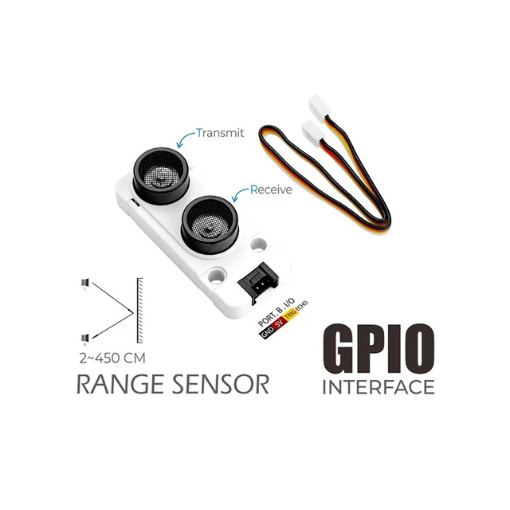

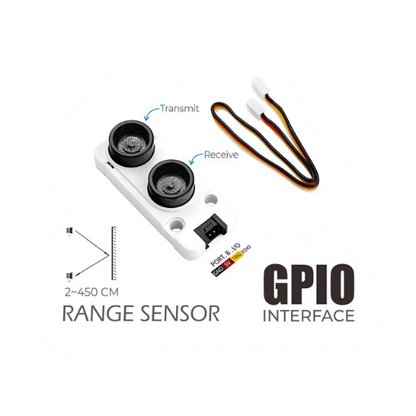

UNIT SONIC IO is a GPIO interface ultrasonic range sensor. This module features an RCWL-9620 ultrasonic distance measurement chip with a 16mm probe, which the ranging accuracy can reach 2cm-450cm (accuracy up to ±2%). This sensor determines the distance to a target by measuring time lapses between the transmitting and receiving of the pulse signal, users can directly obtain the distance value through IO control mode. It is ideal to apply in robotics obstacle avoidance, fluid level detection, and other applications that require you to perform measurements.
Product Features
- RCWL-9620 Chip
- I2C communication interface (addr: 0x57)
- Measuring range: 2cm-450cm
- Protective housing
- Built-in temperature compensation, reduce the temperature drift
- Support UIFlow platform
Specifications
- Ultrasonic Ranging Single Chip RCWL-9620
- Range 2cm-450cm
- Probe Specifications 16mm
- Receiving/Transmitting Frequency 40KHz
- Receiving sensitivity -65dB
- Pointing angle 60°
- Measurement accuracy ±2%
- Measurement period 50ms
- Working current 2mA
- Net weight 10g
- Gross weight 25g
- Product size 56 * 24 * 15mm
- Packing size 76 * 47 * 29mm
