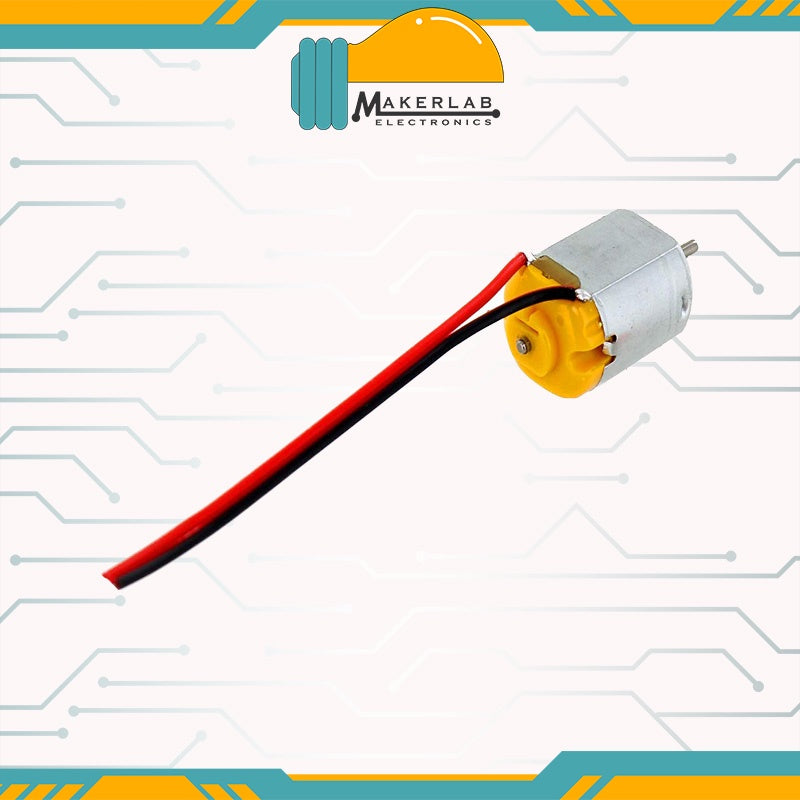

130 DC Motor with Wire

This is a standard '130 size' DC motor. It comes with a wider operating range than most toy motors: from 4.5 to 9V DC, This range makes them perfect for controlling with most of the Arduino Motor Shield, or with an Arduino where you are more likely to have 5 or 9V available than a high current 3V setting.

SPECIFICATION:

• Operating Temperature: -10°C ~ +60°C
• Rated Voltage: 6.0VDC
• Rated Load: 10 g*cm
• No-load Current: 70 mA max
• No-load Speed: 9100 ±1800 rpm
• Loaded Current: 250 mA max
• Loaded Speed: 4500 ±1500 rpm
• Starting Torque: 20 g*cm
• Stall Current: 500mA max
• Body Size: 27.5mm x 20mm x 15mm
• Shaft Size: 8mm x 2mm diameter
• Weight: 17.5 grams
