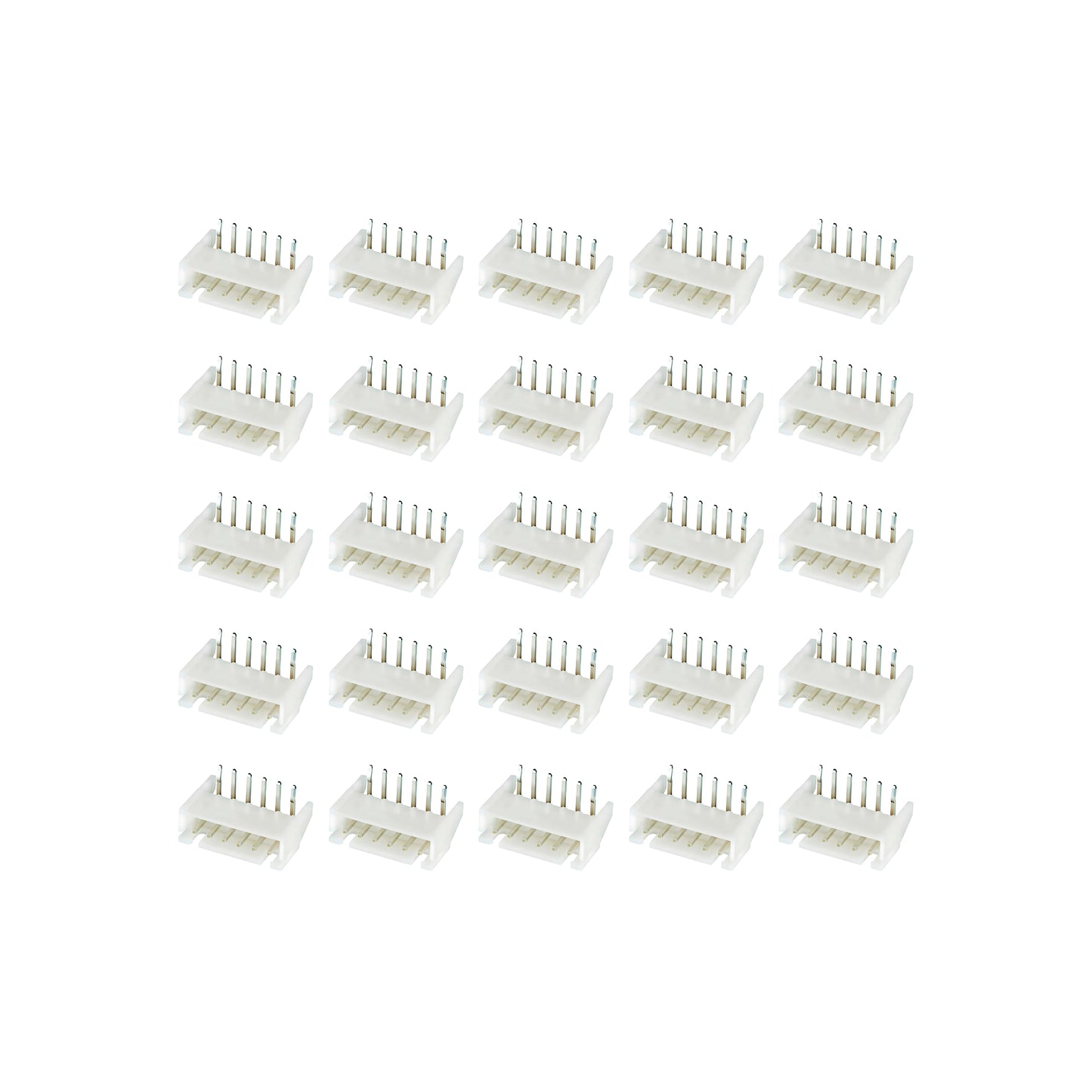

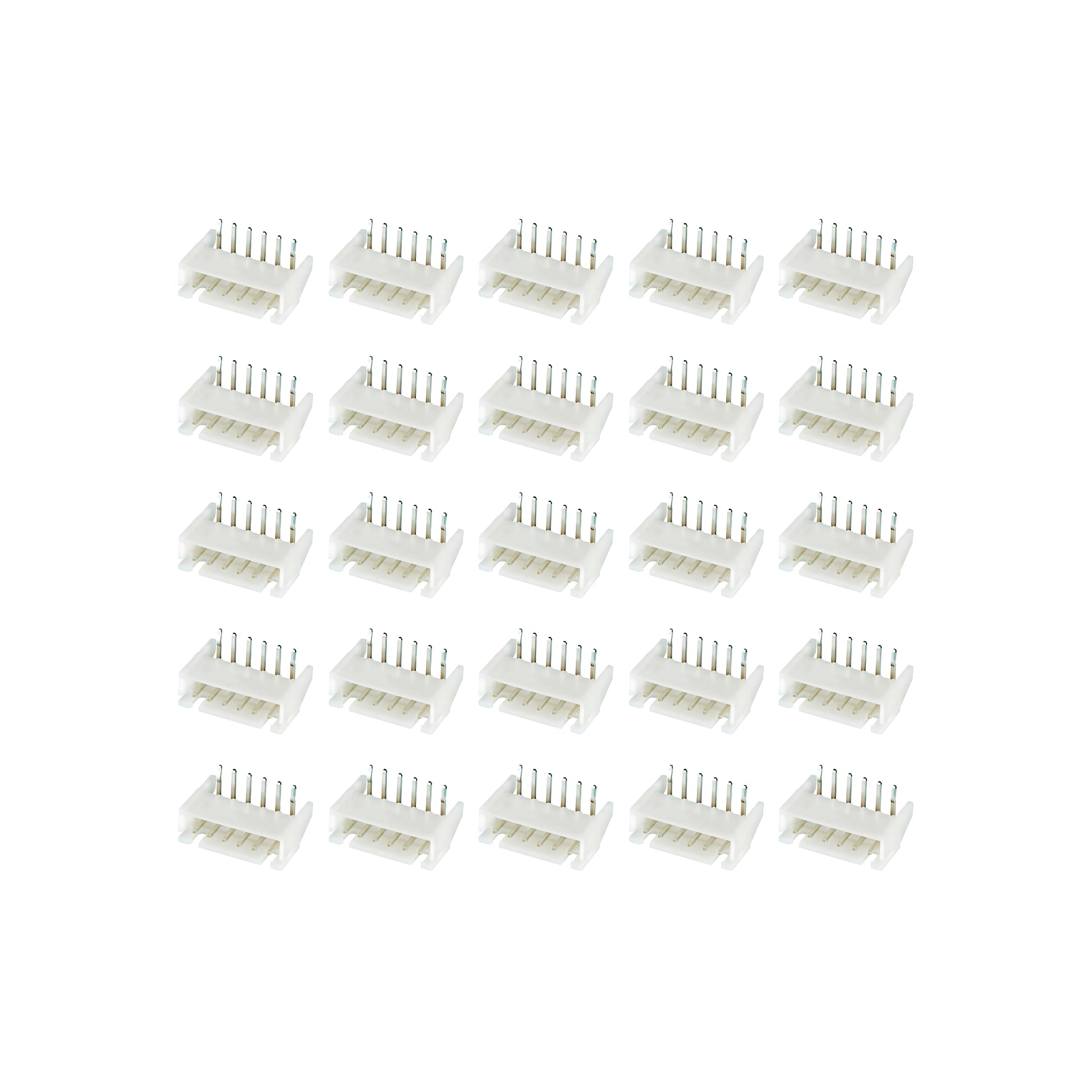

25 pcs 6-Pin Right Angle JST XH Shrouded Male Connector

Description:

The JST XH Shrouded Male Connector - Right Angle is an essential PCB-mountable header designed for compact and robust wire-to-board connections in your electronic designs. As a member of the widely recognized JST XH series, it features a standard 2.54mm (0.1 inch) pin pitch, ensuring broad compatibility with common electronic components and JST XH female connectors.

This "right-angle" or "side-entry" version is specifically designed for through-hole mounting, allowing its pins to be soldered onto your Printed Circuit Board (PCB) so that the mating connector plugs in parallel to the board's surface. This configuration is highly beneficial for low-profile applications or when vertical space above the PCB is limited, helping you achieve a cleaner, more compact circuit layout.

The shrouded housing provides critical protection for the pins, preventing accidental bending or short circuits, and ensures correct, polarized mating every time. This makes it an excellent choice for dependable and space-efficient connections for power, signal, and data lines from sensors, modules, and other peripherals to your main PCB.

Specifications:

Quantity: 25pcs/set
Connector Type: JST XH Shrouded Male Header
Pin Pitch: 2.54mm (0.1 inch)
Number of Pins: 6-Pin
Orientation: Right-Angle
Packaging Weight: 50 grams
Packaging Dimensions: 10x10x3cm
