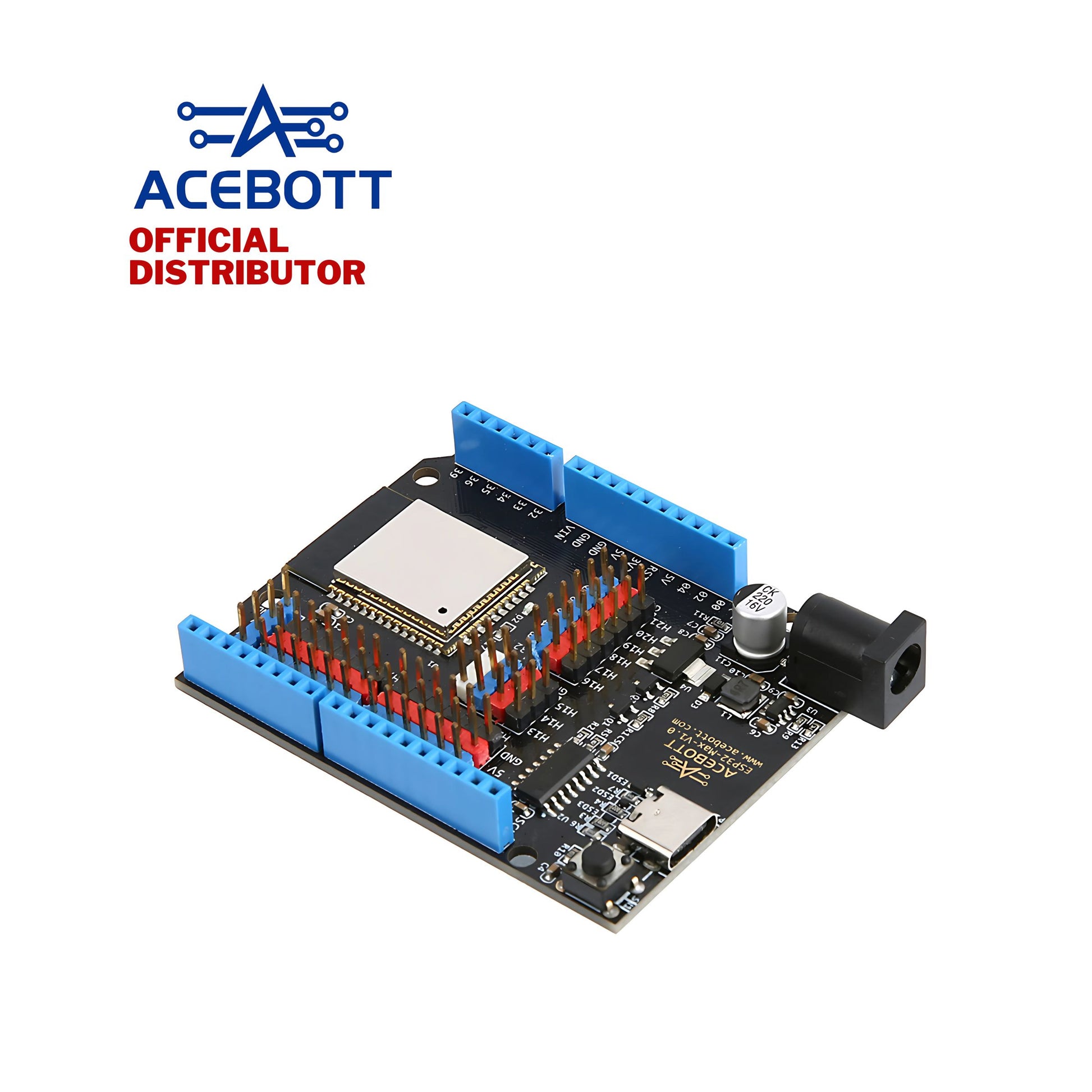

ACEBOTT ESP32 Max V1.0 Controller Board

Product Description:

The ESP32 Max 1.0 Controller Board (QA007) is a low-power consumption, high-performance microcontroller, very suitable for the development of the Internet of Things. It has a 240 MHz dual-core processor, 520 KB of RAM, and 4MB of flash memory. It also has built-in Wi-Fi and Bluetooth 4.2 module, available for wireless communication; and with 34 GPIO ports, it can connect and control various peripherals. No more tangled wires and complicated setups, as our development boards offer intuitive wiring for easy prototyping. With the reliability of our free RTOS operating system, you can count on smooth performance and seamless execution, making it the perfect companion for your IoT and smart home endeavors. It is the perfect combination of versatility and reliability for unlimited innovation.

Features:

• Upgrade Type-C interface for stronger compatibility
• IO pins are all exported to facilitate development
• No extra breadboard is needed. It has male and female pins, and the pins are clearly colored for easy wiring
• The Type-C interface is equipped with an electrostatic discharge protection diode and a transient voltage suppression diode to protect the chip from electrostatic breakdown and damage from various surge pulses

Specifications:

Connectivity: WI-FI | Bluetooth LE
Chip: ESP-WROOM-32
Clock: 240MHz
ROM: 448KB
SRAM: 520KB
FLASH: 4MB
Interfaces: UART | I2C | SPI | CAN
Input Voltages: 6-18V
Pinout: 25 (DIGITAL) | 15 (ANALOG) | 25 (PWM) | 2 (DAC) | 2 (UART) | 2 (SPI) | 1 (I2C)

PCB Description:

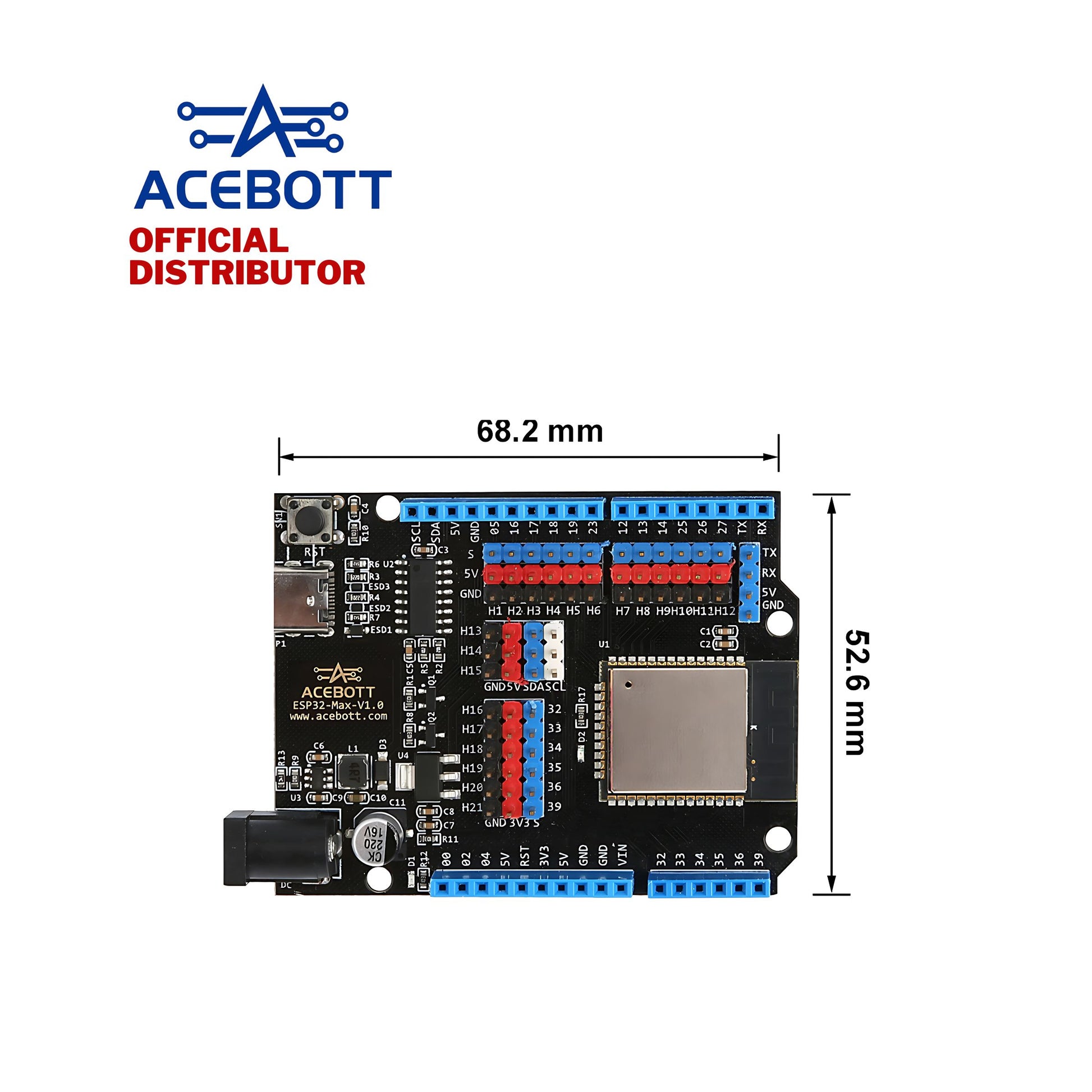

The figure illustrates the GPIO pins and the corresponding functions of the ESP32 Max 1.0 controller board, including ADC, DAC, PWM, I2C, SPI pins, etc.

Only Input Pin: GPIO 34 / GPIO 35 / GPIO 36 / GPIO 39
Default I2C Pin: GPIO 21 (SDA) / GPIO 22 (SCL)
DAC Pin: GPIO 25 (DAC1) / GPIO 26 (DAC2)

Packing List:

1x ESP32 Max V1.0 Controller Board
1x Type-C Cable
