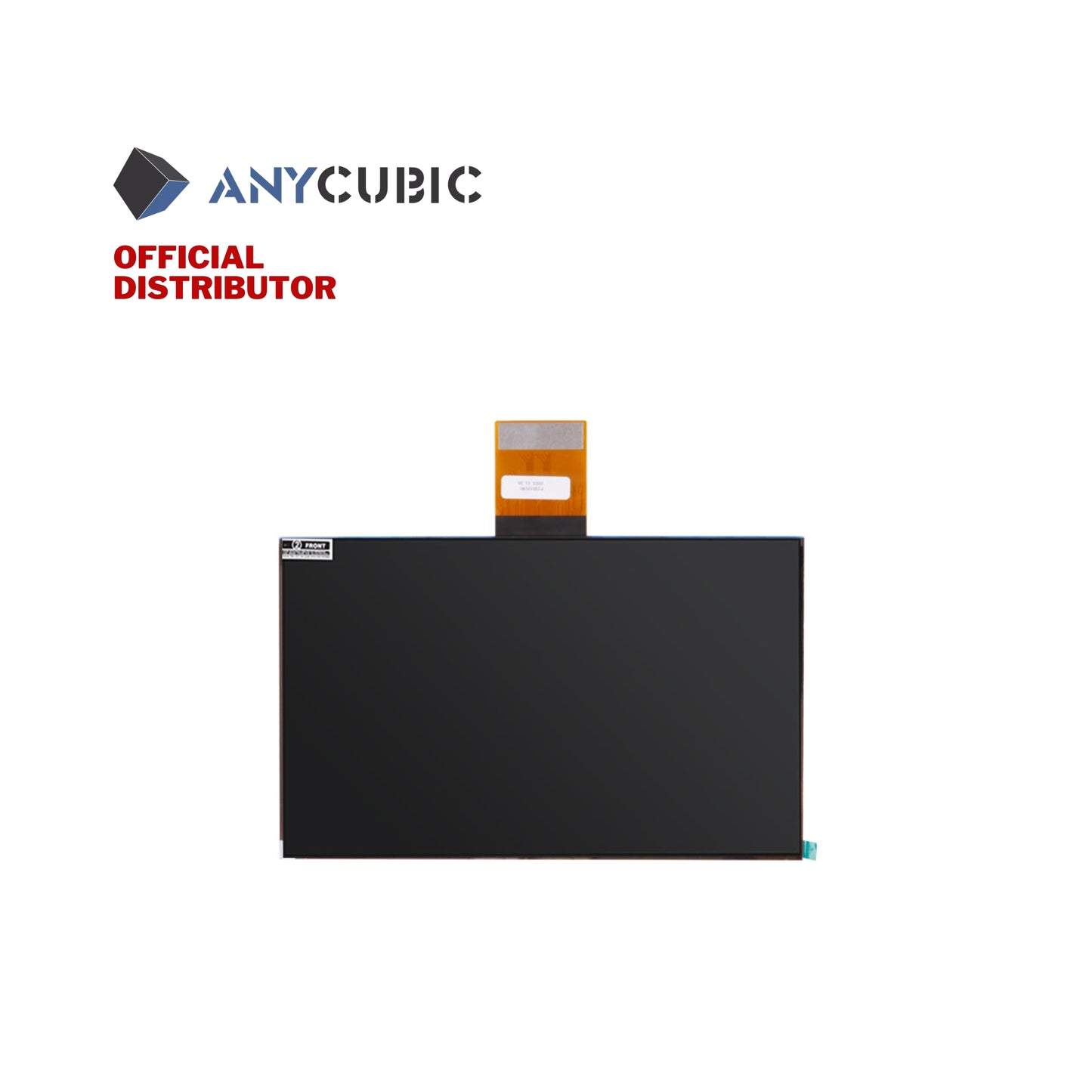

Anycubic LCD Screen for Photon Mono M5S

10.1″ 14K Monochrome LCD Panel

• Resolution: 13,312 × 5,120 px (“14K”), providing extremely fine XY resolution of approximately 16.8 μm × 24.8 μm—comparable to the diameter of a human hair.

• Uniform light distribution: Around 85% light uniformity, ensuring detailed prints with sharper edges.

• Monochrome design offers longer lifespan (hundreds of hours) and faster curing times compared to color LCDs.

Performance & Durability

• Faster printing: Combined with a high-speed LED UV source, it enables print speeds of up to 105 mm/hour at 0.1 mm layers using compatible resins.

• Third-generation ACF peeling film: Minimizes peeling stress on the screen to prolong its life and reduce the risk of damage.

• Resin-residue detection: Actively checks for obstructions during printing to prevent screen damage and failed prints.

Build & Compatibility

• Module size and weight: Approx. 336 × 247 × 75 mm, 610 g.

• Compatibility: Tailored for the M5s Pro and compatible with other Anycubic models such as Mono M5, M7 Pro, M5s (12K), and select Photon Mono X-series printers.

• Accessories included: Typically comes with anti-scratch protective film, shading stickers, leveling guides, and double-sided tape.

Overview Table

Key Benefits

• Ultra-high detail ideal for precision models, miniatures, and jewelry.

• Reduced printing time due to faster layer curing.

• Improved screen longevity with protective features and robust construction.
