Description:
The Anycubic Photon Mono 4 Ultra revolutionizes resin 3D printing with its 10K resolution screen, state-of-the-art light system, and smart features. Ideal for creators seeking speed, accuracy, and dependability, this printer enables the creation of intricate, dynamic models.
Features:
-
7-inch 10K screen with a resolution of 9024×5120 and a pixel size of 17x17m.
-
High-speed printing at up to 120mm/h with High Speed Resin 2.0.
-
Intelligent Assisted Printing System for hassle-free printing.
-
Optional activated carbon air purifier for a cleaner workspace.
-
Consistent light uniformity (≥90%) ensuring flawless layers.
-
Compatible with most resins, including water-washable, bio, and plant-based varieties.
Unparalleled Precision with 10K Resolution
The 7-inch 10K mono LCD screen of the Photon Mono 4 Ultra, boasting a resolution of 9024×5120 and a pixel size of 17×17μm, delivers extraordinarily fine details in every print. Paired with a 0.02mm layer height and an 8mm T-type screw rod, the Photon Mono 4 Ultra achieves model accuracy within ±0.01-0.05mm.
Swift and Seamless Printing
Experience unprecedented speed of the Photon Mono 4 Ultra with printing up to 120mm/h using High Speed Resin 2.0. The Intelligent Assisted Printing System streamlines your workflow by managing tasks such as resin monitoring, failed print detection, and auto-inspection, allowing you to concentrate on your creative process without disruptions.
Advanced Lighting for Uniform Curing
The COB light source, combined with a Fresnel lens and Light Uniformity Algorithm, ensures precise curing and minimizes dimensional errors. Each printer undergoes rigorous calibration to maintain consistent light uniformity across layers, delivering flawless results.
Intelligent Features for Smarter Printing

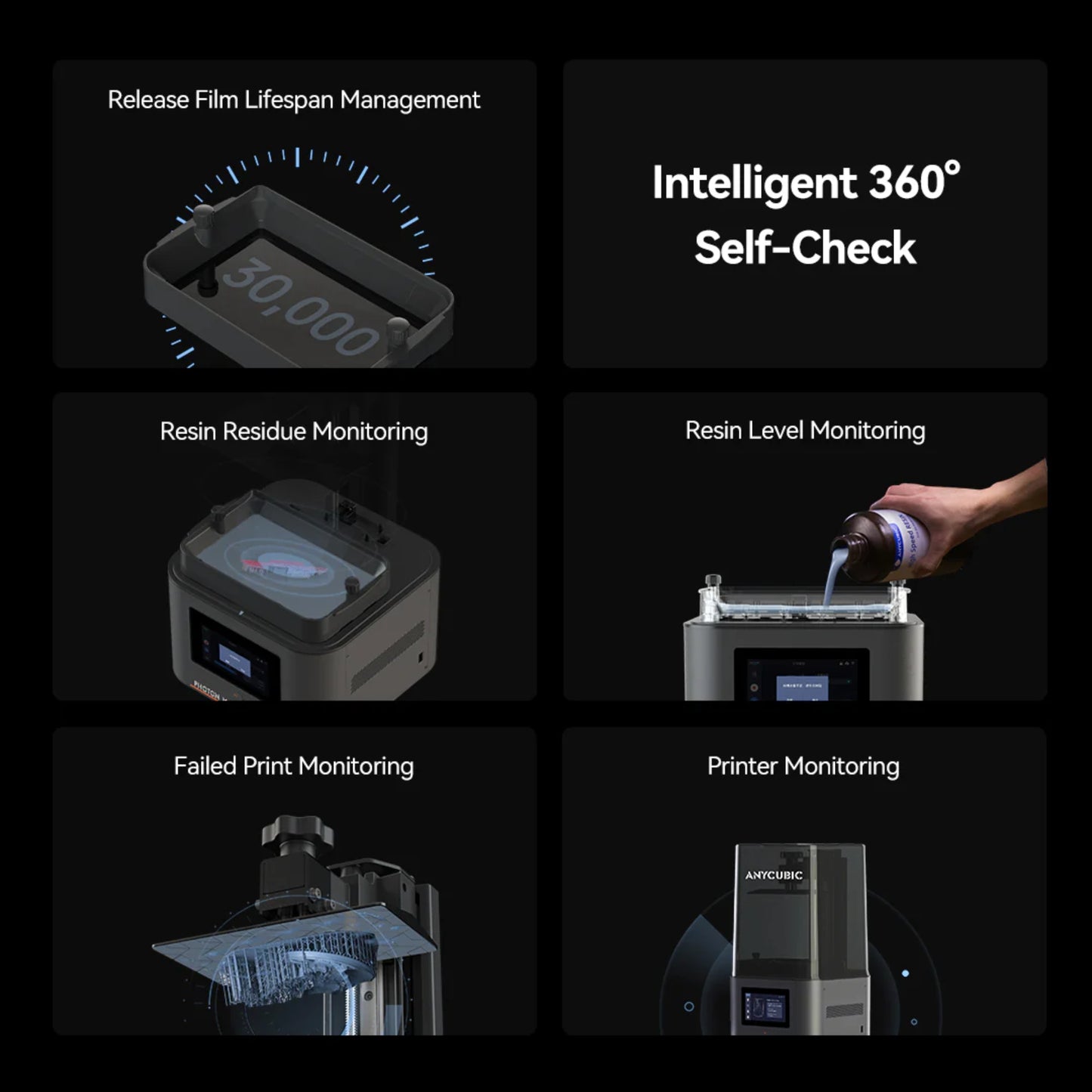

The Photon Mono 4 Ultra is designed to enhance your printing experience with smart features. It detects residual resin in the vat, reminding you to clean and protect the screen. In case of print failures due to cracks or detachment, the printer automatically pauses and notifies you, allowing for adjustments to save time and materials. Additionally, the intelligent lifespan monitoring system tracks the release film’s usage, alerting you when it needs replacement to maintain print quality. These features work seamlessly to ensure uninterrupted creativity.
User-Friendly Operation and Connectivity
The 4.3-inch HD touchscreen of the Photon Mono 4 Ultra supports 8 languages for easy control. Transfer files conveniently via USB, WiFi, or LAN (available Q4). The Anycubic App provides access to an online model library and remote printing capabilities.
Comprehensive Ecosystem and Accessories
The Photon Workshop software elevates your 3D printing experience with automated support generation and smooth layer transitions. The optional activated carbon air purifier ensures a cleaner workspace by absorbing odors during printing.
Specifications:
Construction and Technical Details
Resin Print Technology: UV LCD
Resin Display Type: monochrome LCD
Resin Display Resolution X: 9024 pixel
Resin Display Resolution Y: 5120 pixel
Recommended Max Printing Speed: 119,84 mm/h (depends on material)
Build Volume: 153,4 mm x 87 mm x 165 mm
Build Plate Leveling System: 4-point manual leveling
Installation Space / Requirements
Overall Dimensions: 231 mm x 236 mm x 430 mm
Net Weight: 5 kg
Max Power Consumption: 66 W
Voltage: AC: V
Equipment
Hepa Filter: No
Door Lock During Print: Yes
Touch Screen: Yes
Connection
USB Port: Yes
Ethernet Port: Yes
WLAN: Yes
Accuracy
Layer Height: 0.02 – 0.15 mm
