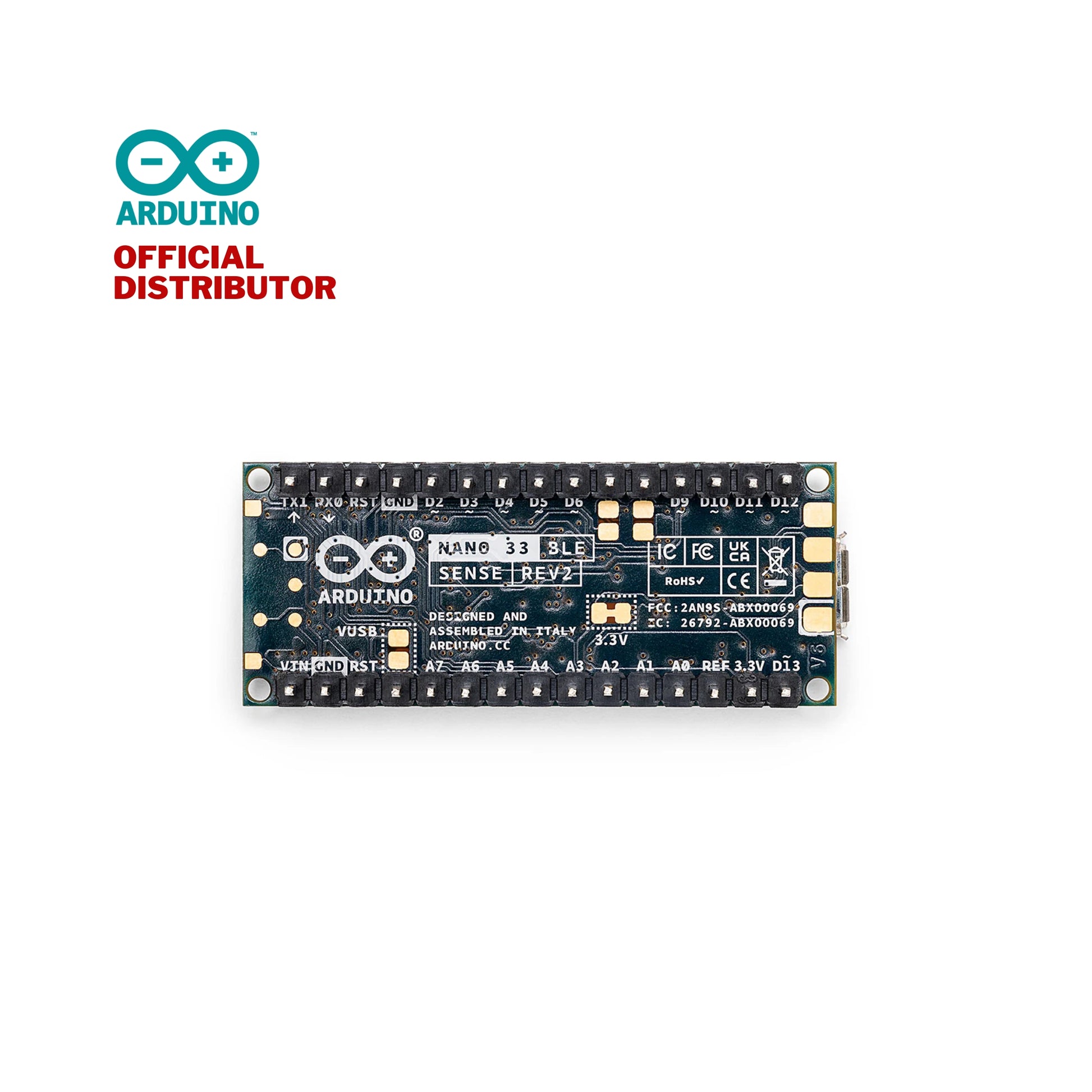

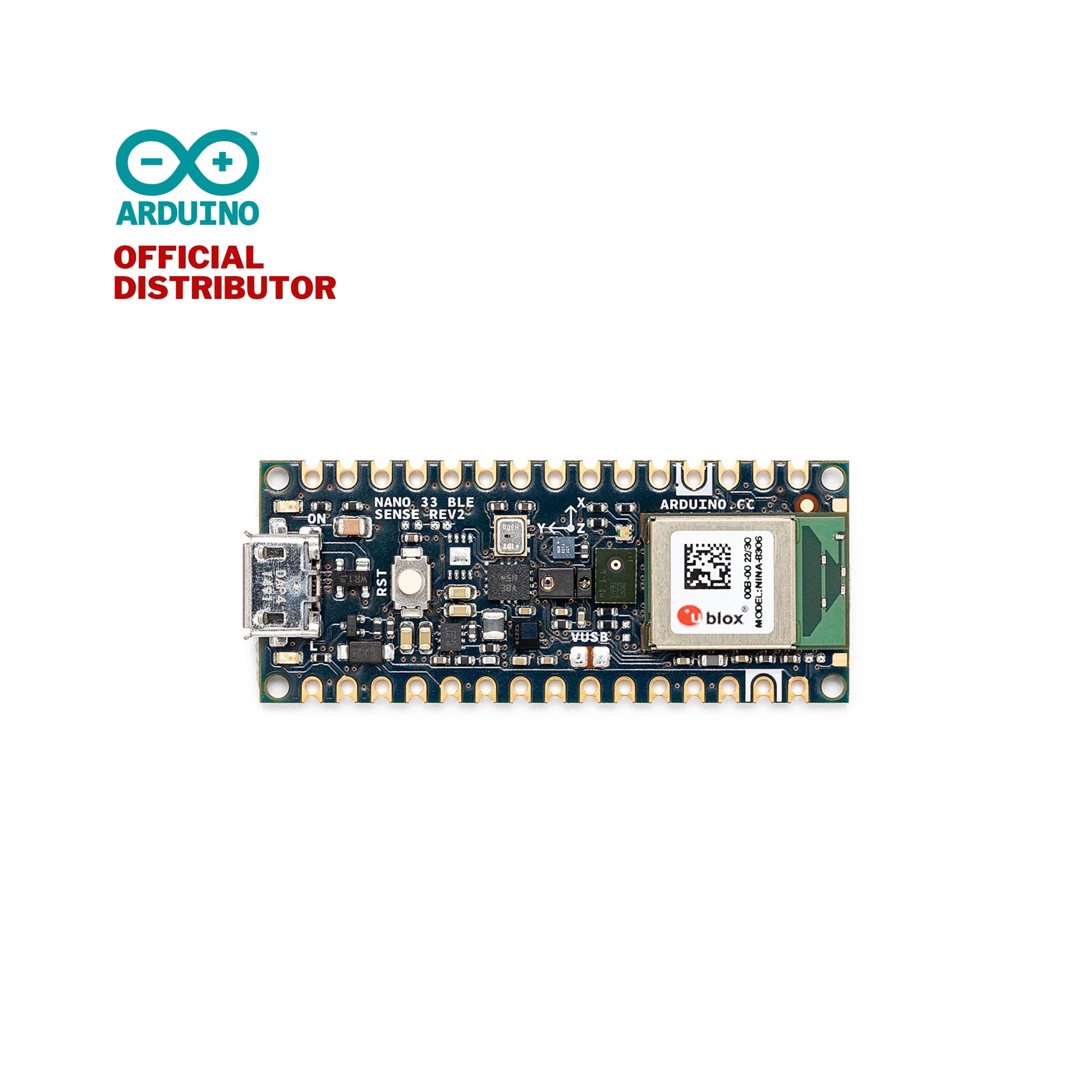

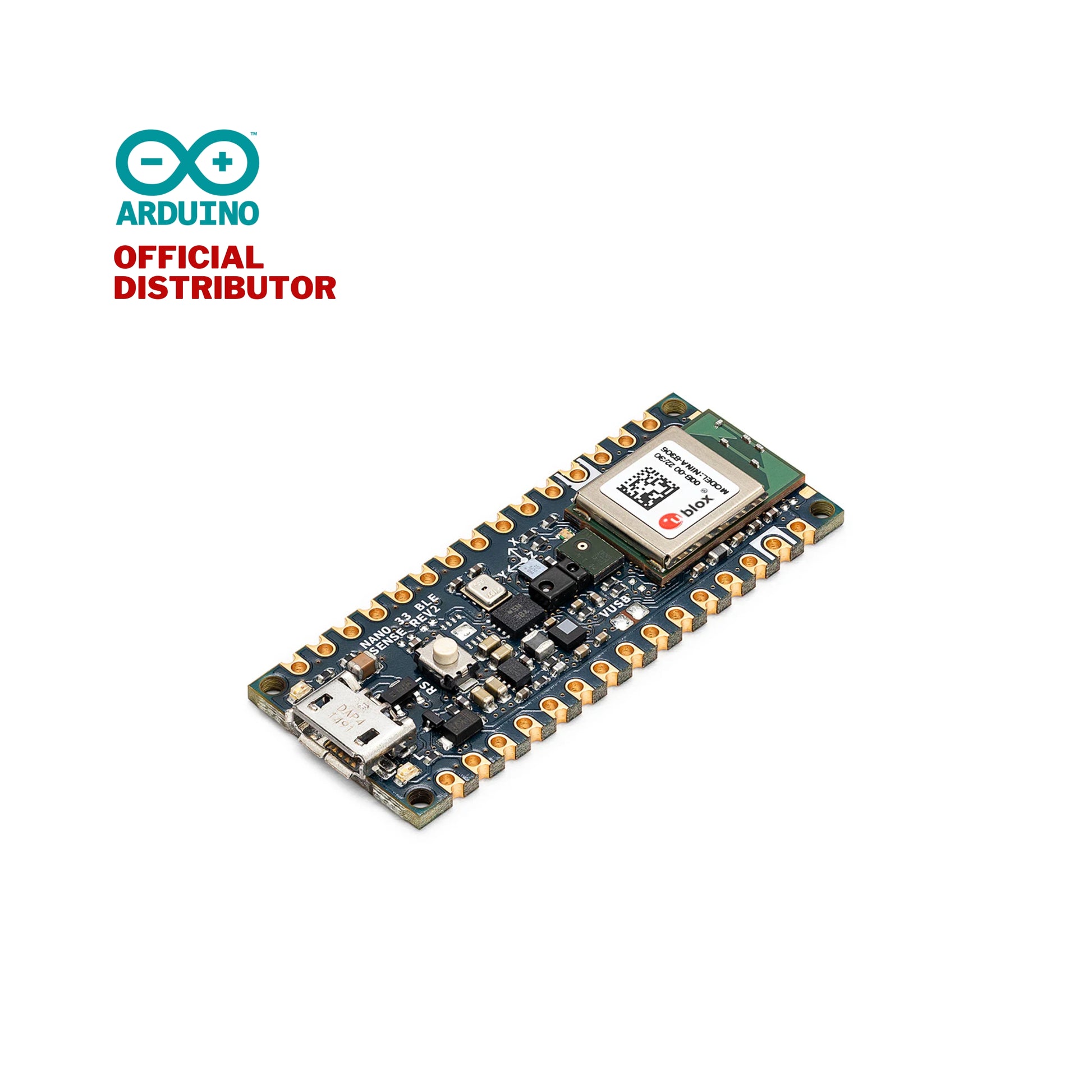

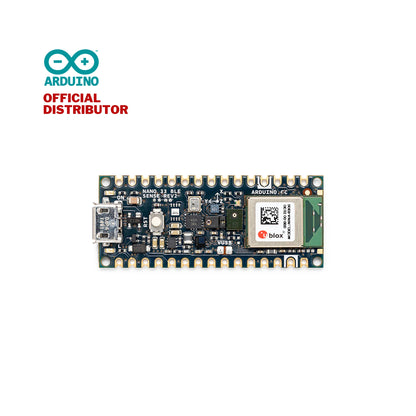

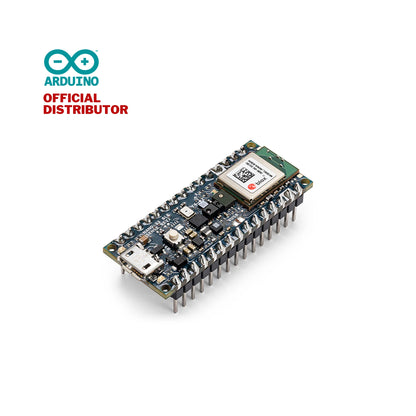

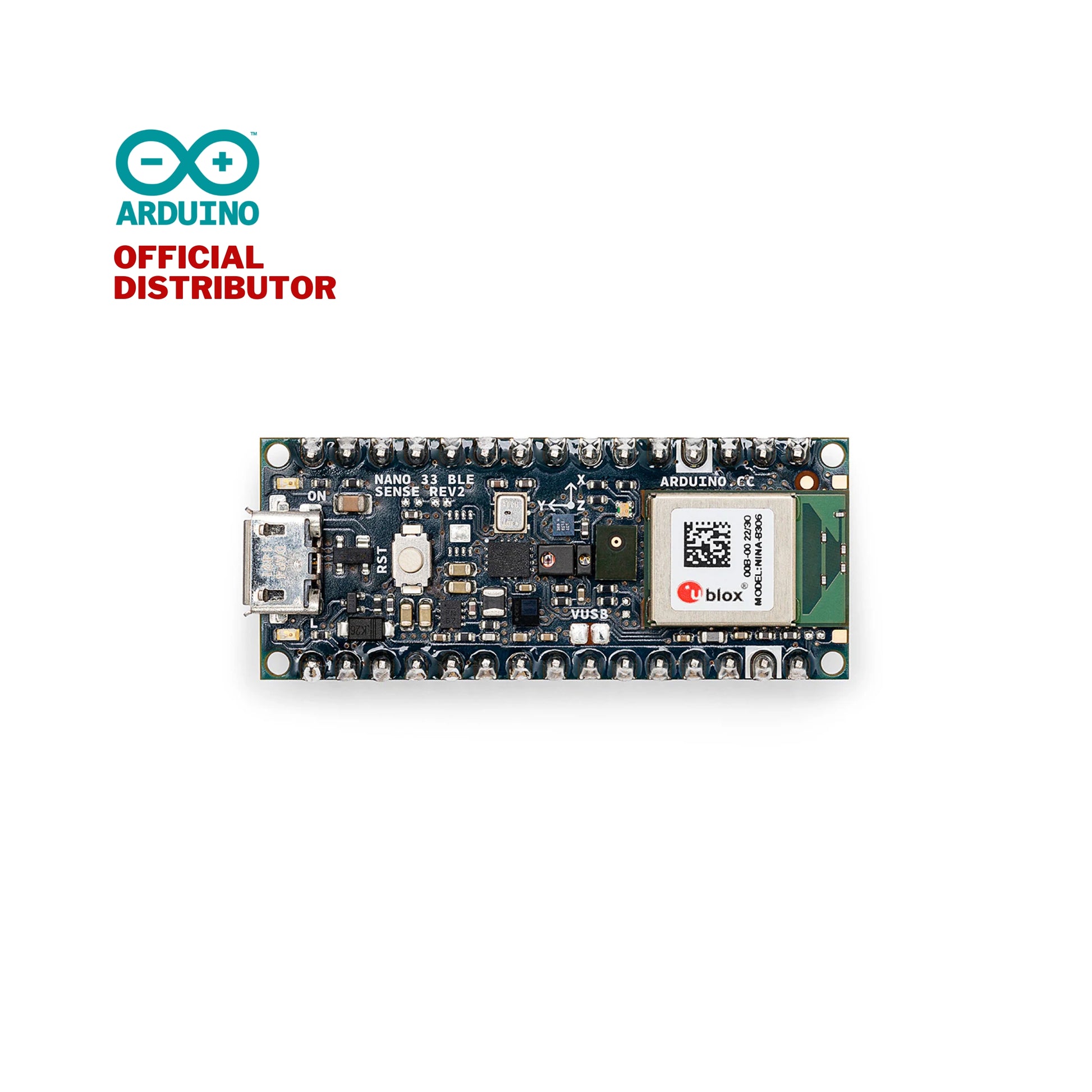

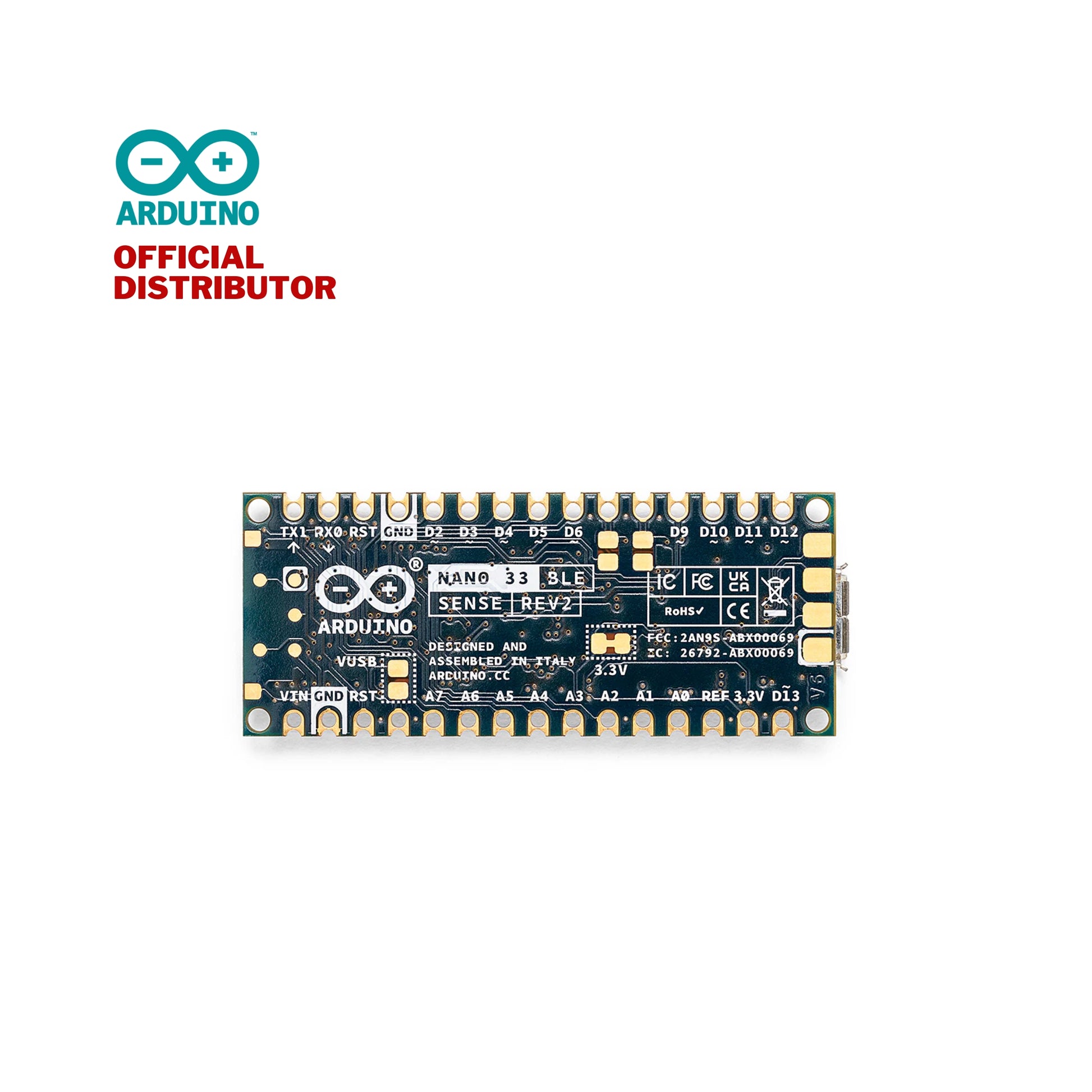

Arduino Nano 33 BLE Sense REV2

Description:

The Arduino Nano 33 BLE Sense Rev2 is Arduino’s 3.3V AI enabled board in the smallest available form factor with a set of sensors that will allow you without any external hardware to start programming your next project, right away.

With the Arduino Nano 33 BLE Sense Rev2, you can:

Build wearable devices that using AI can recognize movements.
Build a room temperature monitoring device that can suggest or modify changes in the thermostat.
Build a gesture or voice recognition device using the microphone or the gesture sensor together with the AI capabilities of the board.
The main feature of this board, besides the complete selection of sensors, is the possibility of running Edge Computing applications (AI) on it using TinyML.

Specifications:

Microcontroller: nRF52840 (datasheet)
Operating Voltage: 3.3V
Input Voltage (limit): 21V
DC Current per I/O Pin: 15 mA
Clock Speed: 64MHz
CPU Flash Memory: 1MB (nRF52840)
SRAM: 256KB (nRF52840)
EEPROM: none
Digital Input / Output Pins: 14
PWM Pins: all digital pins
UART: 1
SPI: 1
I2C: 1
Analog Input Pins: 8 (ADC 12 bit 200 k samples)
Analog Output Pins: Only through PWM (no DAC)
External Interrupts: all digital pins
LED_BUILTIN: 13
USB: Native in the nRF52840 Processor
IMU: BMI270 (datasheet) and BMM150 (datasheet)
Microphone: MP34DT06JTR (datasheet)
Gesture, light, proximity, color: APDS9960 (datasheet)
Barometric pressure: LPS22HB (datasheet)
Temperature, humidity: HS3003 (datasheet)

Pinout Diagram:

Documentation:

Schematics

Datasheet
