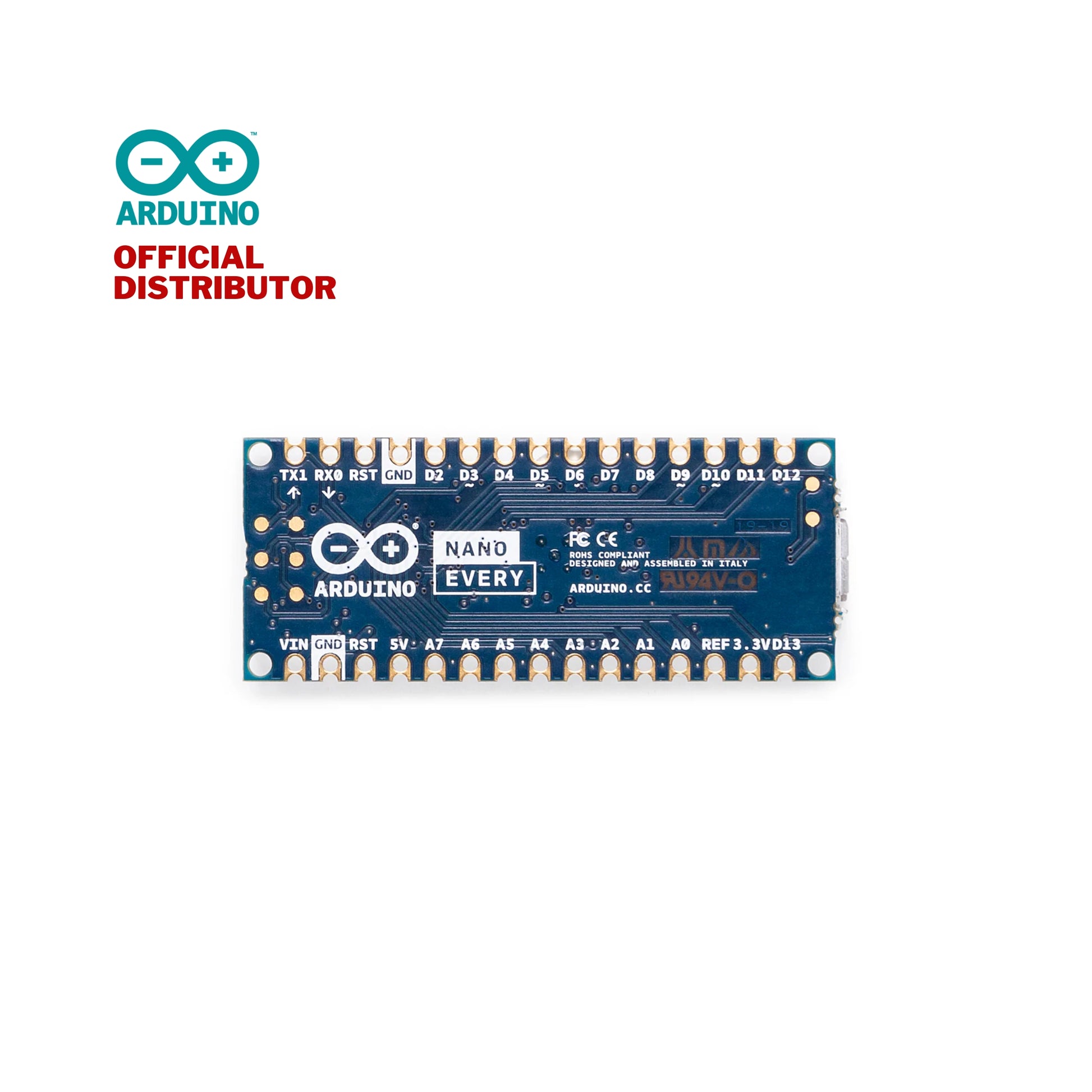

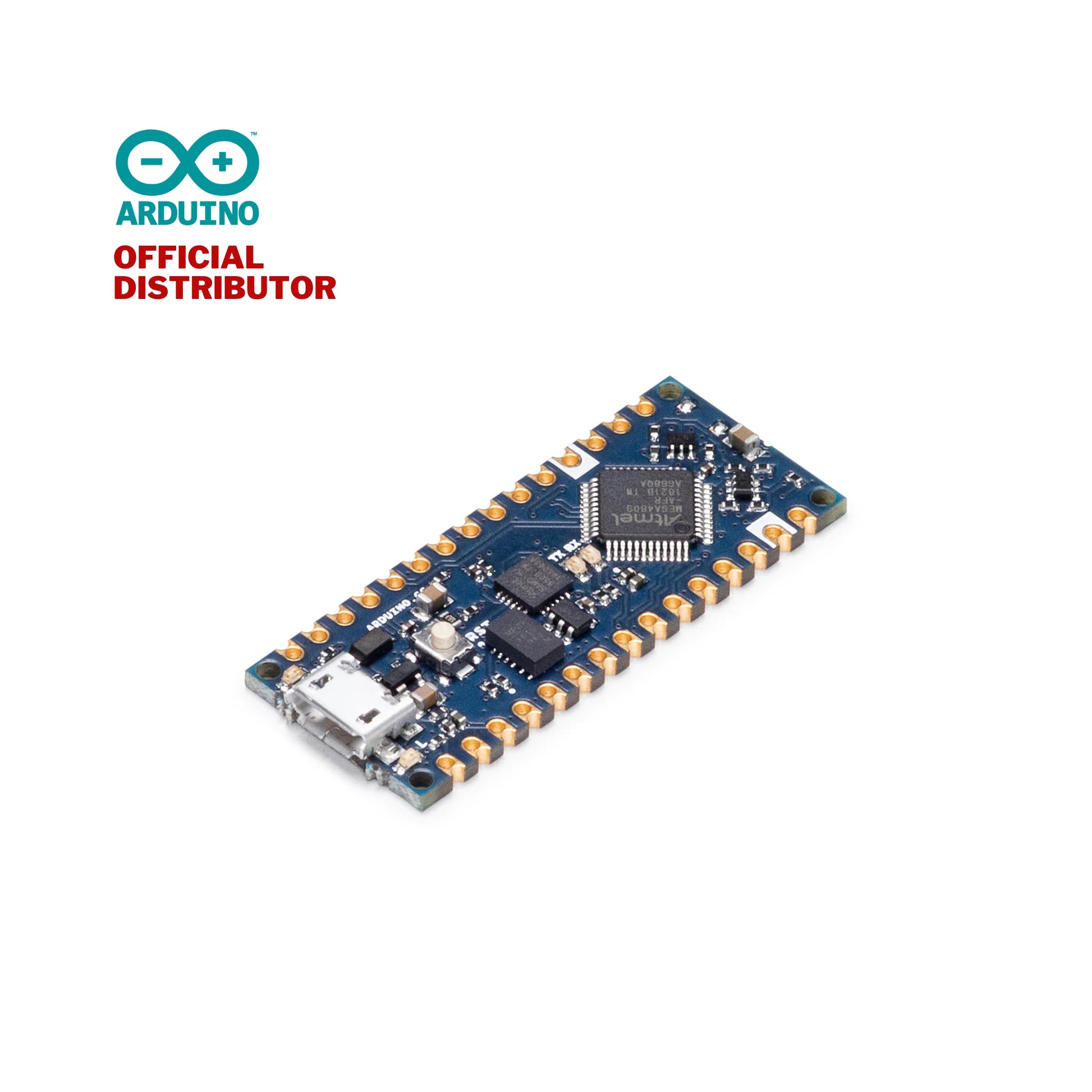

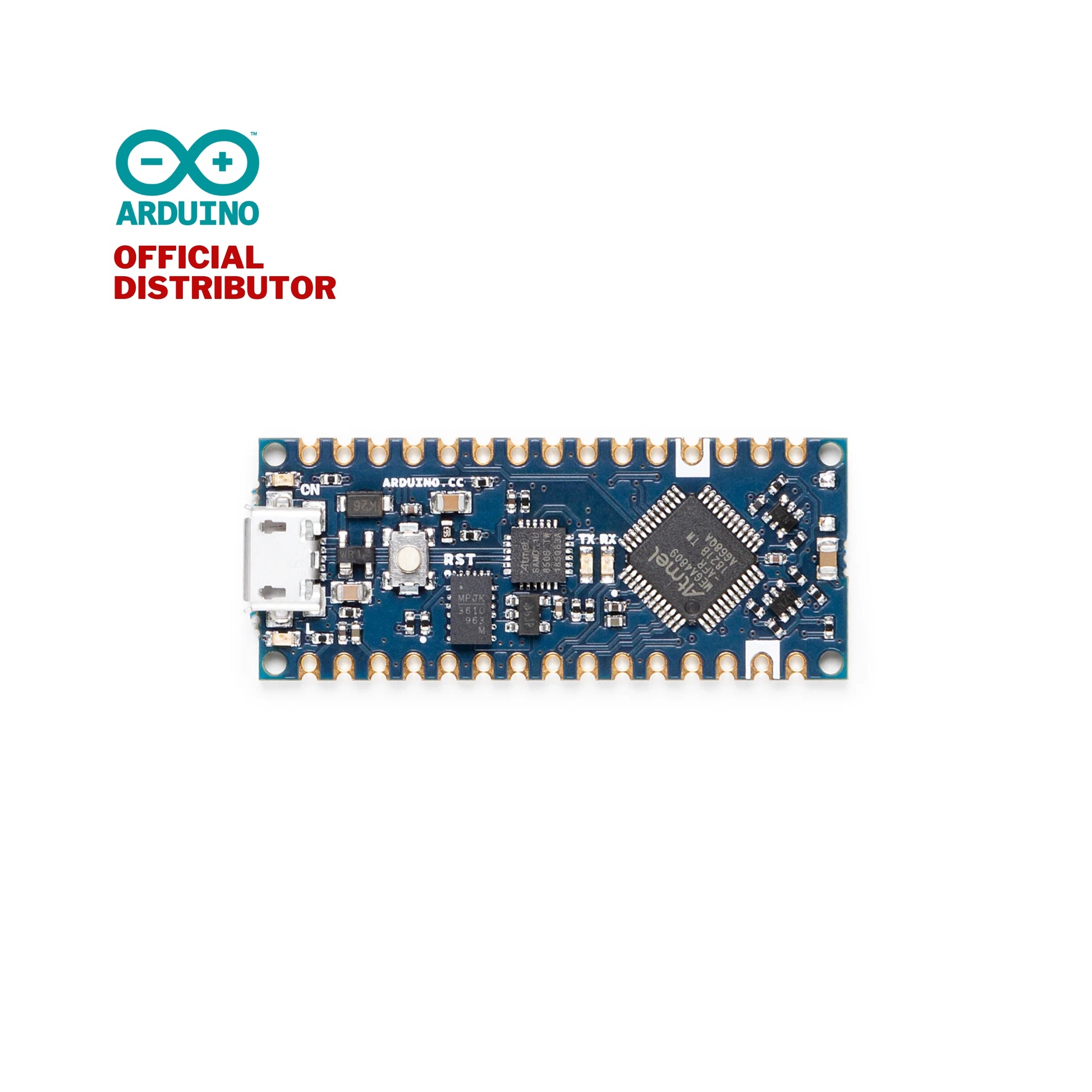

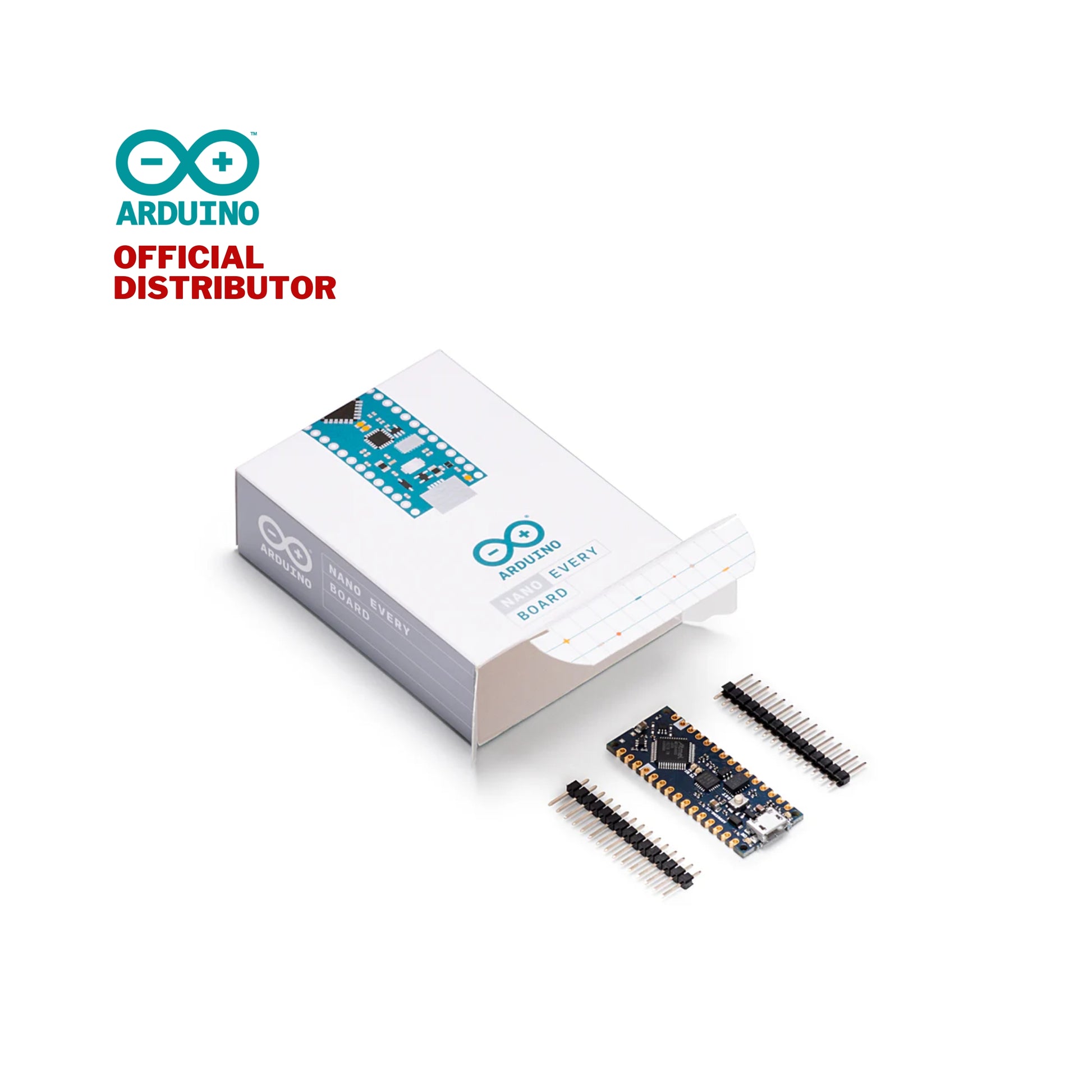

Arduino Nano Every

Description:

The Arduino Nano is the preferred board for many projects requiring a small and easy to use microcontroller board. The small footprint and low price, make the Nano Every particularly suited for wearable inventions, low cost robotics, electronic musical instruments, and general use to control smaller parts of a larger projects.

The Arduino Nano Every is an evolution of the traditional Arduino Nano board, but features a lot more powerful processor, the ATMega4809. This will allow you to make larger programs than with the Arduino Uno (it has 50% more program memory), and with a lot more variables (the RAM is 200% bigger).

Specifications:

The Arduino Nano Every is based on the ATMega4809 microcontroller.
Microcontroller: ATMega4809 (datasheet)
Operating Voltage: 5V
VIN min-MAX: 7-21V
DC Current per I/O Pin: 20 mA
DC Current for 3.3V Pin: 50 mA
Clock Speed: 20MHz
CPU Flash Memory: 48KB (ATMega4809)
SRAM: 6KB (ATMega4809)
EEPROM: 256byte (ATMega4809)
PWM Pins: 5 (D3, D5, D6, D9, D10)
UART: 1
SPI: 1
I2C: 1
Analog Input Pins: 8 (ADC 10 bit)
Analog Output Pins: Only through PWM (no DAC)
External Interrupts: all digital pins
LED_BUILTIN: 13
USB: Uses the ATSAMD11D14A (datasheet)
Length: 45 mm
Width: 18 mm
Weight: 5 grams

Pinout Diagram:

Documents:

Eagle Files

Schematics

Datasheet
