SKU:MLE02427

Arduino Sensor Kit - Base

₱2,500.00
₱2,500.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Loading locations...
Product Description

Description:

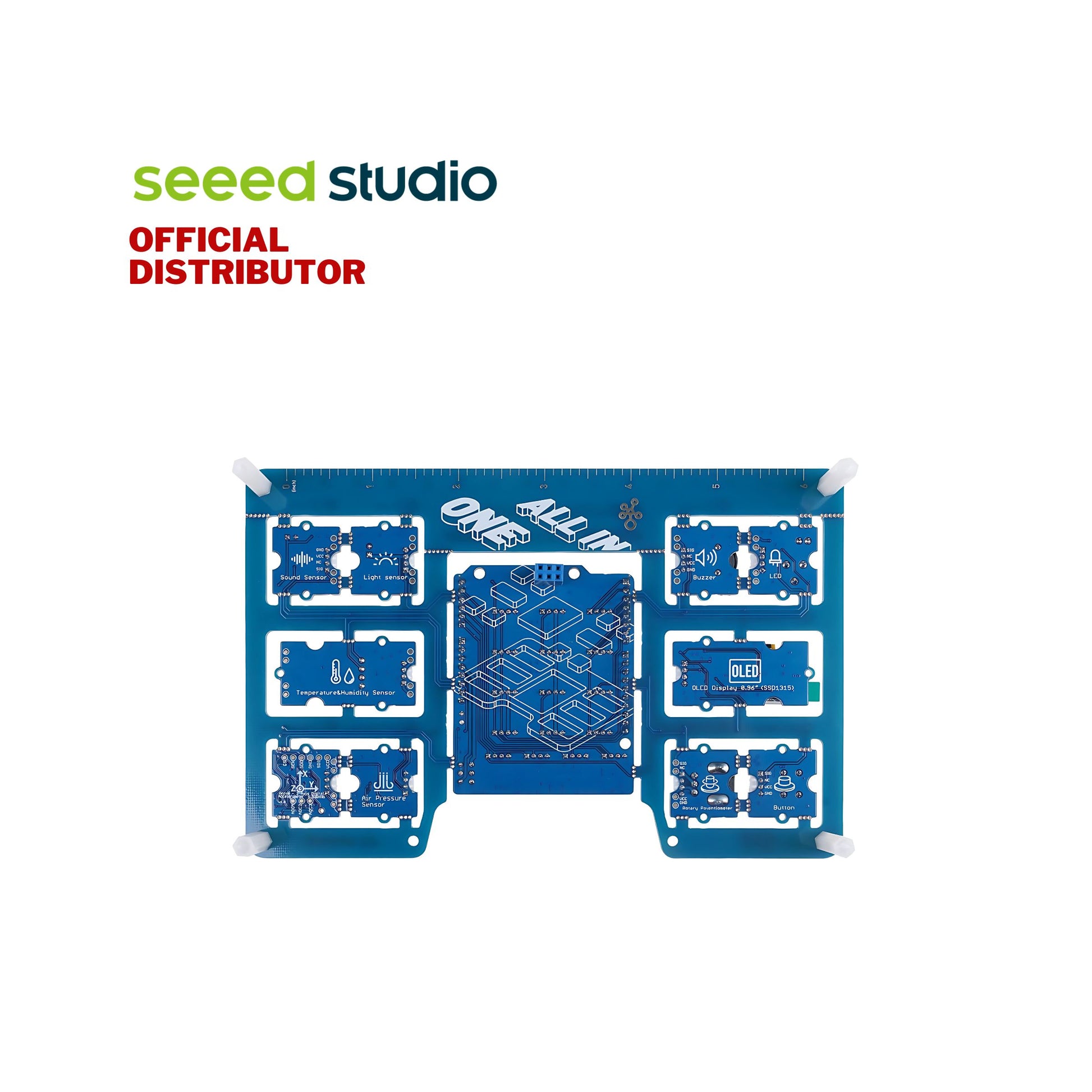

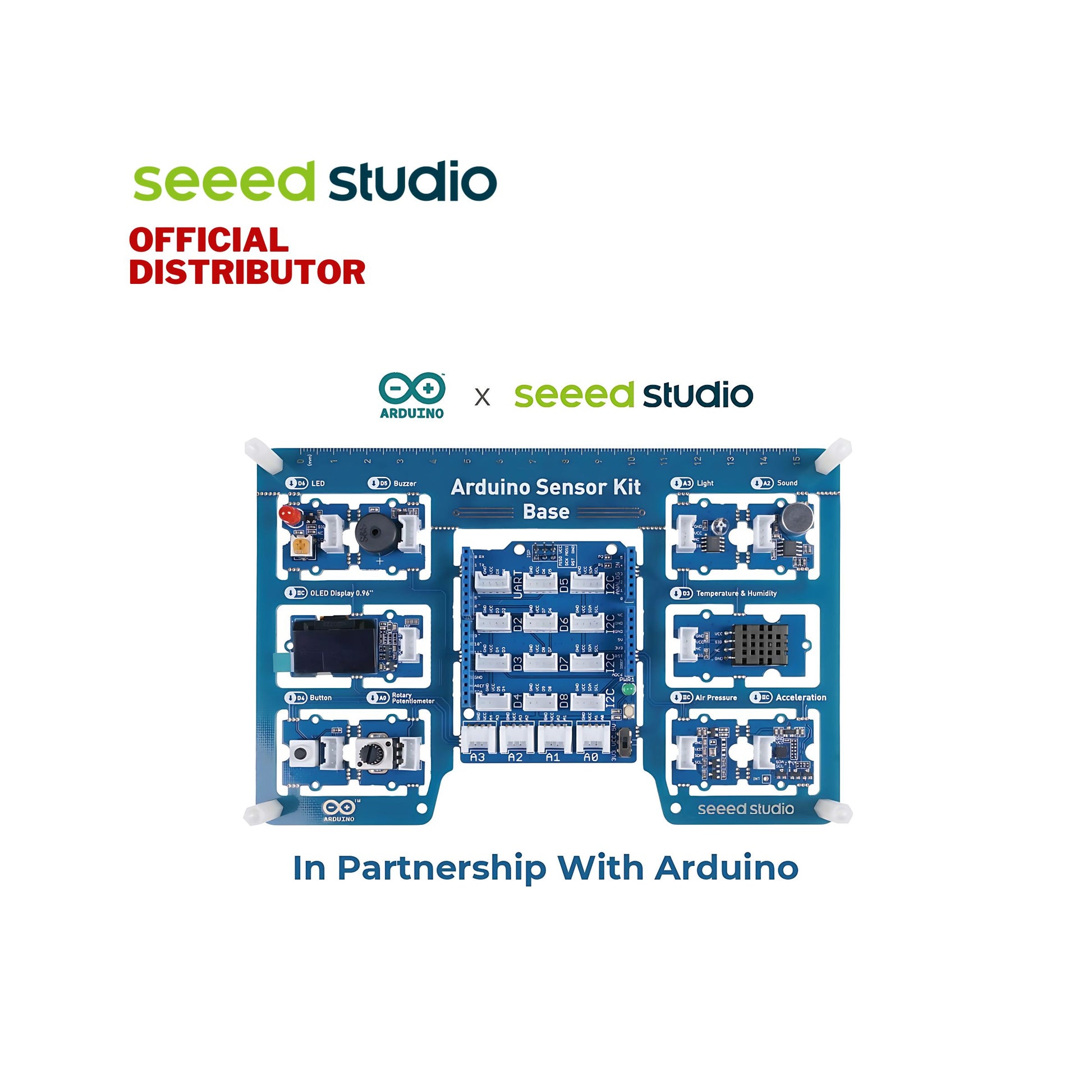

To get started with a new thing is always difficult, and we've been thinking about how to make learning electronics and sensing the world around you easier than ever. We are proud to announce the release of the Arduino Sensor Kit - Base, a joint production between Arduino and Seeed. The Arduino Sensor Kit is a plug & play addition to the Arduino Uno to get you started with electronics and programming. It integrates 10 Grove modules on a single PCB, including 5 sensors, an OLED display, and actuators. Best of all, those modules are pre-wired, so no breadboard, no welding, and even no wiring! Proving that hardware doesn’t need to be hard.

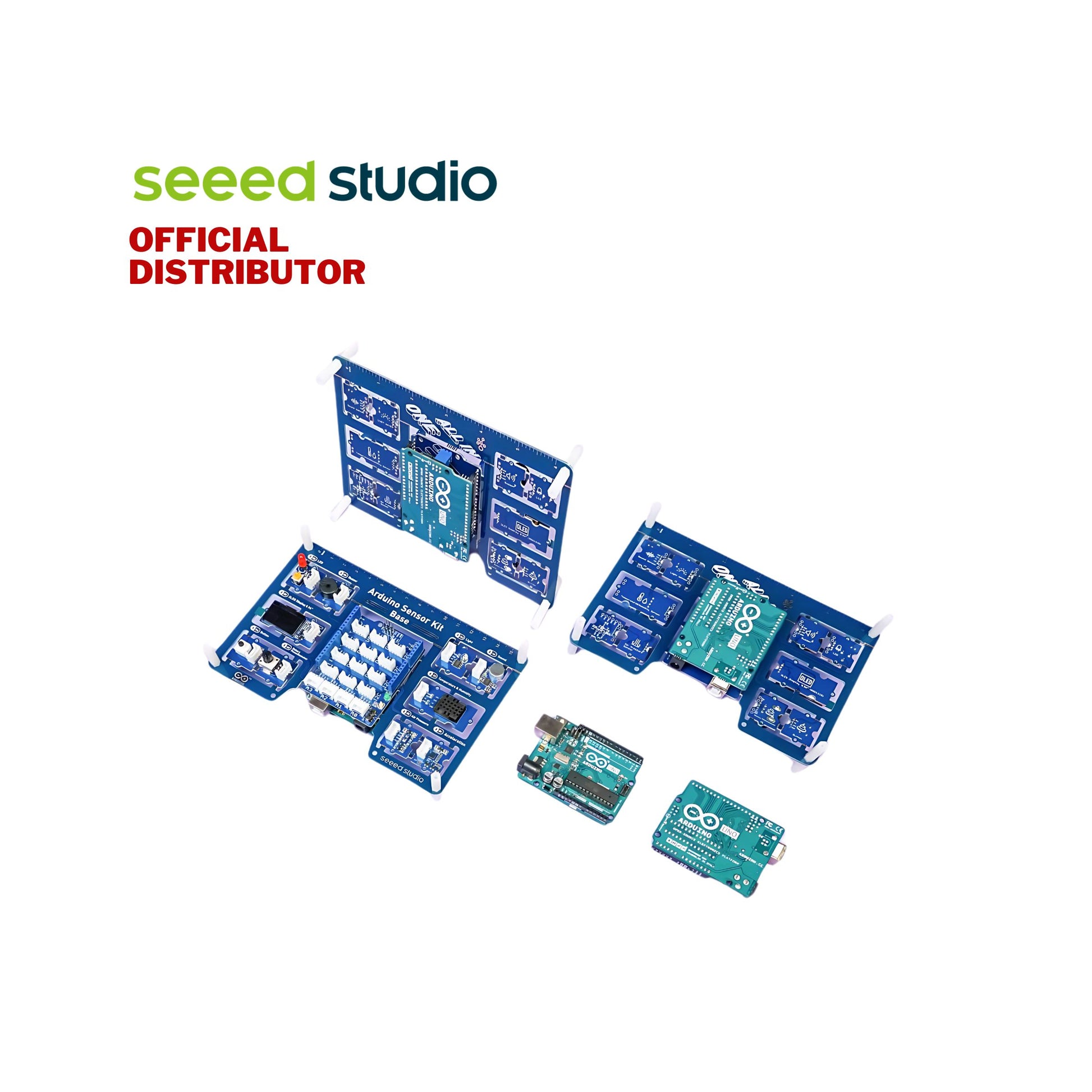

Before getting started with the Arduino Sensor Kit, you need to have an Arduino UNO board at your side. Just plug the Arduino Sensor Kit into the Arduino UNO board, then you're ready to go enjoy coding! To make it even easier, there are step-by-step tutorials created by official Arduino. Arduino provides the Arduino Sensor Kit with an online platform with ten lessons to learn how to use the included modules. Each lesson introduces electronic knowledge and skills related to the module. Also, each lesson provides the complete sample code for you to run the project and start to understand the code behind the hardware part.

Please go to https://sensorkit.arduino.cc to find those high-quality lessons provided by Arduino.


Features:

  • Co-produced by Arduino and Seeed
  • Plug & play, in addition to the Arduino Uno
  • 10 most commonly used electronics modules
  • All modules are pre-wired on the PCB, no wiring required
  • High-quality online lessons provided by Arduino
  • Perfect for Steam Education and Online Education


Specifications:

Power Supply: 3.3V/5V
Dimensions: 175mm x 115mm x 28mm
Net Weight: 77g
Digital Grove Header: 7 (D2, D3, D4, D5, D6, D7, D8)
Analog Grove Header: 4 (A0,A1,A2,A3)
I2C Grove Header: 4
UART Grove Header: 1
Support Arduino Core: Arduino UNO, Arduino Leonardo, Arduino Zero
Certification: FCC/CE


Application:

  • Perfect for Arduino beginners, start different Arduino projects on one board
  • Perfect for Steam Education and Online Education
  • Suitable for getting started with open-source hardware and Arduino coding


Documents:

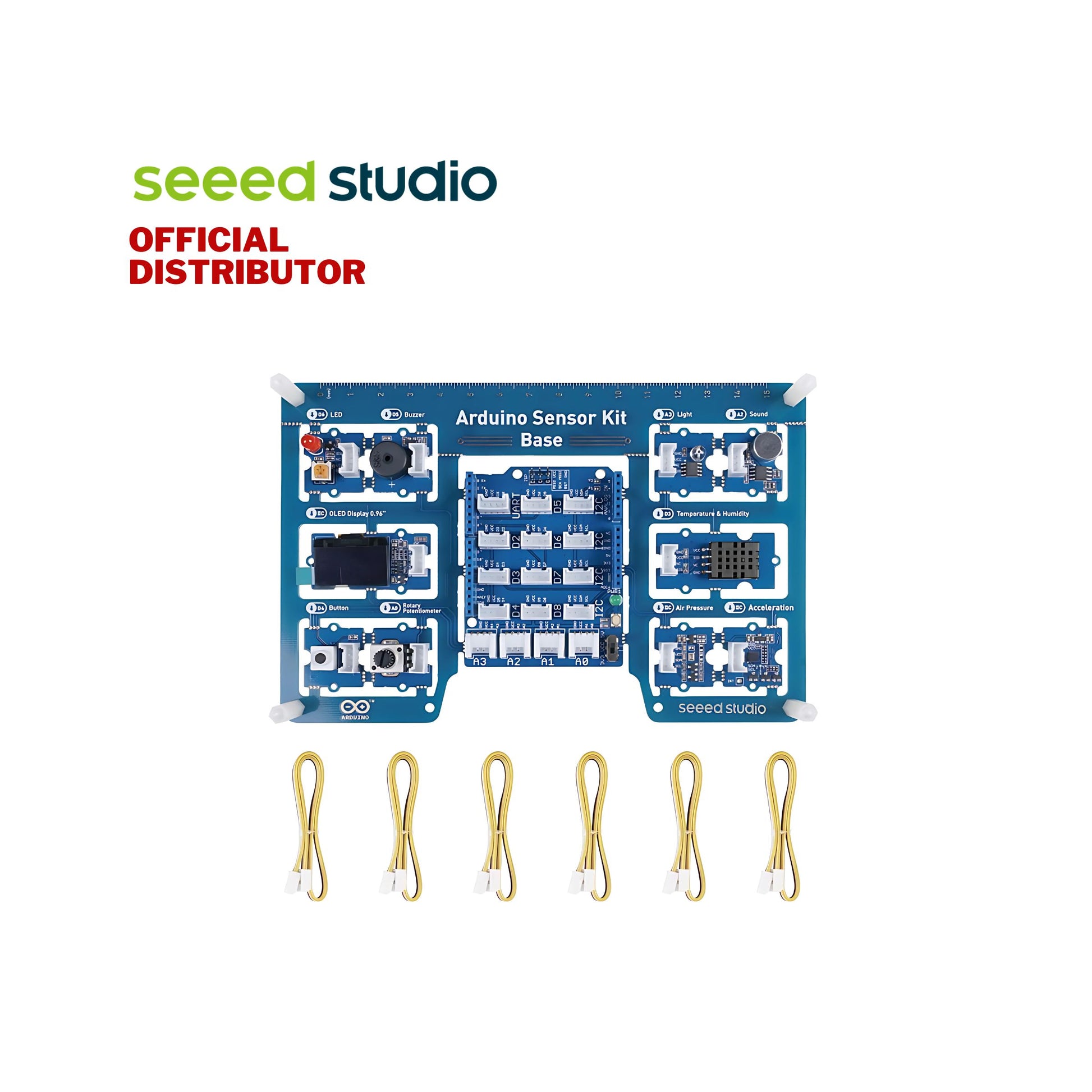

Part List:

Sensors
  • 1x Temperature & Humidity Sensors
  • 1x 3-Axis Accelerometers
  • 1x Air Pressure Sensor
  • 1x Light Sensor
  • 1x Sound Sensor
Input Modules
  • 1x Rotary Potentiometer
  • 1x Button
Output Modules
  • 1x LED
  • 1x Buzzer
Display Module
  • 1x OLED Display
  • 6x Grove Cables
  • 1x Micro USB Cable
