Description:
(Previously known as the Gravity Analog pH Sensor / Meter)
If you are building a machine that requires pH measuring capabilities, but you only need the accuracy found in a low-cost handheld pH meter, the Atlas Scientific Surveyor™ pH meter might be for you. Simple to use and straight to the point, the Atlas Scientific Surveyor™ pH meter outputs an analog signal that’s easy to read.
Specifications:
- Reads: pH
- Range: 0.1 − 14.0
- Resolution: 0.1
- Accuracy: +/– 0.2
- Response Time: Continuous analog output
- Supported probes: Any type & brand
- Calibration: Optional
- Temp Compensation: No (unnecessary)
- Data Protocol: Analog 2.7 − 0.2V

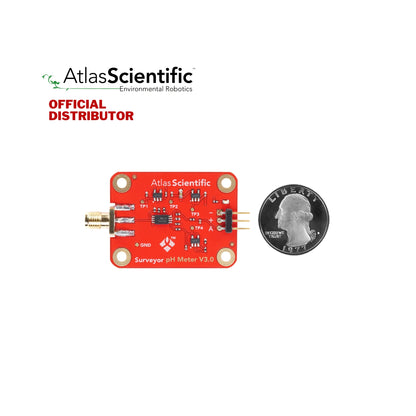

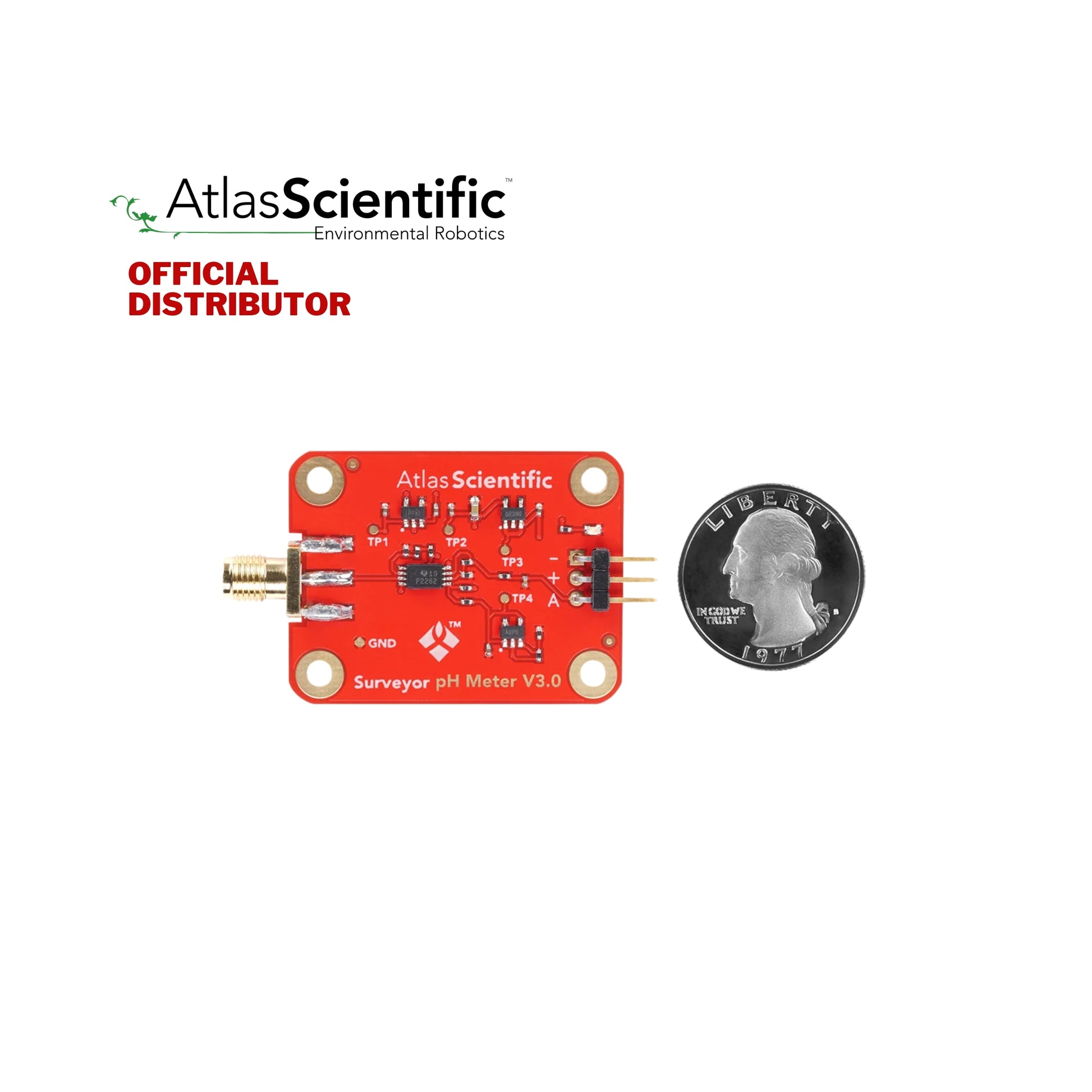

- Dimensions: 54mm x 32mm (2.2″ x 1.2″)
- Weight: 15 grams
Documents & Downloads:
- Surveyor™ Analog pH Sensor / Meter Datasheet
- Arduino Sample Code
- pH Temperature Compensation Calculator
- How to build an Arduino pH meter
- Surveyor™ Analog pH Sensor / Meter 3D model (*step)

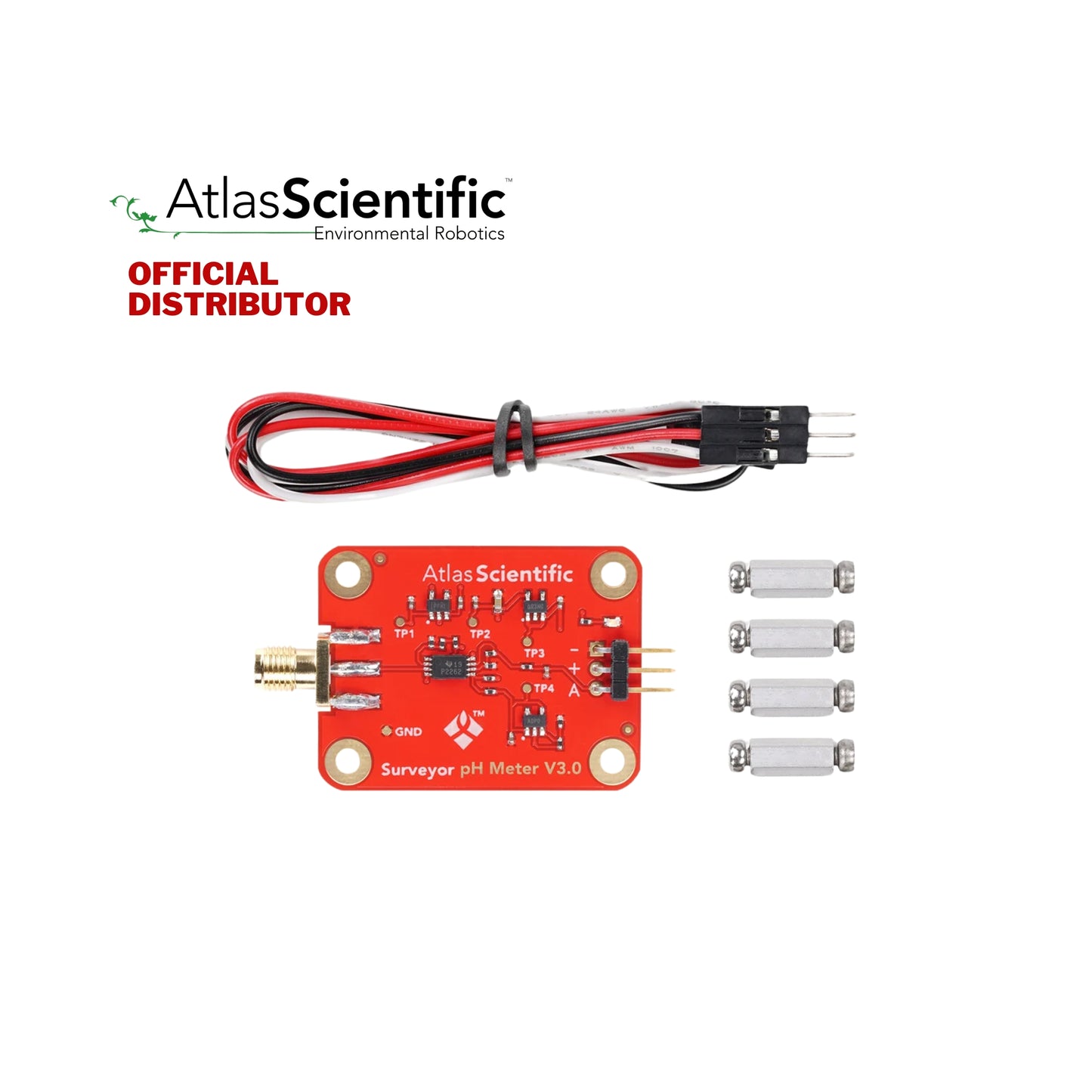

Part List:
- (4) standoffs and screws,
- (1) 3 pin jumper cable
