Atlas Scientific PT-1000 Temperature Probe | PT-1000

Description:

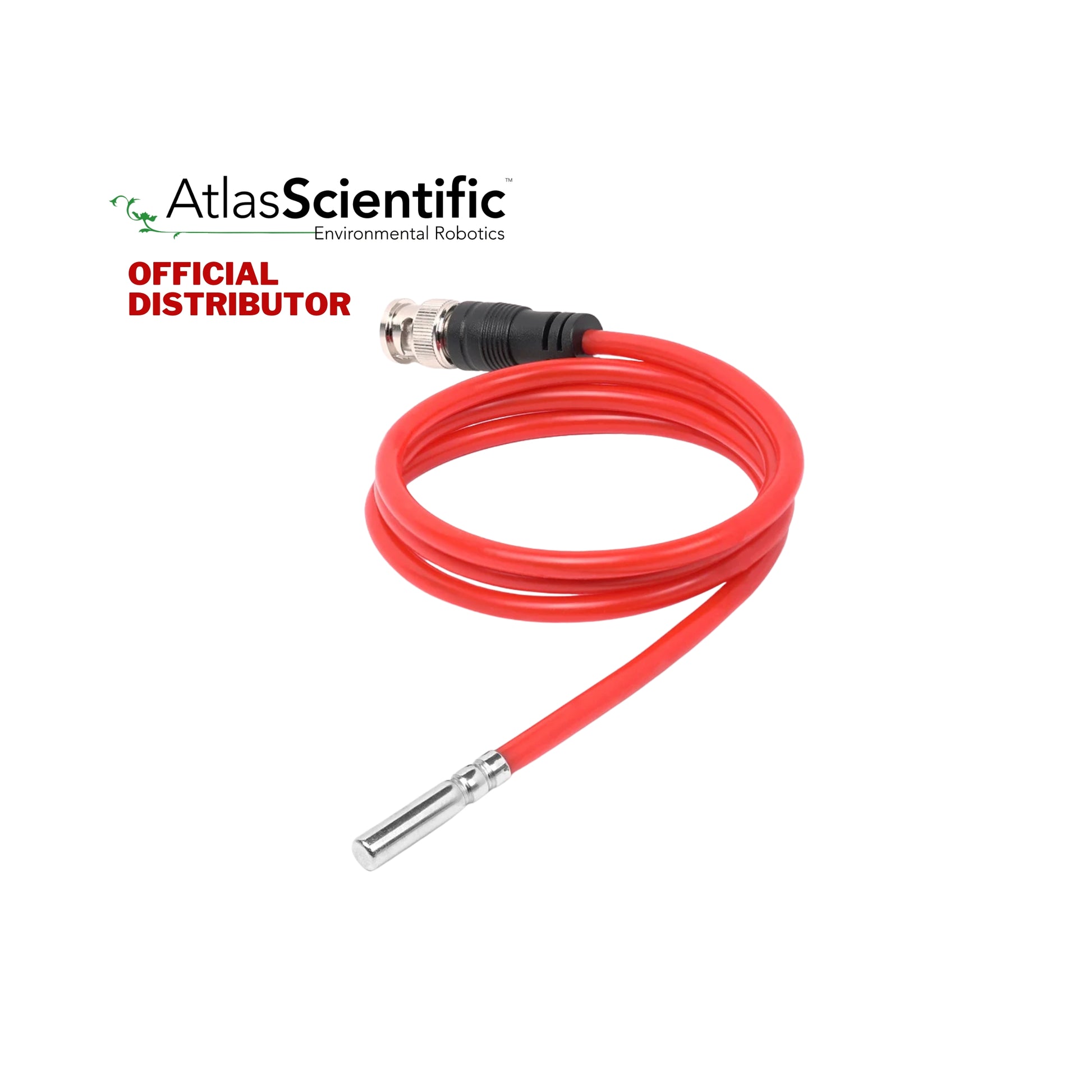

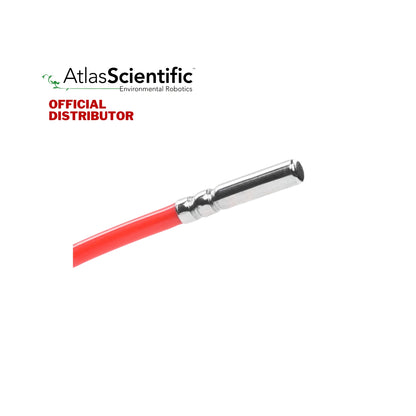

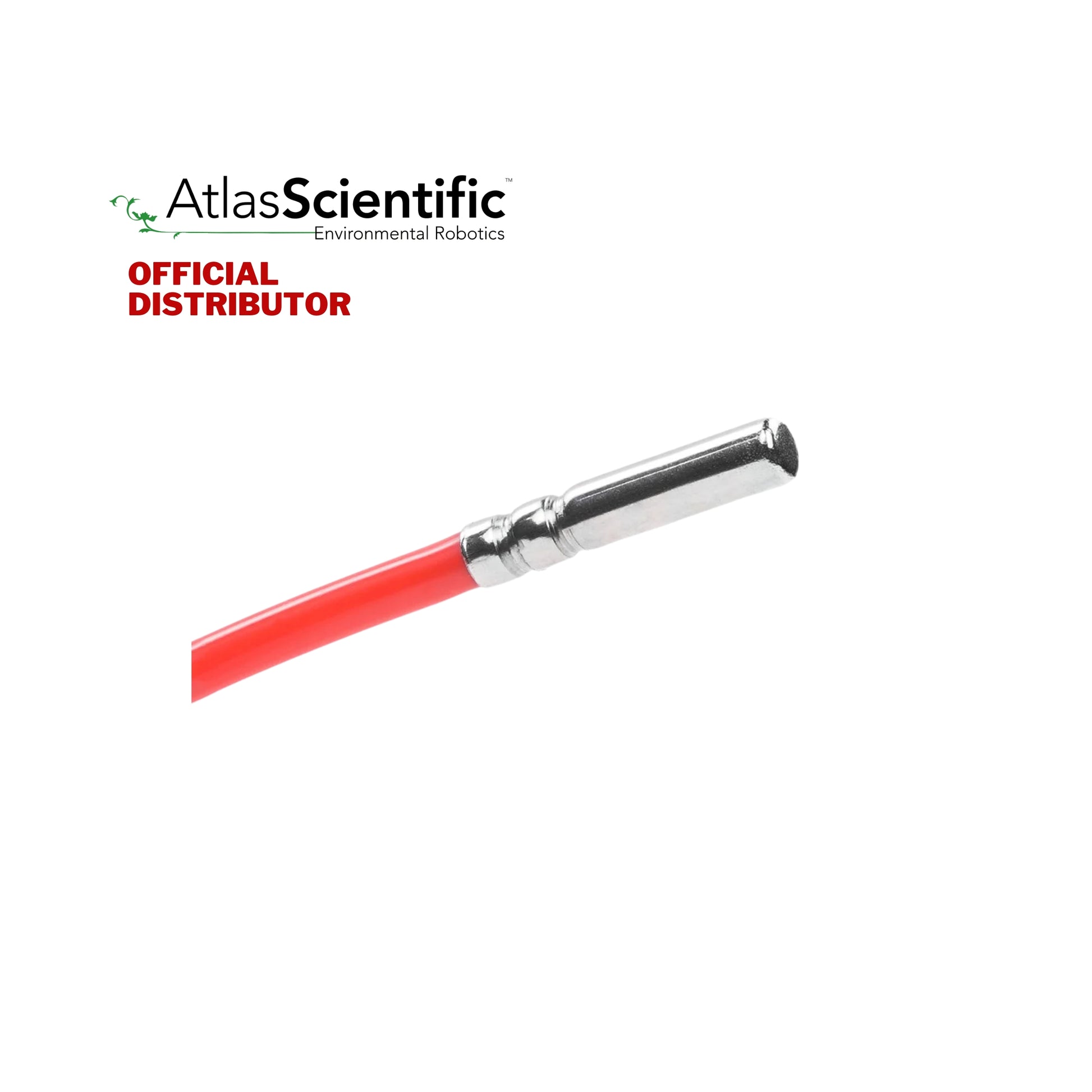

The Atlas Scientific PT-1000 probe is a Class-A high purity platinum RTD temperature probe with a thick silicone rubber cable. The 304 stainless steel tip quickly conducts heat from the environment to the platinum sensor inside, giving you low latency, high accuracy readings.

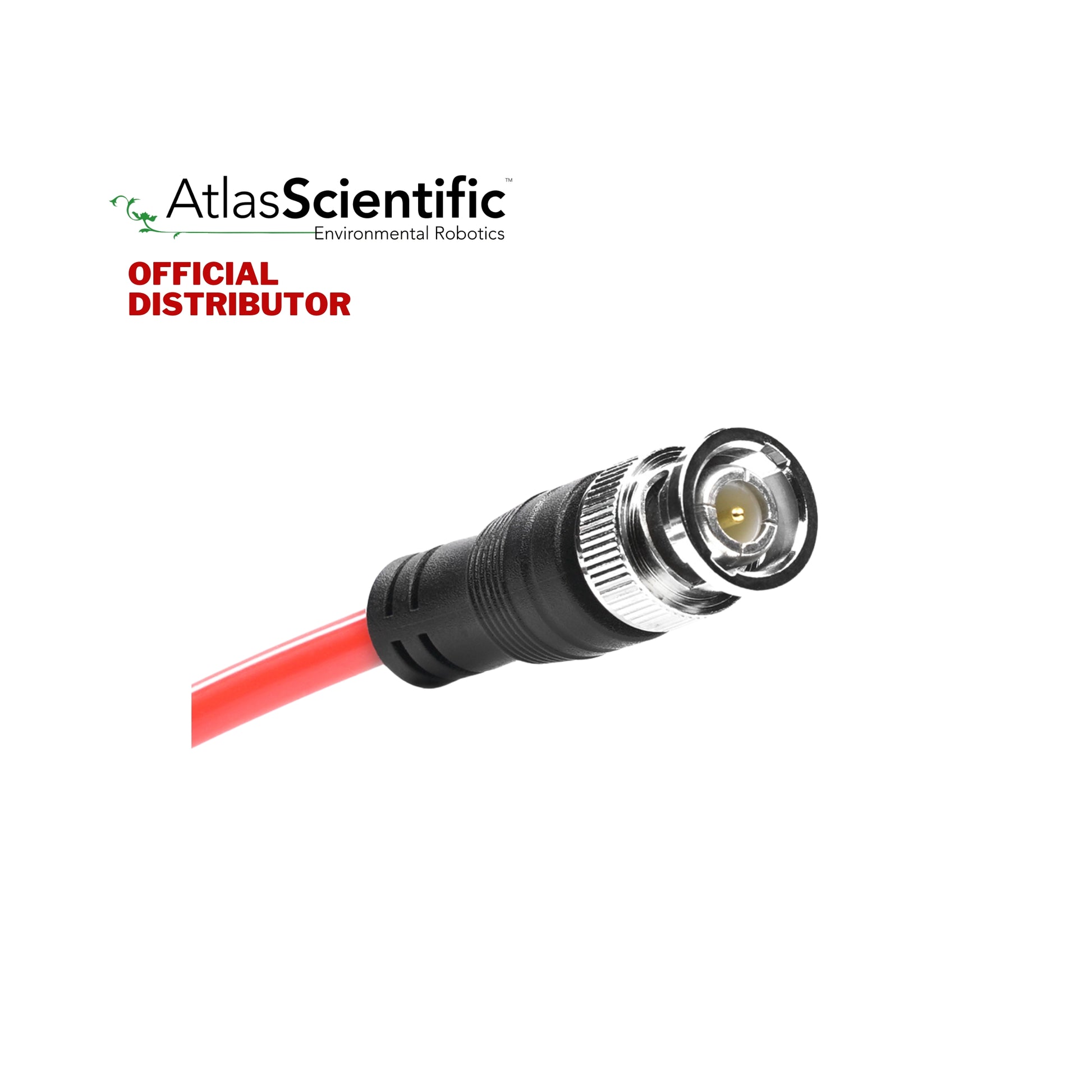

Note: This Temperature Probe can be fully submerged in fresh water or salt water, up to the SMA connector indefinitely.

Specifications:

• Accuracy +/- (0.15 + (0.002*t)
• Probe type: Class A Platnum, RTD (Resistance temperature detector)

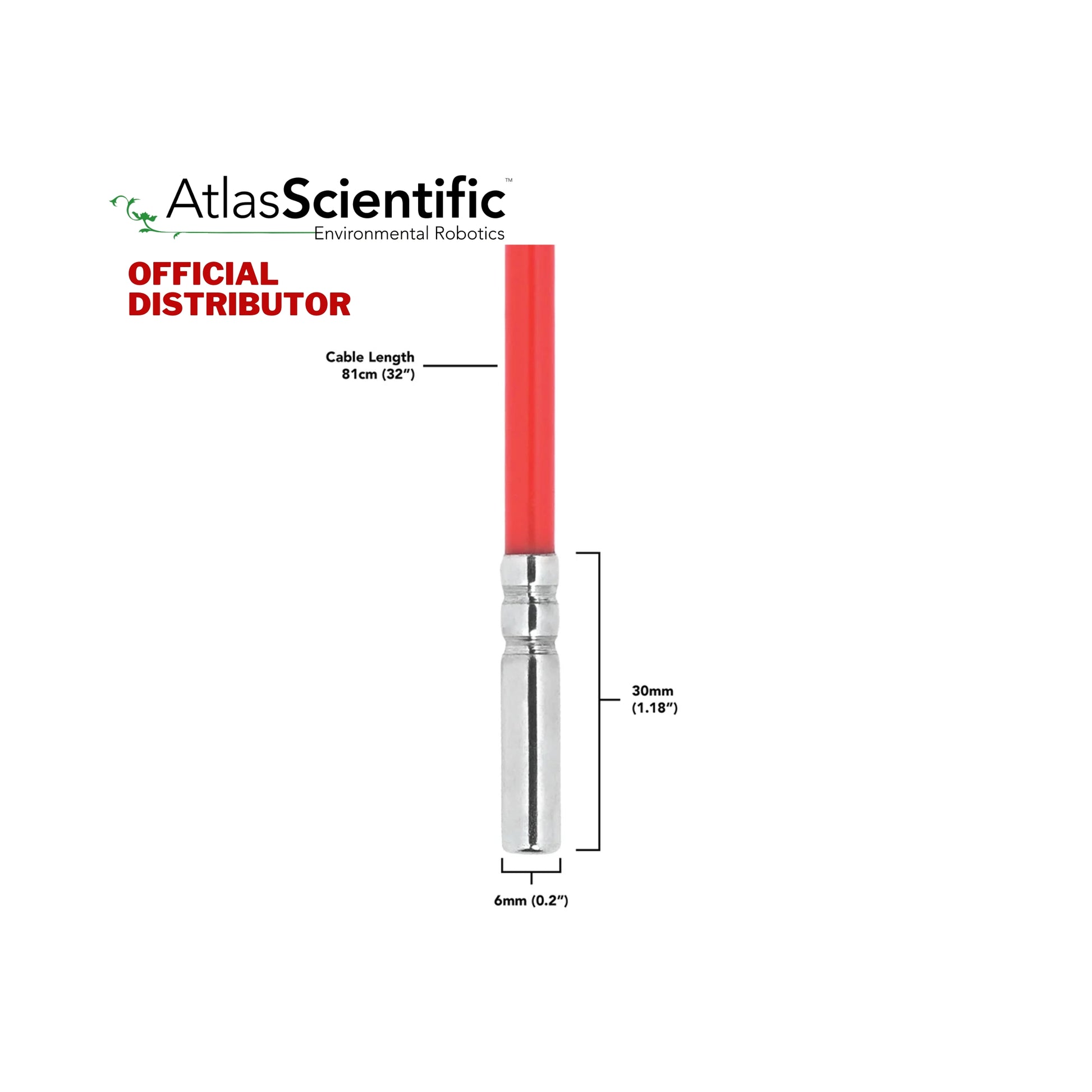

• Cable length: 81cm
• Cable Material: Silicone rubber
• 30mm Sensing area (304 SS)

• Reaction Time: 90% value in 13 seconds
• Probe output: Analog
• Full temp sensing range: -200°C to 850°C
• Cable max temp 125°c
• Cable min temp -55°c

Documents:

• PT-1000 Temperature Probe Datasheet
• PT-1000 3D model (*step)

Part List:

• PT-1000 probe
