BIQU Panda LUX RGB

Description:

The BIQU Panda LUX RGB Kit PX is a premium lighting upgrade designed to dramatically enhance the visibility and aesthetics of your Bambu Lab 3D printer's build chamber. Featuring high-brightness RGBW LEDs and an integrated ESP32 chip for smart control, this kit provides intense, clear illumination and can dynamically display the printer's current status through customizable lighting effects. With its tool-free magnetic installation and seamless integration with the printer's power and control systems, the Panda LUX RGB offers both maximum functionality and a sleek, professional look.

Features:

High-Brightness RGBW Lighting: Equipped with 16 RGBW LEDs, providing both rich, customizable RGB color options and a bright, pure 6000K white light mode for maximum visibility and compatibility with the printer's LiDAR function.
Smart Control with ESP32: Built-in ESP32 chip allows for network control, enabling customization of colors, brightness, effects, and speed via a dedicated Web UI or the BIQU app.
Printer Status Synchronization: The RGB lighting provides clear visual feedback of the printing status in the style of the H-Series, including:
  - Yellow Flowing: File loading
  - Orange Flowing: Print preparation
  - White/Rainbow Static: Printing / Paused
  - Green Static: Print complete
  - Red Flashing: Printer error
  - White Breathing: Standby
Easy Magnetic Installation: Features tool-free magnetic mounting for quick and simple installation directly onto the metal frame of compatible printers.
Seamless Integration: Powered directly via the printer's original light-bar connector or an optional 5V USB power source (for X1 series compatibility). Control is also available through the original Bambu Lab display and app.
Optimized Durability: Constructed with a high-quality Aluminum Alloy housing for excellent heat dissipation, ensuring reliability and an extended LED lifespan.
Anti-Glare Design: Front-facing illumination is designed to prevent harsh direct light into the eyes, reducing glare.

Specifications:

Material: Aluminum Alloy
Color Temperature: RGB + 6000K White Light
Lighting Effects: Static Breathing, Strobing Wave, Marquee, Color Cycle, Rainbow, Warning: Hot, H2D Style Status Indicator
LED Quantity: 16 High Brightness
Voltage: 5V
Current: Standby 0.07A, Peak 0.71A
Waterproof: No

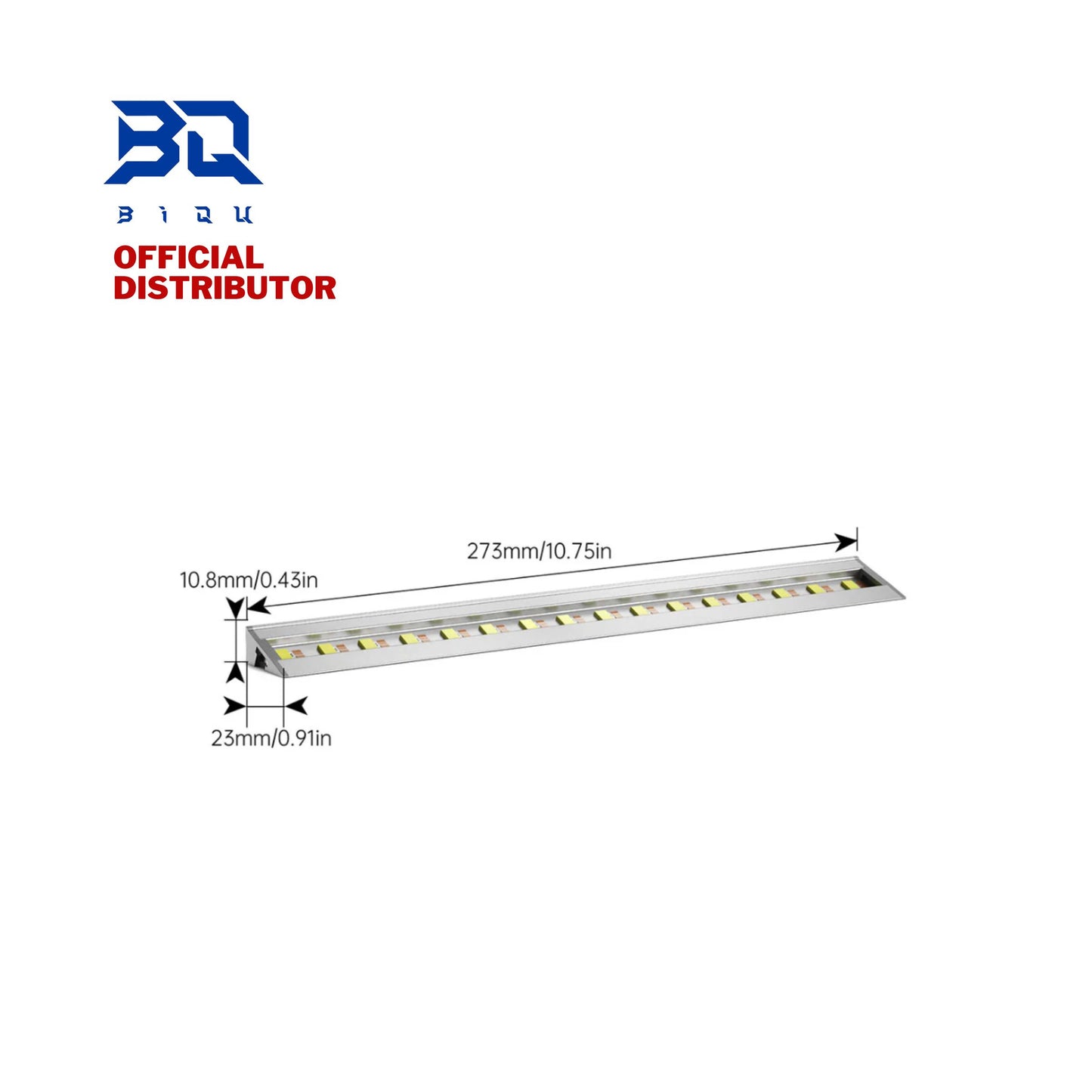

Product Size: 273mm/10.75in
Lifespan: Up to 36,000 Hours
Printer Compatibility:
- For Bambu Lab P1P, P1S: direct install and use.
- For X1C and X1E: requires a separate 2 m USB cable.
* For X1C and X1E printers, it is recommended to use the Panda Branch as the power source for optimal cable routing. Otherwise, a separate 5V USB power adopter is required.
USB Product Compatibility:
- USB-A to USB-C: Panda Hub, Panda Branch
- USB-C to USB-C: Panda Hub Plus, Panda Branch Plus
