Description:

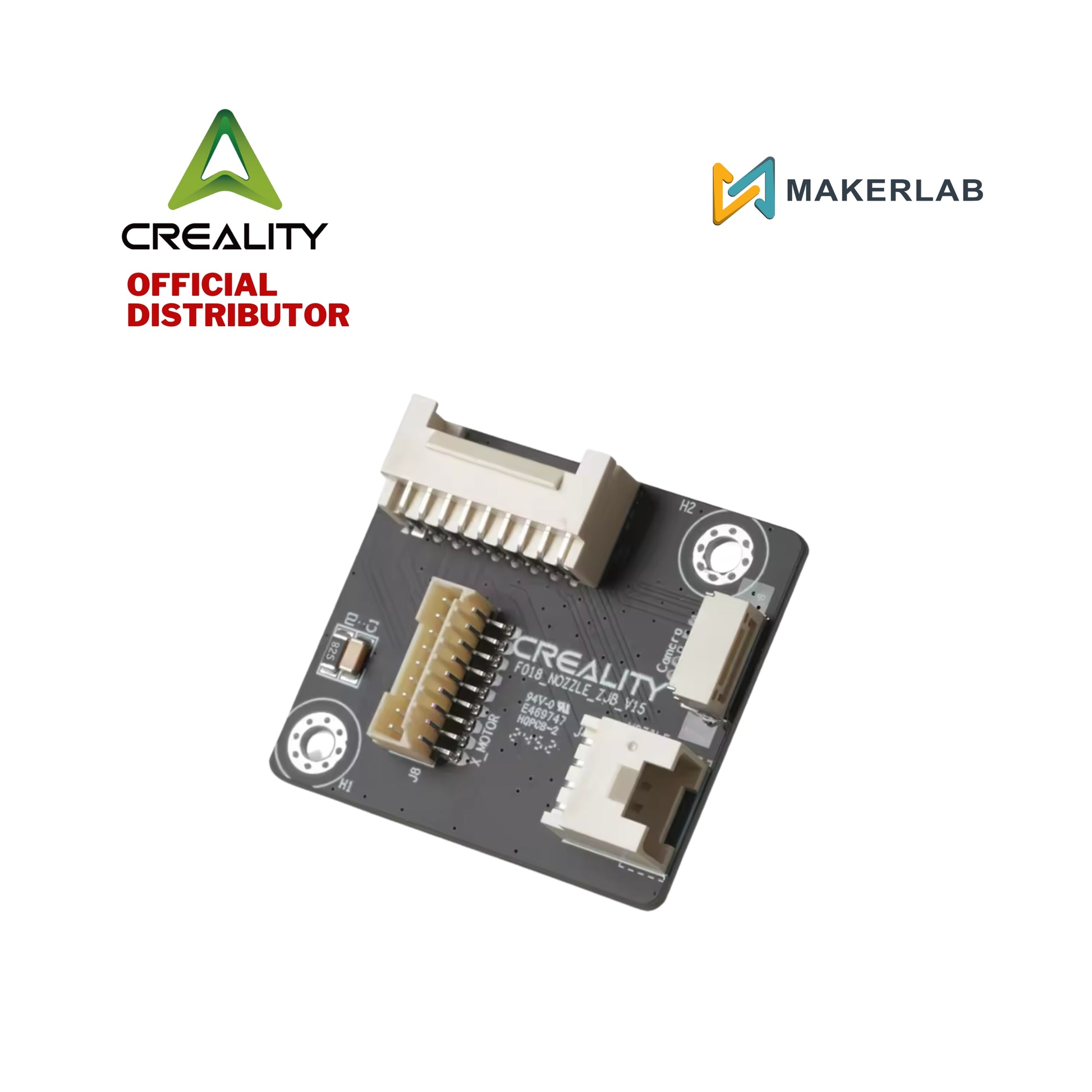

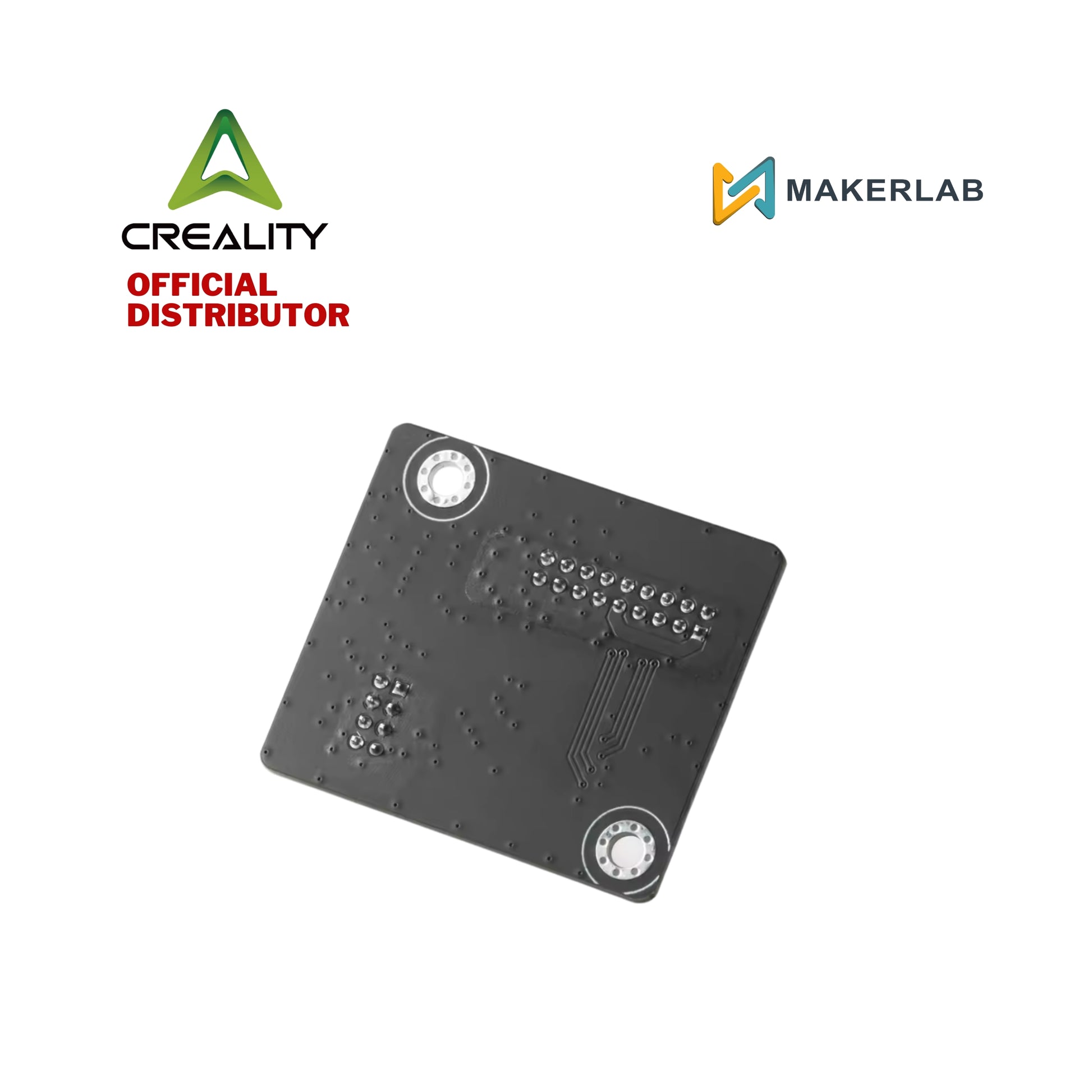

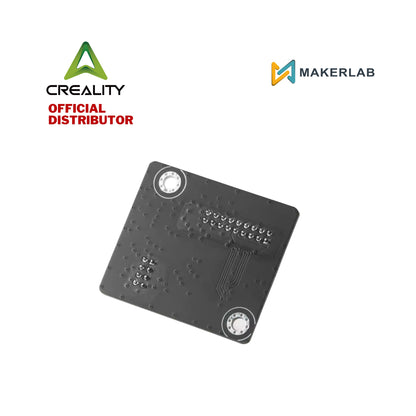

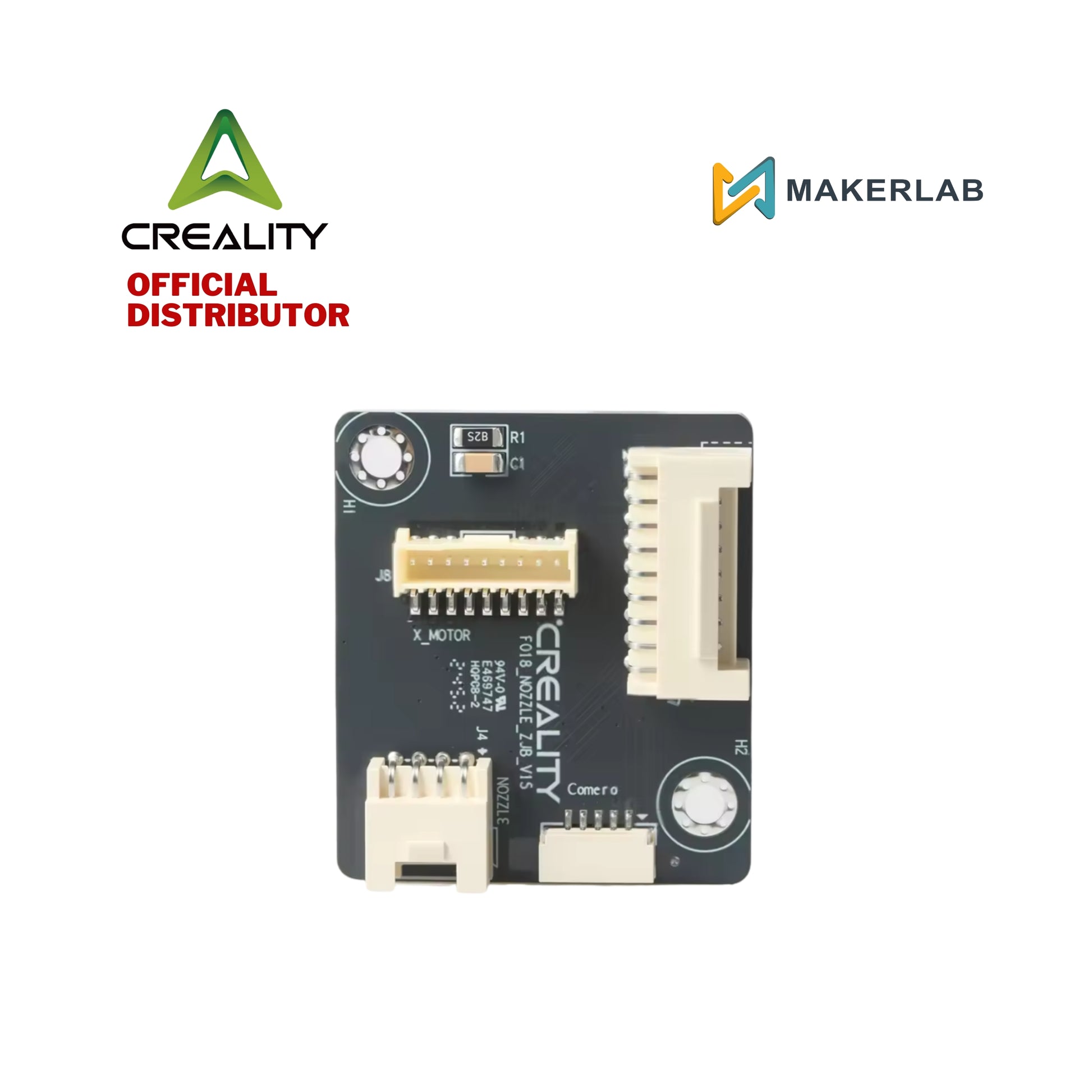

The Creality Adapter Plate for Hi is an Original Equipment Manufacturer (OEM) replacement Printed Circuit Board (PCB). This small board serves as the crucial electrical connection interface between the main wiring harness (from the printer's mainboard) and the hotend components, including the heater, thermistor, and cooling fans. It ensures stable power and precise signal transmission for temperature control and motor operation within the extruder assembly. Replacing this plate is a key maintenance step for troubleshooting electrical issues related to the hotend.
Features:
Official Replacement Part: Guarantees perfect fit, electrical compatibility, and optimal performance with the Creality Hi 3D printer.
Centralized Electrical Interface: Functions as the terminal block for all hotend components, simplifying wiring and replacement.
Precision Control Support: Maintains stable connections for components like the thermistor and heater, ensuring accurate temperature regulation and consistent extrusion.
Durable Construction: Built with high-quality PCB materials to withstand the repeated heating and motion stresses of the extruder assembly.
Easy Installation: Designed for direct, seamless integration into the Creality Hi's toolhead/extruder system.
Specifications:
Part Name: Adapter Plate for Hi
Component Type: PCB (Printed Circuit Board) / Electrical Interface
Function: Connects hotend wiring (heater, thermistor, fans) to the main carriage cable.
Compatibility: Creality Hi 3D Printer
Installation Location: Within the extruder/toolhead assembly.
