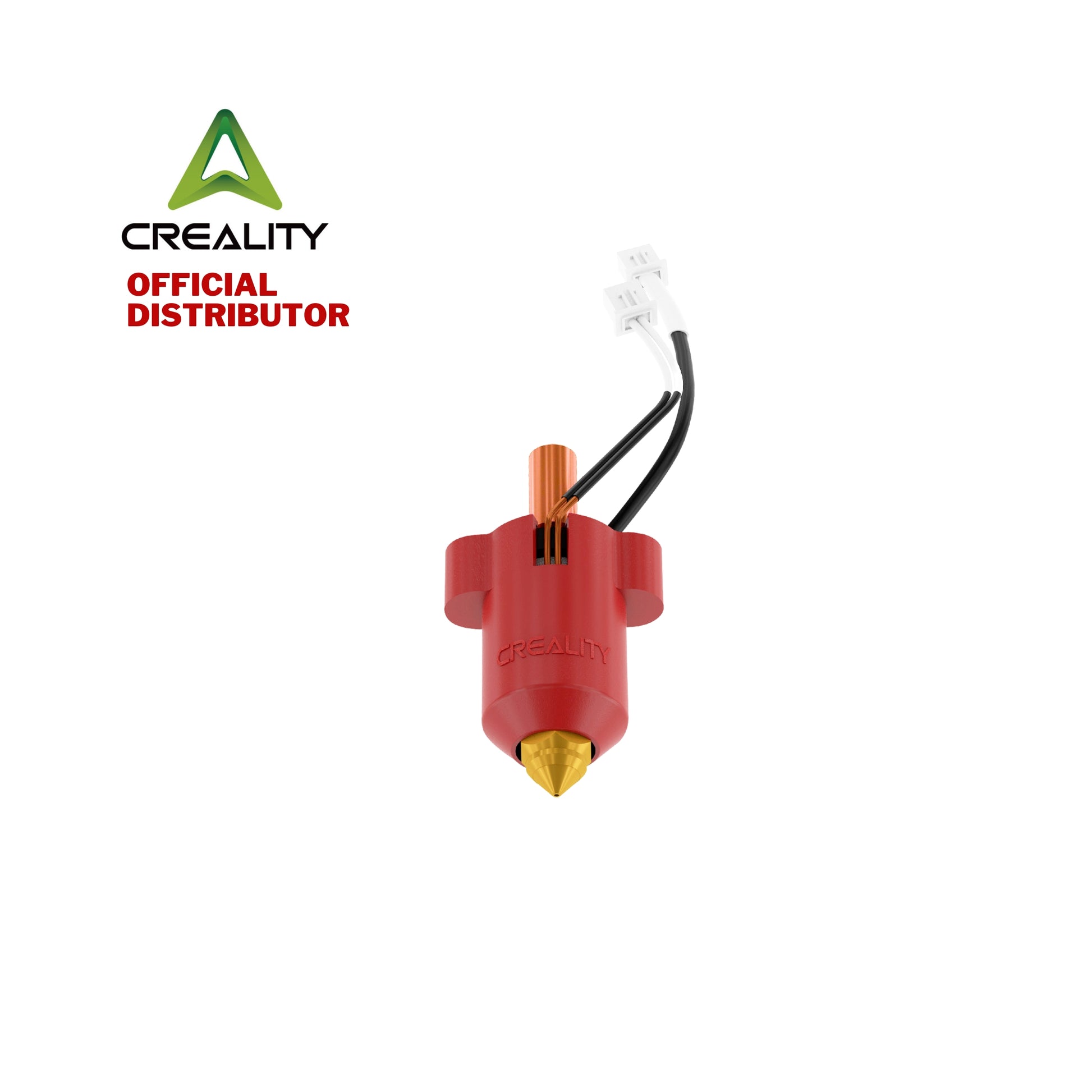

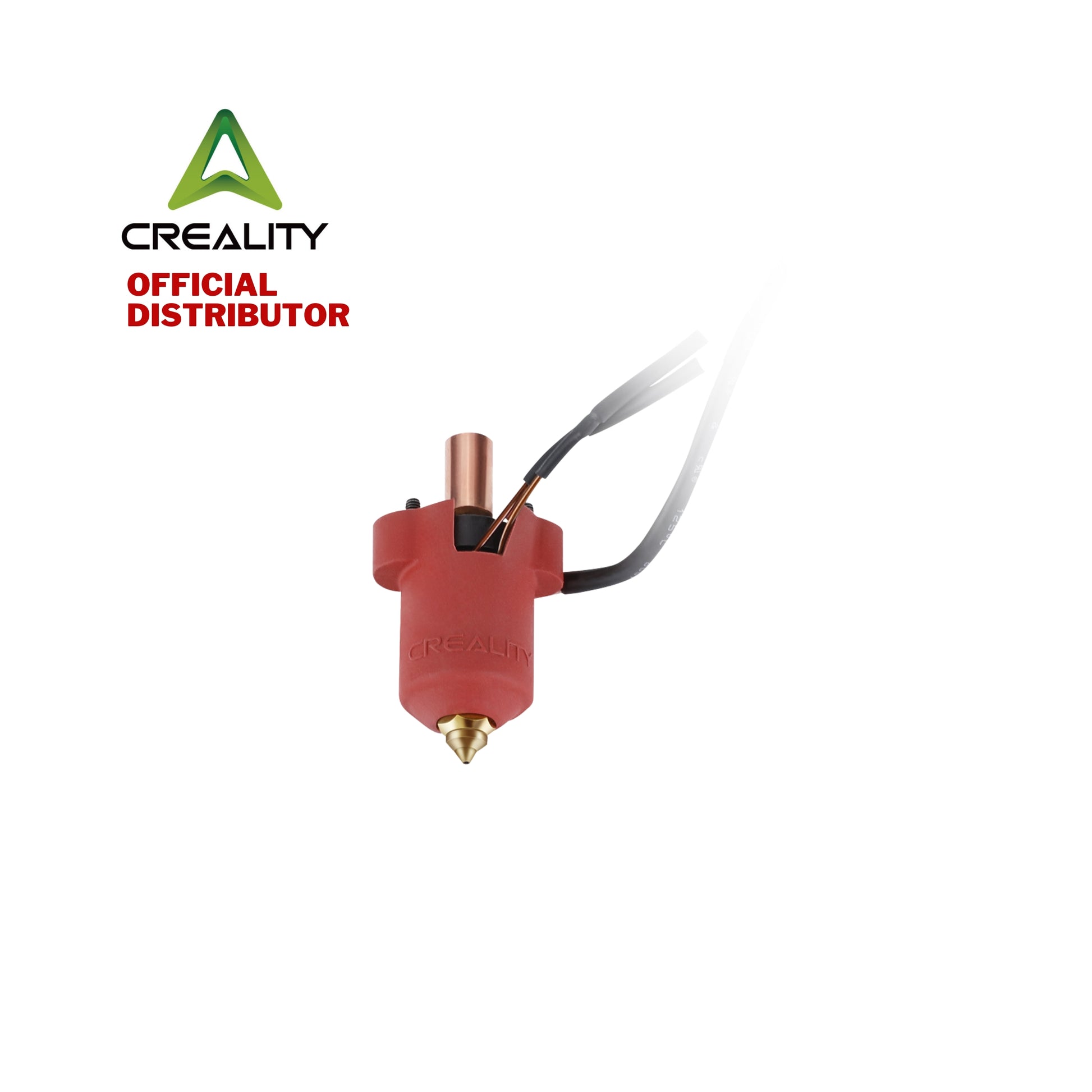

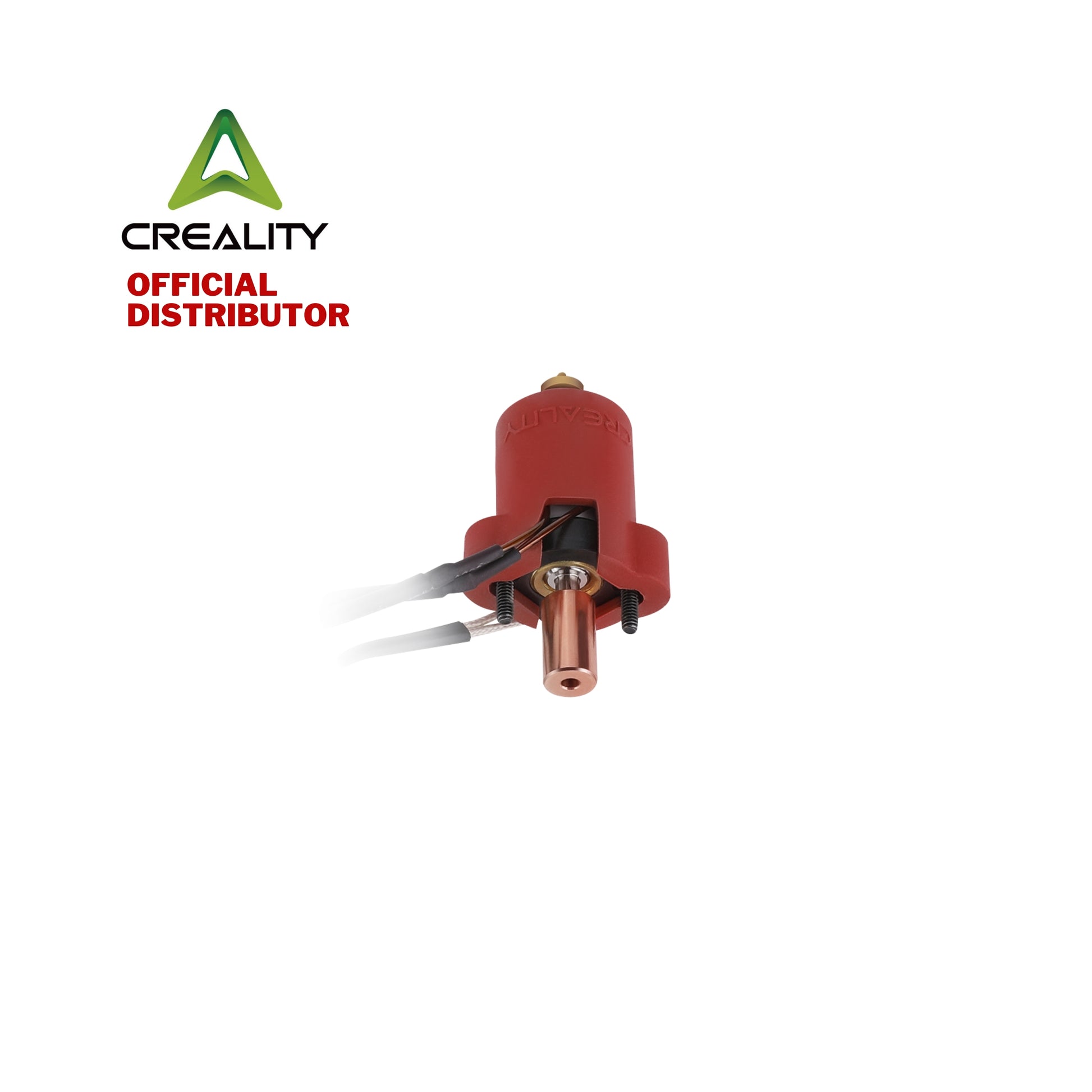

Creality Heating Block Kit for CR10 SE

Description:

The Creality Heating Block Kit for the CR-10 SE is a 3D printer accessory designed for high-speed and high-temperature printing. It features a ceramic heating ring for faster and more uniform heating, supports temperatures up to 300°C, and is compatible with various filaments like PLA, ABS, PETG, and more. The kit includes a titanium alloy heat break for excellent insulation and smooth feeding, along with brass nozzles for efficient printing.

Product Features:

Here are the key features of the Creality Heating Block Kit for the CR-10 SE:

• High-Speed Printing: Supports up to 600mm/s printing speed with a 30% larger hot melt section for efficient performance.
• High-Temperature Resistance: Operates at temperatures up to 300°C, making it compatible with a wide range of filaments like PLA, ABS, PETG, TPU,
• Ceramic Heating Ring: Features a 60W ceramic heating ring for faster and more uniform heating.
• Titanium Alloy Heat Break: Provides excellent thermal insulation with a thin wall thickness of 0.25 mm.
• Brass Nozzles: Includes 5 brass nozzles with a smooth inner wall for better filament feeding.
• Easy Installation: Designed for straightforward assembly and use.

This kit is great for high-speed and high-temperature 3D printing.

Specifications:

Here are the specifications for the Creality Heating Block Kit for the CR-10 SE:

• Heating Element: 60W ceramic heating ring for rapid and uniform heating.
• Maximum Temperature: Supports up to 300°C for high-temperature printing.
• Hot Melt Section: Increased by 30%, with a length of 28.5mm, enabling high-speed printing up to 600mm/s.
• Heat Break Material: Titanium alloy with a wall thickness of 0.25mm for excellent thermal insulation.
• Nozzles: Includes 5 brass nozzles with an inner wall roughness of less than Ra0.4 for smoother filament feeding.
• Filament Compatibility: Works with PLA, ABS, PETG, TPU, and more.
• Dimensions: Packing size is 92×27×20mm.

Inclusions:

• Creality Heating Block Kit for CR10 SE
