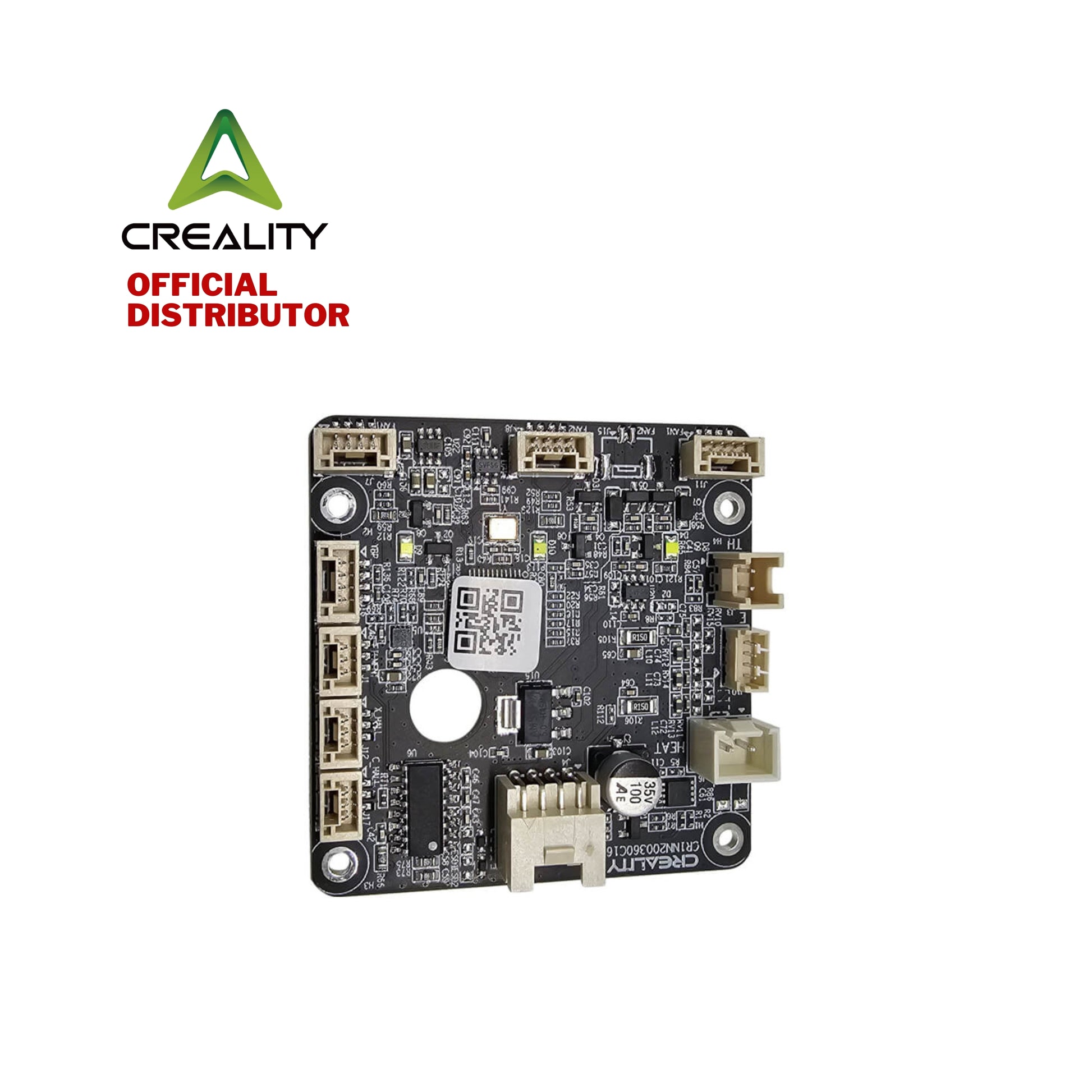

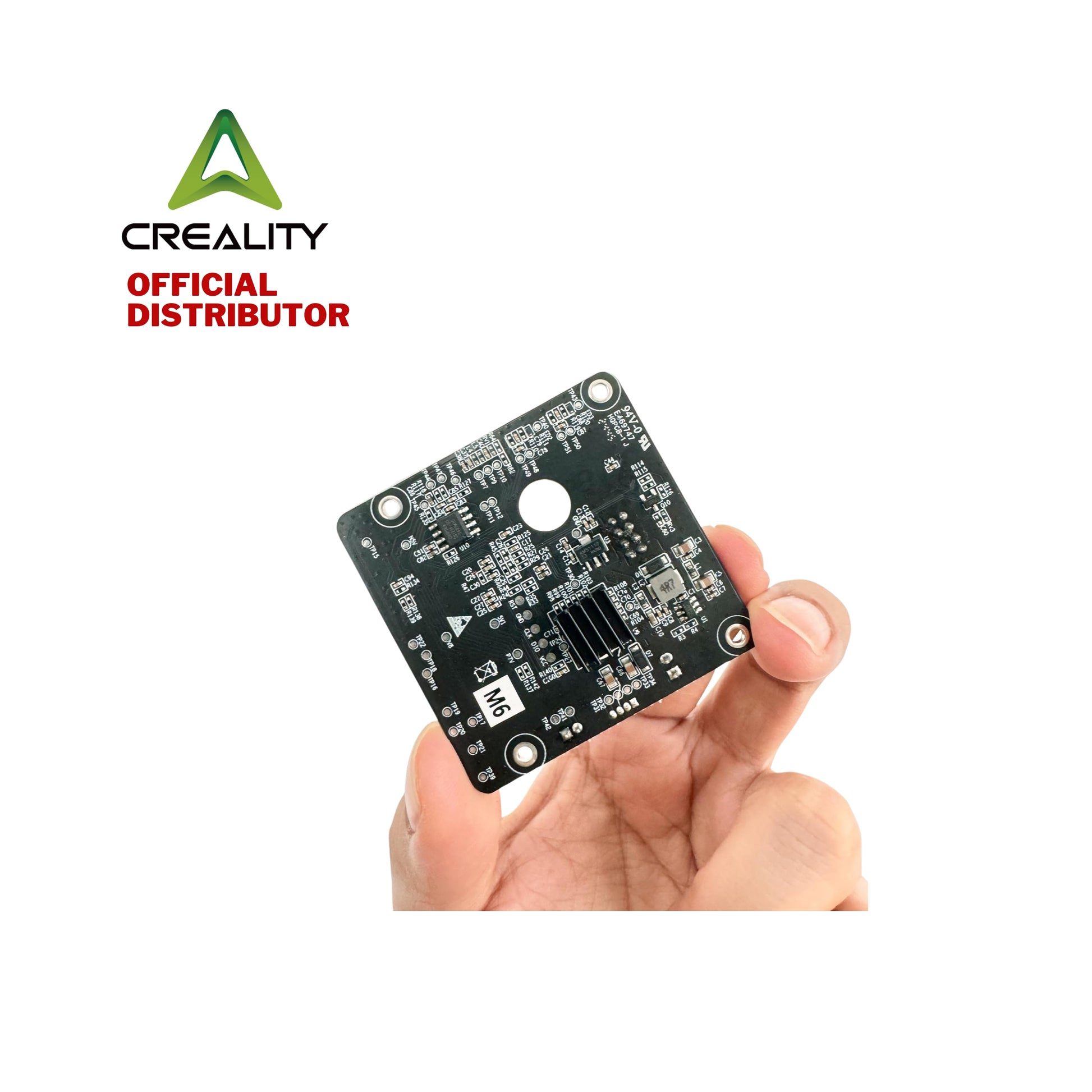

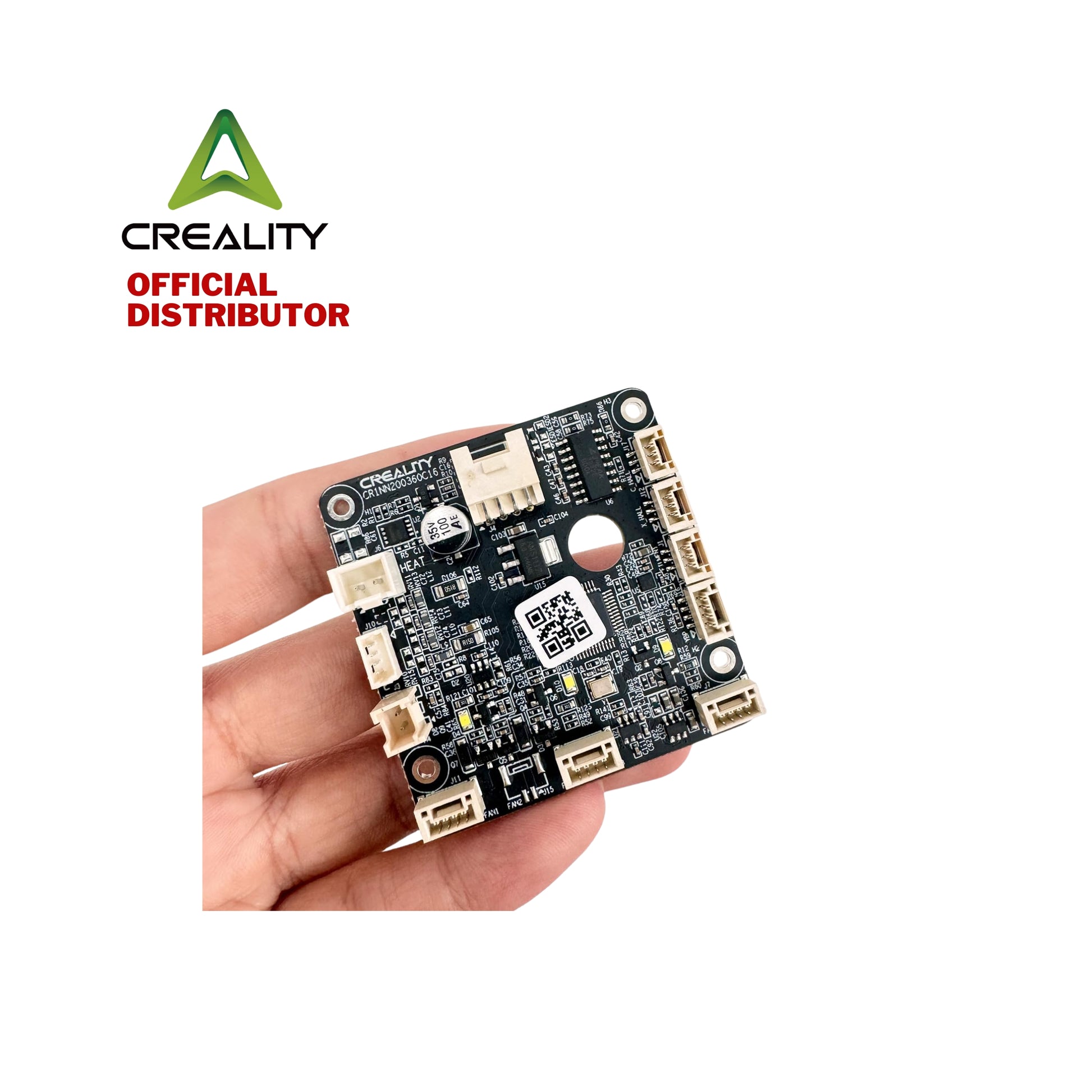

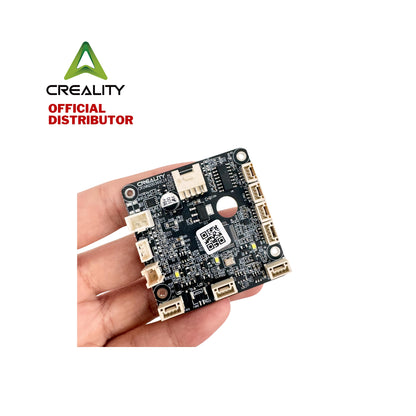

Creality Tool Head Board for Hi Printer

Description:

The Creality Tool Head Board for Hi Printer is an Original Equipment Manufacturer (OEM) printed circuit board assembly (PCBA) designed as the primary electronic interface within the Creality Hi 3D printer's tool head. Often referred to as the HI Lock Nozzle PCBA G Adapter Board, this board is crucial for consolidating and managing the electrical connections for all tool head components.

It serves as a central hub for power and data signals going to and from the mainboard, connecting the hotend's heater, thermistor, fans, the quick-swap nozzle mechanism, and potentially the strain gauge sensor for auto-leveling. Its design is optimized for the Creality Hi's high-speed, integrated direct-drive system, ensuring stable operation and seamless communication between the key extruder components.

Features:

OEM Replacement: Genuine Creality part (2101020288), guaranteeing perfect fit, function, and reliability for the Creality Hi printer.
Integrated Connectivity: Acts as the central connection point for all critical tool head peripherals, simplifying wiring to the main printer chassis.
Supports Lock Nozzle System: Specifically designed to interface with the Creality Hi's new "Lock Nozzle" system, ensuring proper connection and function of the quick-swap mechanism.
Stable Data Transmission: Engineered for high-speed communication, maintaining signal integrity for the thermistor, heater, and stepper motor in a fast-moving environment.
Easy Installation: Designed for simple plug-and-play replacement, minimizing downtime for maintenance or repair.

Specifications:

Component Name: Tool Head Board / Extruder Board / HI Lock Nozzle PCBA G Adapter Board
Creality Part Number: 2101020288
Item Type: Module / Adapter Board (PCBA)
Compatibility: Creality Hi 3D Printer (Hi Series)
Primary Function: Consolidates electrical connections for the hotend (heater, thermistor), fans, and nozzle lock sensor.
Material: Printed Circuit Board (PCB)
Input Voltage : Typically 5 V and 24 V (electronic component voltage)
Controller: Contains circuitry and connectors for tool head control.
