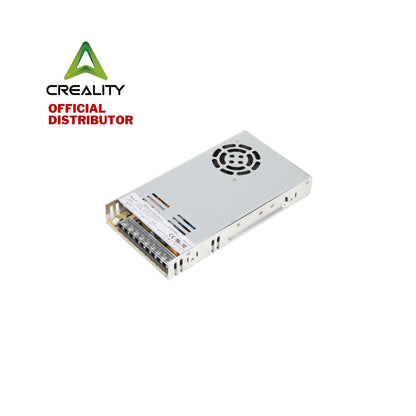

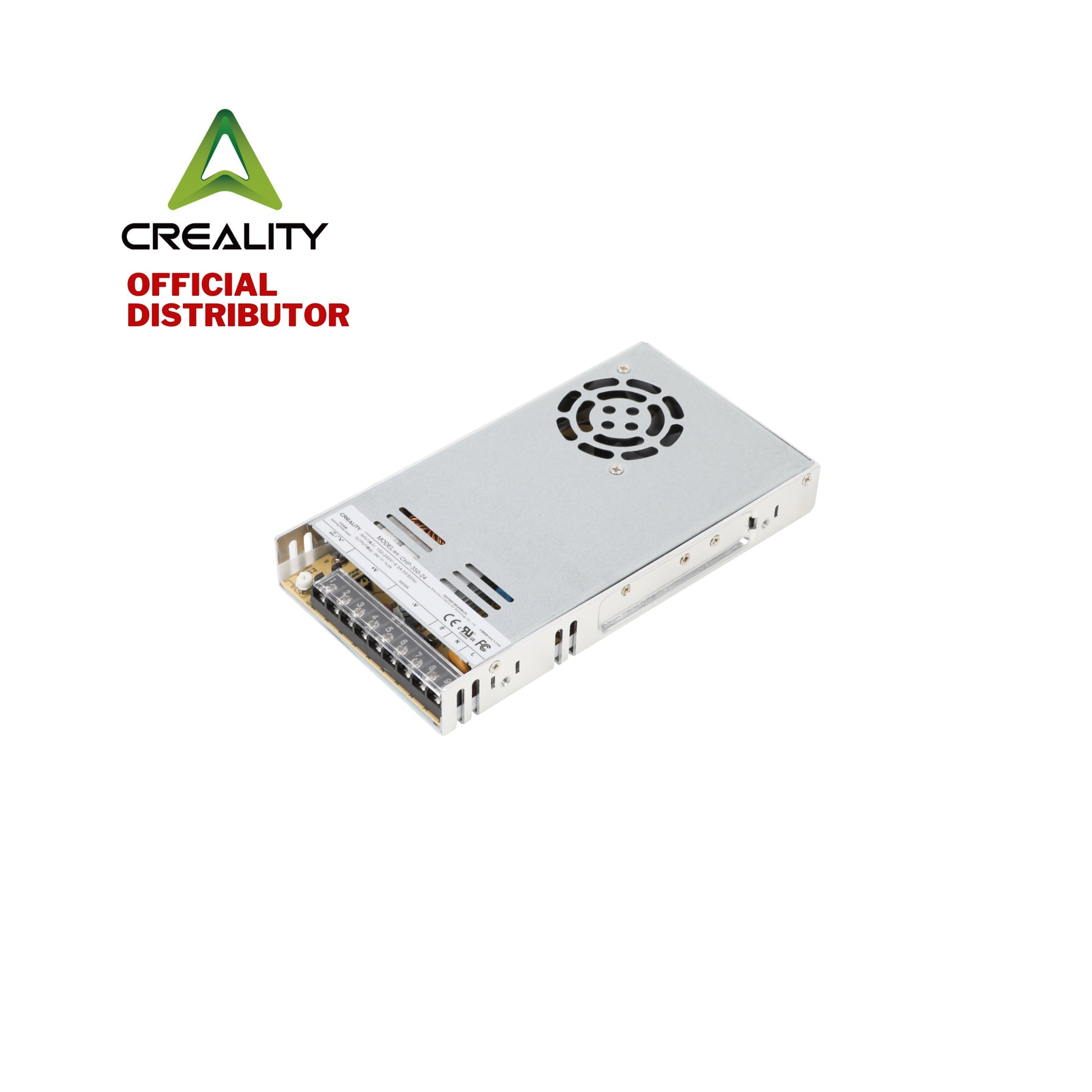

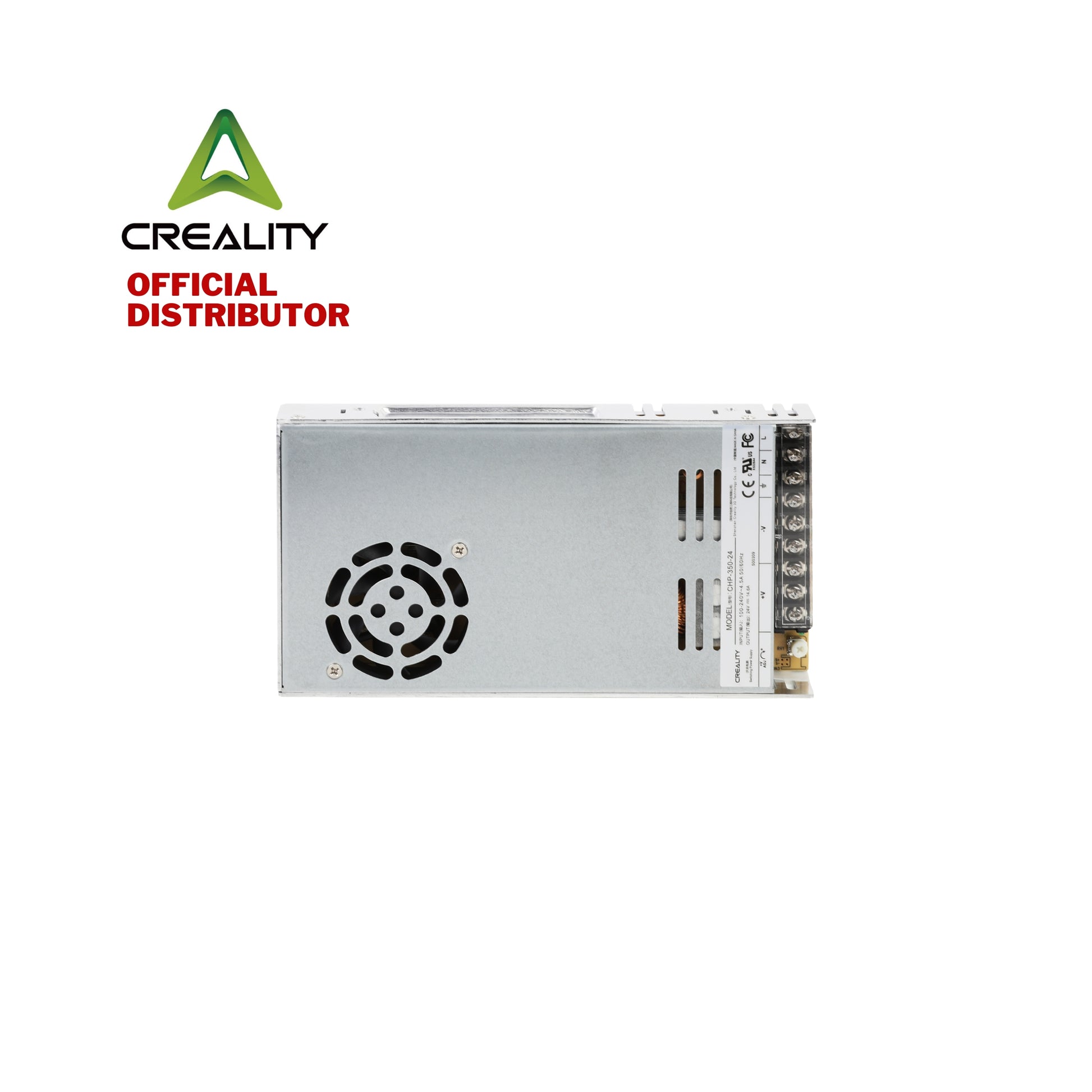

Creality Power Supply Model CHP-350-24_24V

Description:

The Creality CHP-350-24 is a 350W switching power supply designed to provide stable and reliable 24V DC output for various Creality 3D printers, including models like the CR-10 Smart, Ender-3 series, and K2 Plus.

Product Features:

• Multiple Protection Mechanisms: Equipped with over-voltage, over-current, and short-circuit protections to ensure safe operation.
• Soft-Start Circuit: Reduces inrush current during startup, enhancing the longevity of the power supply.
• Efficient Heat Dissipation: The aluminum alloy casing provides good compression resistance and, combined with a hollow design, facilitates effective heat dissipation.
• High-Quality Components: Utilizes genuine IC chips and full-power transformers to ensure stable performance and reduce failure rates.

Specifications:

• Model: CHP-350-24
• Input Voltage: 100–240V AC, 50/60Hz
• Output Voltage: 24V DC
• Output Current: 14.6A
• Power Output: 350W
• Dimensions: Approximately 215 × 115 × 30 mm
• Weight: Approximately 630g

INCLUSIONS:

• 1 × CHP-350-24 Power Supply Unit
