MLE05239

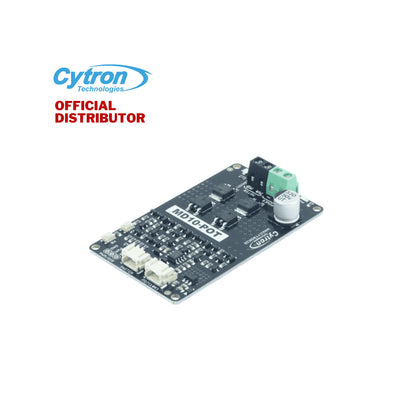

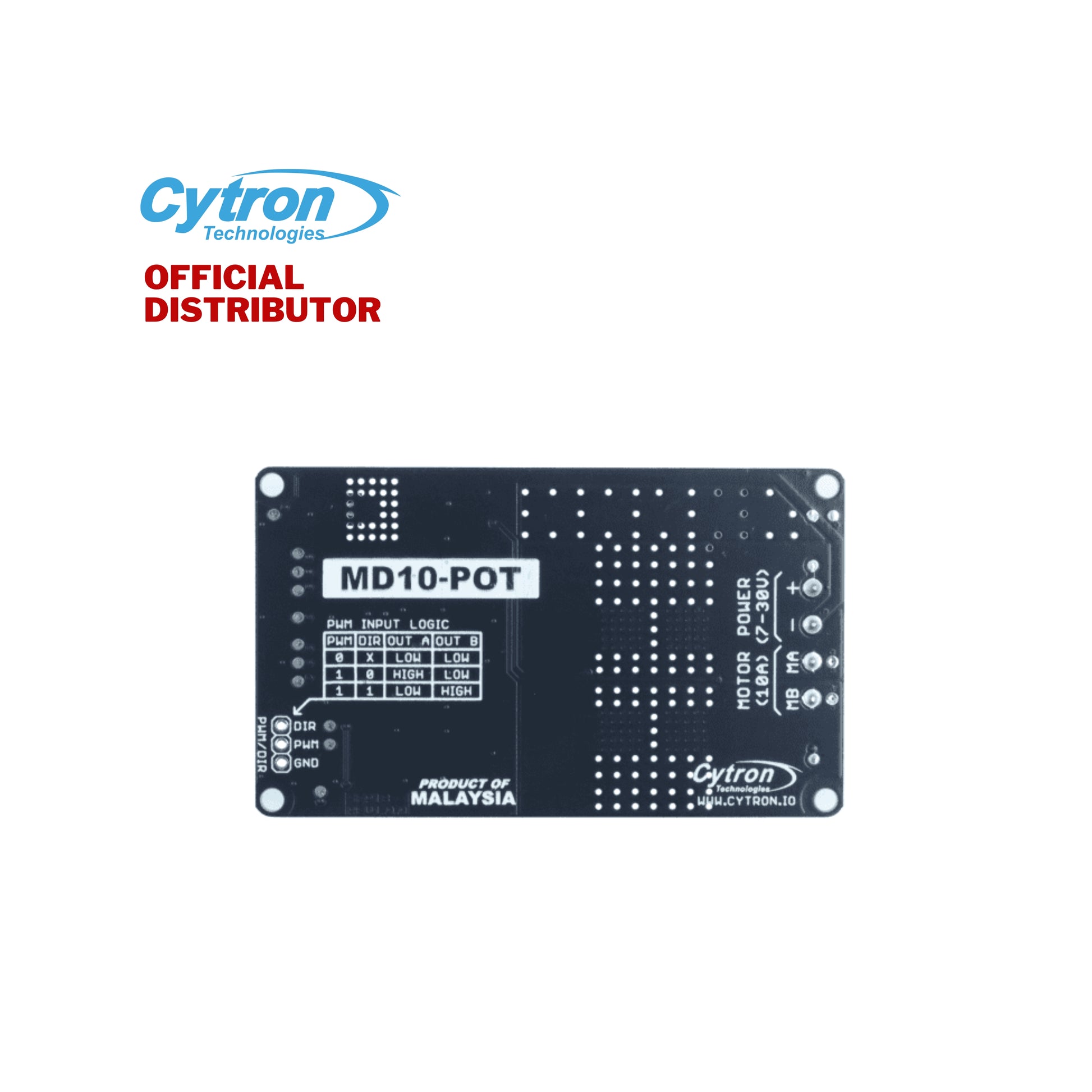

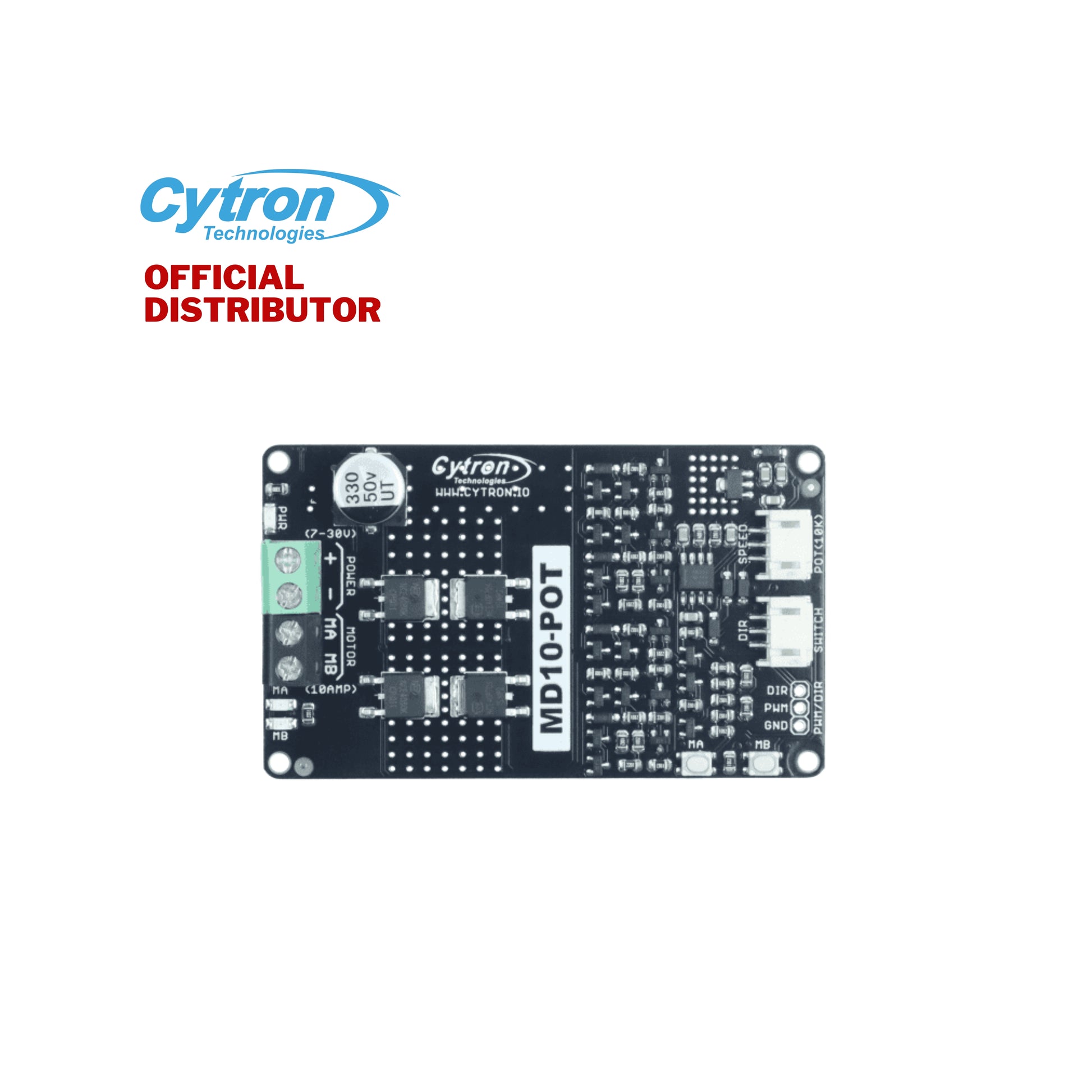

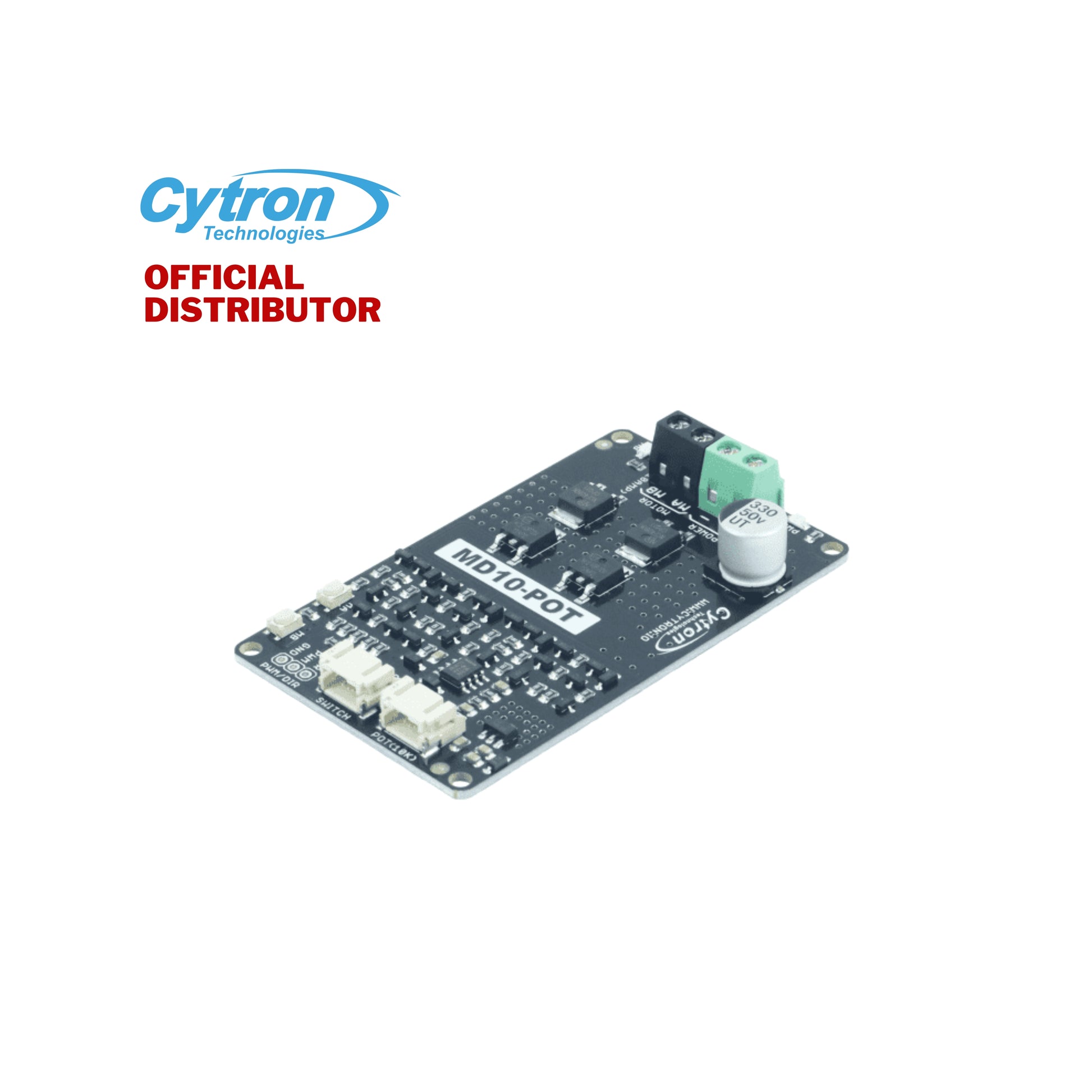

Cytron 10 Amp 7V-30V Potentiometer & Switch Control DC Motor Driver

₱799.00
₱799.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Loading locations...
Product Description

Description:

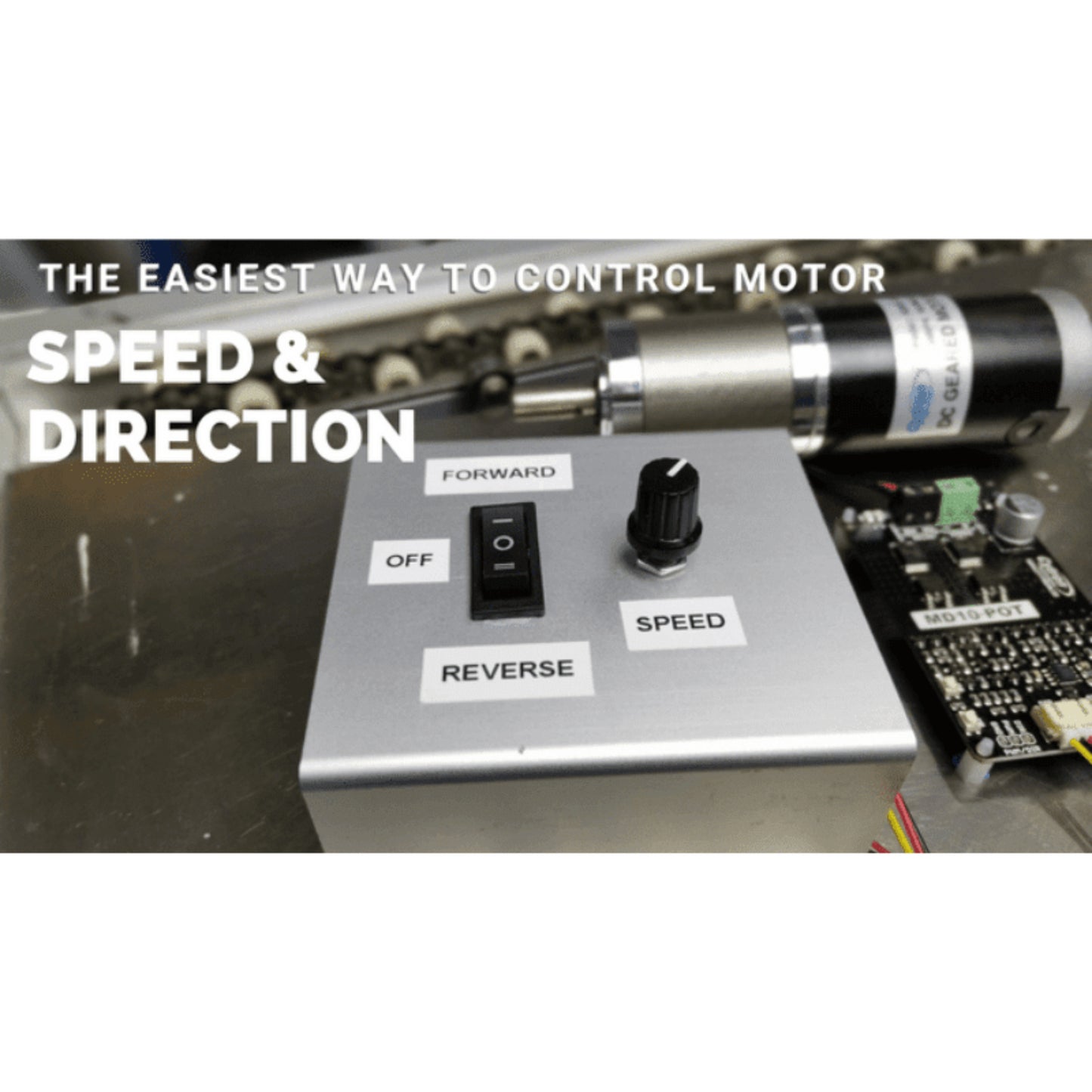

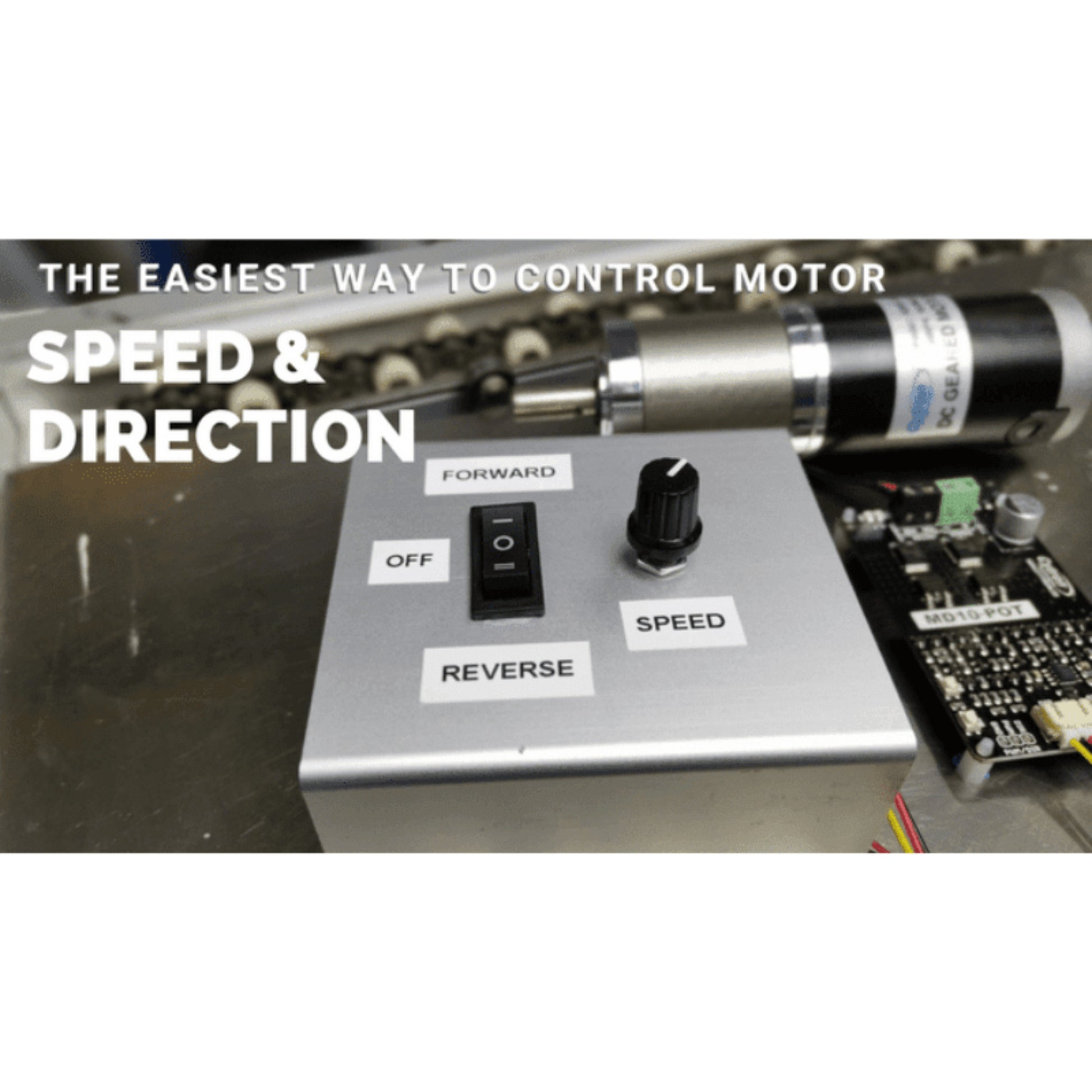

MD10-POT is a motor driver or speed controller that enables you to easily control a motor's run/brake, direction and speed. No microcontroller is needed in a complete setup, hence programming is not required too. A DC brushed motor can be controlled directly using the Switch (Activation & Direction) and Potentiometer (Speed) included in the package.



Features:

Bidirectional control for one brushed DC motor.
Control motor run/brake and direction with a 3-way rocker switch (included in package).
Control motor rotation speed with a potentiometer (included in package).
Operating Voltage: DC 7V to 30V
Maximum Motor Current: 10A continuous, 30A peak
Buttons for quick testing.
LEDs for motor output state.
PWM and DIR inputs.
Compatible with sign-magnitude and locked-antiphase PWM operation.
Regenerative Braking.
No reverse polarity protection.
Dimension: 81.28mm x 48.26mm



Specifications:

Power Input Voltage: 7-30V
Max. Motor Current-Continuous: 10A
Max. Motor Current-Peak (Less than 10 seconds): 30A
Logic Input Voltage - Low Level (PWM,DIR): 0-0.5V
Logic Input Voltage - High Level (PWM,DIR): 3-30V
Internal PWM Generator Frequency: 9-11KHz
External PWM Input Frequency: DC-20KHz



Packing List:

  •  1 x MD10-POT

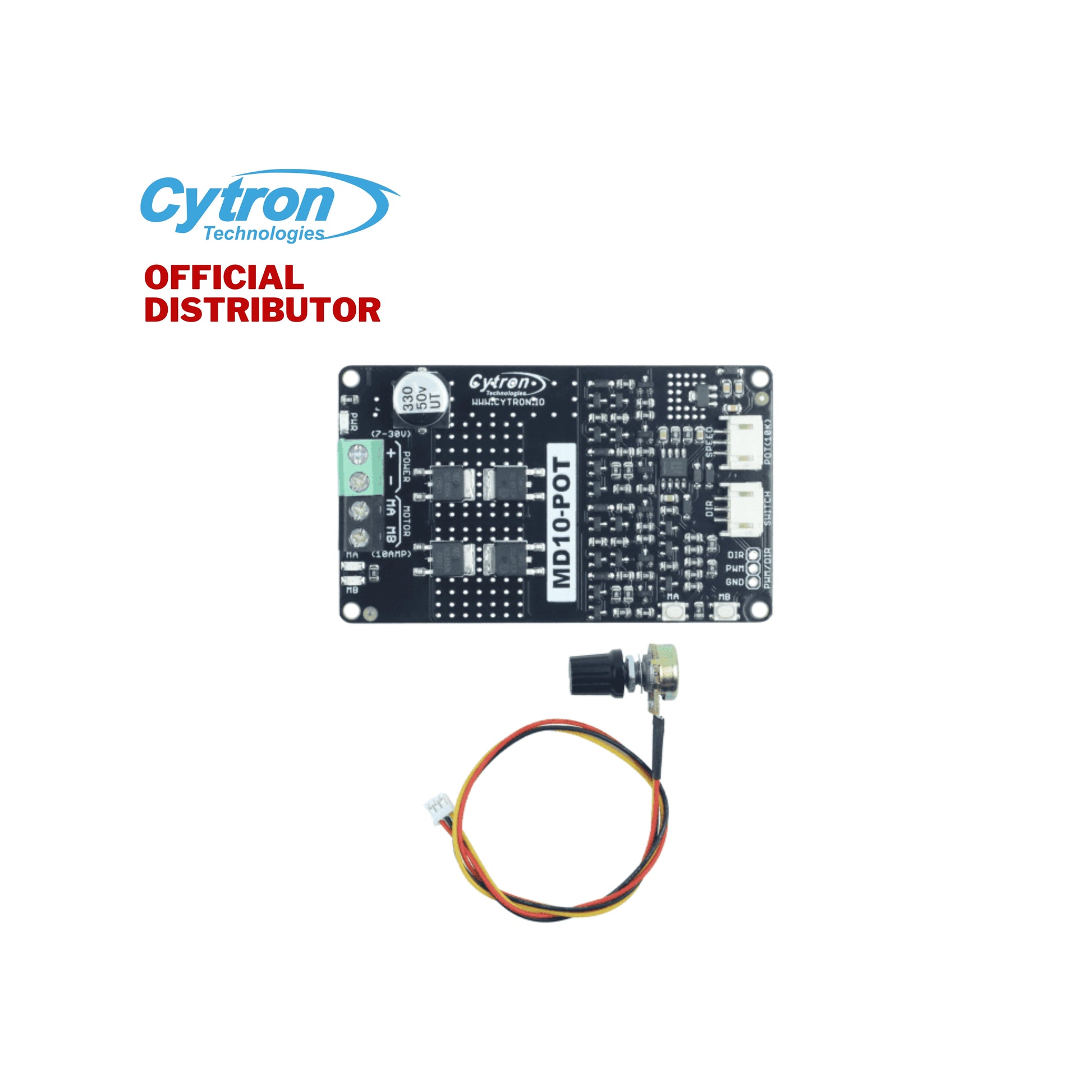

  •  1 x 10kOhm Potentiometer with connector
  • 1 x 3-Way Rocker Switch with connector
  • 1 x Quick Start Guide Card
