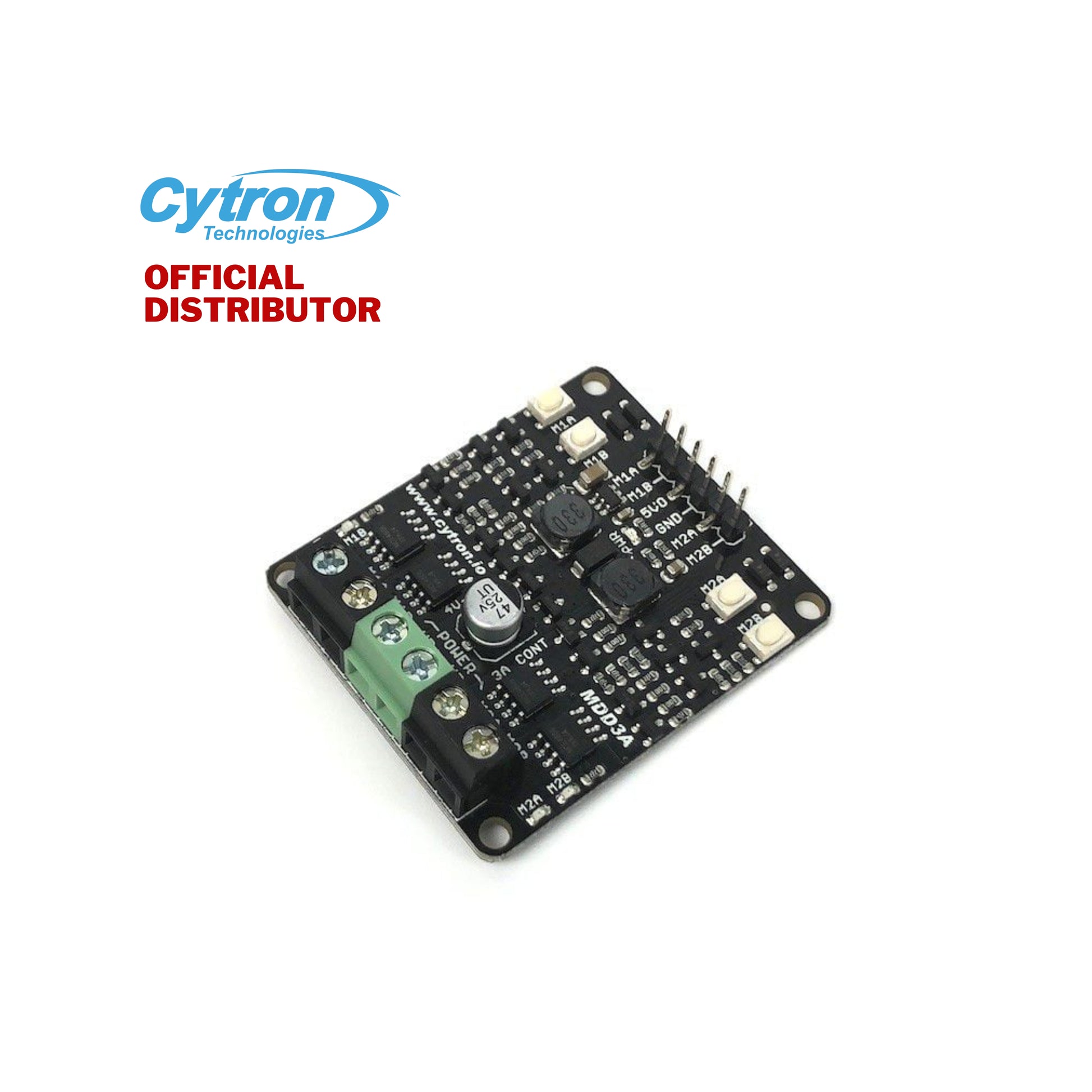

Description:

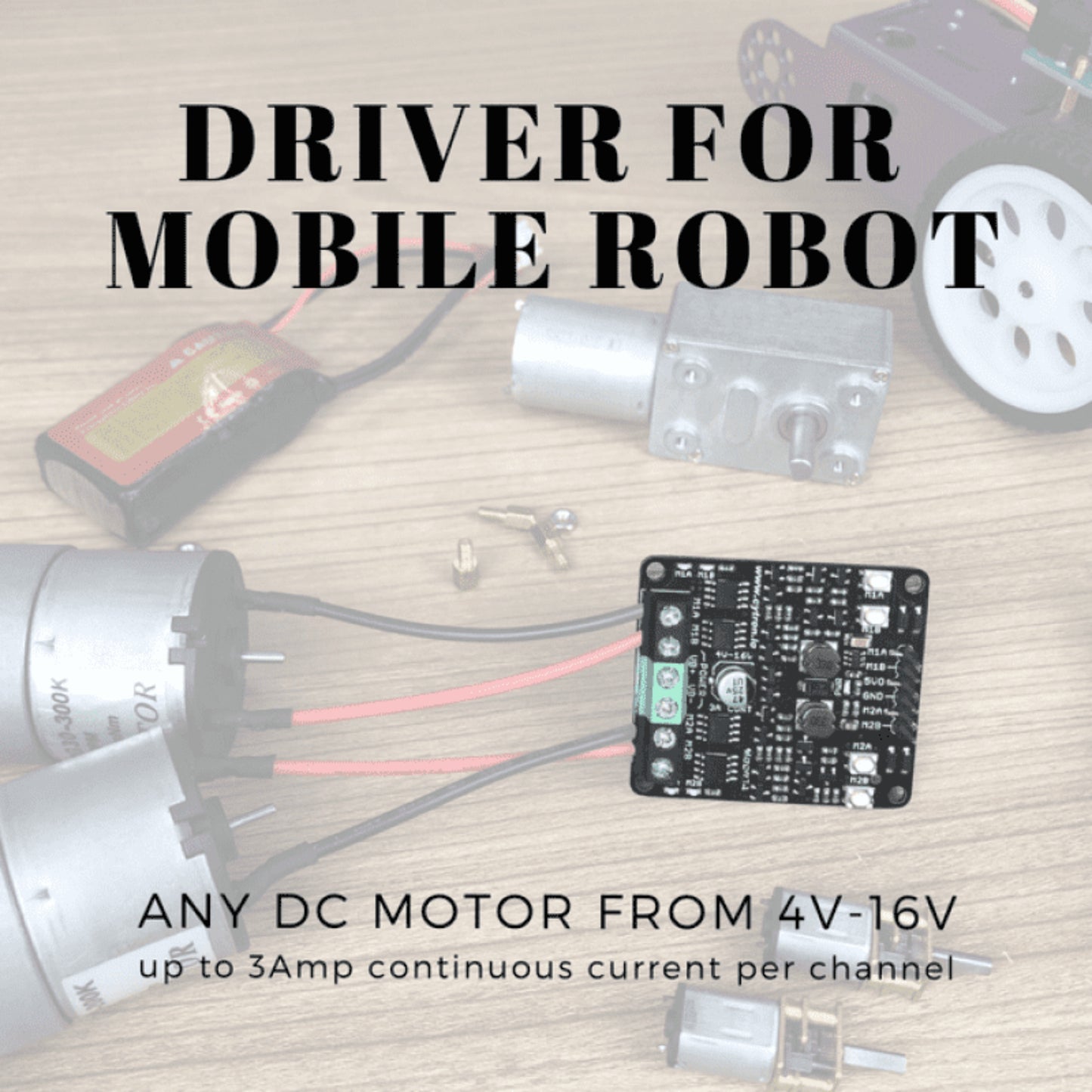

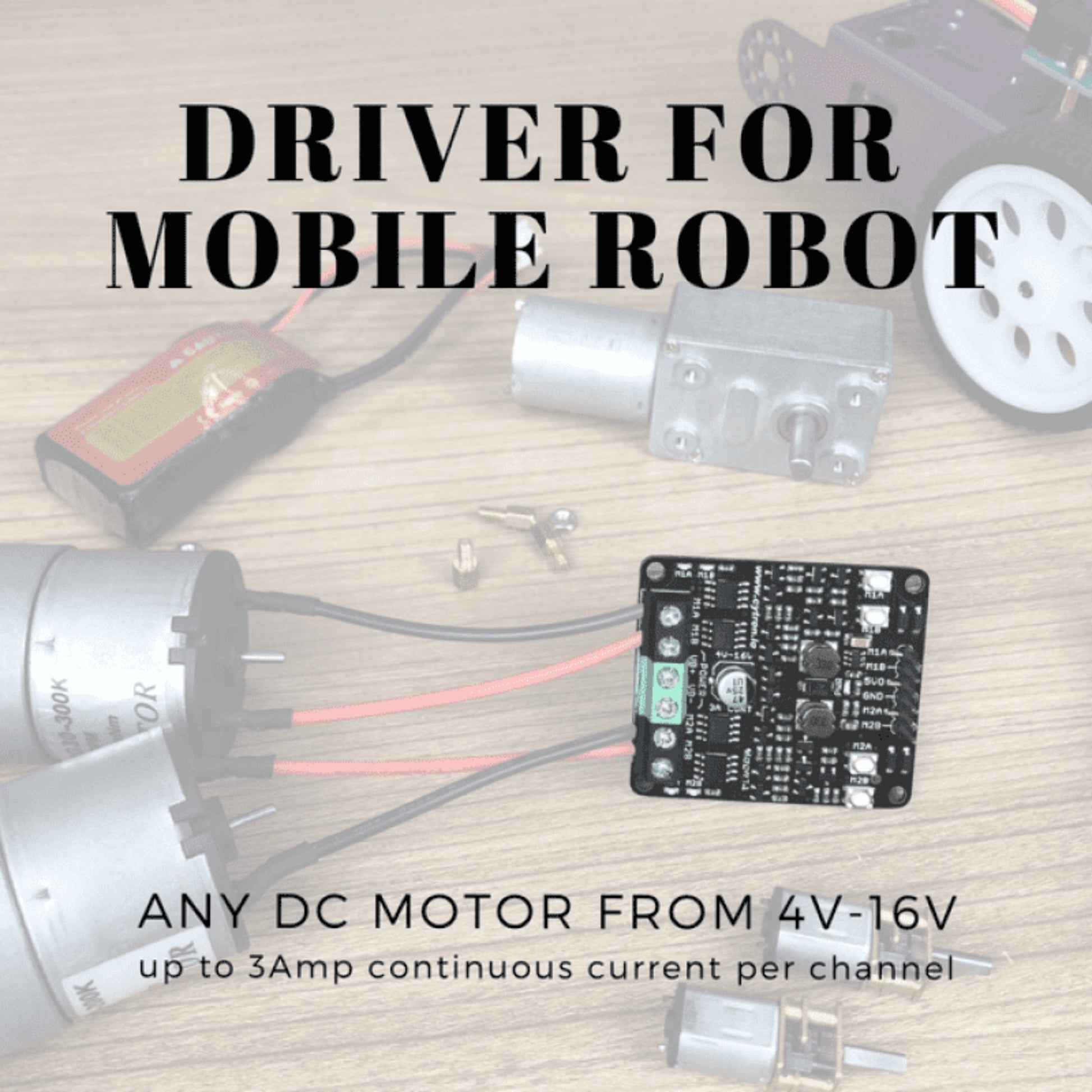

Looking for a motor driver for your mobile robot? Want to drive a stepper motor? Worry not! MDD3A is able to control two brushed DC motors or a single bipolar/unipolar stepper motor from 4V to 16V. With discrete MOSFETs H-Bridge design, this motor driver is able to support 3 Amp per channel continuously without any additional heatsink.

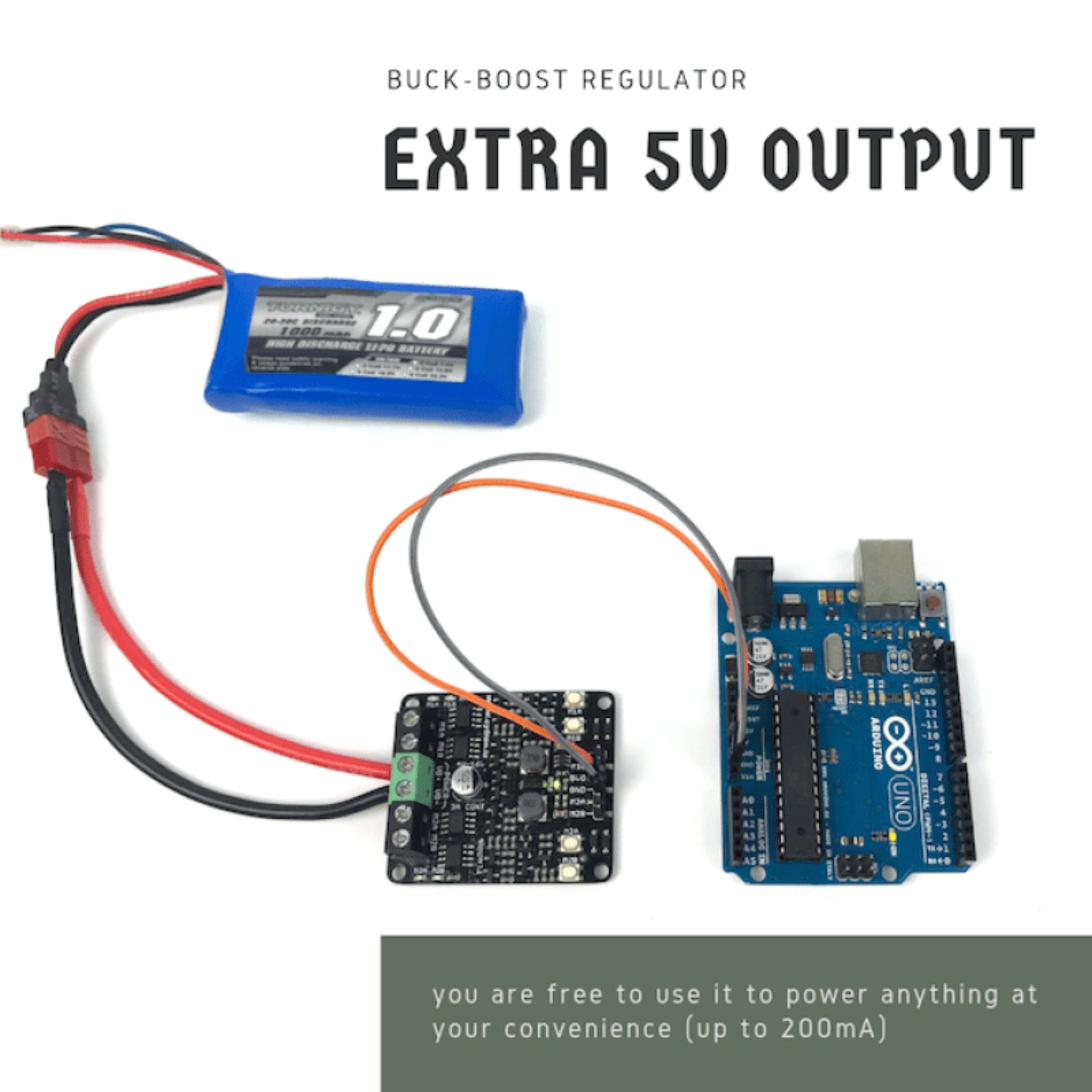

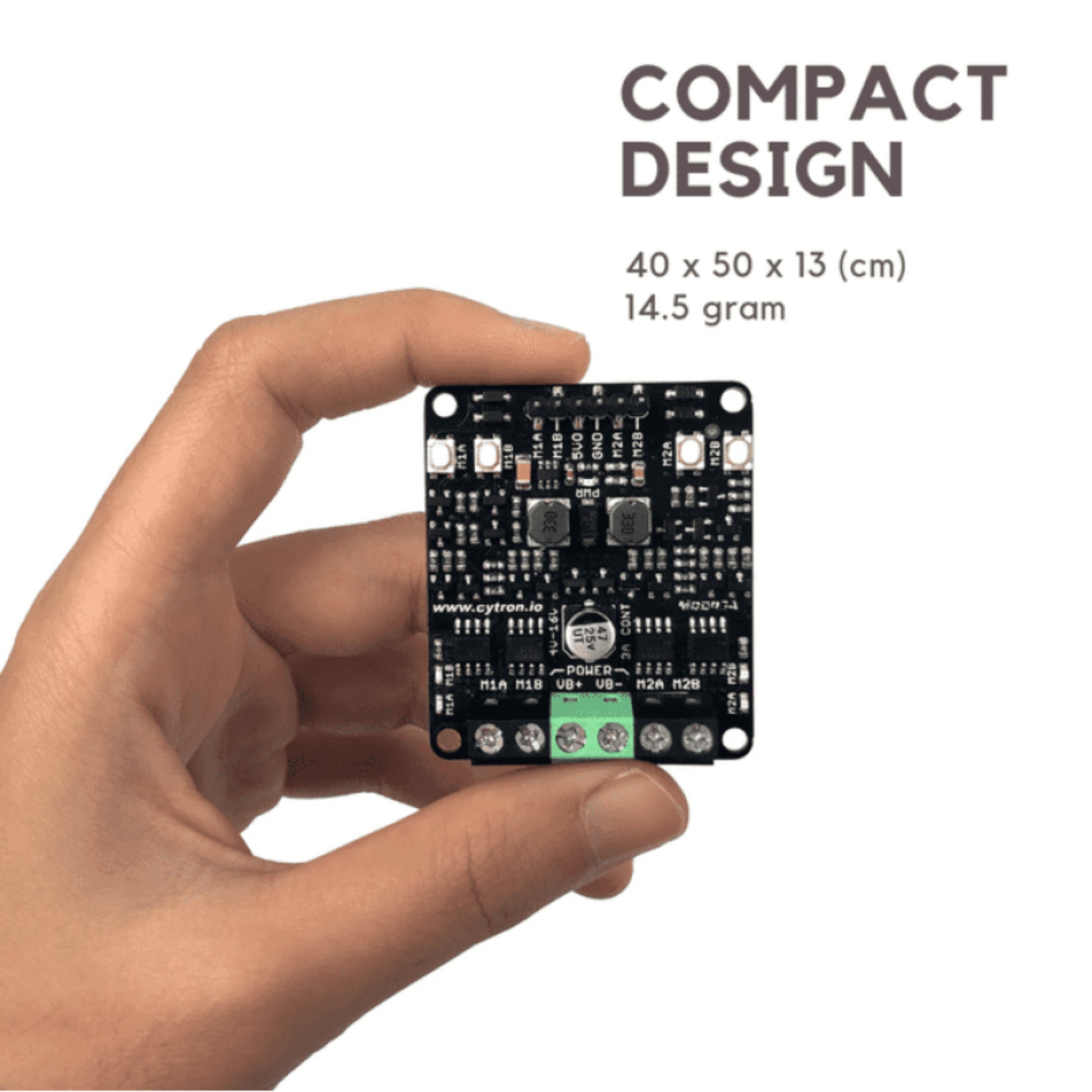

The onboard test buttons and motor output LEDs allow functional testing of the motor driver in a quick and convenient way without hooking up the host controller. Buck-boost regulator, which produces 5V output from input as low as 4V, can be used to power the host controller.
MDD3A can be controlled with wide input logic voltage range from 1.8V to 12V, it’s compatible with a wide variety of host controller (e.g. Arduino, Raspberry Pi, PLC).
To prevent the motor driver from being damaged by reverse voltage if the battery is connected in the wrong polarity, it is equipped with reverse polarity protection. This is a very common mistake made by a lot of makers, even for the very experienced one.
Features:
Bidirectional control for two brushed DC motor.
Control one unipolar/bipolar stepper motor.
Operating Voltage: DC 4V to 16V
Maximum Motor Current: 3A continuous, 5A peak
Buck-boost regulator to produce 5V output (200mA max).
Buttons for quick testing.
LEDs for motor output state.
Inputs compatible with 1.8V, 3.3V, 5V and 12V logic (Arduino, Raspberry Pi, PLC, etc).
PWM frequency up to 20kHz (Output frequency is the same as input frequency).
Reverse polarity protection
Specifications:
Power Input Voltage (Vin): 4-16VDC
Maximum Motor Current Continuous: 3A
Maximum Motor Current Peak (< 5 seconds): 5A
Logic Input Voltage (M1A, M1B, M2A, M2B) Low Level: 0-0.5V
Logic Input Voltage (M1A, M1B, M2A, M2B) High Level: 1.7-12V
PWM Frequency: DC 20KHz
DC +5V Output Maximum Current: 200mA
Packing List:
- 1 x 3Amp 4V-16V DC Motor Driver (2 Channels)
Resources:
