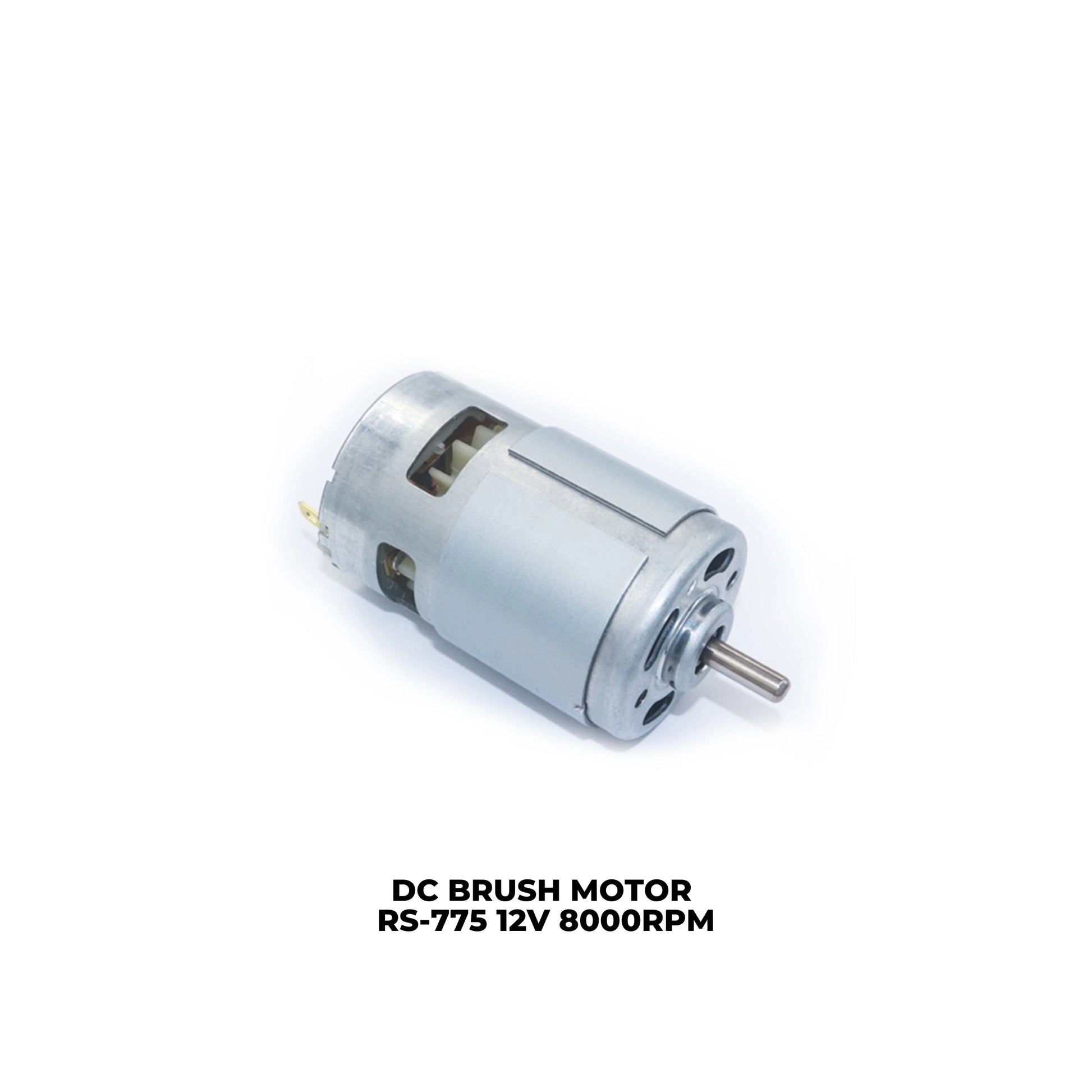

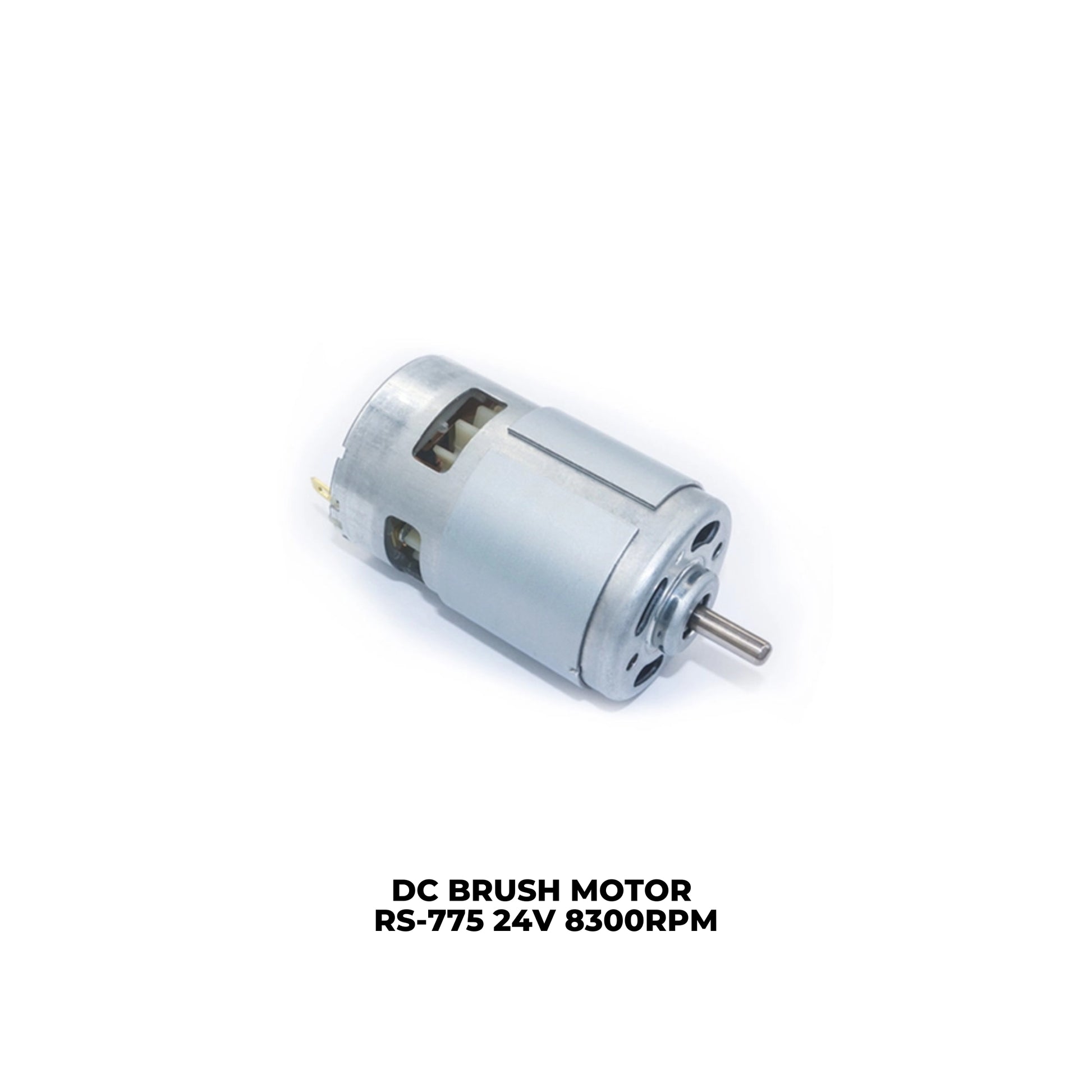

DC Brush Motor RS-775 12V 24V

Description:

This is a DC brush motor, model RS-775, known for its robust design and ability to deliver substantial speed and power. It is a versatile motor widely used in various applications, including DIY projects, robotics, power tools, and automation systems, where a reliable and strong DC motor is required.

Specifications:

Model: RS-775
Motor Type: Brushed DC Motor
Operating Voltage: 12V to 24V
No-load Speed: 8000 RPM (at 12V), 8300 RPM (at 24V)
No-load Current: 0.26A to 0.5A (at 12V), 0.15A−0.3A (at 24V)
Shaft Diameter: 5 mm
Shaft Length: 16 mm
Motor Diameter: 42mm - 44mm
Motor Body Length: 66mm (excluding shaft)
Overall Length: 91mm (including shaft)

Mechanical Dimension:
