Description:

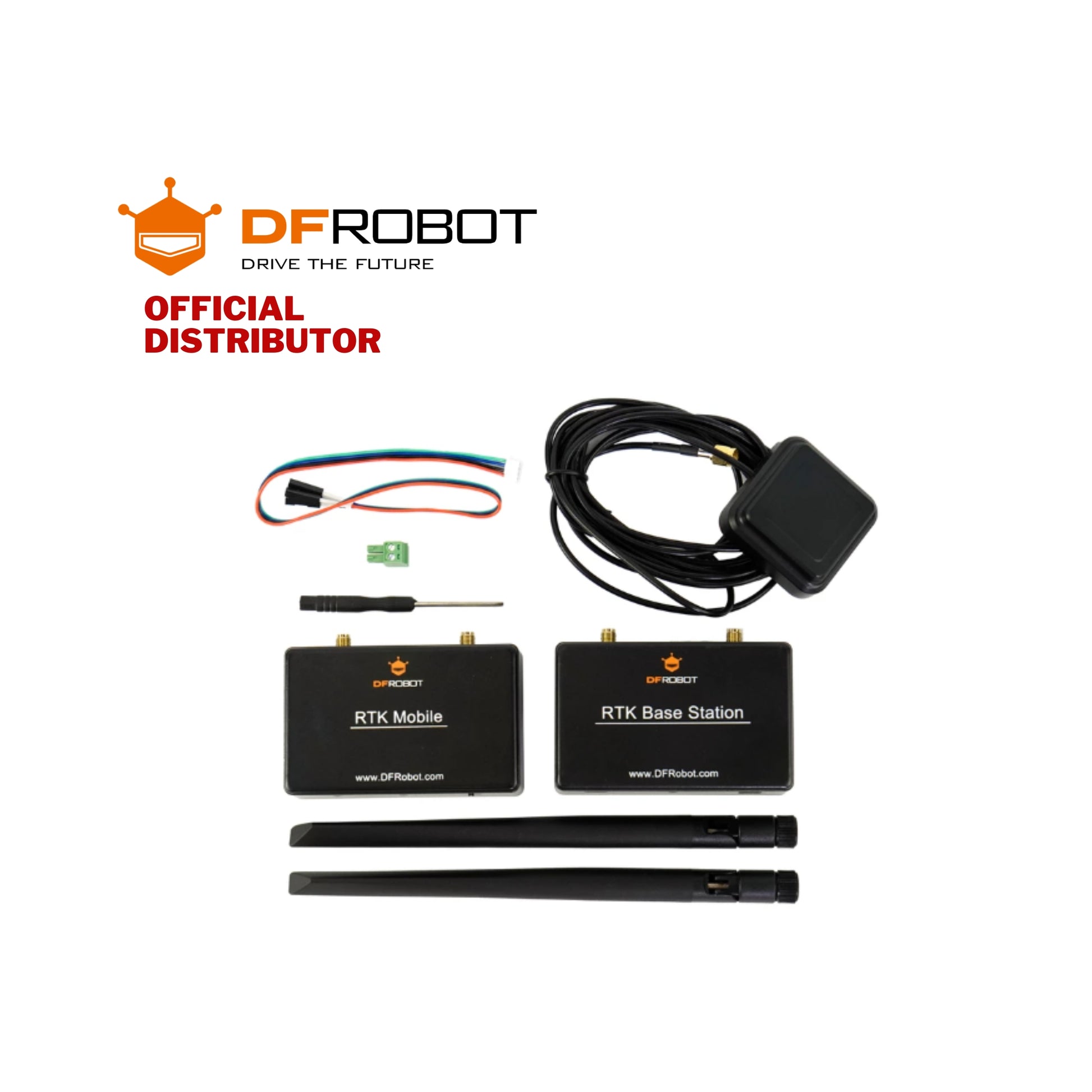

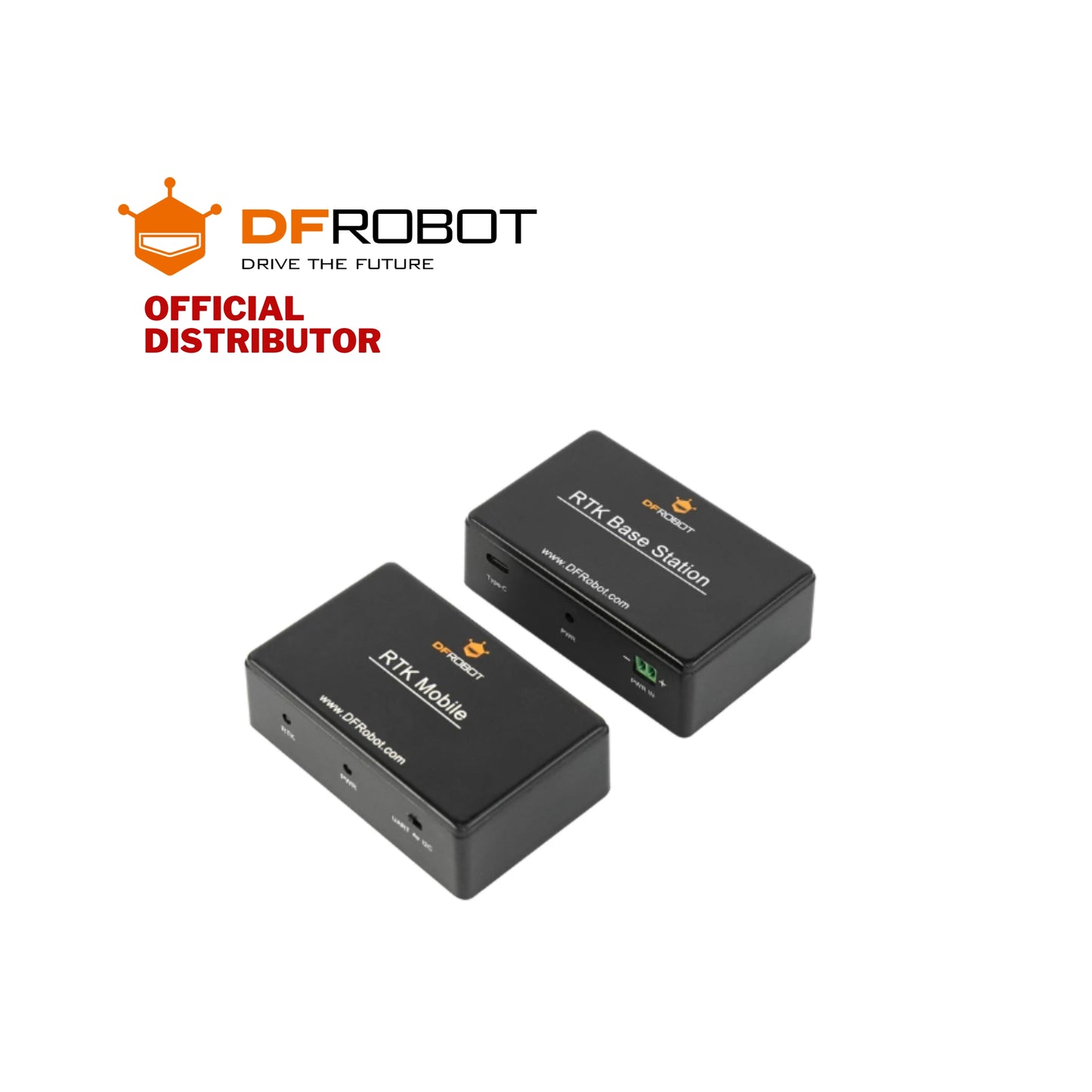

The LoRa-Based GNSS-RTK High Precision Positioning Kit (US) is a comprehensive, dual-module system engineered to deliver centimeter-level location accuracy. It operates on the principle of Real-Time Kinematics (RTK), which involves a stationary base station transmitting correction data to a mobile rover, effectively eliminating common GNSS positioning errors. The kit's key differentiators are its out-of-the-box functionality with a pre-configured LoRa data link, its high-performance dual-band GNSS reception, and its rapid convergence time. Powered by Quectel LC29H series modules, the system supports GPS, GLONASS, Galileo, BDS, and QZSS constellations, making it a robust solution for demanding applications such as autonomous vehicle navigation, land surveying, and device tracking.
Features:
Out-of-the-Box, Centimeter-Level Accuracy
This GNSS-RTK positioning kit is designed to significantly lower the barrier to entry for high-precision positioning. Traditional RTK systems often require users to independently source and configure separate modules for the base, rover, and data transmission link. This product integrates all necessary components into a pre-configured, ready-to-use solution. Users can achieve centimeter-level accuracy within minutes of setup, bypassing the complex integration and debugging process typically associated with RTK technology.
High-Performance Dual-Band GNSS Engine
At the core of the system are the Quectel LC29H series modules, which feature dual-band (L1/L5) reception. This advanced capability allows the receiver to effectively mitigate ionospheric disturbances, a primary source of error in single-band receivers. The result is a significantly faster convergence time (less than 10 seconds to achieve a fixed solution) and more reliable and consistent positioning accuracy, even in challenging signal environments. Simultaneous tracking of all major satellite constellations ensures maximum satellite availability and positional integrity.
Integrated Long-Range LoRa Data Link (915 MHz US Version)
A stable data link is critical for RTK performance. This GNSS-RTK positioning kit incorporates a LoRa (Long Range) radio communication system to ensure robust and reliable transmission of correction data from the base station to the rover. This integrated wireless solution provides a communication range of up to 1.5 kilometers in open areas, eliminating the need for external radio modems or reliance on internet-based NTRIP services. This self-contained architecture makes the kit ideal for fieldwork and applications in areas with limited network connectivity.
Application:
Academic and Research Projects: Providing an affordable platform for learning and experimenting with high-precision positioning.
Autonomous Systems Prototyping: Enabling precise navigation and path-tracking for UAVs, rovers, and agricultural robots.
Geospatial and Surveying Tasks: Facilitating accurate mapping, boundary marking, and data collection for small-scale surveying.
High-Value Asset Tracking: Monitoring the exact location of equipment or personnel in open environments like construction sites or farms.
Specifications:

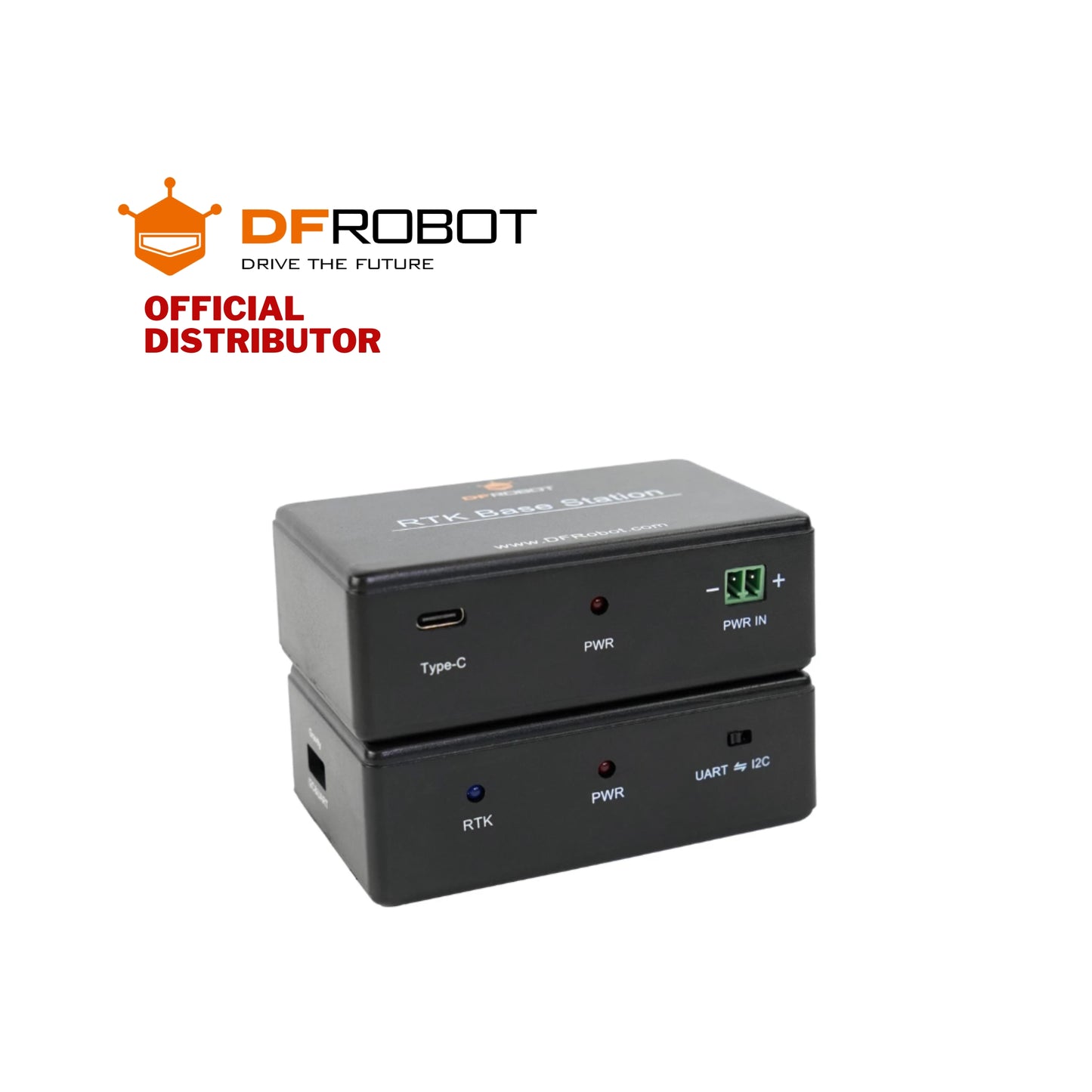

Base Station
Power Input: Terminal Block (5~10V); Type-C
GNSS Antenna Interface: SMA
Reception Bands:
GPS/QZSS: L1 C/A, L5
GLONASS: L1
Galileo: E1, E5a
BDS: B1l, B2a
Default Constellations: GPS + GLONASS + Galileo + BDS + QZSS
Concurrent Tracking Constellations: 4+ QGNSS
Function: Base Station
Sensitivity:
Acquisition: -147 dBm
Tracking: -165 dBm
Reacquisition: -159 dBm
Dynamic Performance:
Max Altitude: 10000 m
Max Velocity: 500 m/s
Max Acceleration: 4 g
Raw Data Output Rate: 1 Hz
Protocol: NMEA 0183 / RTCM 3.x

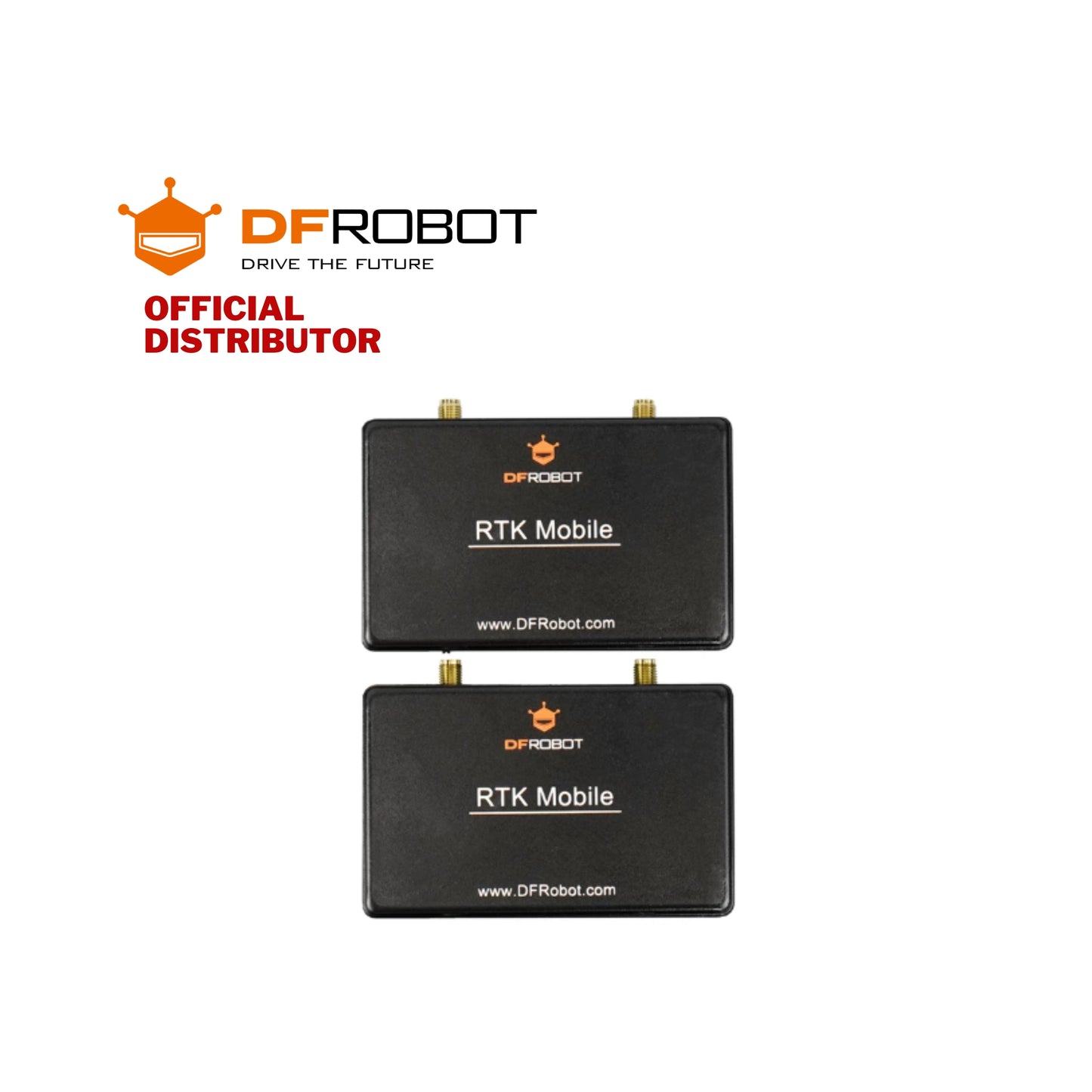

Mobile Station (RTK Mobile)
Power Interface: Gravity interface, 3.3~5V
Output Signal: I2C / UART
Antenna Interface: SMA
Reception Bands:
GPS/QZSS: L1 C/A, L5
GLONASS: L1
Galileo: E1, E5a
BDS (BeiDou): B1l, B2a
Default Constellations: GPS + GLONASS + Galileo + BDS + QZSS
Concurrent Tracking Constellations: 4+ QGNSS
SBAS: WAAS, EGNOS, MSAS, GAGAN
Function: RTK
Horizontal Positioning Accuracy:
Autonomous: 1 m
RTK: 5 cm + 1 ppm
Velocity Accuracy: 0.03 m/s
1PPS Accuracy: 20 ns
RTK Convergence Time: < 10 s
Sensitivity:
Acquisition: -145 dBm
Tracking: -165 dBm
Reacquisition: -157 dBm
Dynamic Performance:
Max Altitude: 10000 m
Max Velocity: 500 m/s
Max Acceleration: 4 g
Navigation Update Rate (RTK): 1 Hz
Raw Data Output Rate (GNSS): 1 Hz
Protocol: NMEA 0183 / RTCM 3.x
LoRa Parameters
RF Chip Semtech: LLCC68
Operating Frequency: 915MHz
Modulation: LoRa Spread Spectrum
Max Transmit Power: 22dBm
Receiver Sensitivity: -129dBm
Weight: 700g
