Through the UART / I2C port, HuskyLens can connect popular main control boards like Arduino, micro: bit, Raspberry Pi and LattePanda to help you make very creative projects without playing with complex algorithms.
Additionally, HuskyLens carries a 2.0 inch IPS screen. So you don’t need to use a PC in the parameters tuning.
HuskyLens AI Camera is designed to be smart. It has the built-in machine learning technology that enables HuskyLens to recognize faces and objects. Moreover, by long-pressing the learning button, HuskyLens can continually learn new things even from different angles and in various ranges.
DFRobot Huskylens adopts the new generation of specialized AI chip Kendryte K210. The performance of this special AI chip is 1,000 times faster than that of the STM32H743 when running a neural network algorithm. With these excellent performances, it is capable of capturing even fast-moving objects.
Huskylens 2

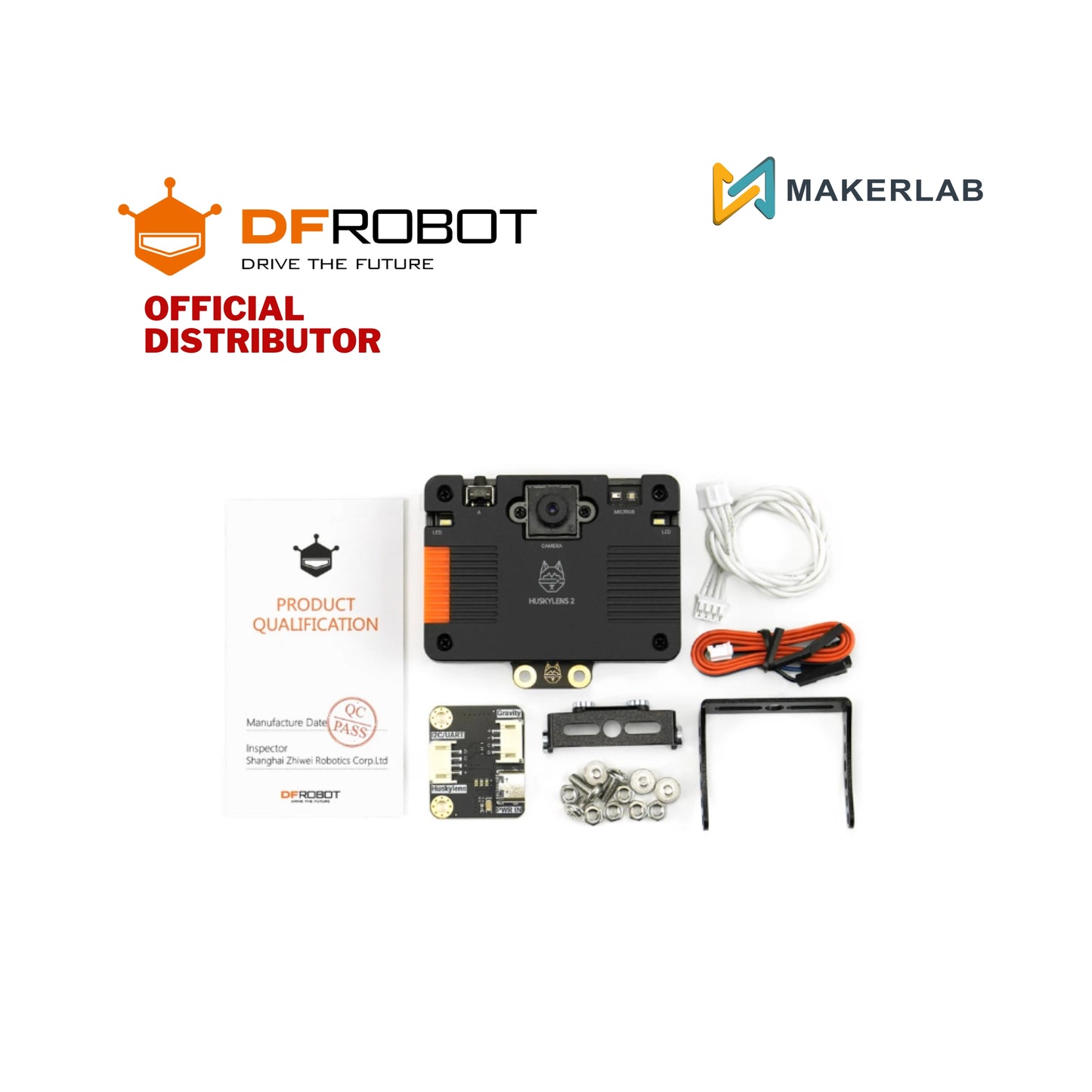

HUSKYLENS 2 is a next-generation AI vision sensor designed to put powerful machine vision into the hands of every creator. It operates on a 1.6GHz dual-core processor with an integrated 6 TOPS AI accelerator, running all algorithms directly on-device for high-speed, low-latency results. Its core design centers on three key strengths: Rich AI Model Support, featuring 20+ built-in, ready-to-use algorithms, along with the flexibility to deploy custom-trained models; Flexible LLM Interaction, capable of both calling large models and providing local, real-world perception to LLMs via its built-in MCP service; and Broad Compatibility, ensuring seamless connection with a wide range of main controllers. Equipped with a replaceable 2MP camera, a vibrant 2.4-inch IPS touchscreen, microphone, speaker, and indicator lights, HUSKYLENS 2 is the definitive tool for educational robotics, interactive systems, and intelligent device prototyping.
Specifications:
Huskylens
- Processor: Kendryte K210
- Image Sensor: OV2640 (2.0Megapixel Camera)
- Supply Voltage: 3.3~5.0V
- Current Consumption (TYP): 320mA@3.3V, 230mA@5.0V (face recognition mode; 80% backlight brightness; fill light off)
- Connection Interface: UART, I2C
- Display: 2.0-inch IPS screen with 320*240 resolution
- Built-in Algorithms: Face Recognition, Object Tracking, Object Recognition, Line Tracking, Color Recognition, Tag Recognition
- Dimension: 52mm * 44.5mm / 2.05 x 1.75inch
Huskylens 2
Processor: Kendryte K230 Dual-Core 1.6GHz
AI Computing Power: 6 TOPS
Memory: 1GB LPDDR4
Storage: 8GB eMMC
Image Sensor: GC2093, 2MP, 1/2.9", 60FPS
Display: 2.4" IPS Touch Screen (640×480), Full-Lamination
Buttons: 1 × Function Button
Fill Lights: 2 × LEDs
RGB Indicator: 1 × RGB LED
Wi-Fi: 2.4GHz Wi-Fi 6 (Slot-in Module)
Expandable Storage: 1 × TF Card Slot
Microphone: Capacitive Silicon Microphone
Speaker: 1W Acoustic Speaker
Operating Voltage: 3.3–5V
Power Consumption: 1.5–3W
Dimensions: 70 × 58 × 19mm
Net Weight: 90g
Interfaces: Type-C, Gravity (I2C / UART), TF Card Slot
