SKU:MLE04553

DFROBOT HUSKYLENS Smart Vision Sensor with Silicone Case for Raspberry Pi or Micro:bit | StudyPack of Huskylens for Micro:bit KIT0179-EN | AI Camera Support Object/Line Tracking, Face/Object/Color/Tag Recognition

Name: DFROBOT HUSKYLENS Smart Vision Sensor with Silicone Case for Raspberry Pi or Micro:bit | StudyPack of Huskylens for Micro:bit KIT0179-EN | AI Camera Support Object/Line Tracking, Face/Object/Color/Tag Recognition
Brand: DFRobot
SKU: MLE04553
Price: 300.0 PHP
Availability: InStock

₱300.00

₱300.00 ₱375.00

Sale Sold out

Tax included. Shipping calculated at checkout.

Model:: Case

Case HUSKYLENS w/ case KIT0179-EN

Product variants

Loading locations...

Quantity

Product Description

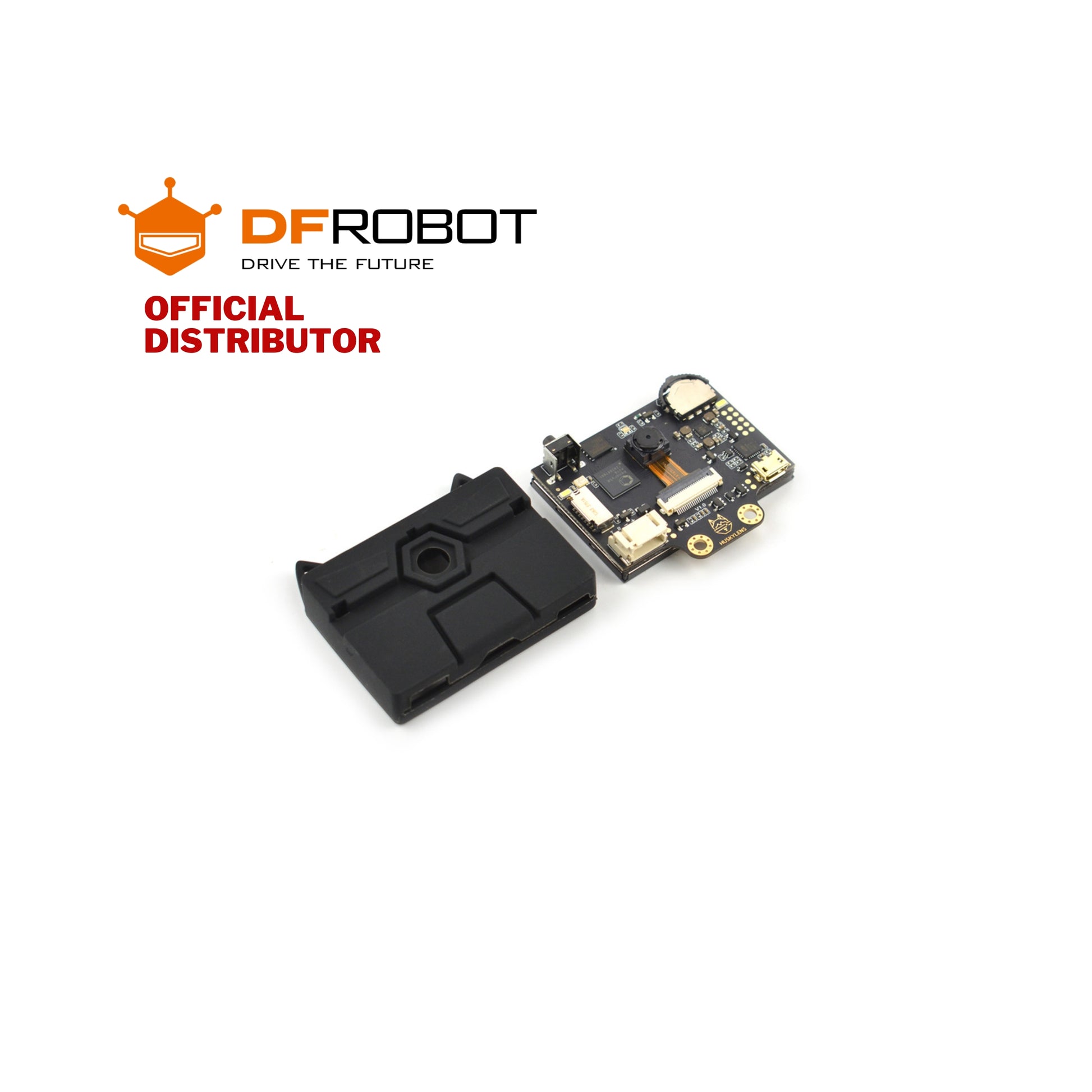

Description:

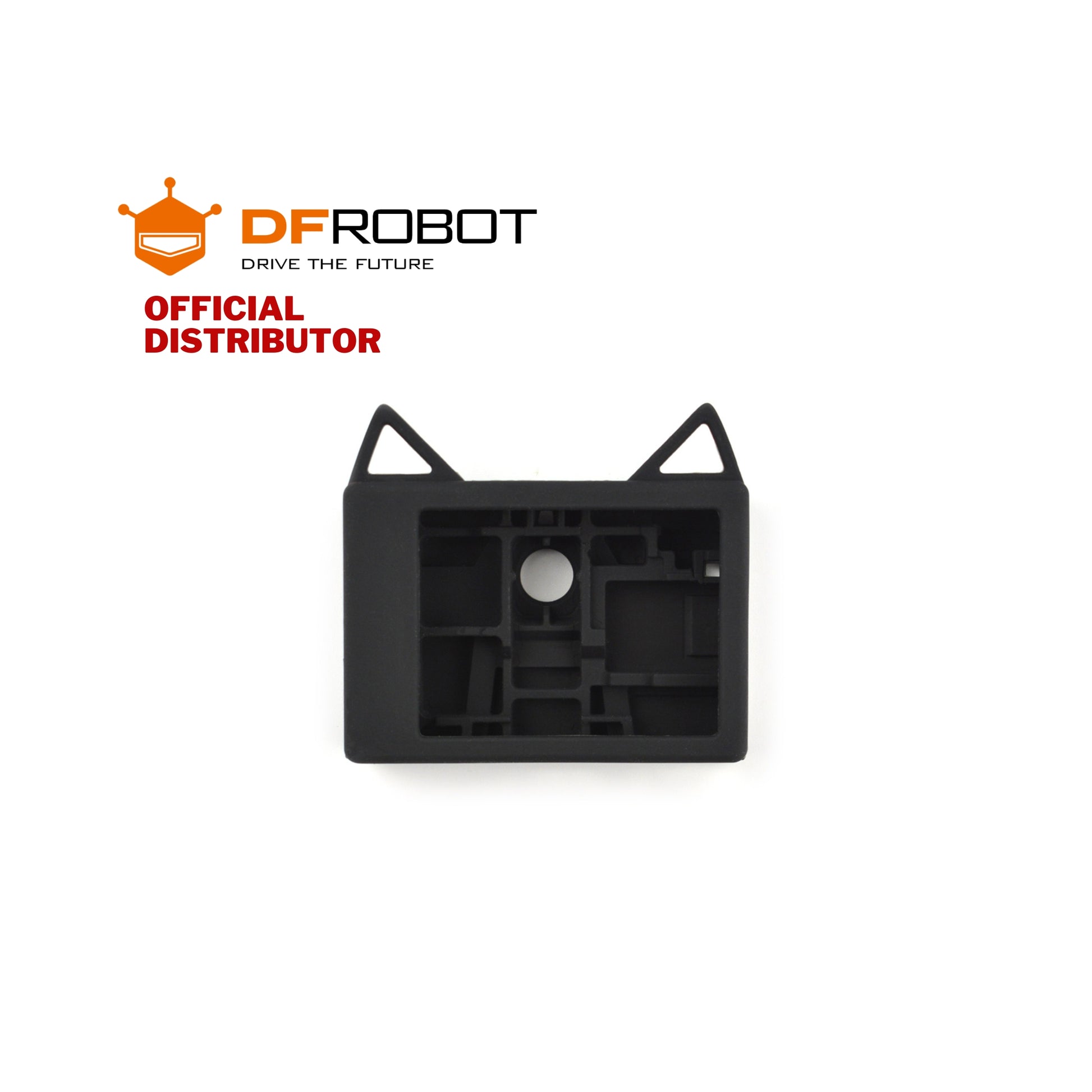

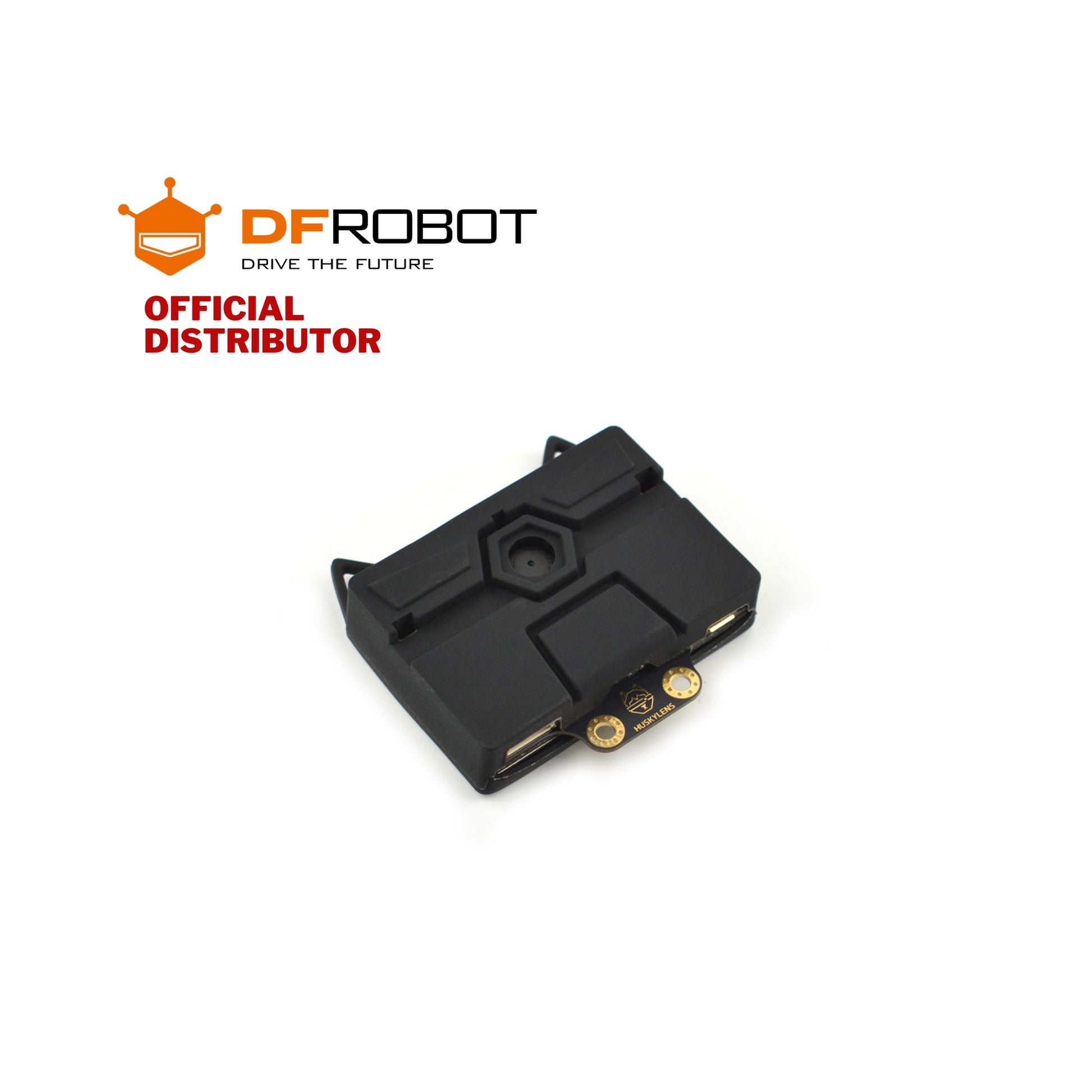

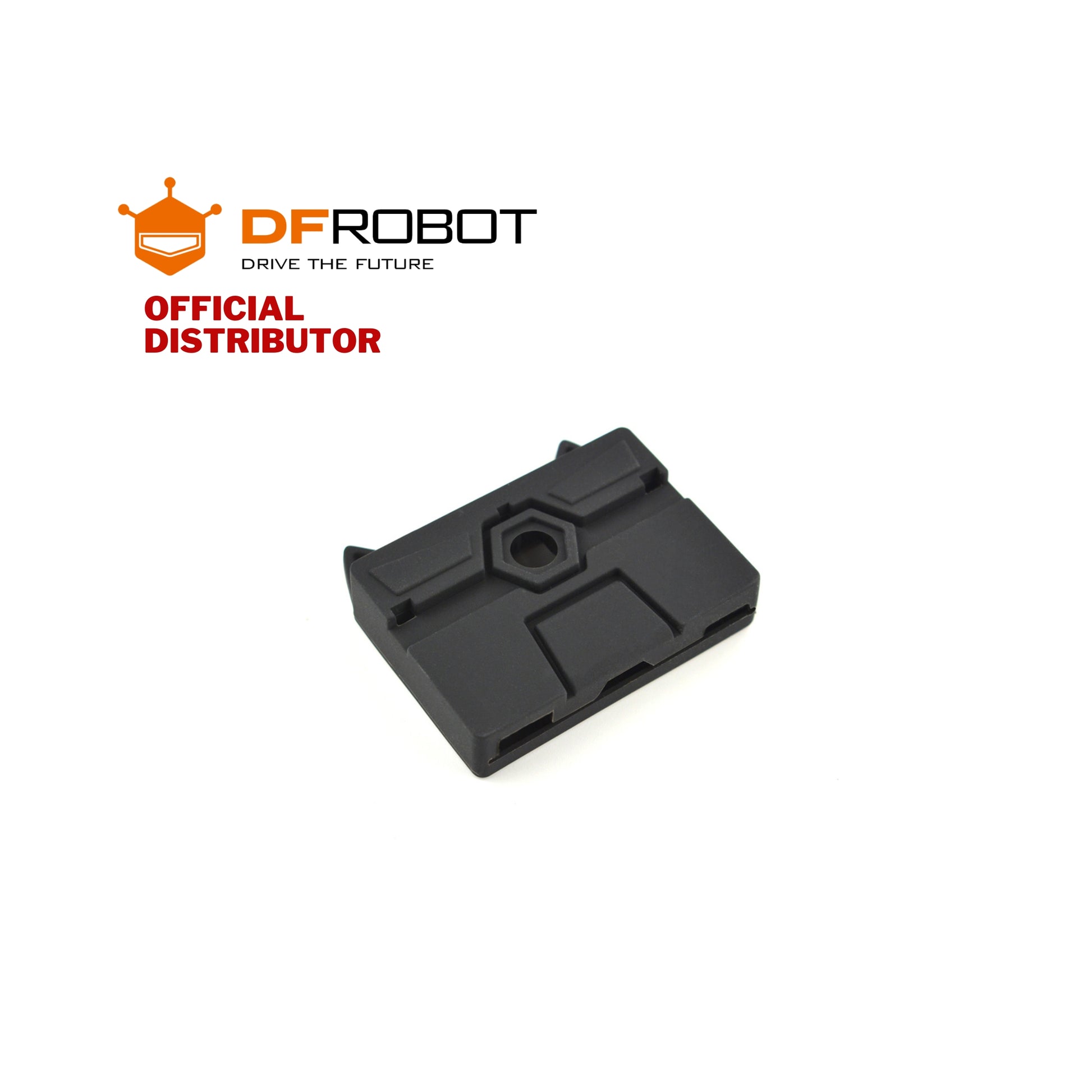

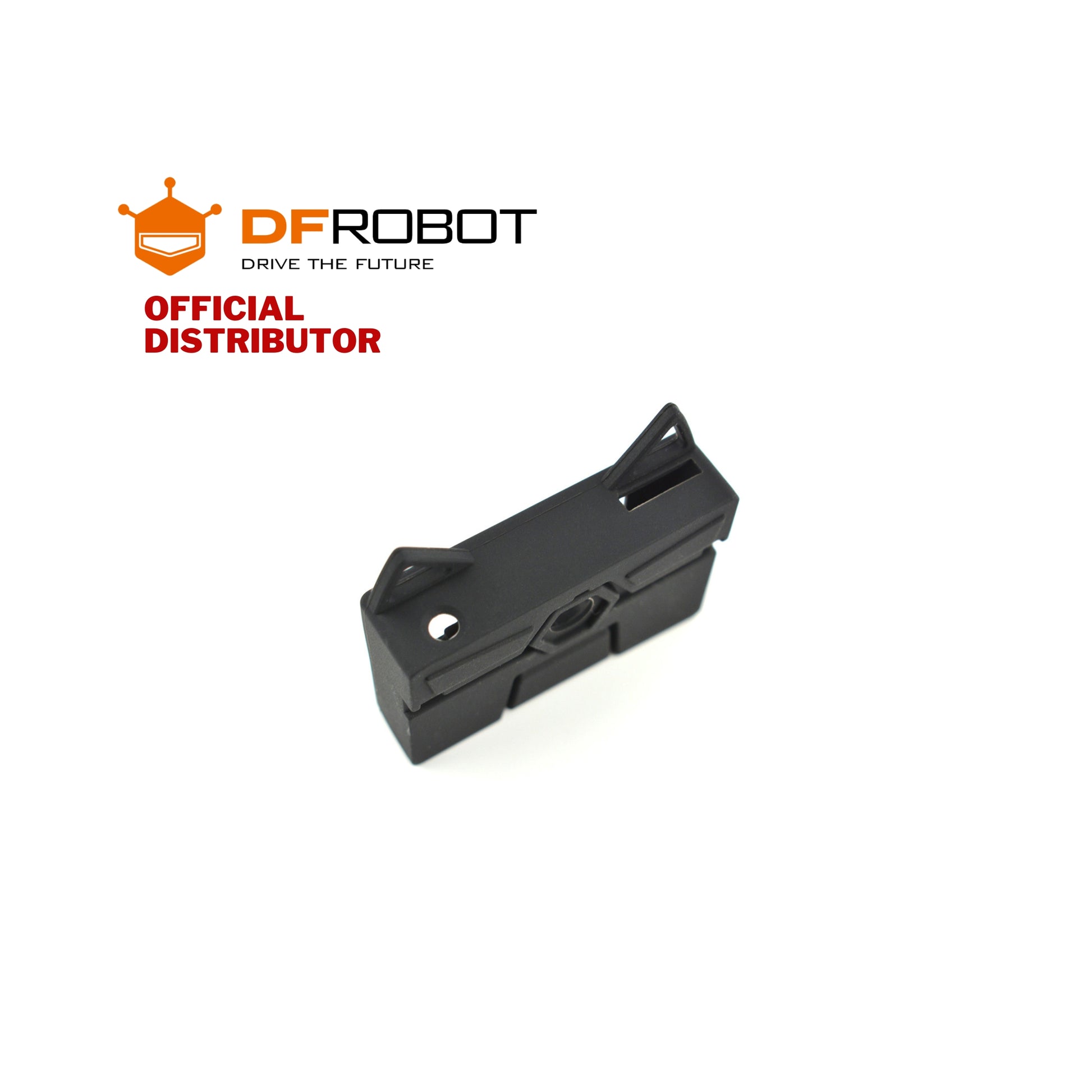

This silicone sleeve is small in size, cute in shape. It looks like a cool dog face. It protects and accessorizes your HUSKYLENS!

The silicone material is soft and has the stretch, so this silicone sleeve can perfectly fits the HUSKYLENS. It can provide protection against dust and splash water, and can also prevent exposed components from bumping or short circuit. Besides, all the interfaces of HUSKYLENS are reserved for your convenience.

In addition, the surface of the silicone sleeve is coated with the matte oil, so it is not easy to stain, and has a smooth feel, which brings you a better experience.

Note: This product does not include the HUSKYLENS board.

Features:

Cute Shape
Small Size
Smooth Feel
Hard to Sticky Dust

Specifications:

Material: Silicone

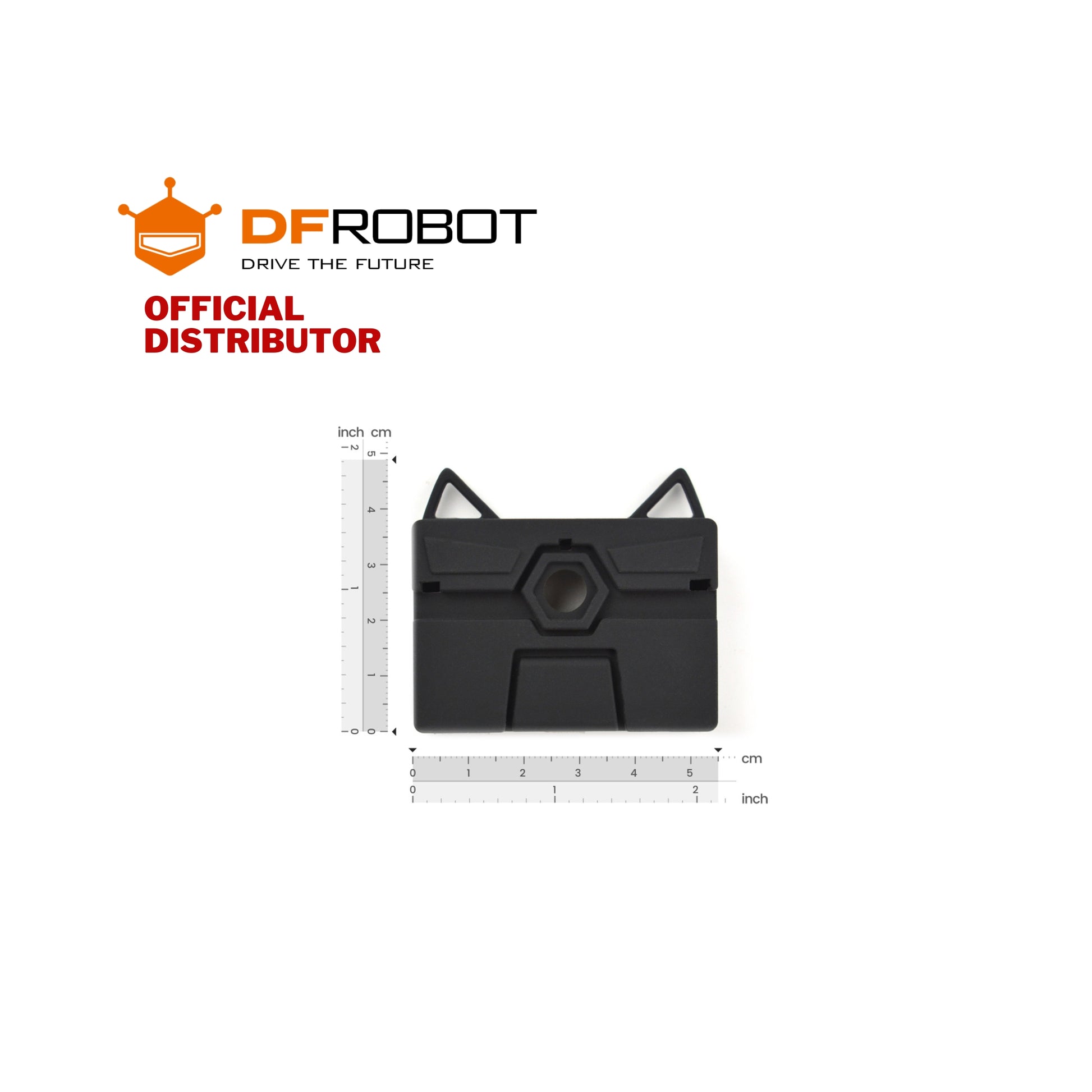

Dimension: 55*38*15mm/ 2.17*1.50*0.59in (not include ears)
55*48*15mm/2.17*1.89*0.59in (include ears)
Weight: 11g

Part List:

Silicone Sleeve for HUSKYLENS x1

Description:

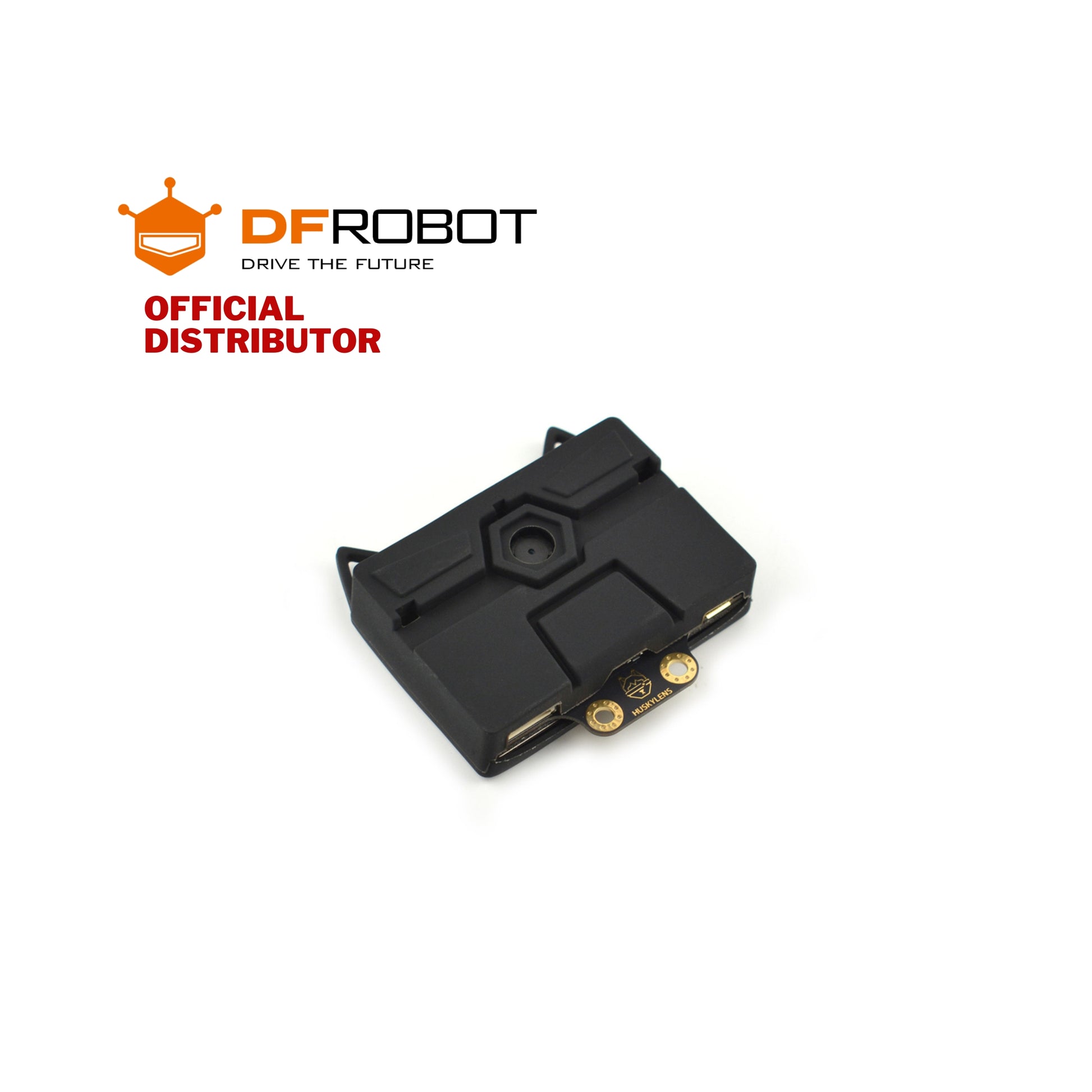

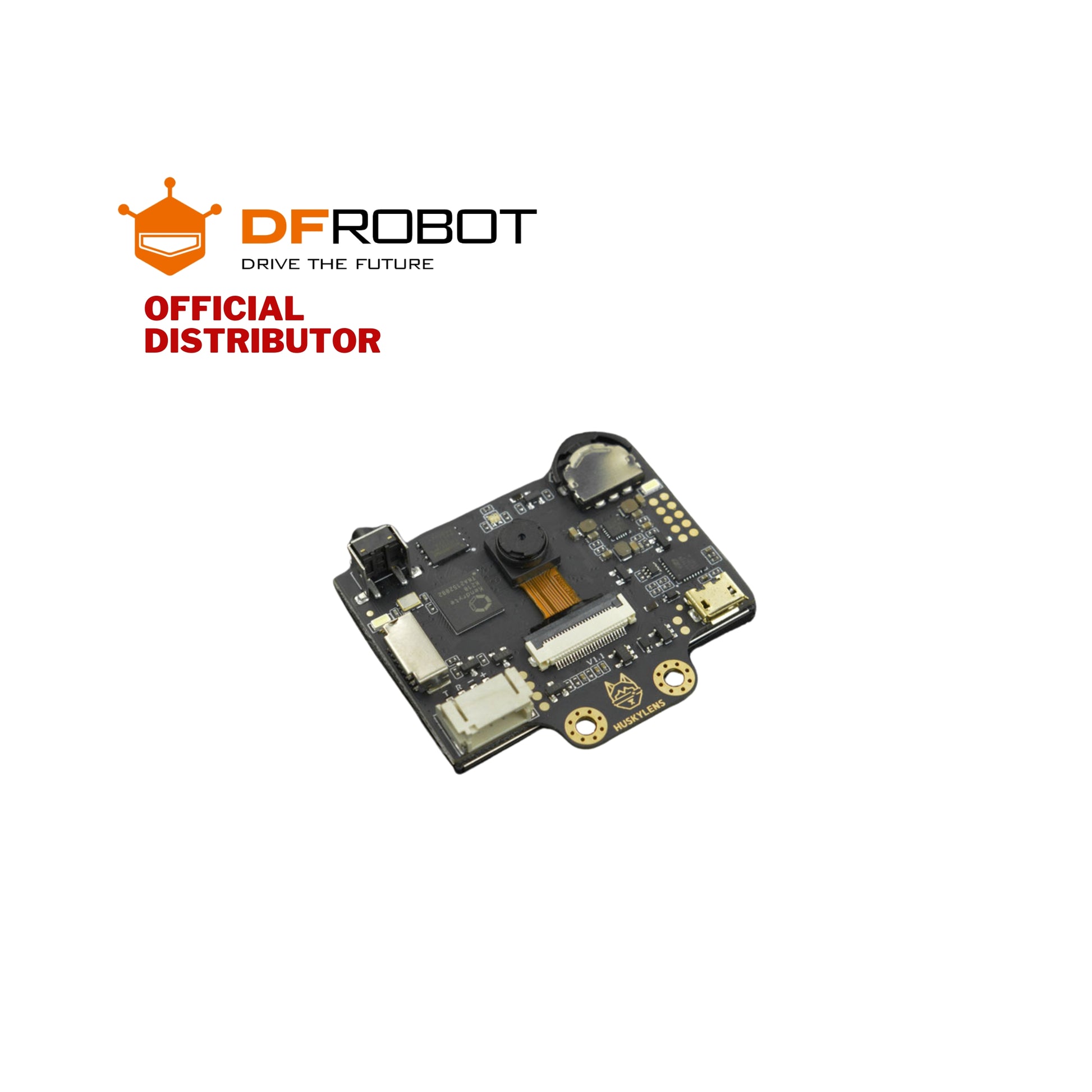

HuskyLens is an easy-to-use AI machine vision sensor. It is equipped with multiple functions, such as face recognition, object tracking, object recognition, line tracking, color recognition, and tag(QR code) recognition.

Through the UART / I2C port, HuskyLens can connect popular main control boards like Arduino, micro: bit, Raspberry Pi and LattePanda to help you make very creative projects without playing with complex algorithms.

HuskyLens is pretty easy to use. You can change various algorithms by pressing the function button. Click the learning button, HuskyLens starts learning new things. After that, HuskyLens is able to recognize them.

Additionally, HuskyLens carries a 2.0 inch IPS screen. So you don’t need to use a PC in the parameters tuning.

Specifications:

Processor: Kendryte K210
Image Sensor: OV2640 (2.0Megapixel Camera)
Supply Voltage: 3.3~5.0V
Current Consumption (TYP): 320mA@3.3V, 230mA@5.0V (face recognition mode; 80% backlight brightness; fill light off)
Connection Interface: UART, I2C
Display: 2.0-inch IPS screen with 320*240 resolution
Built-in Algorithms: Face Recognition, Object Tracking, Object Recognition, Line Tracking, Color Recognition, Tag Recognition
Dimension: 52mm * 44.5mm / 2.05 x 1.75inch

Documents:

Part List:

HuskyLens Mainboard x1
M3 Screws x6
M3 Nuts x6
Small Mounting Bracket x1
Heightening Bracket x1
Gravity 4-Pin Sensor Cable x1
Silicone Case

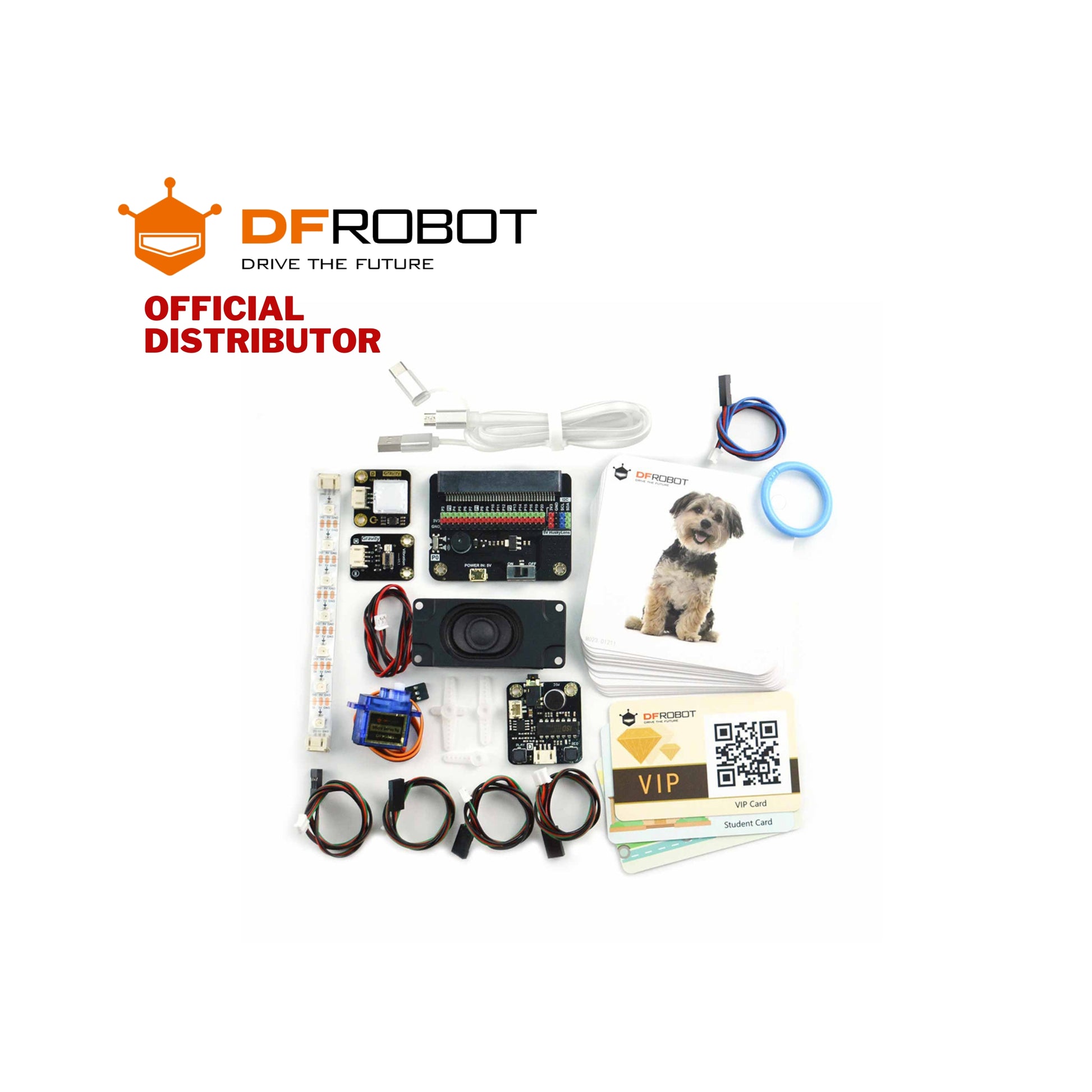

Description:

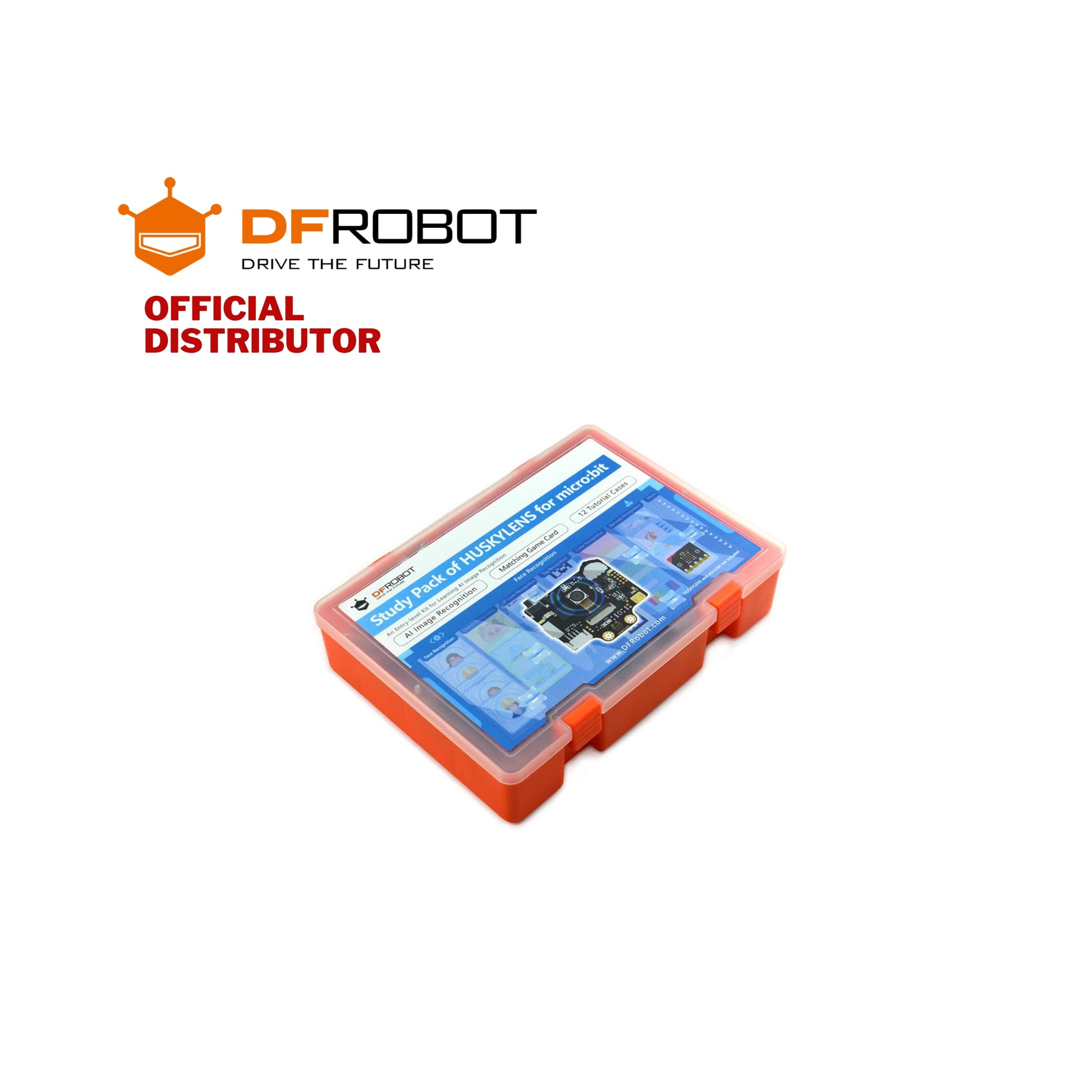

The Study Pack of HuskyLens for micro:bit is a great partner for the AI Vision Smart Sensor - HuskyLens. Based on micro:bit programming, it aims to extend the capabilities of HuskyLens and help students learn knowledge related to AI image recognition in an enjoyable and engaging way.

The extension kit is designed for users to better understand the eight functions of HuskyLens. The kit contains “Face cards”for face recognition project, “Color cards” for color recognition learning, and “Barcode cards” for studying lessons like self-service checkout. Besides, it also comes with cards of other types like animals, plants, QR codes, objects, gestures, etc.

Tutorial

The tutorial consists of 12 chapters with about 2 projects included in one chapter, in which students will explore how the AI Image Recognition technology is applied in everyday life by projects like face unlocking, AI camera, pet feeding, self-service checkout, target tracking, etc.
