Description:

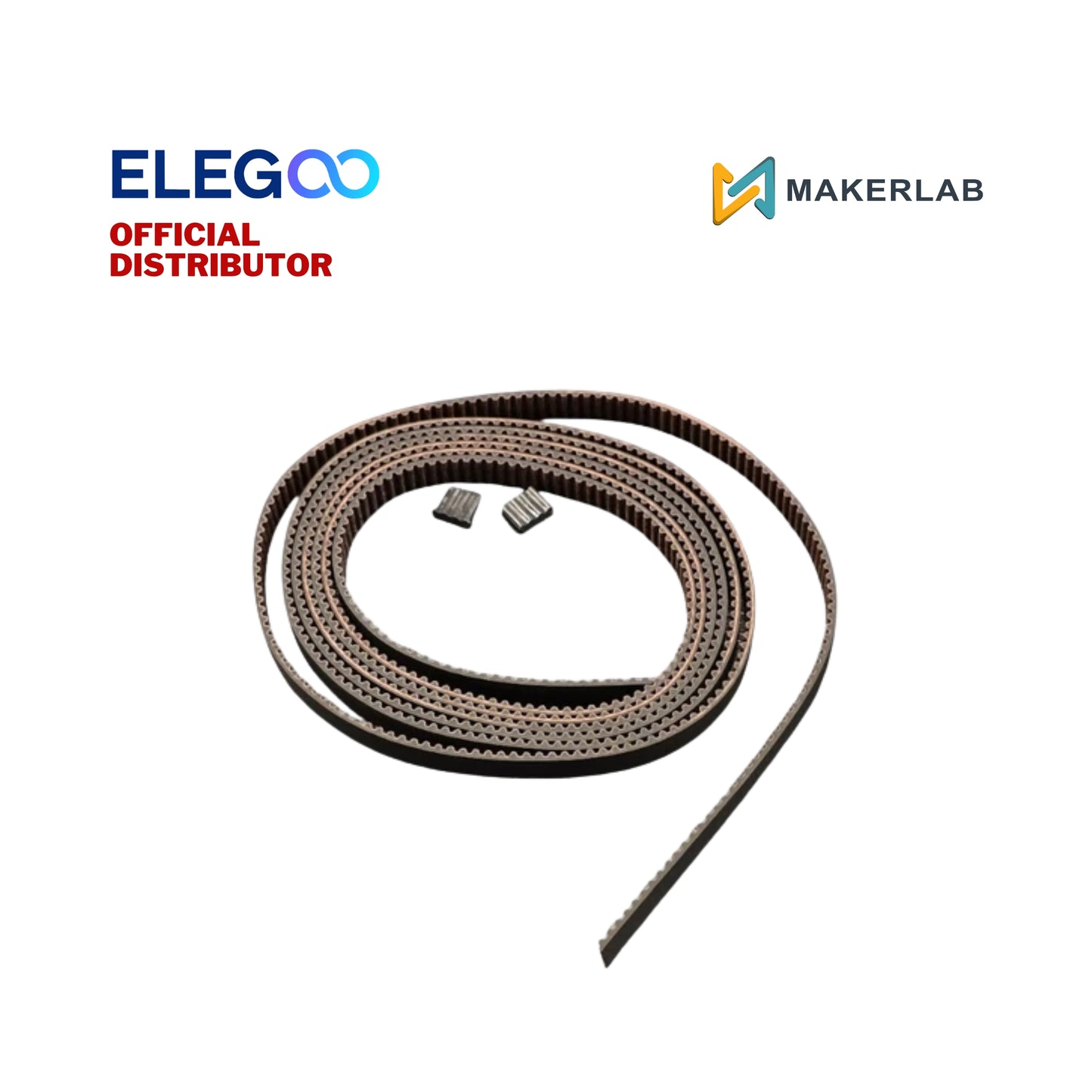

The XY Axis Timing Belt Assembly is specifically engineered to handle the extreme accelerations (20,000 mm/s) and velocities (500 mm/s) of the Centauri Carbon. This kit includes the primary belts required to drive the toolhead across the X and Y axis.
Unlike standard 3D printer belts, these are reinforced with high-strength internal fibers to minimize "creep" (stretching over time). They come pre-cut to the factory-standard length with finished ends, ensuring they fit perfectly into the printer's semi-automatic tensioning system. Replacing worn belts with this genuine assembly is the most effective way to eliminate "ghosting," "ringing," or dimensional inaccuracies in high-speed prints.
Features:
CoreXY Optimized: Specifically designed for the complex "H-pattern" belt routing of Centauri Carbon.
Low-Stretch Core: Fiber-reinforced construction ensures the belts maintain tension under the high torque of the 4260 stepper motors.
Precision Pitch: Features a standard GT2 (2mm) pitch for smooth engagement with the timing pulleys, reducing "VFA" (Vertical Fine Artifacts).
Wear-Resistant Coating: The teeth are treated with a low-friction fabric to reduce noise and prevent rubber dust buildup on the pulleys.
Synchronized Motion: Sold as a matched assembly to ensure both the "A" and "B" belts have identical elastic properties for balanced gantry movement.
Specifications:
Pitch: 2 mm
Belt Width: 6 mm
Material: Reinforced Rubber
Compatibility: Elegoo Centauri Carbon
Color: Industrial Black
Installation: Factory-finished ends with metal clips/stoppers
Quantity: 2 Pieces (Complete XY Set)
