Description:

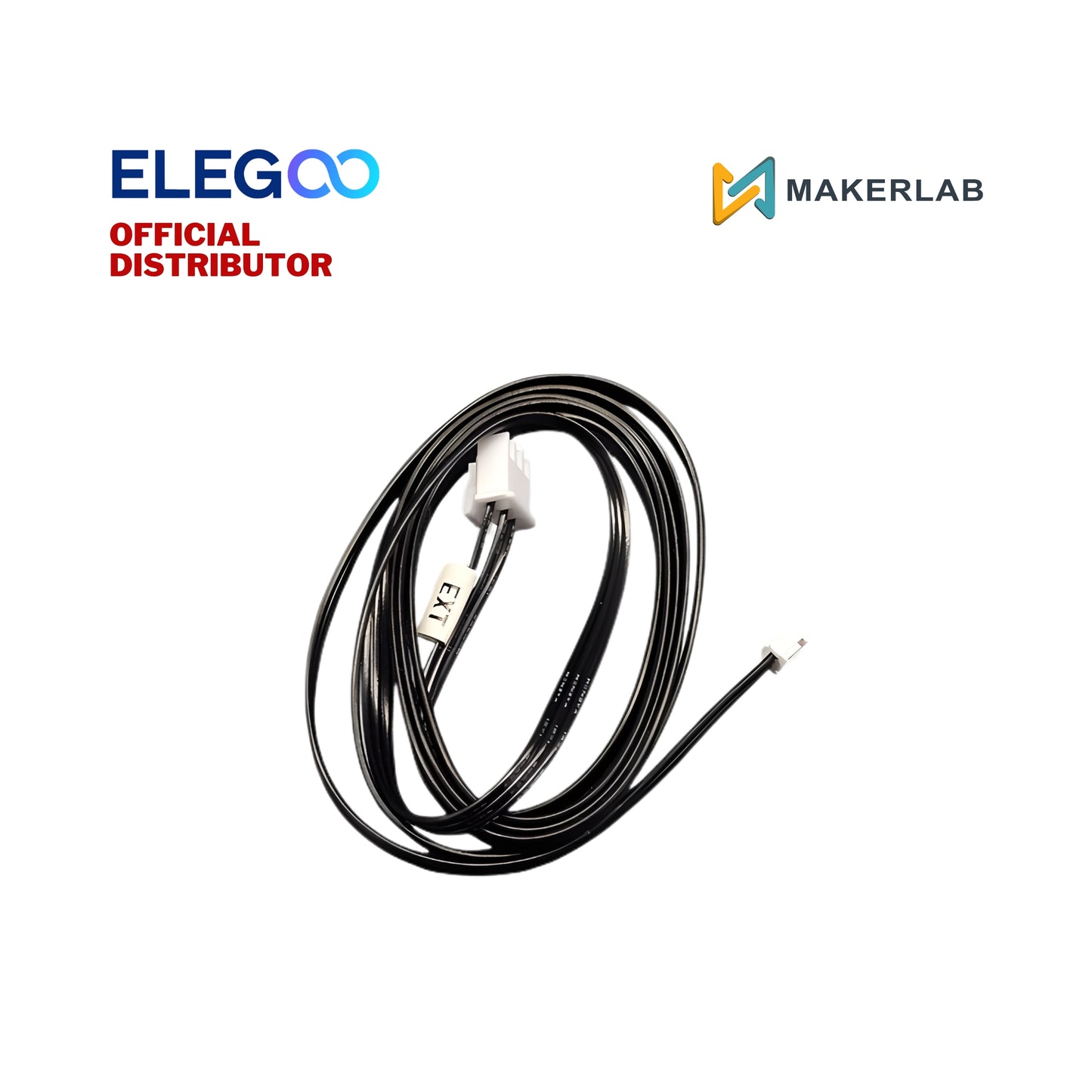

The Z-Axis Photoelectric Limit Switch Line is a high-quality signal cable that transmits data from the optical endstop to the controller. Unlike mechanical switches, photoelectric sensors rely on an uninterrupted light beam; this cable provides the stable power and signal path required to maintain that precision.
As a genuine Elegoo replacement part, it is built to the exact length and specifications required for Centauri Carbon's internal frame routing. It features factory-standard connectors that provide a secure, click-lock fit, preventing the cable from shaking loose during high-speed printing maneuvers. This cable is vital for preventing the build plate from crashing into the bottom of the printer by providing reliable "limit" data.
Features:
Genuine OEM Part: Designed by Elegoo specifically for the Centauri Carbon to ensure 100% electrical and physical compatibility.
Optical Precision Support: Optimized for the low-voltage signals used by photoelectric sensors to ensure zero-latency homing.
Plug-and-Play Connectors: Equipped with pre-installed JST-style terminals for a tool-free, solderless installation process.
High-Flex Construction: Built with multi-strand internal wiring to withstand the vibrations and slight movements of the printer's Z-axis assembly.
Durable Insulation: Rated to resist the ambient heat and chemical exposure common inside a 3D printer enclosure.
Specifications:
MPN (Part No.): 10.202.0221
Compatibility: Elegoo Centauri Carbon
Application: Z-Axis Photoelectric Limit Switch Communication
Connector A: JST-style (3-pin or 4-pin, sensor-side)
Connector B: JST-style (Mainboard/ Adapter-side)
Wire Type: 26 AWG to 28 AWG Ribbon / Twisted Pair
Function: Signal Transmission & Power for Optical Endstop
