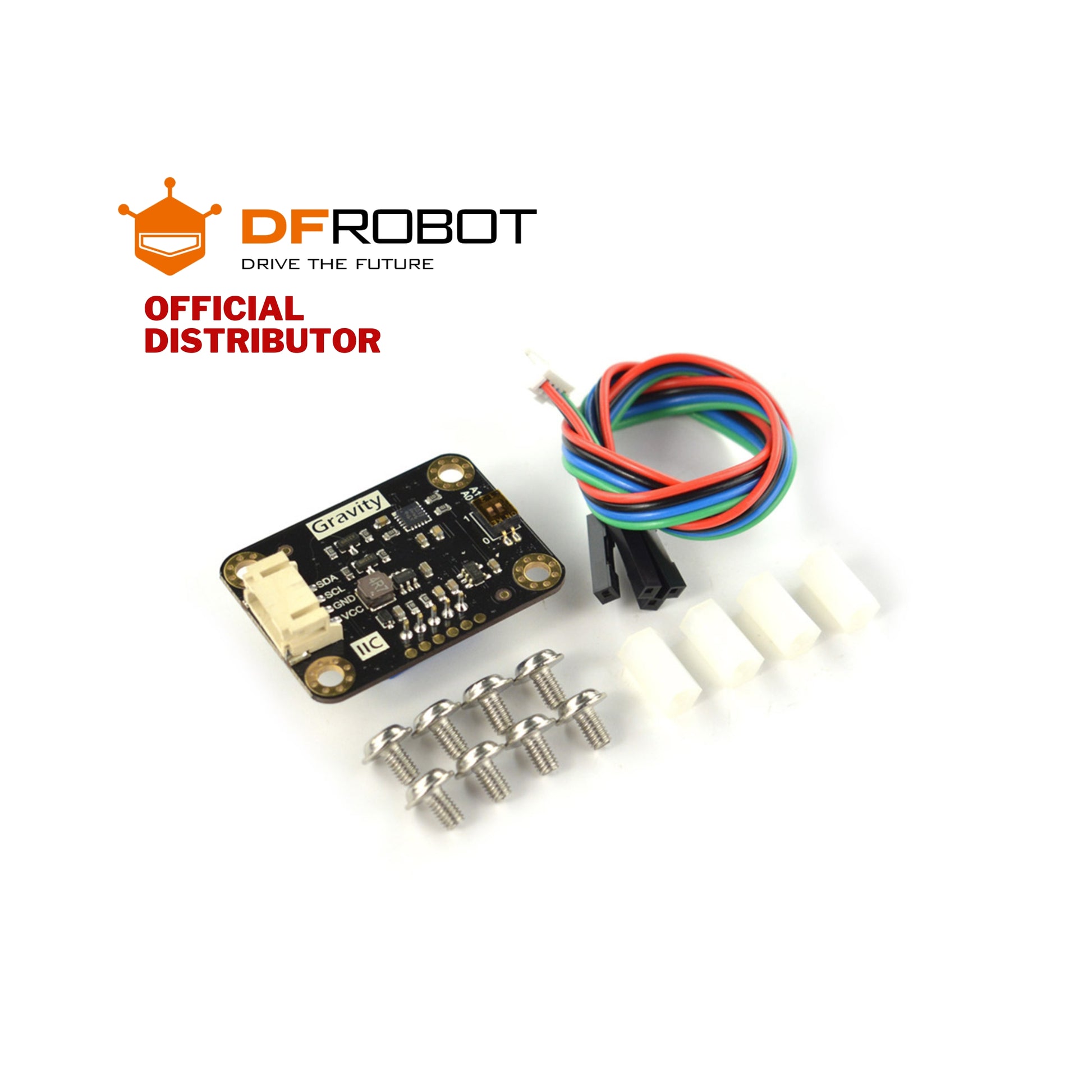

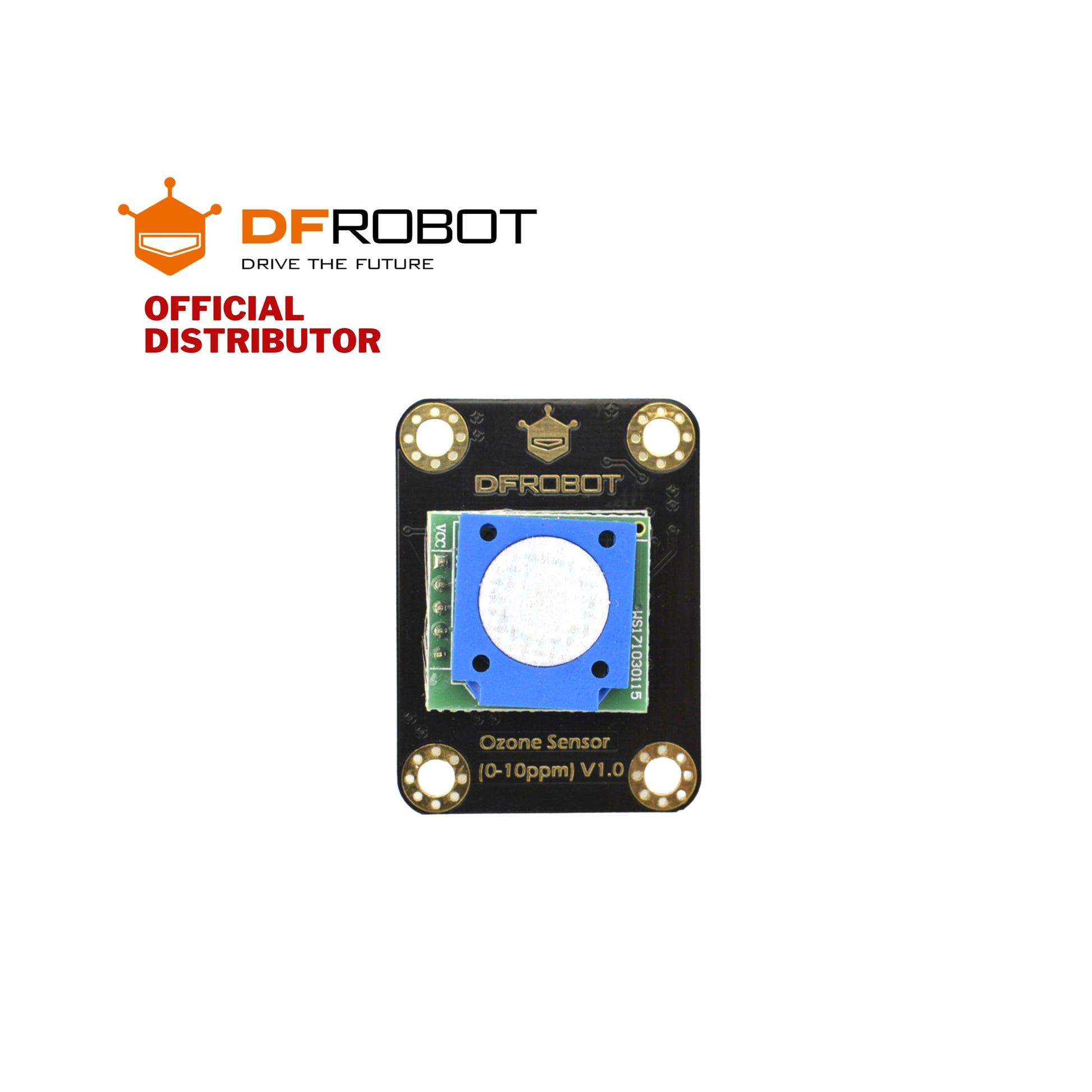

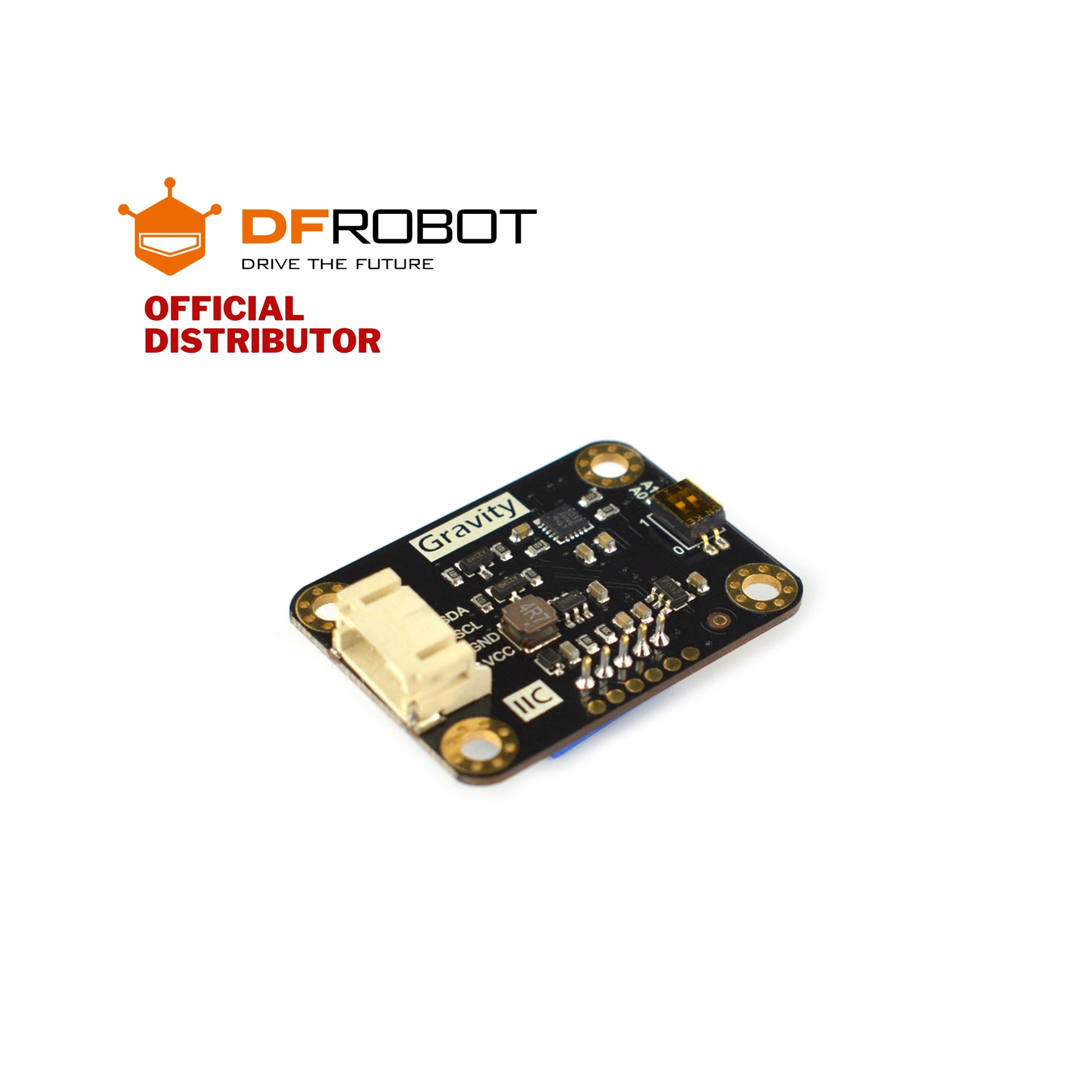

DFRobot Gravity: I2C Ozone Sensor (0-10ppm) | SEN0321

Description:

Gravity: I2C Ozone Sensor (0-10ppm) is based on electrochemical principles and it can measure the ambient O3 concentration accurately and conveniently. With high anti-interference ability, high stablility and high sensitivity, this arduino-compatible ozone sensor can be widely applied to fields like portable device, air quality monitoring device, disinfection cabinets and smart home.

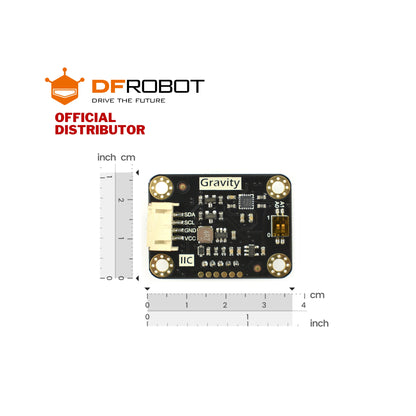

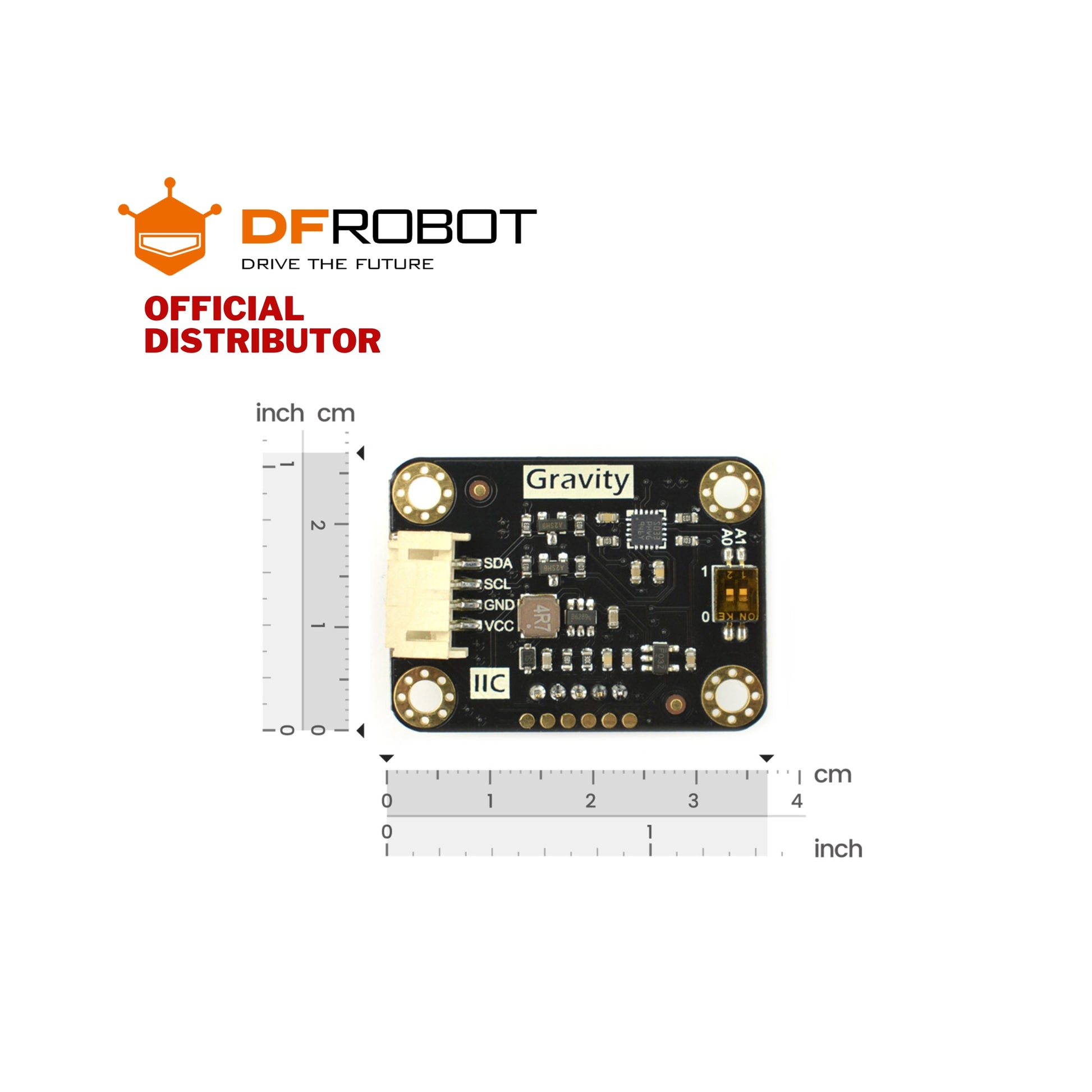

This compact dfrobot ozone sensor supports I2C output, it is compatible with many mainboards like Arduino Uno, esp32, Raspberry Pi and so on. Its resolution can reach to 10ppb. It supports wide range input voltage: 3.3V to 5.5V. Moreover, the lifetime is as long as 2 years. With simple Gravity interface and practical sample code, you can build your own ozone concentration monitor easily and conveniently.

Precautions:

• Do not plug or unplug sensors on the module.
• It is forbidden to change or shift the installation state of electronic components. The module avoids contact with organic solvents (including silicone and other adhesives), coatings, pharmaceuticals, oils and high concentrations of gases.
• The module cannot be completely encapsulated with resin material, and it cannot be immersed in an oxygen-free environment, otherwise the performance of the sensor will be damaged.
• The module cannot be used in the environment containing corrosive gas for a long time. Corrosive gas will damage the sensor.
• The module must not be subjected to excessive shock or vibration.
• The module needs to be warmed up for about 24-48 hours after it is powered on for the first time. After the module is fully stable, it will be tested normally.
• The white waterproof and breathable membrane of the sensor on the module is strictly forbidden to open, otherwise it is regarded as artificial damage.
• Do not install the module in a strong convection air environment.
• Do not place the module in high-concentration organic gas for a long time. Long-term storage will cause the sensor zero point to drift and recover slowly.
