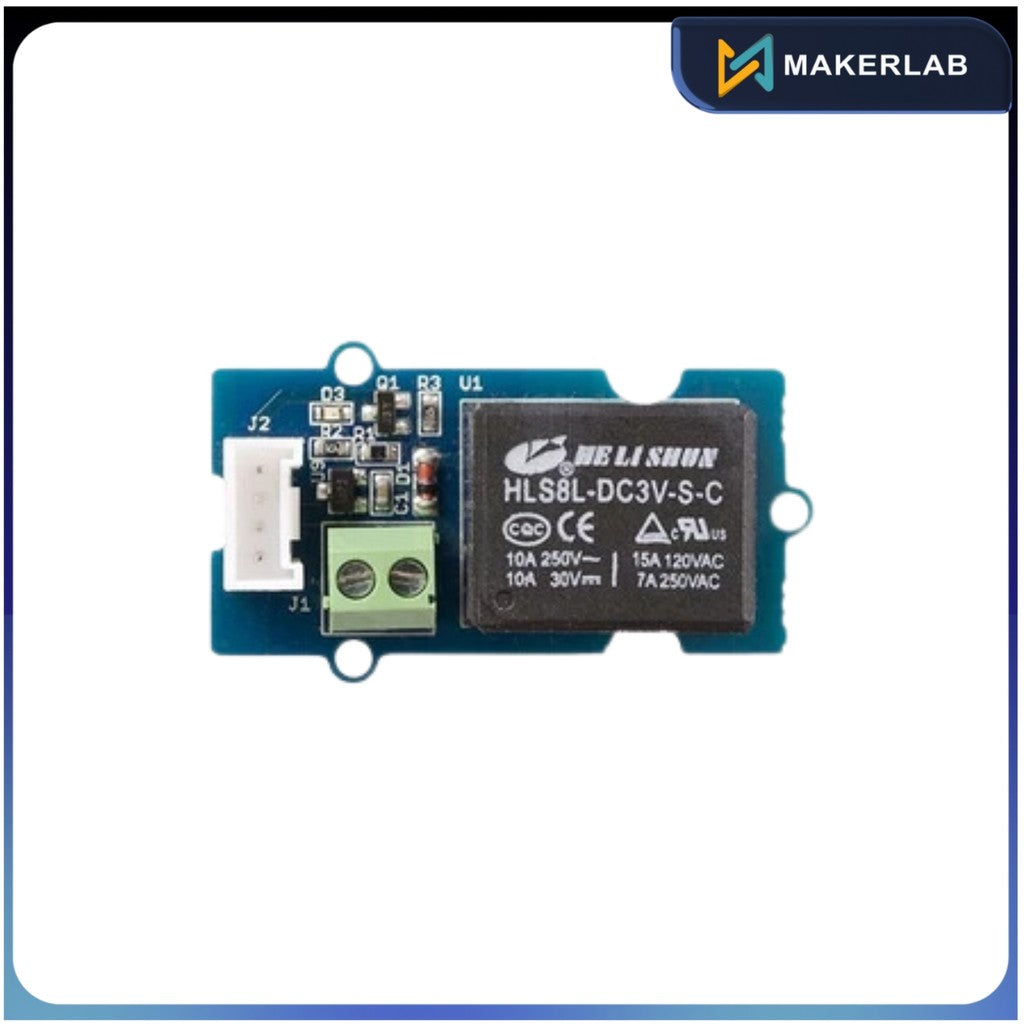

Grove - Relay
The Relay is a digital normally open switch that controls a relay capable of switching much higher voltages and currents than your normal Arduino boards. When the relay is switched on, the LED will light up and the relay will allow current to flow. The peak voltage capability is 250V at 10A.
With the help of the Grove System, engineers and makers can easily avoid jumper-wires problems. Seeed Studio has developed more than 300 Grove modules covering a wide range of applications that can fulfill a variety of needs.
- Operate voltage: 3.3V-5V
- Input current: 100mA
- Rated load: 5A@250VAC 5A@30VDC
- Contact resistance: 50m? @6VDC 1A
- Insulation resistance: 100M? 10ms Max.
- Operate time: 10ms Max.
- Release time: 5ms Max.
- Input interface: Digital
|Dimensions||42mm x24mm x18.5mm|

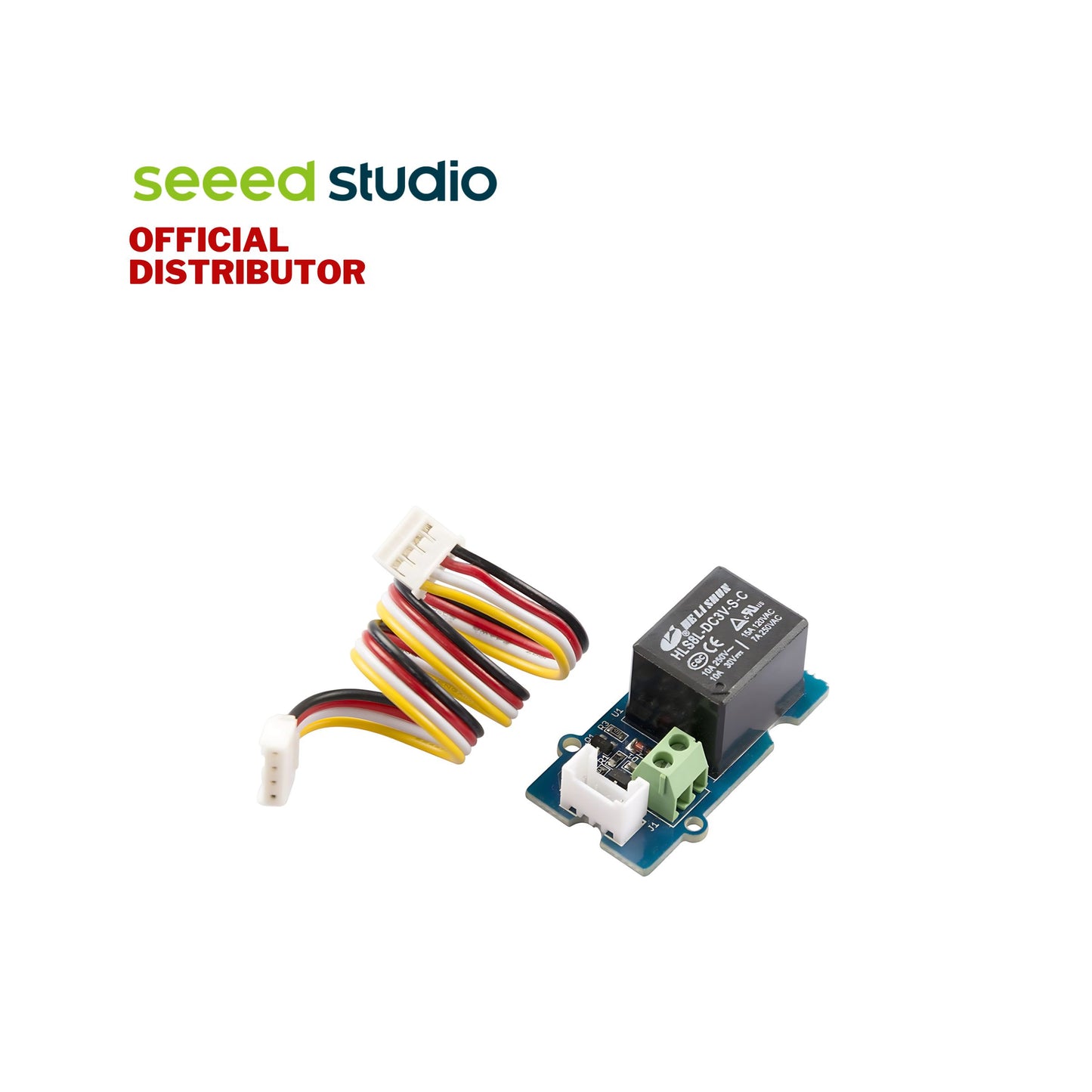

|Grove - Relay||1|
- Schematic and PCB in Eagle format
- PCB in PDF format
- Schematic in PDF format
- HLS8-T73 Series Relay Datasheet
- CDC File
