Grove - Vibration Motor
₱125.00
₱125.00
Sale
Sold out
Tax included.
Shipping calculated at checkout.
Or 3 months for only ₱1,000 with
. Learn More.
. Learn More.
Couldn't load pickup availability
About the Product
Description:

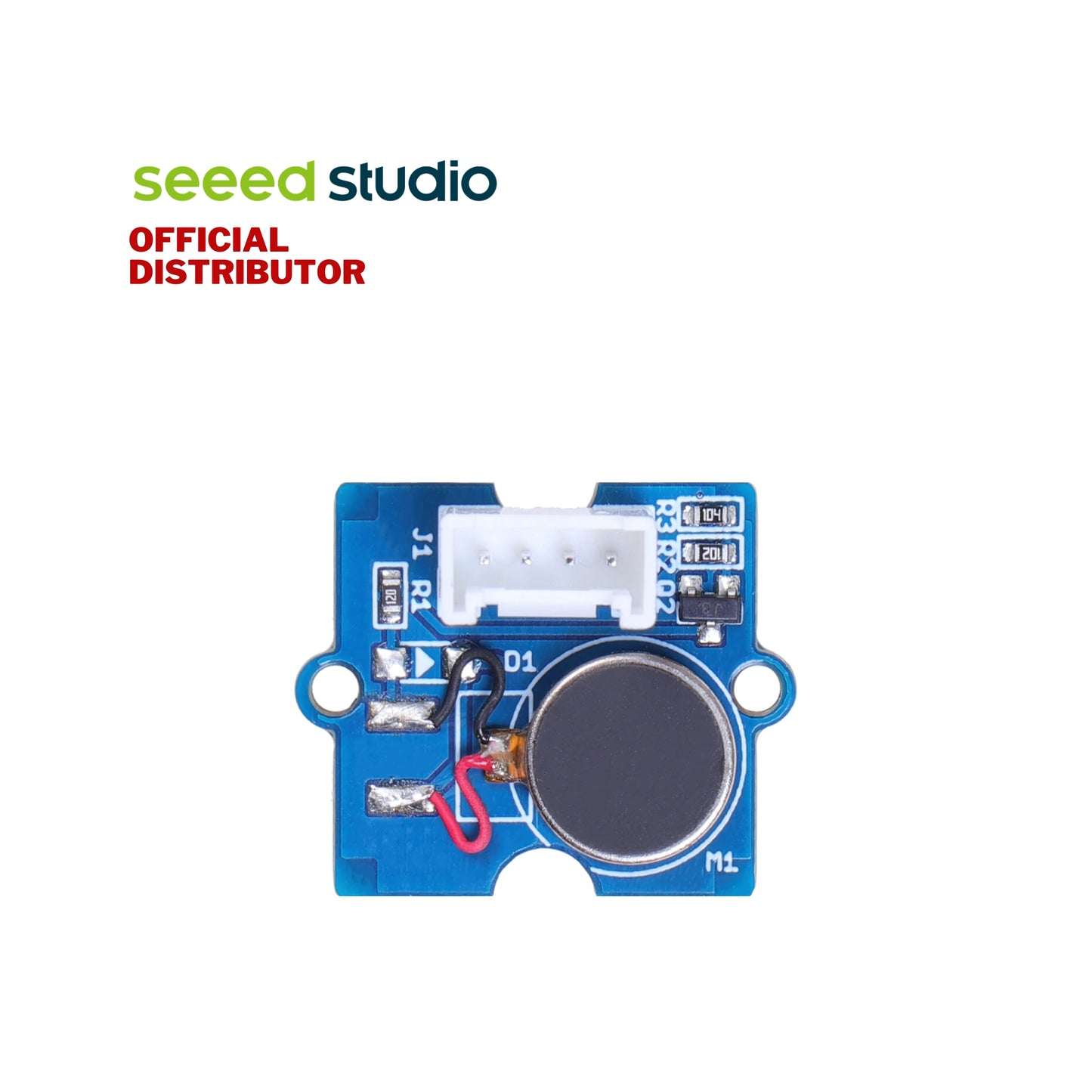

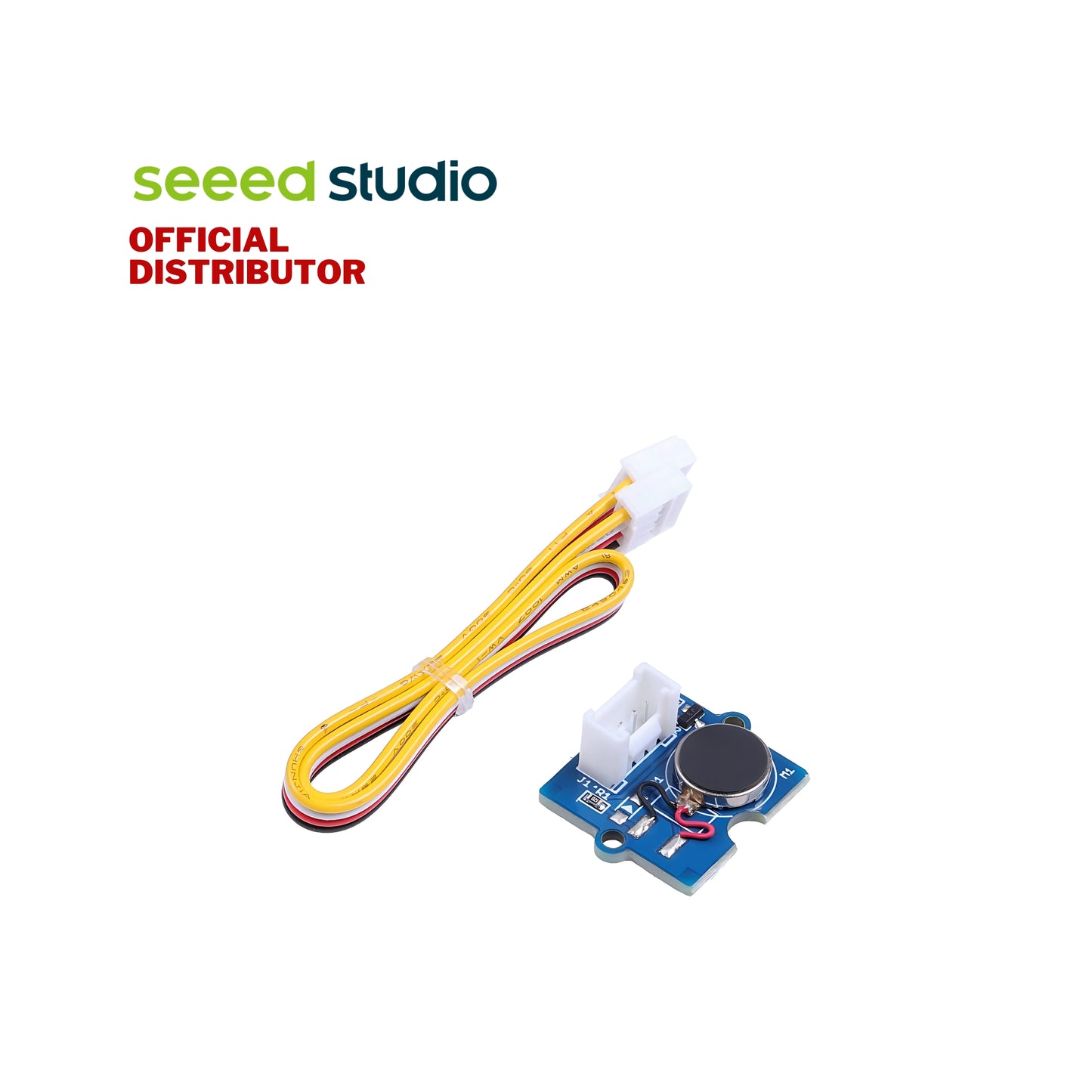

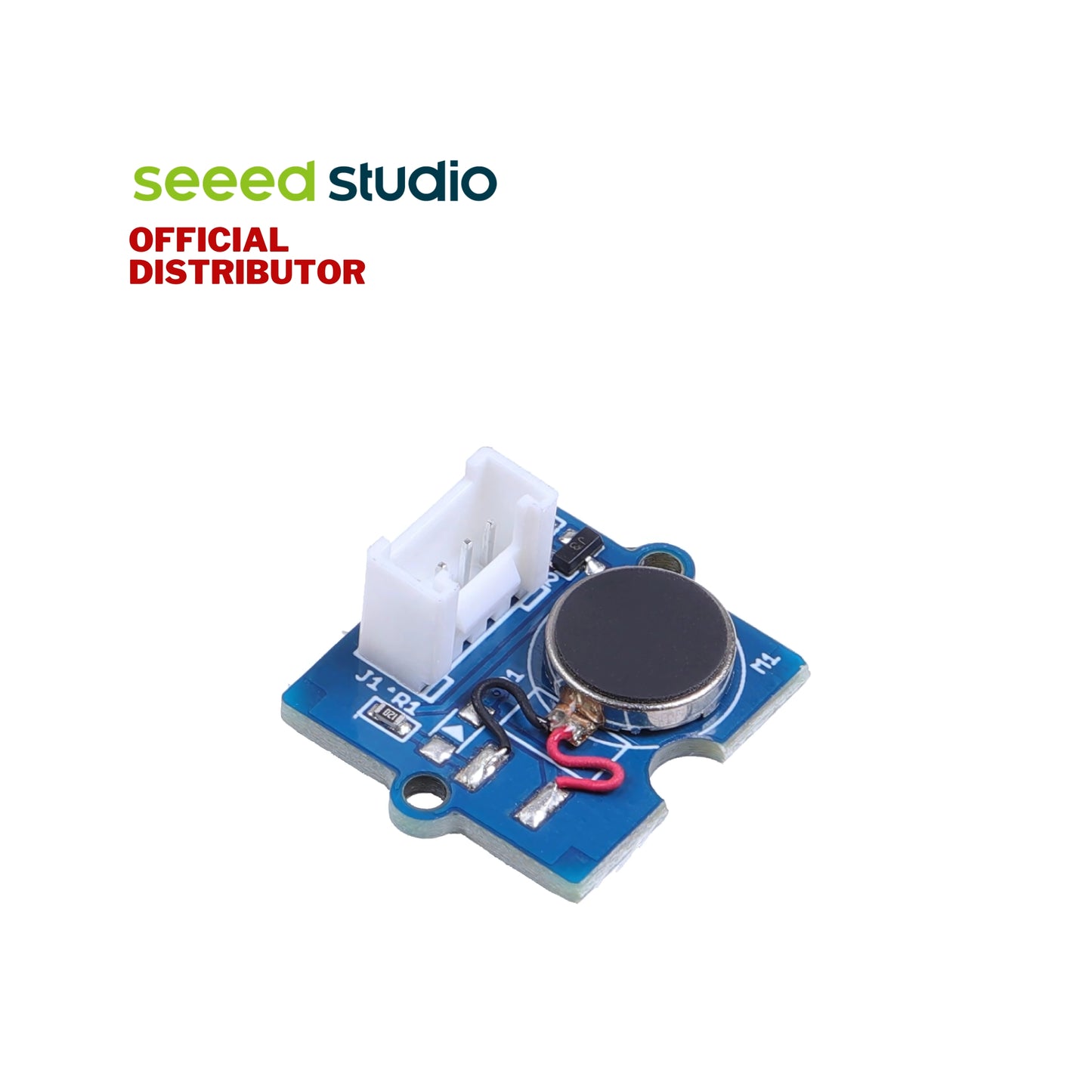

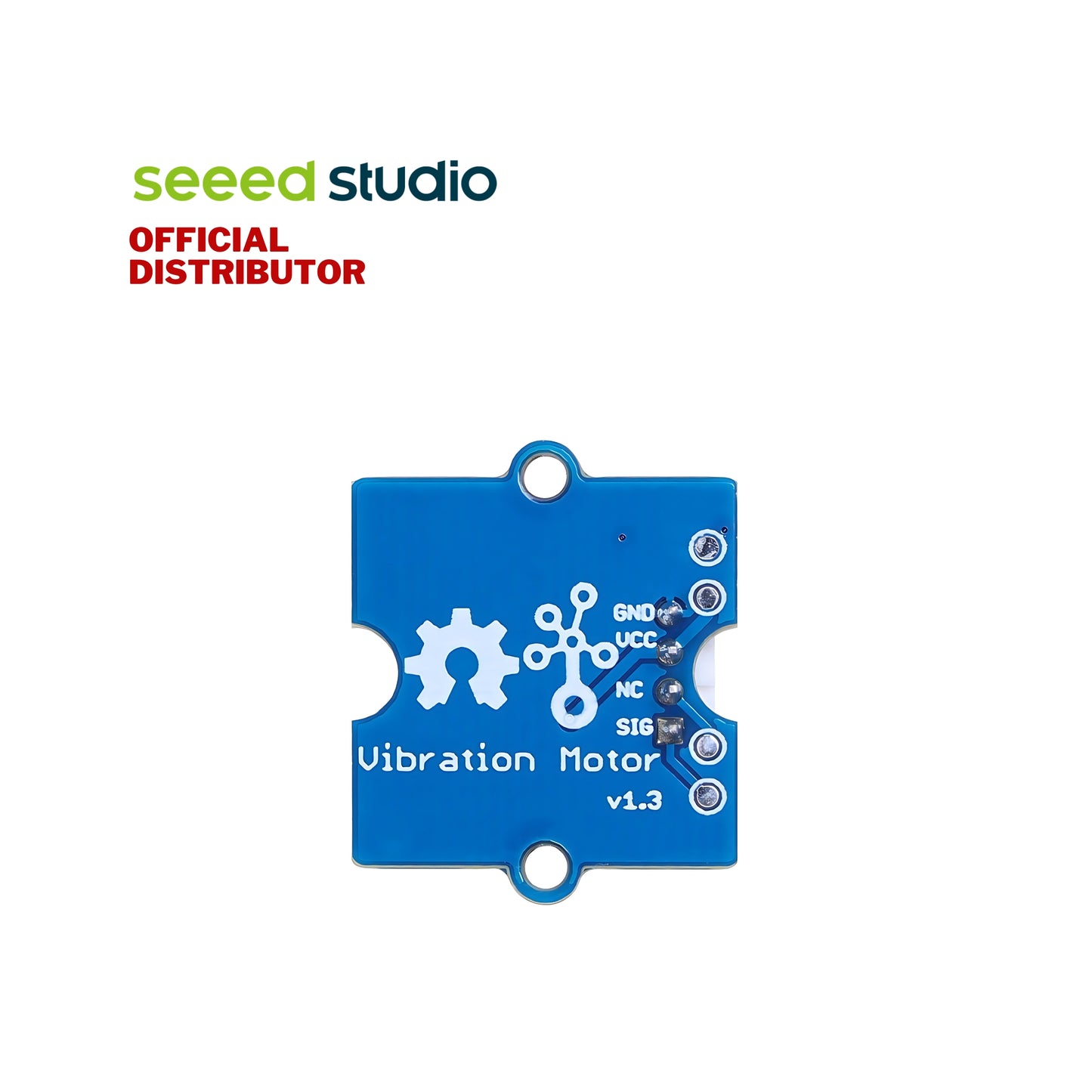

The Grove - Vibration Motor is a mini vibration motor suitable as a non-audible indicator. When the input is HIGH, the motor will vibrate just like your cell phone in silent mode. It consists of one coin-type motor, which is a permanent magnet coreless DC motor. It vibrates when the input logic is HIGH, which can be used to notify the user. Integrated with the Grove interface, it provides a simple way to connect with Arduino boards without soldering (A Grove Base Shield is required). Grove Vibration motor is compatible with Arduino and Raspberry Pi, it can also be used in toys and cell phones, health care products, etc.
Features:
- Grove compatible, plug and play
- Non-audible
- Low power consumption
- High reliability
- Coin size (24mm x 20mm), compact design, embed into your project easily
- Compatible with Arduino & Raspberry Pi, detailed instructions provided
Specifications:
Operating Voltage: 3.0V - 5.5V
Control Mode: Logic Level (When Logic HIGH, the motor is ON. When LOW, the motor is OFF.)
Rated speed: 9000 rpm
Dimensions: 24mm x 20mm x 9.8mm
Weight: 9g
Documents:
Part List:
1x Grove - Vibration Motor
