Description:

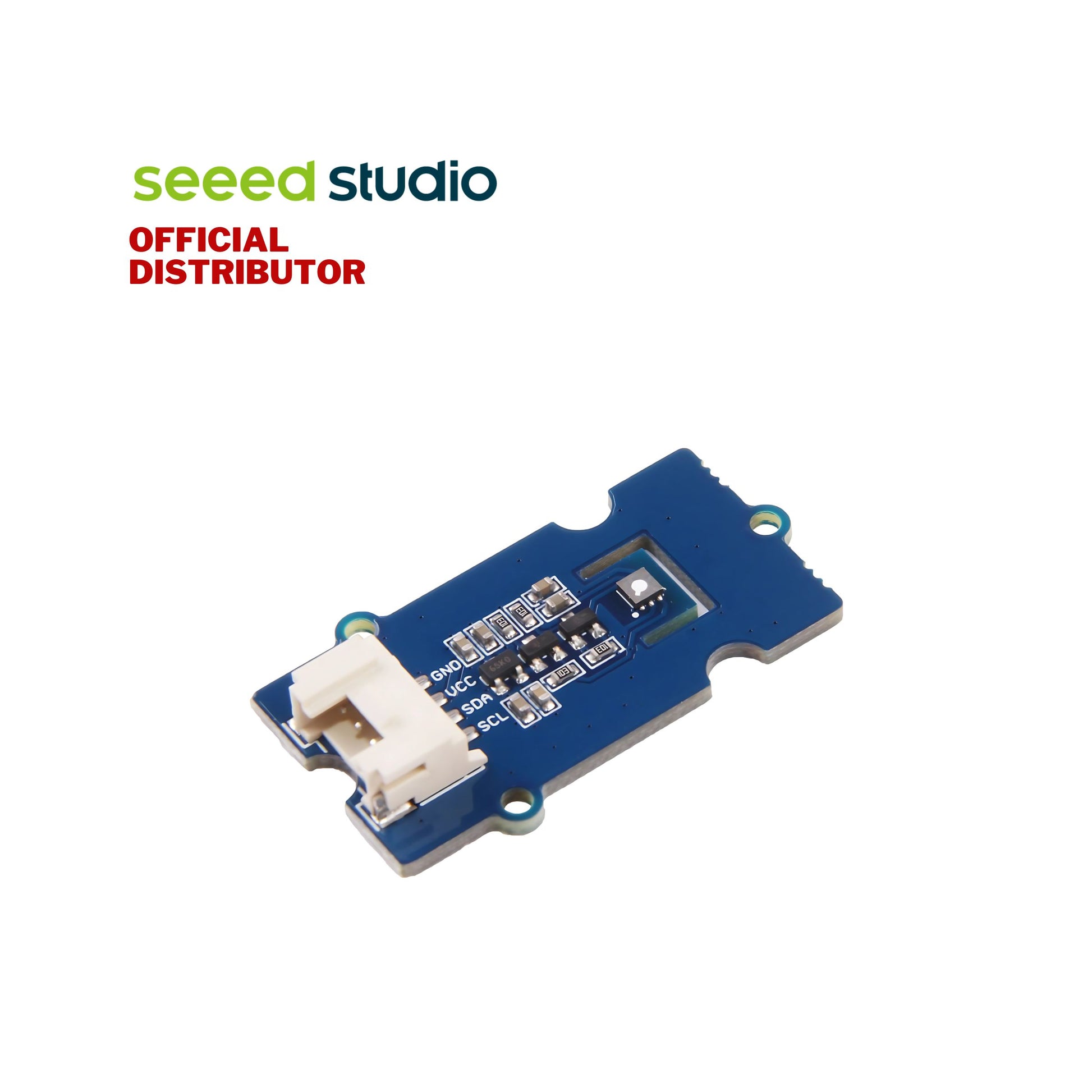

The Grove - VOC and eCO2 Gas Sensor (SGP30) is an air quality sensor. Based on SGP30, this module provides TVOC(Total Volatile Organic Compounds) and CO2eq output with outstanding long-term stability and low power consumption, which makes it a perfect choice for indoor air quality detection using Arduino or Raspberry Pi.
The Sensirion SGP30 is a digital multi-pixel gas sensor that can easily integrate with air purifiers, demand-controlled ventilation, and other IoT applications. Powered by Sensirion’s CMOSens®technology, it integrates a complete sensor system on a single chip featuring a digital I2C interface, a temperature-controlled micro hotplate, and two preprocessed indoor air quality signals. As the first metal-oxide gas sensor featuring multiple sensing elements on one chip, the SGP30 provides more detailed information about air quality.
Features:
Outstanding Stability: Dual-channel NDIR technology to detect carbon dioxide concentration
High-Performance Gas Sensor: Sensirion SGP30, a multi-pixel gas sensor for indoor air quality applications
Low Power Consumption: Supports 48 mA at 1.8V, which enables excellent long-term stability
High Measurement Accuracy: Using a dynamic baseline compensation algorithm and on-chip calibration parameters
Grove Unified Socket: The sensor ensures "Plug and Play" and could be versatile for various applications.
Specifications:
Dimensions: 135mm x 85mm x 10mm
Weight: G.W. 9g
Working Voltage: 3.3V/5V
Output Range: TVOC:0 ppb to 60000ppb / CO₂eq:400 ppm to 60'000 ppm
Sampling Rate: 1 Hz
IIC Address: 0X58

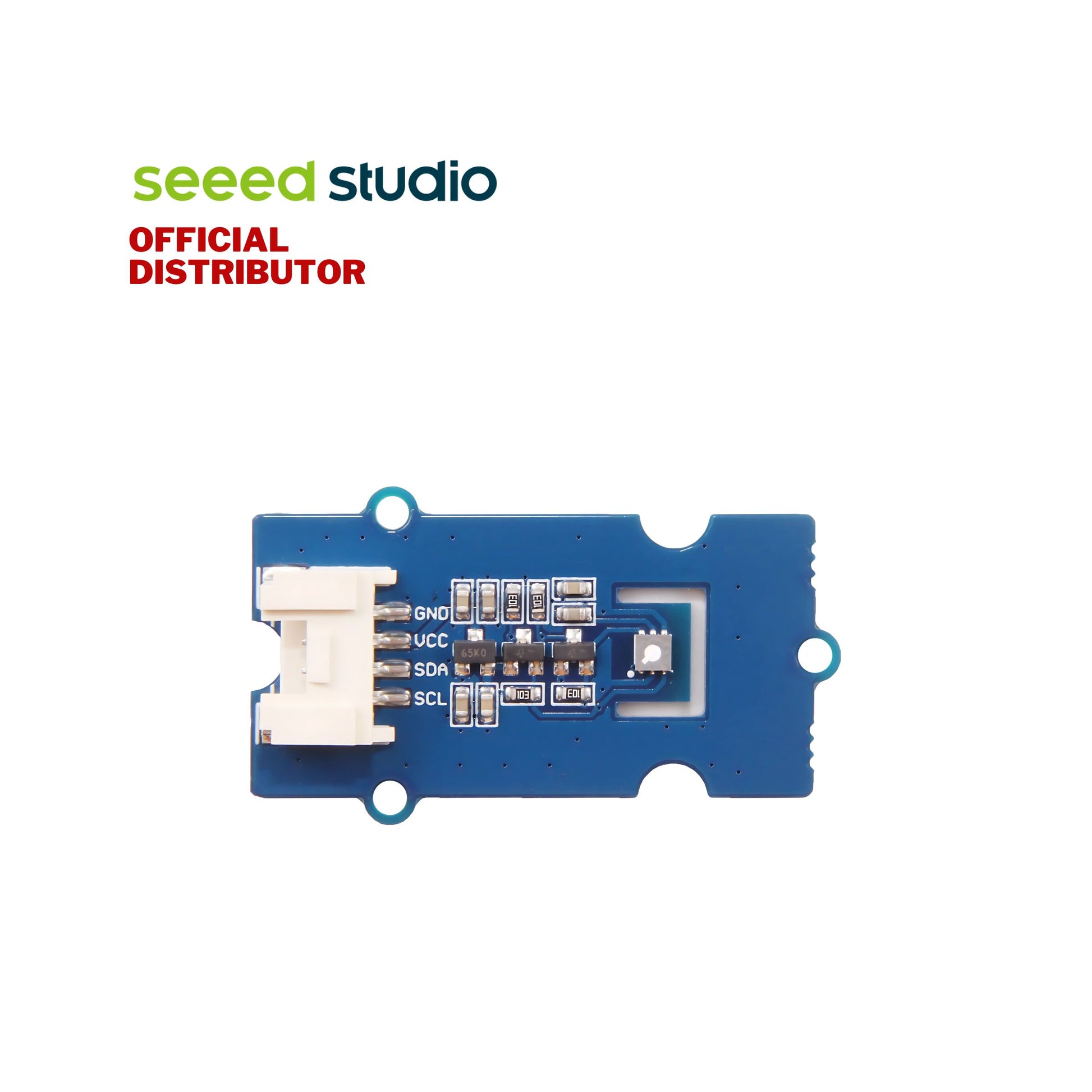

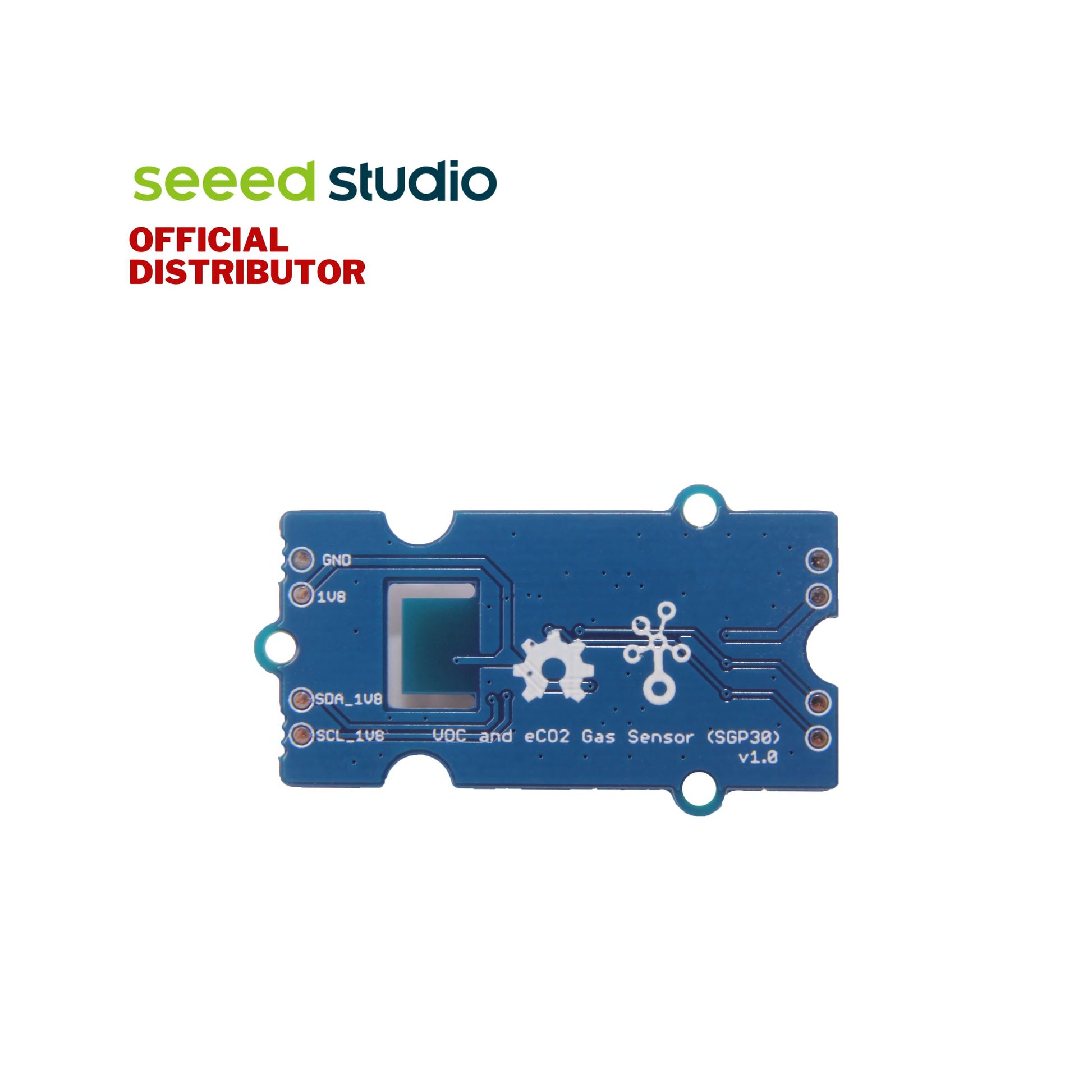

Hardware Overview:
Application:
- Indoor air quality monitoring
- Air purifier
- Demand-controlled ventilation
- New house air conditioner monitor
Documents:
Part List:
1x Grove - VOC and eCO2 Gas Sensor (SGP30)
1x Grove - Cable
